Vollrath  |  SKU: 3640951

Vollrath 3640951 Steam Tables & Food Wells

$4,804.15
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

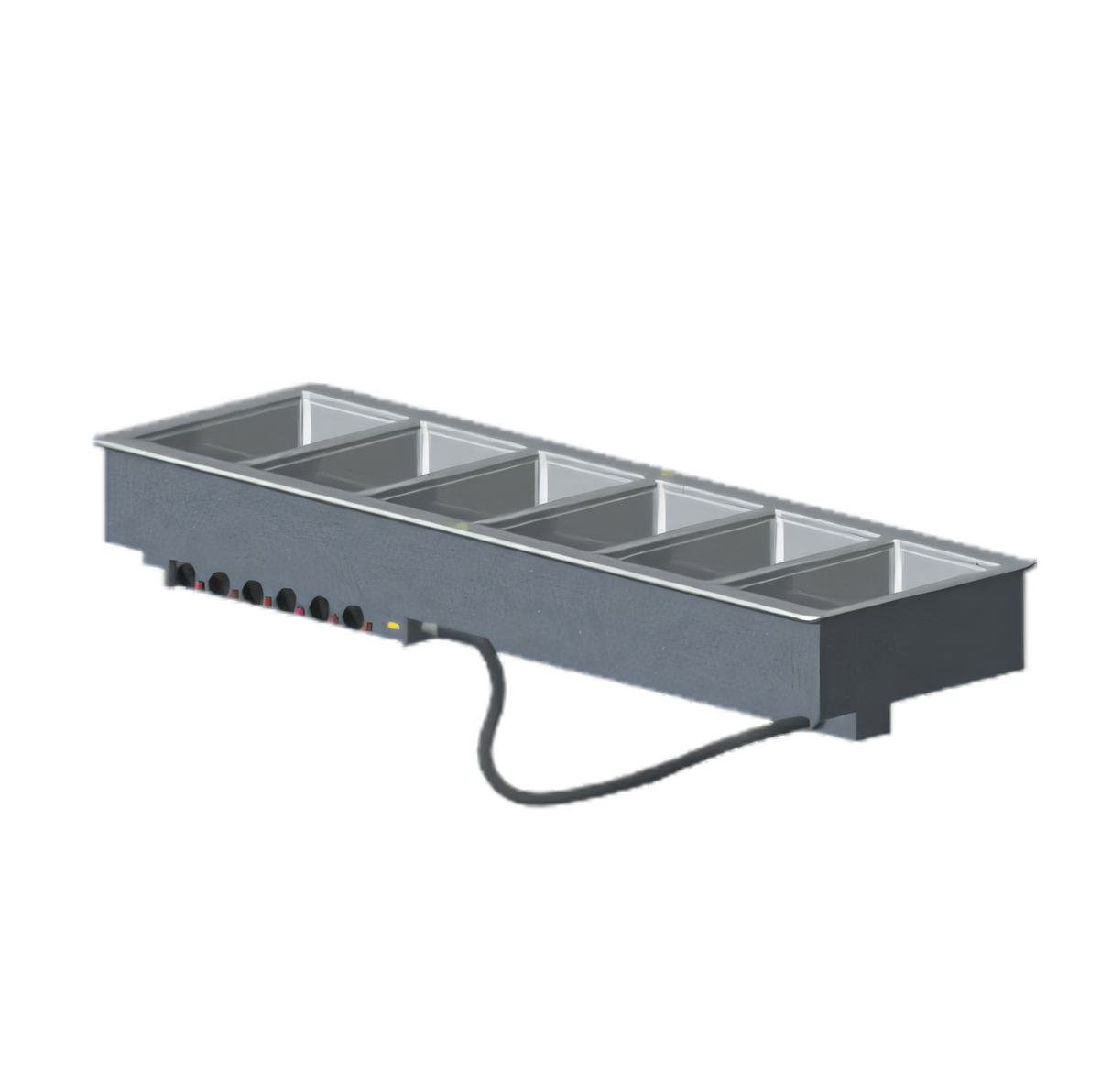

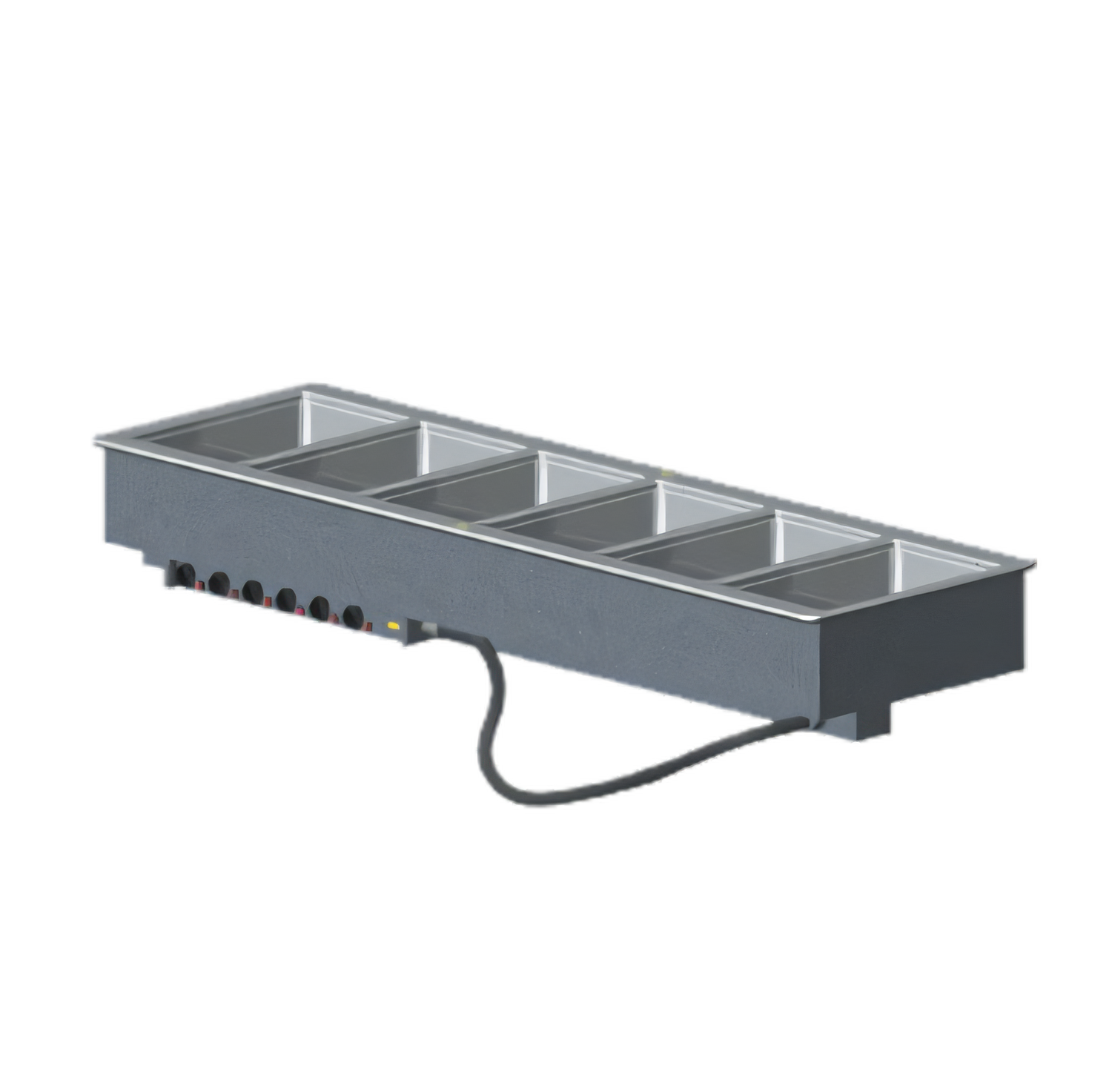

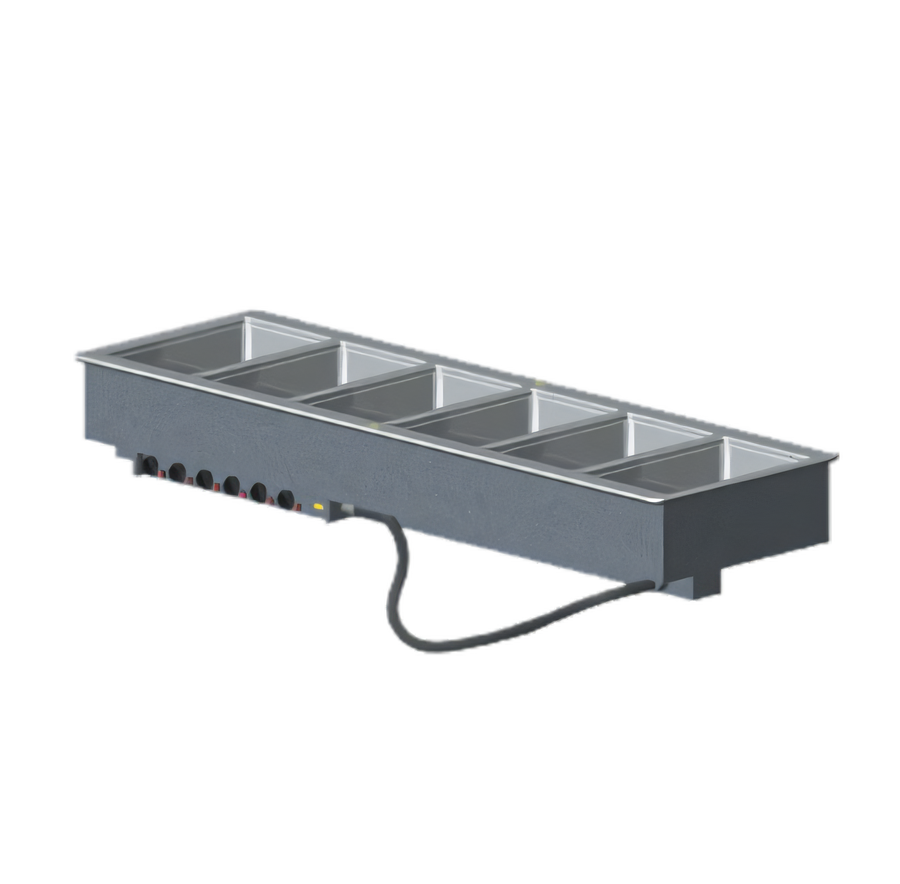

Vollrath 6-Well Electric Drop-In Hot Food Well

Model 3640951 | 1000 W per well | Manifold Drain

Build a high-capacity, wet-operation steam table directly into your counter with this U.S-made, NSF-listed Vollrath six-well hot module. Each of the (6) 12" × 20" wells is individually heated and thermostatically controlled, giving you precision holding power for a full line-up of menu favourites.

Why you’ll love it

  • All-stainless construction – 18 ga top with 20 ga deep-drawn wells resists corrosion and cleans up fast.
  • True drop-in design – factory-installed 6 ft cord & 6-50P plug eliminates hard wiring.
  • Drip-free flange & full-perimeter marine edge contain spills and condensation.
  • 1" copper manifold drain with individual well shut-offs plus master shut-off speeds nightly clean-up.

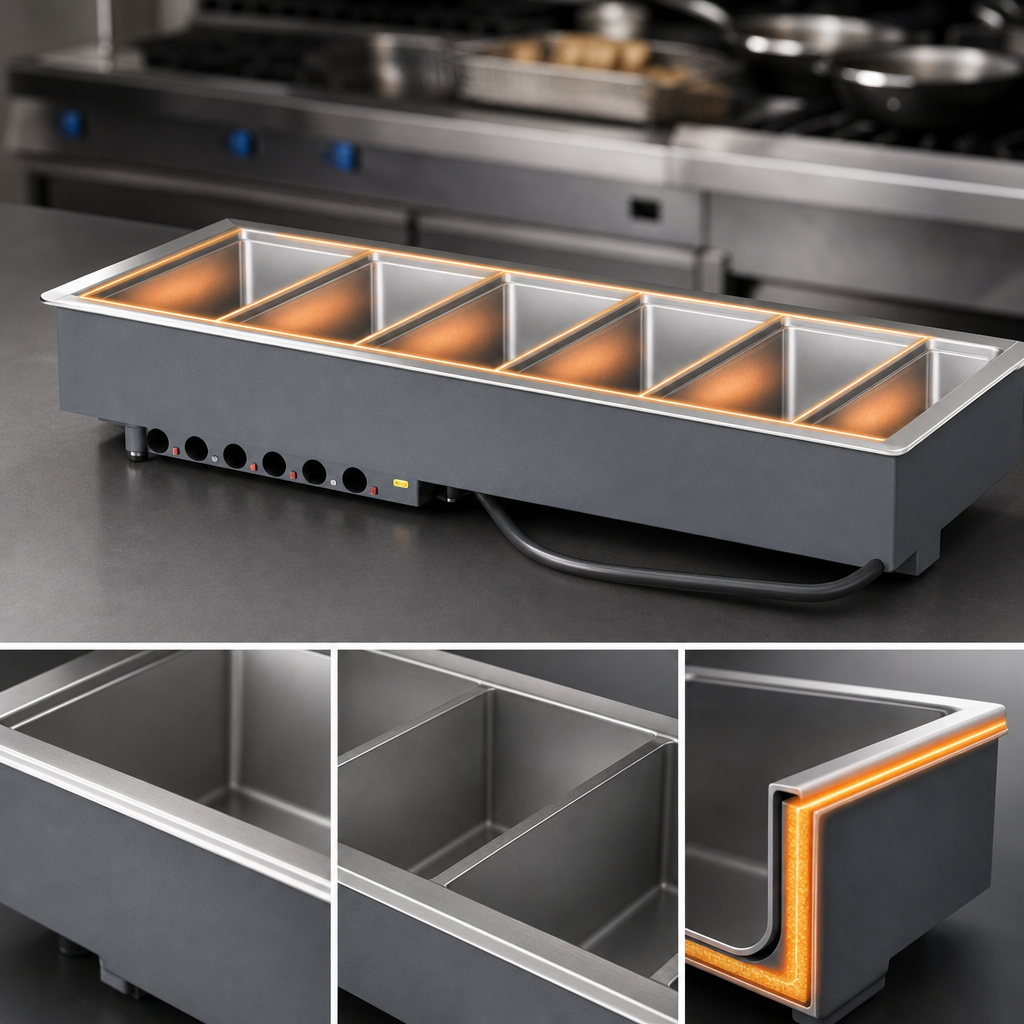

  • Zero-clearance installation – high-density fiberglass insulation keeps heat in the wells, not in your cabinetry.
  • Individual infinite controls and indicator lights are factory-mounted in a stainless control panel (remote-mount capable up to 3 ft).
  • Ships with positioning & mounting clips for counters up to 3" thick (7/8" corner-radius cut-out).
  • cULus, NSF 4 listed and proudly made in the USA.

Technical Specifications

Capacity (6) full-size 12" × 20" pans, up to 6" deep (wet operation only)
Overall dimensions 81-1/4" W × 26" D × 21-1/2" H (206.4 × 66 × 54.6 cm)
Counter cut-out 80-1/2" W × 25-1/4" D (204.5 × 64.1 cm) – 7/8" (2.2 cm) corner radius required
Wells 20 ga stainless; individually insulated & heated (1000 W each)
Total power 6000 W
Electrical 208-240 V / 60 Hz / 1-ph, 21.6–25.0 A, factory-wired cord & NEMA 6-50P plug
Controls 6 independent infinite switches with power indicator lights
Drain 1" copper manifold with individual well valves & master shut-off
Exterior housing 18 ga galvanized steel
Certifications NSF 4, cULus
Country of origin Made in USA
Warranty 1-year parts & labour (see Vollrathfoodservice.com for full policy)

For proper performance, operate with water in each well. Adaptor bars are recommended when using fractional pans.

Important: Modular drop-ins are built-to-order and cannot be cancelled or returned once production has begun. Verify cut-out size, electrical service, and local code requirements before ordering.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Shipping Weight

232.0lbs

Controls

infinite controls

Pan Capacity

(6) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Drain

with drain

Construction

stainless steel top, corrosion resistant steel exterior

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 6000 watts, 208-240v/60/1-ph, 21.6-25.0 amps, cord with NEMA 6-50P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
