Vollrath 3640950HD Steam Tables & Food Wells
Description

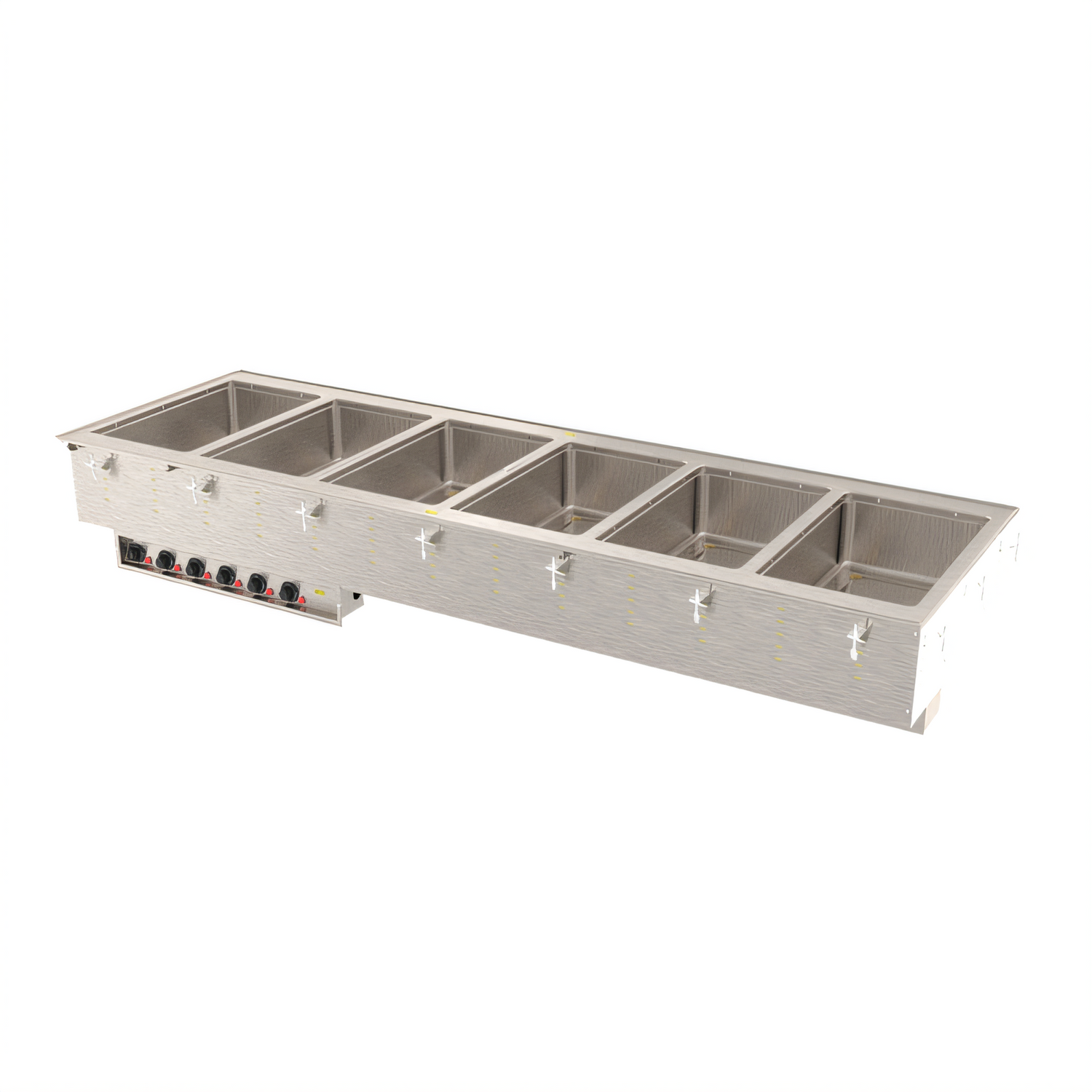

Vollrath Six-Well Modular Marine-Grade Drop-In Hot Food Well
625 W per well • Infinite Controls • 208 V Plug-InHold six full-size steam-table pans at safe, mouth-watering temperatures—all from a single, ready-to-install module. Built from 316 marine-grade stainless steel and proudly made in the USA, this Vollrath drop-in brings NSF-certified performance, rugged durability and true plug-and-play convenience to any buffet line, servery or catering station.
Key advantages

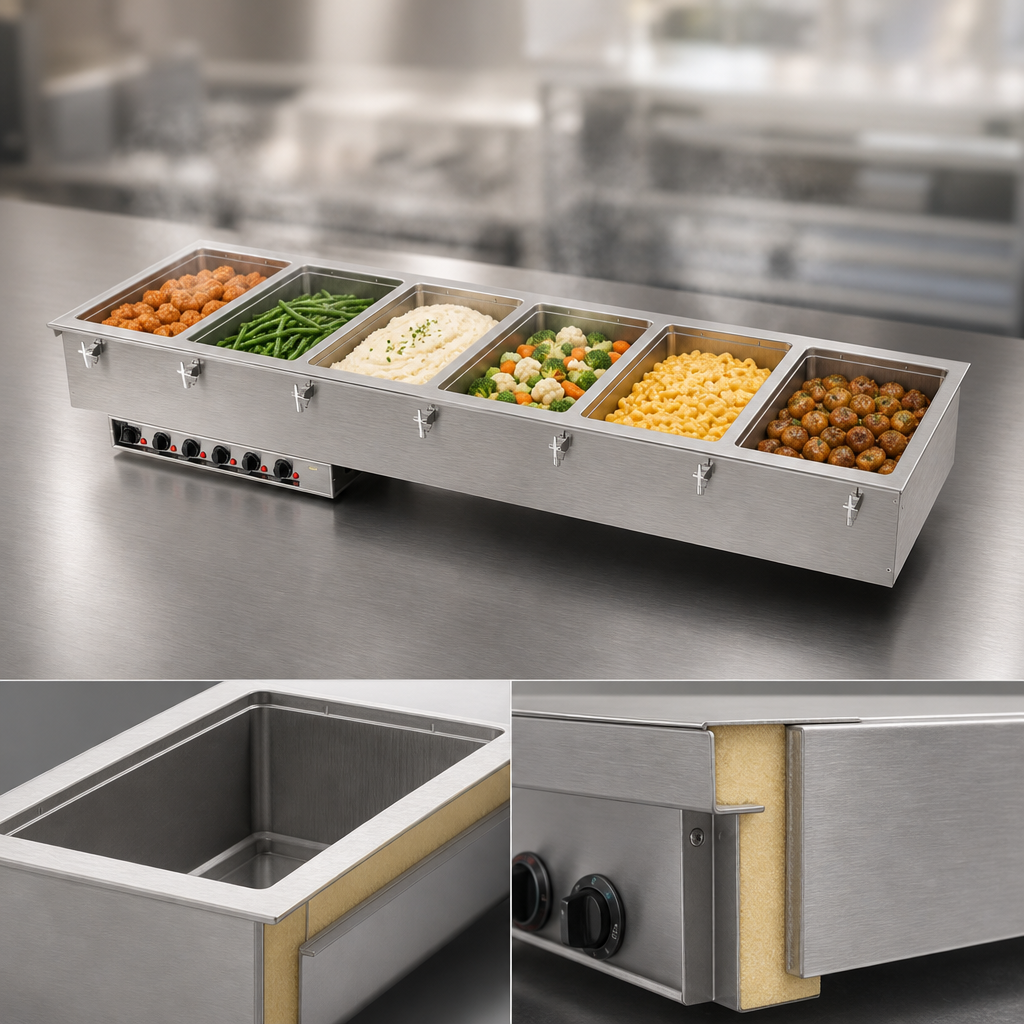

- Six individually heated and insulated 12 ″ × 20 ″ wells—perfect for full-size or fractional pans up to 6 ″ deep.
- 20-gauge 316 stainless wells resist corrosion from salted water and aggressive cleaners.
- Independent infinite controls with bright power indicators let you fine-tune each menu item.
- Wet-operation design meets NSF 4 standards for safe hot-food holding.
- Drip-free full-perimeter flange and included gasket protect counter surfaces.
- ½ ″ ball-valve drain on every well plus 1 ″ copper manifold with master shut-off for quick, sanitary clean-outs.
- Ships ready to use—6 ′ cord with NEMA 6-30P plug eliminates hard-wiring.
- Zero-clearance, top-mount installation with stainless mounting clips for counters up to 3 ″ thick.
- NSF-listed, cULus-certified, and backed by Vollrath’s 2-year HD-well warranty.
Ideal for
- Buffets & cafeterias
- QSR and fast-casual restaurants
- Supermarket & deli hot bars
- Catering lines & concessions
Technical specifications
| Number of wells | 6 (full-size) |
|---|---|
| Well size (usable) | 12 ″ × 20 ″; accepts pans up to 6 ″ deep |
| Well construction | 20-ga 316 marine-grade stainless, fully insulated |
| Top / exterior | 18-ga stainless steel top & housing |
| Overall dimensions | 81 ¼ ″ W × 26 ″ D × 21 ½ ″ H |
| Counter cut-out | 80 ½ ″ W × 25 ¼ ″ D (7/8 ″ corner radius) |
| Heat output | 625 W per well (3,750 W total) |
| Electrical | 208 V / 60 Hz / 1-phase, 18 A, 6 ′ cord with NEMA 6-30P plug |
| Controls | Six independent infinite switches; remote panel with 3 ′ tether & power lights |
| Drain system | ½ ″ drains with individual ball valves + 1 ″ copper manifold & master shut-off |
| Required clearance | Zero—unit is designed for tight, top-mount installs |
| Certifications | NSF 4 (wet operation), cULus |
| Country of origin | Made in USA |
Marine-grade wells carry a two-year limited warranty. Modular drop-ins cannot be canceled or returned. For complete warranty details, visit VollrathFoodservice.com.
