Vollrath 3640950 Steam Tables & Food Wells
Description

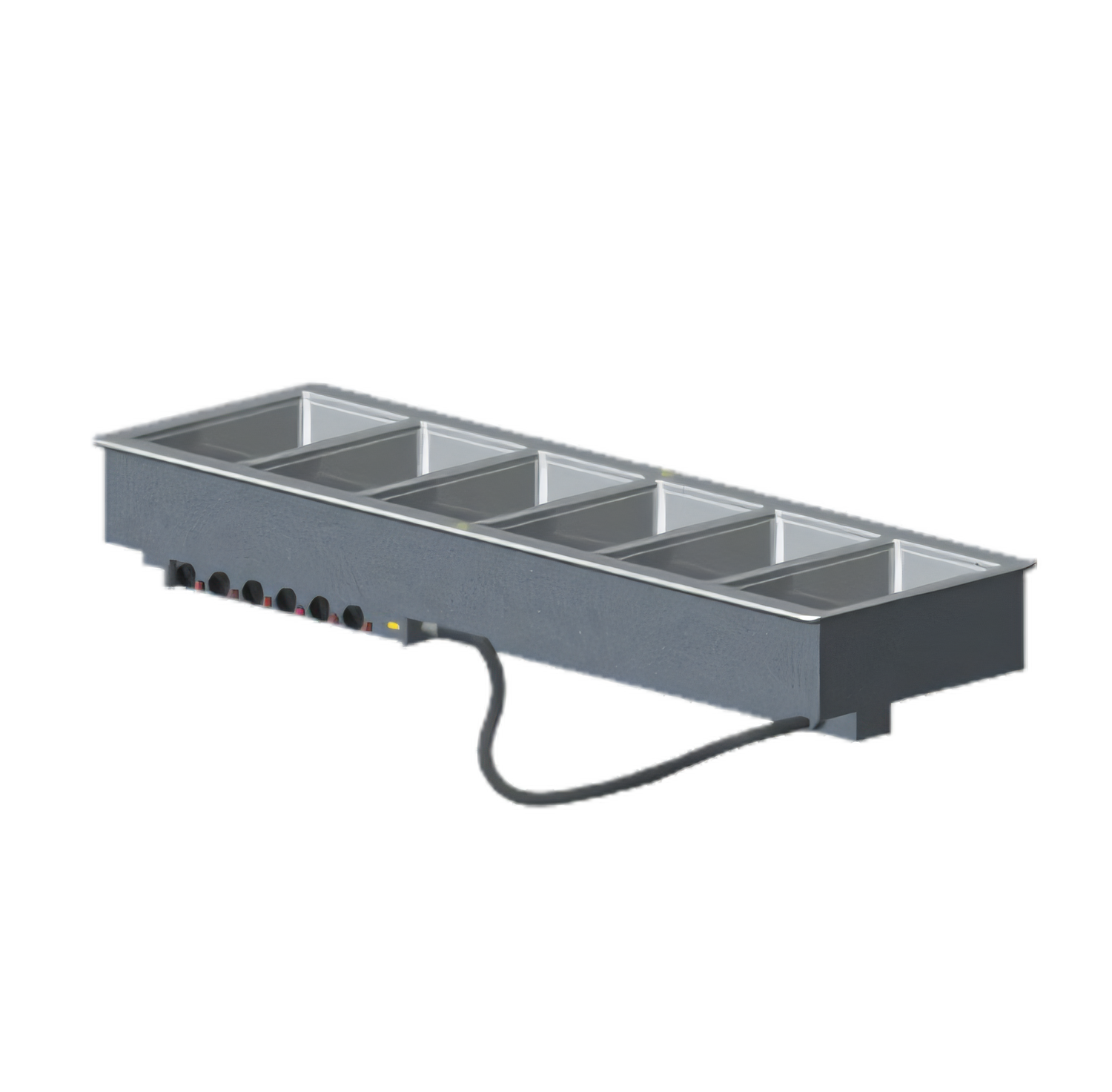

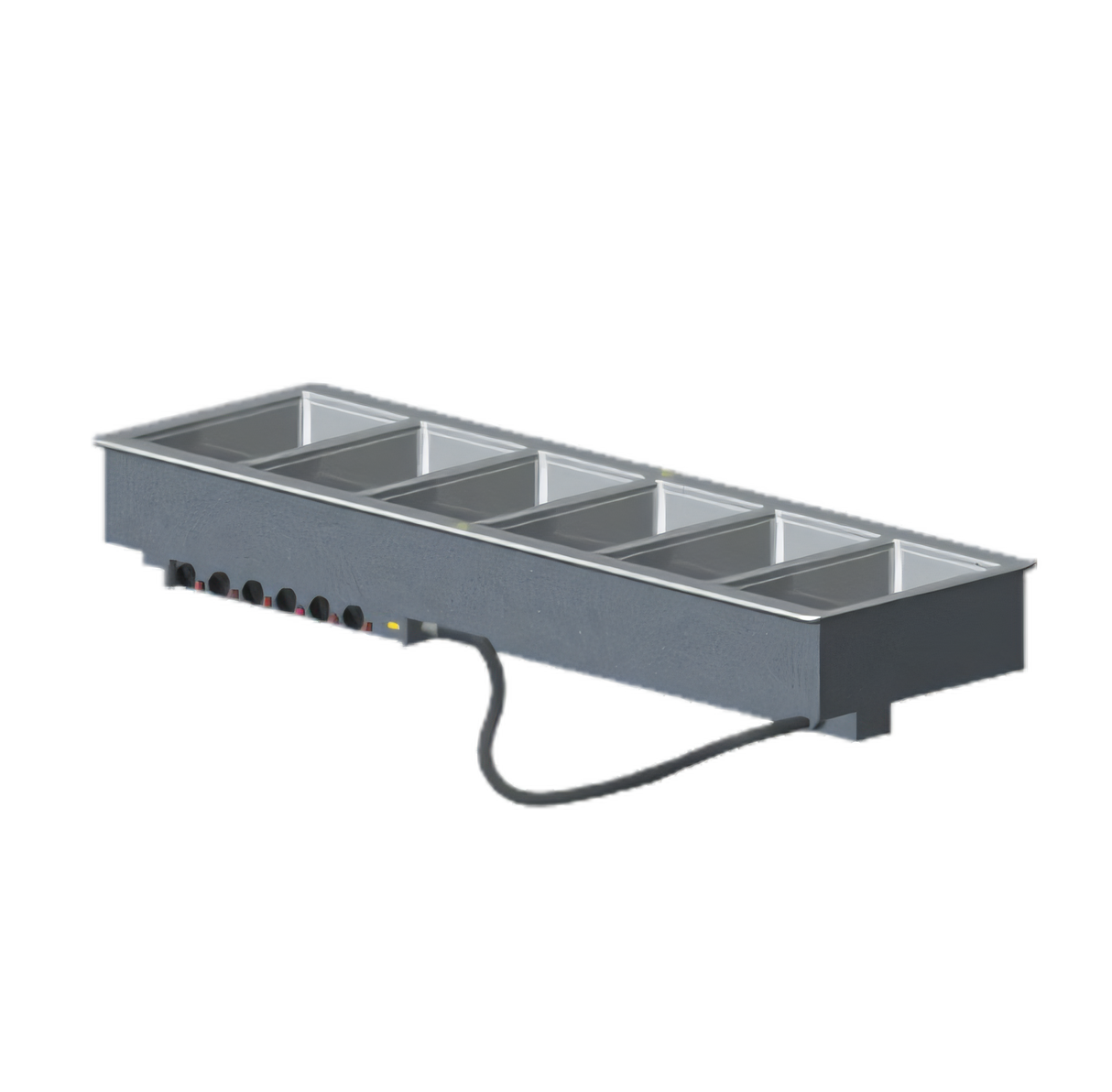

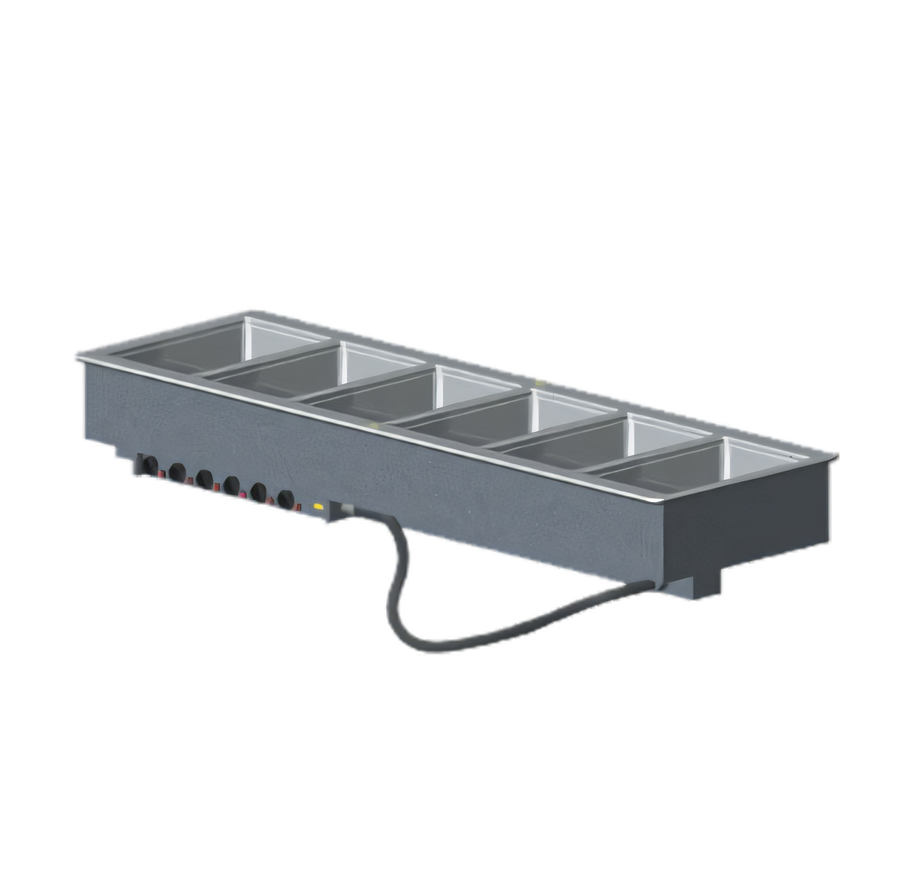

Vollrath 6-Well Drop-In Hot Food Well
Standard manifold drain • Infinite controls • 208 V / single-phaseKeep up to six full-size steam-table pans at safe, appetizing temperatures with this heavy-duty, Made-in-USA drop-in from Vollrath. Independent infinite controls, a drip-free stainless flange, and a 1" copper manifold drain make this the go-to hot well for busy serving lines, buffets, and cafeteria stations.
Why you’ll love it
- Six individual 12" × 20" wells – 20 ga stainless, deep-drawn for maximum durability.
- Wet operation only for even, gentle heat that protects food quality.
- Independent infinite controls with power indicator lights for intuitive operation and precise holding.
- 1" copper manifold drain with individual well shut-offs plus a master shut-off for fast, mess-free cleanup.
- Drip-free perimeter flange contains spills and condensation within the counter opening.
- High-density fiberglass insulation on sides, between wells, and below elements enables zero-clearance installation.
- Includes mounting & positioning clips that accommodate counters up to 3" (7.6 cm) thick.
- 6 ft tethered control-panel cord and factory-installed NEMA 6-30P plug – no hard-wiring required.
- NSF 4 & cULus listed for safe, code-compliant operation.
Specifications
| Model | 36409* |
|---|---|
| Well count / size | 6 wells • each holds 1 full-size pan (12" × 20") up to 6" deep |
| Operation | Wet heat only |
| Control type | Infinite manual dial (one per well) |
| Total wattage | 3,750 W (625 W per well) |
| Electrical | 208 V / 60 Hz / 1-phase • 18 A • cord & NEMA 6-30P plug included |
| Overall dimensions | 81 ¼" W × 26" D × 21 ½" H |
| Counter cut-out | 80 ½" W × 25 ¼" D • 7/8" corner radius |
| Top material | 18 ga stainless steel |
| Exterior housing | 18 ga galvanized steel |
| Drain connection | 1" (25 mm) copper tubing manifold |
| Agency approvals | NSF 4, cULus, US made |
*Also referred to by Vollrath as “Standard manifold drain, infinite control” configuration.
Installation tips
- Ensure cut-out has required 7/8" (2.2 cm) corner radius for a proper fit.
- Use included clips to center unit and tighten to counter thickness.
- Adaptor bars (sold separately) are recommended when using fractional pans.
- Operate with water in each well to meet NSF performance standards and prevent element damage.
Warranty
Backed by Vollrath’s one-year parts & labor warranty. For complete terms, visit vollrathfoodservice.com.
Upgrade your serving line with the rugged reliability and energy-efficient performance of Vollrath’s six-well drop-in. Order today and serve with confidence tomorrow!
