Vollrath

Vollrath 6-Well Drop-In Electric Hot Food Well Unit, Wet Operation, Individual Thermostatic Controls, 316 Marine Grade Stainless Steel Wells

SKU: 3640911HD
$5,325.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

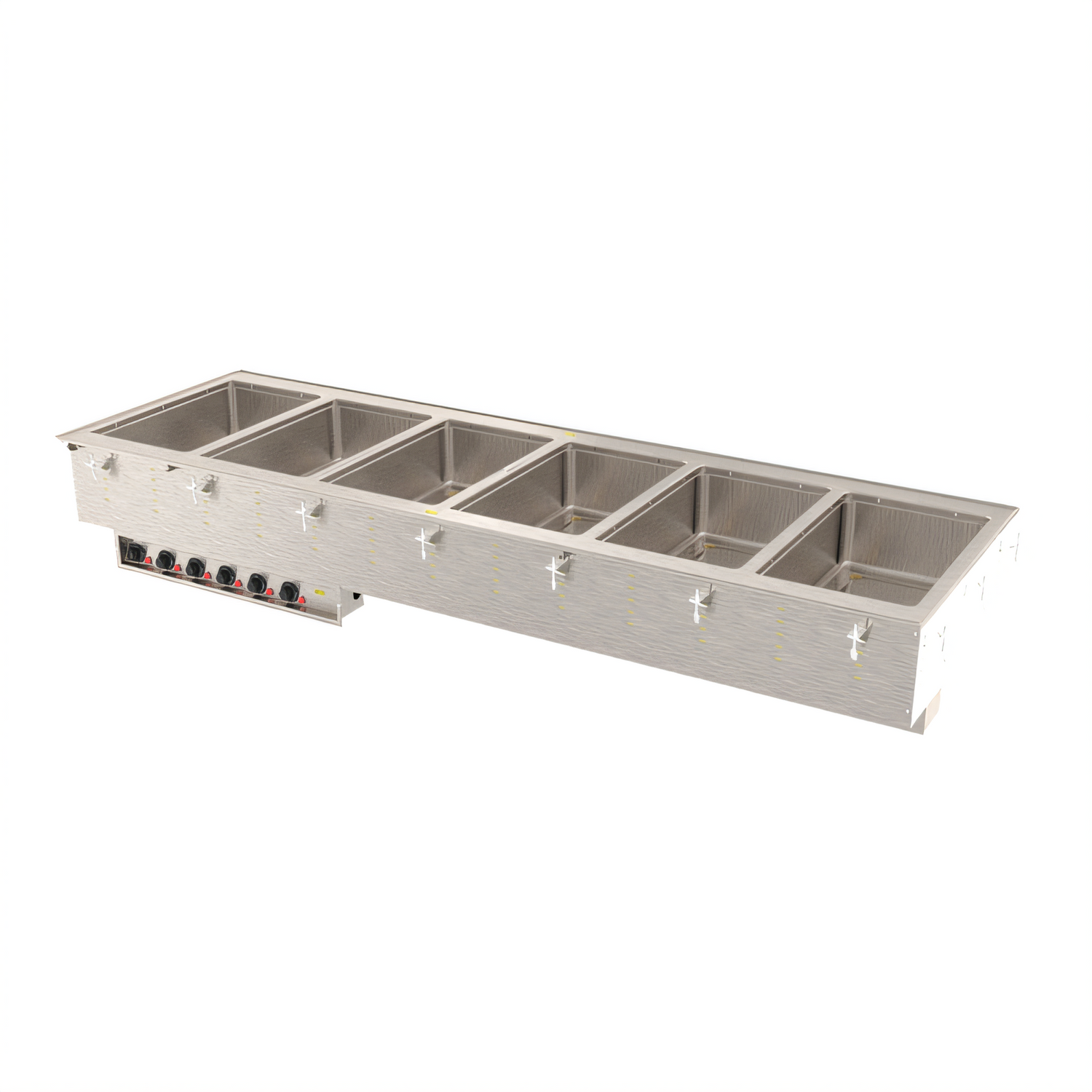

Vollrath 6-Well Drop-In Electric Hot Food Well Unit, Wet Operation, Individual Thermostatic Controls, 316 Marine Grade Stainless Steel Wells

Fits (6) 12" x 20" Full-Size Pans, 208-240V, 6000W

Keep multiple menu items hot and ready with a durable 6-well drop-in unit built for wet operation and precise individual temperature control.

  • Drop-in electric hot food well unit with six individual 12" x 20" full-size pan wells.
  • Wet operation only for holding foods at serving temperature.
  • Individual thermostatic controls let you manage each well separately.
  • 316 marine grade stainless steel insulated wells help retain heat and improve durability.
  • Drip-free flange and individual drain shutoffs support cleaner, easier service.
  • Includes positioning clips and a cord with NEMA 6-50P plug for installation.

Product Weight:

237.0 lb

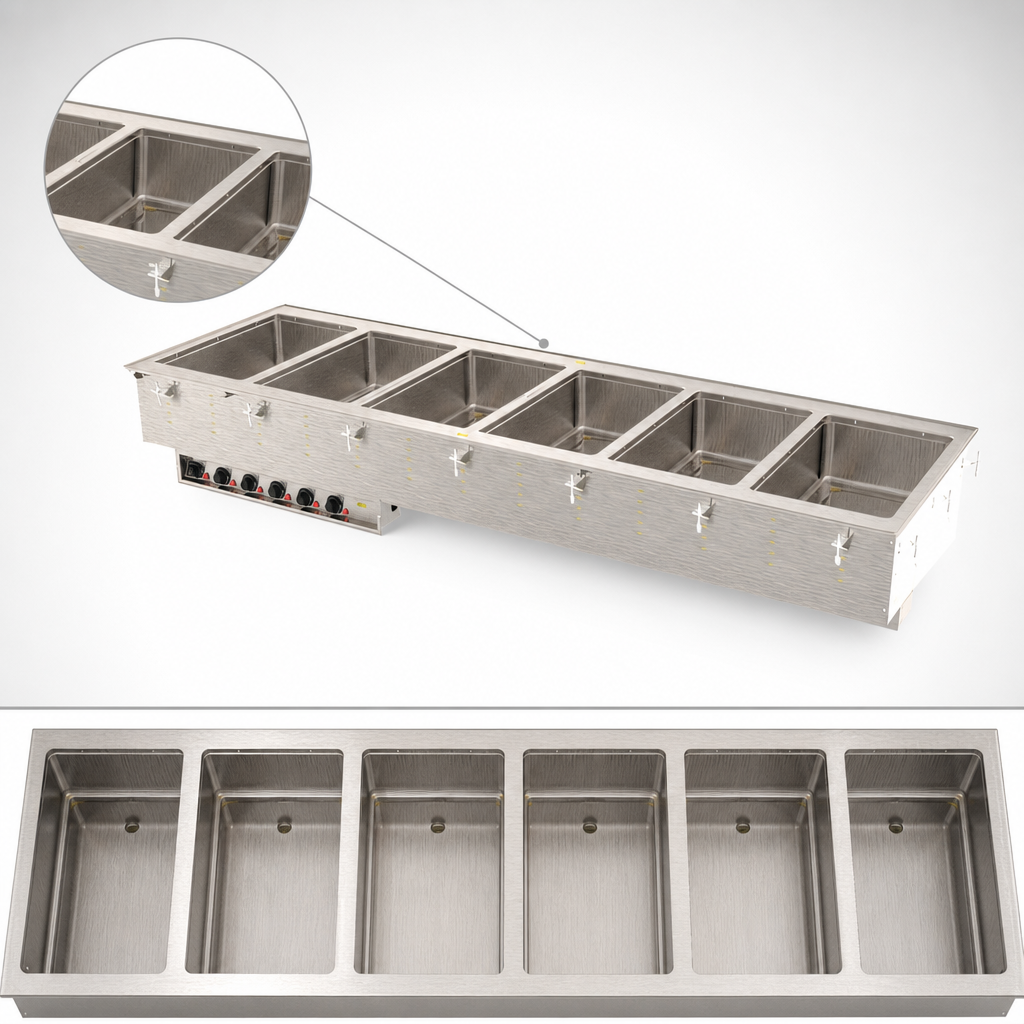

Six Individual Wells

Holds six separate 12" x 20" pans for high-volume hot food service.

Wet Operation Only

Designed specifically for wet holding applications.

Individual Thermostatic Controls

Each well has its own thermostatic control mounted in the panel for flexible temperature management.

316 Marine Grade Stainless Steel Wells

Insulated wells are built from 20-gauge 316 marine grade stainless steel for added corrosion resistance.

Drip-Free Flange

Helps contain spills at the counter opening for a cleaner installation.

Individual Drain Shutoffs

Each well includes its own drain shutoff for easier control and maintenance.

Stainless Steel Construction

Features an 18-gauge stainless steel top and stainless steel exterior housing.

Power and Connection

Operates on 208-240V, 60 Hz, single-phase power with a 6000-watt output and NEMA 6-50P plug.

Included Positioning Clips

Positioning clips are included to assist with installation.

Type Hot Food Well Unit
Style Individual Pans
Installation Type Drop-In
Pan Capacity 6
Pan Size 12 x 20 Inches
Material Stainless Steel
Interior Finish 316 Marine Grade Stainless Steel
Controls Thermostatic
Voltage 208-240 Volts
Watts 6 kW
Amps 21.6-25.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-50P
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty on HD wells

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for six 12" x 20" full-size pans.
Wet operation only.
It uses 208-240V, 60 Hz, single-phase power, draws 21.6-25.0 amps, and includes a NEMA 6-50P plug.
Yes, each well has an individual thermostatic control mounted in the panel.
The cutout size is 80-1/2" W x 25-1/4" D and it requires a 7/8" corner radius.
HD wells have a 2-year warranty; refer to Vollrath's full warranty policy for details.
