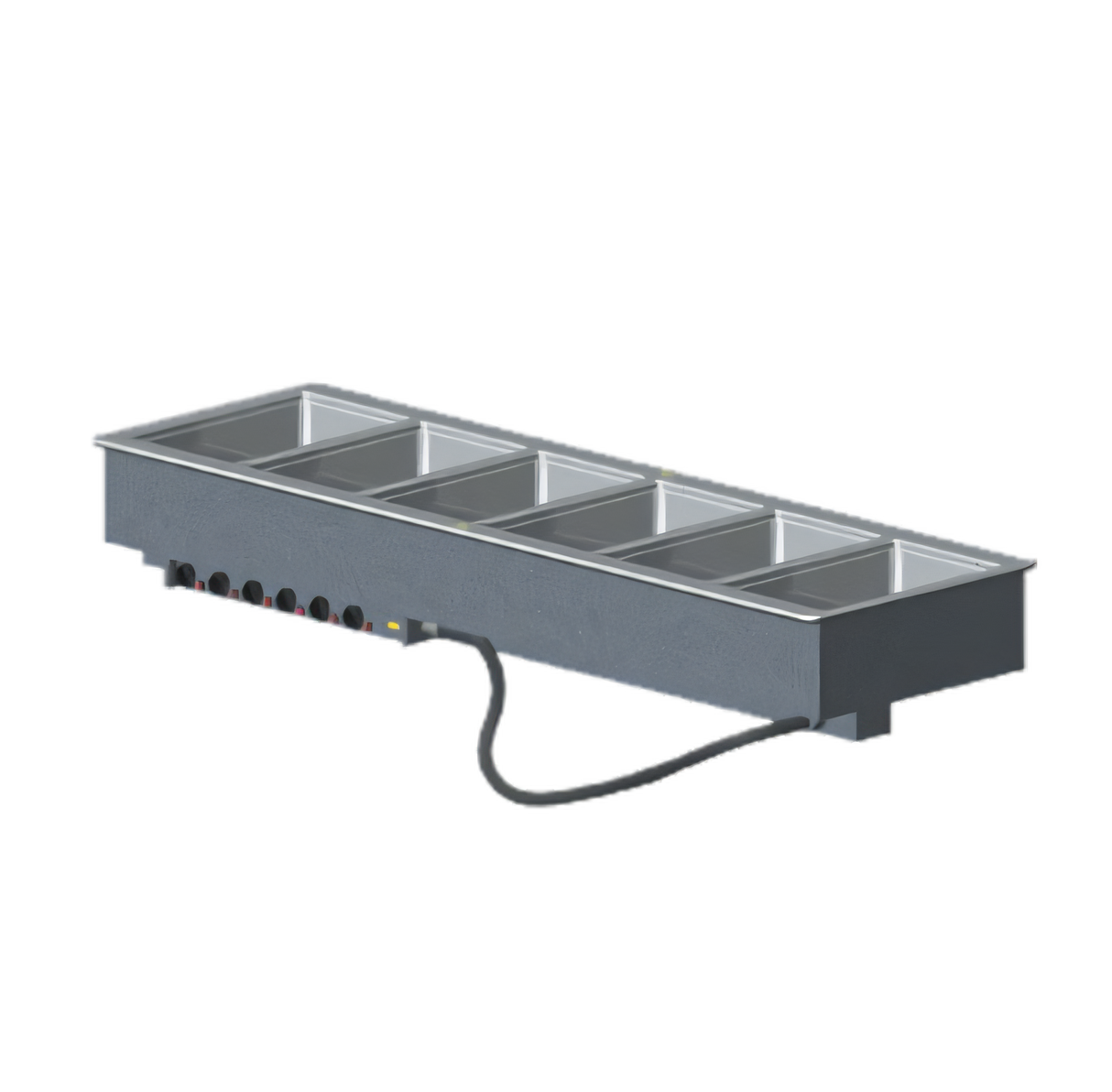

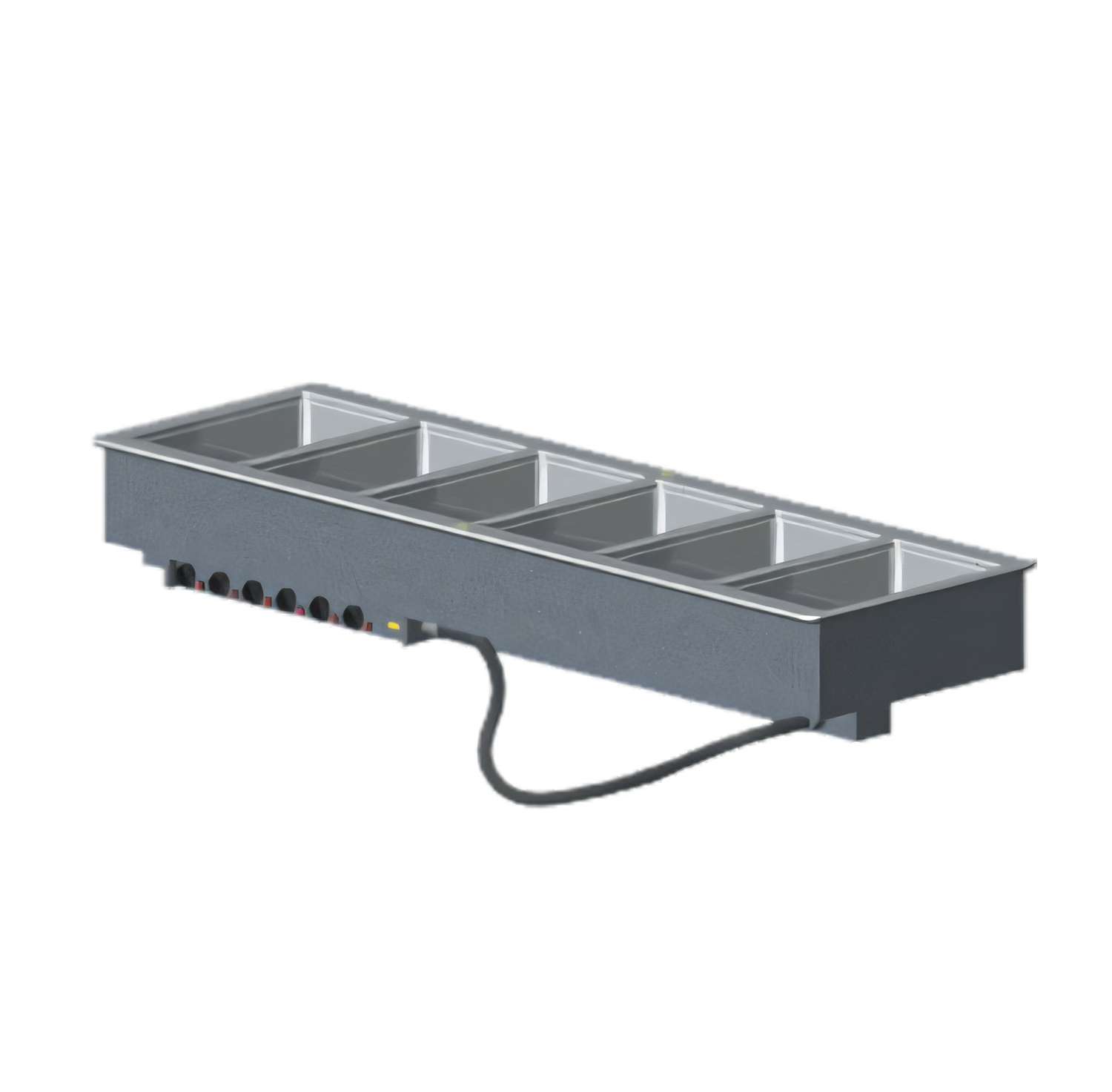

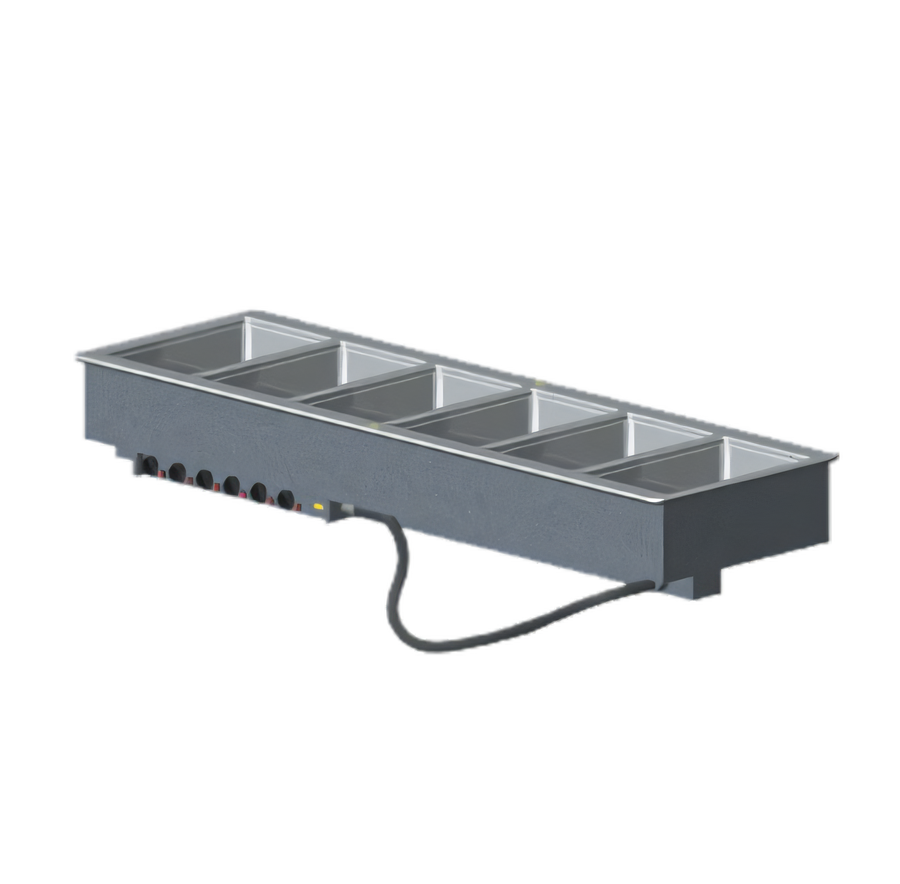

Vollrath 6-Well Drop-In Electric Hot Food Well with Thermostatic Controls, Full-Size Pan Wells

Wet Operation Only, 208-240V, Single Phase

A durable 6-well drop-in hot food unit that keeps full-size pans ready for service with wet-operation heat, thermostatic control, and easy-drain cleanup.

  • Six individual insulated wells sized for full-size 12" x 20" pans.
  • Wet operation only for consistent hot holding.
  • Individual thermostatic controls mounted in the panel for each well.
  • Drip-free flange and individual drain shutoffs help simplify cleanup.
  • 18-gauge stainless steel top with galvanized exterior housing for durability.
  • Includes positioning clips and a NEMA 6-50P cord set.

Product Weight:

237.0 lb

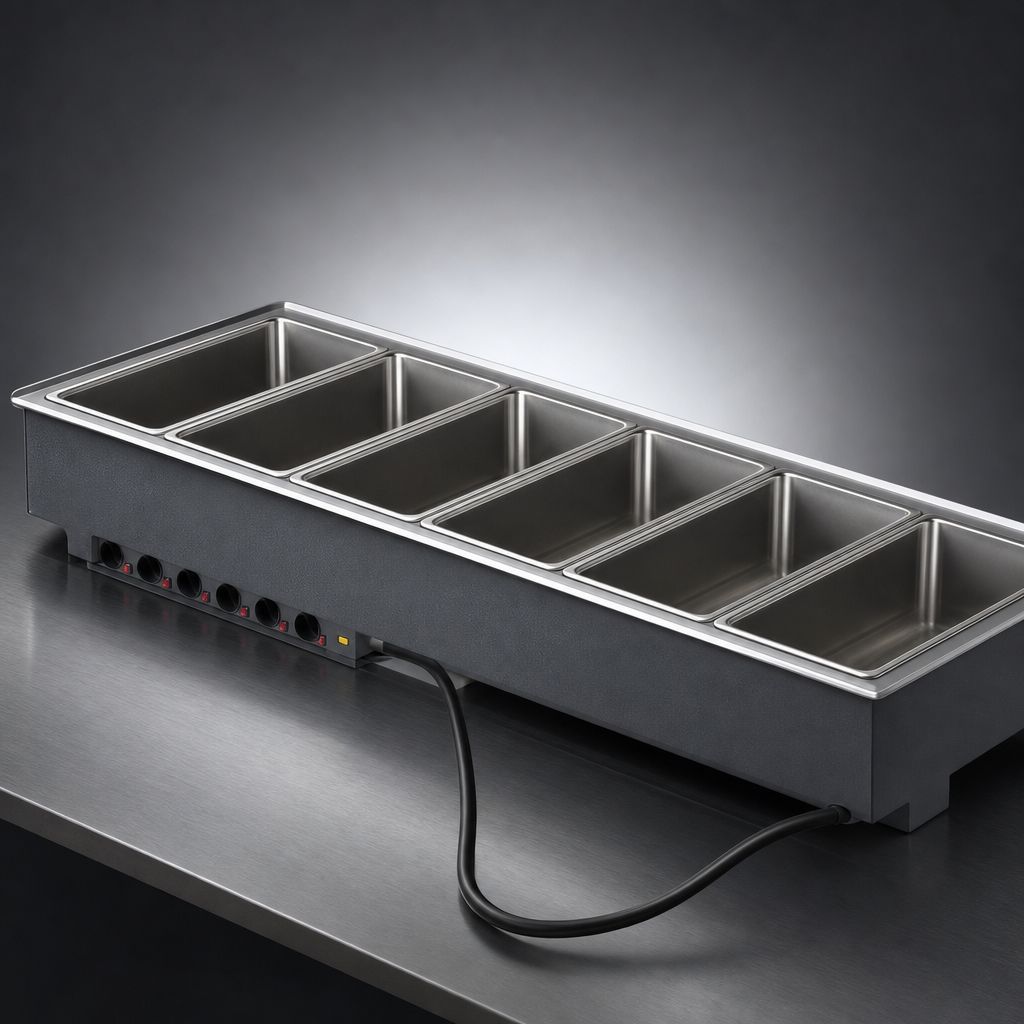

Six Insulated Wells

Holds six individual 12" x 20" full-size pans in insulated stainless steel wells for hot holding.

Thermostatic Controls

Individual thermostatic controls are mounted in the control panel for precise temperature management.

Wet Operation Only

Designed for wet operation only to maintain consistent heat for served foods.

Drip-Free Flange

Helps contain spills and supports cleaner countertop or line installation.

Individual Drain Shutoffs

Each well has its own drain shutoff for easier maintenance and water management.

Durable Construction

Built with an 18-gauge stainless steel top and 18-gauge galvanized exterior housing.

Electrical Connection

Includes a cord with NEMA 6-50P plug; rated at 6,000 watts, 208-240V, 60 Hz, single-phase.

Installation Details

Overall size is 81-1/4" W x 26" D x 15" H, with an 80-1/2" W x 25-1/4" D cutout and 7/8" corner radius required.

Included Positioning Clips

Positioning clips are included to assist with installation.

Type Hot Food Well
Installation Type Drop-In
Style Individual Pans
Pan Capacity 6 Full-Size 12 x 20 Inch Pans
Controls Thermostatic
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 208-240 Volts
Amps 21.6-25 Amps
Watts 6 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-50P
Shipping Weight 237 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for wet operation only.
It holds six individual full-size 12" x 20" pans.
It requires 208-240V, 60 Hz, single-phase power and draws 21.6-25 amps with a NEMA 6-50P plug.
The required cutout size is 80-1/2" W x 25-1/4" D with a 7/8" corner radius.
Positioning clips are included, along with a cord fitted with a NEMA 6-50P plug.
The catalog lists a one-year warranty; refer to vollrathfoodservice.com for the full warranty policy.
