Description

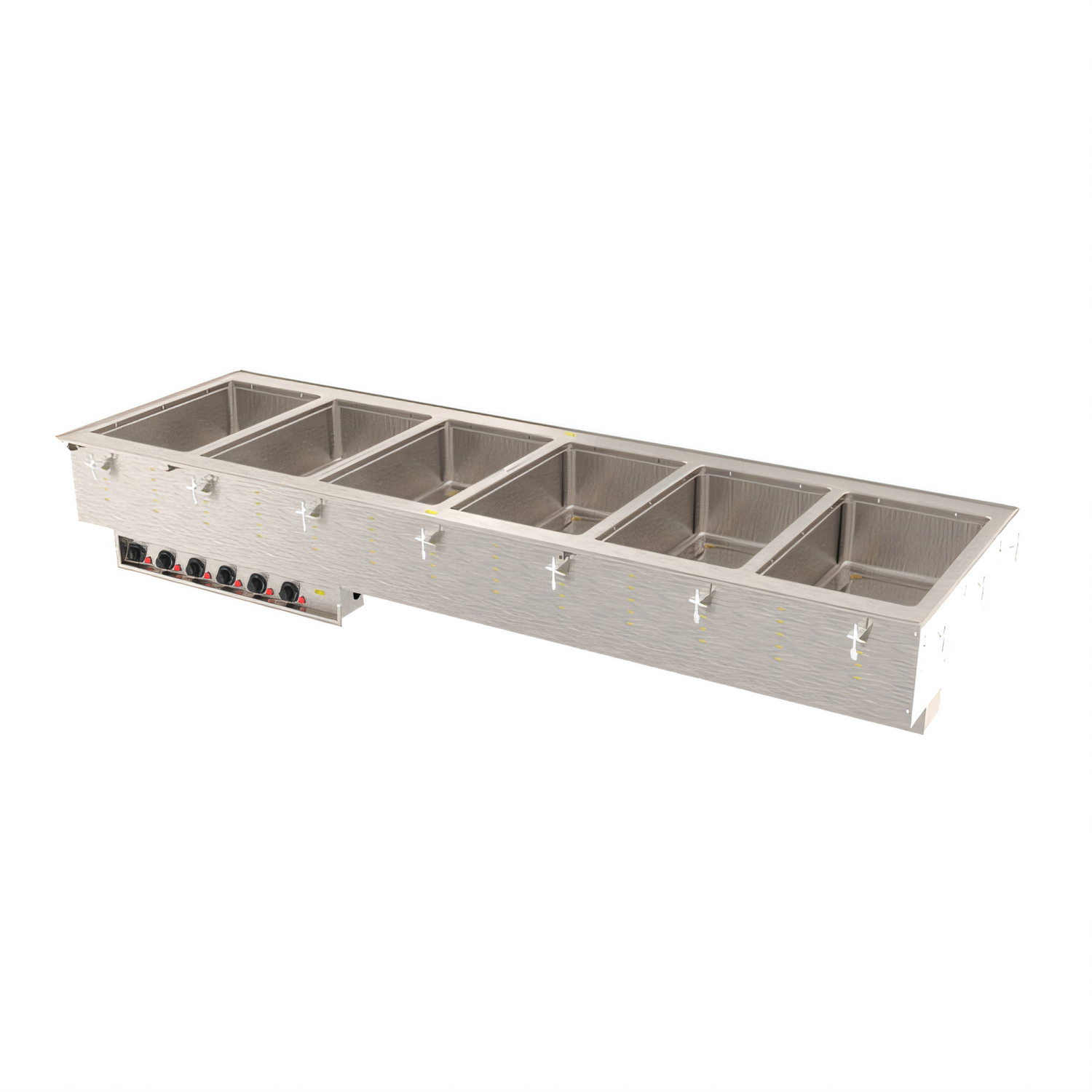

6-Well Marine-Grade Drop-In Hot Food Well, 208 V

by Vollrath • Made in the USA • NSF & cULus Listed

Serve a full line-up of entrées, sides or sauces at safe, even temperatures with Vollrath’s premium six-well drop-in. 316 marine-grade stainless-steel wells stand up to acidic foods and daily clean-ups, while independent thermostatic controls put precision holding power at your fingertips—no hard-wiring required.

Important: This unit is designed for wet operation only. Always maintain water in each well to meet NSF 4 standards and ensure even heating.

Key Features

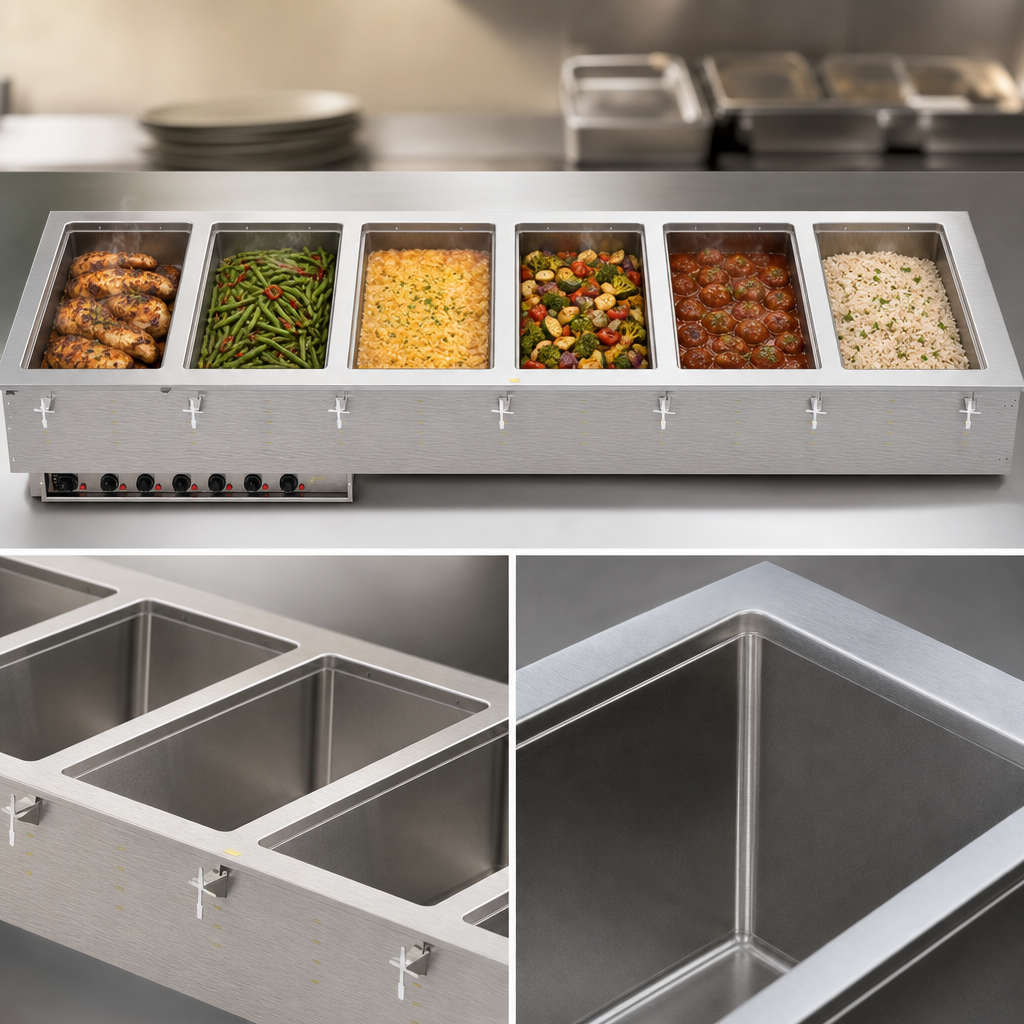

  • (6) individual 12" × 20" wells—20-ga, 316 marine-grade stainless steel
  • 625 W per well / 3,750 W total with rapid, even heat distribution
  • Independent thermostatic controls with bright power indicator lights
  • Full-perimeter, drip-free flange for a clean, built-in presentation
  • ½" NPT drains with ball-valve shut-offs for each well
  • Fully insulated on all sides, including between wells, for energy efficiency
  • 18-ga stainless-steel top & rugged exterior housing
  • 3 ft tethered control panel—mount where it’s most convenient
  • Includes mounting/positioning clips for counters up to 3" (7.6 cm) thick
  • Zero-clearance installation; 6 ft cord with NEMA 6-30P plug

Specifications

Pan capacity (6) full-size 12" × 20" pans, up to 6" deep (adapter bars recommended for fractional pans)
Total wattage 3,750 W • 625 W per well
Electrical 208 V / 60 Hz / 1-ph, 18 A, factory-installed cord & NEMA 6-30P
Controls (6) independent thermostats, stainless-steel remote panel
Operation Wet heat only (water required for even heating & NSF compliance)
Well material 20-ga 316 marine-grade stainless steel, removable bottom service panels
Top / flange 18-ga stainless steel, drip-free perimeter
Drain ½" MPT per well with individual shut-offs
Overall dimensions 81-1/4" W × 26" D × 15" H (206.4 × 66 × 38.1 cm)
Counter cut-out 80-1/2" W × 25-1/4" D (204.5 × 64.1 cm) • 7/8" corner radius required
Certifications NSF 4 (wet operation), cULus
Warranty 2-year limited warranty on marine-grade wells — see vollrathfoodservice.com for details

Indoor commercial use only. Modular drop-ins cannot be cancelled or returned once ordered. Do not modify the cord or plug—doing so will void the warranty.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

81.25in

Depth

26.0in

Shipping Weight

232.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(6) full size (12" x 20")

Controls

thermostatic controls

Drain

with drain

Construction

stainless steel construction

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 81-1/4"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3750 watts, 208v/60/1-ph, 18.0 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
