Vollrath 3640910 Steam Tables & Food Wells
Description

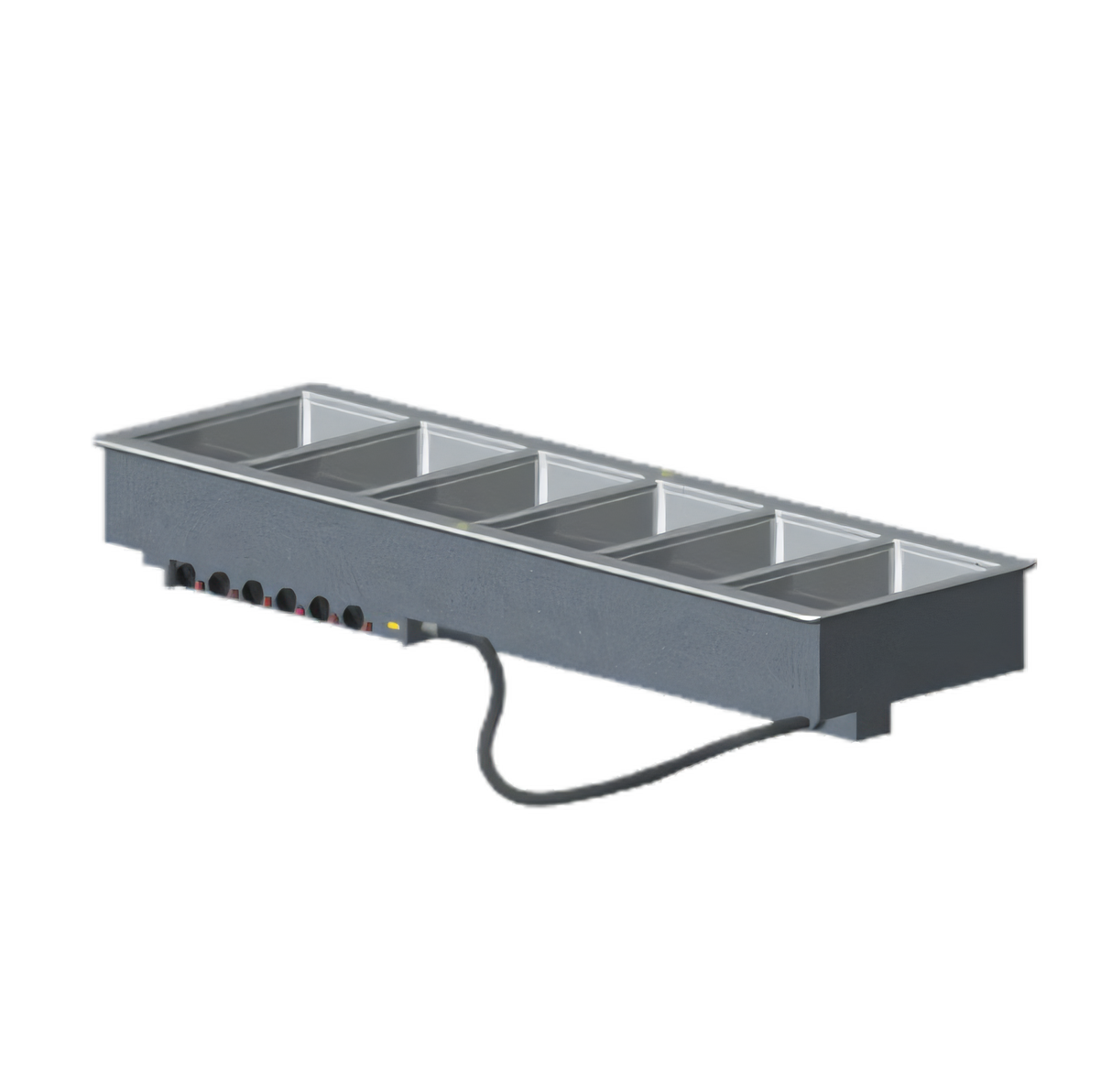

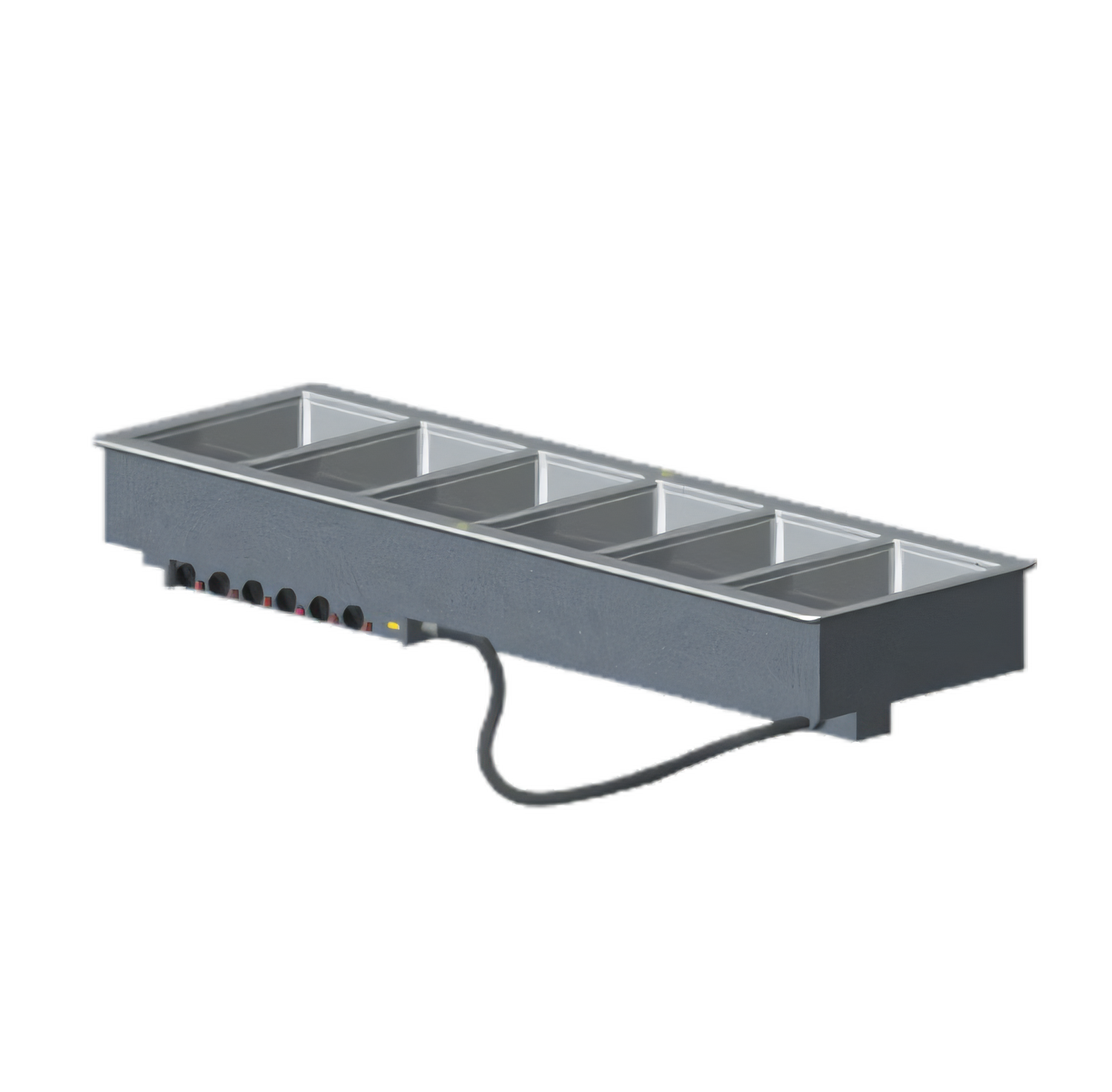

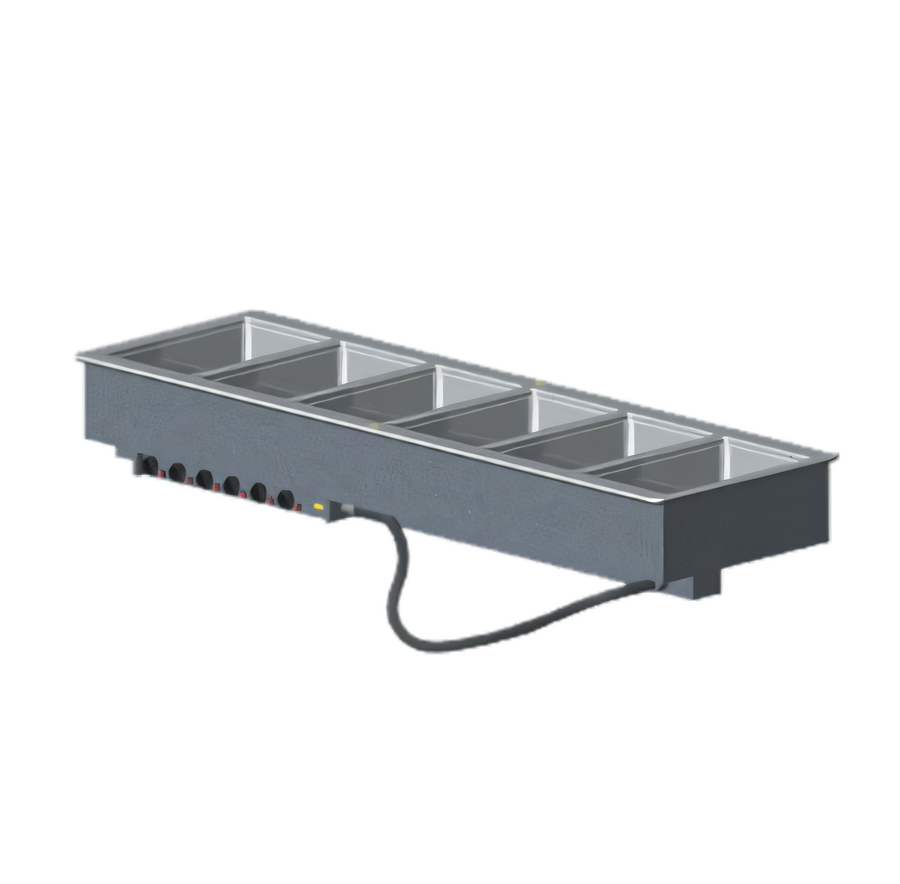

Vollrath 6-Well Drop-In Hot Food Well – 208 V, 18 A
Model 3640910 (Thermostatic • Standard Drain • Wet Operation)Built for demanding commercial kitchens, this USA-made Vollrath drop-in keeps up to six full-size steam-table pans piping hot and perfectly moist—all while dropping cleanly into a 80 ½ × 25 ¼ in. cutout. Individual thermostatic controls, stainless-steel construction and easy-access drains deliver years of reliable, service-friendly performance.
Why You’ll Love It
- Six 12 × 20 in. deep-drawn stainless wells accommodate pans up to 6 in. deep
- Moist-heat only operation meets NSF 4 when used with water
- Individual thermostatic controls with power indicator lights for precise holding
- Full-perimeter drip-free flange contains spills and adds strength
- Separate ½ in. MPT drain valves for each well—no manifold to clean
- High-density insulation allows zero-clearance installation
- Includes positioning and mounting clips for counters up to 3 in. thick
- 6 ft (1.8 m) cord with NEMA 6-30P plug—no hard-wiring required
- NSF & cULus Listed; proudly Made in the USA
Built to Last
- 18-gauge stainless steel top resists dents and corrosion
- 20-gauge stainless wells for long life and easy cleaning
- Galvanized exterior housing protects internal components
- Stainless control panel ships attached (3 ft tether lets you remote-mount if desired)
Technical Specifications
| Overall dimensions | 81 ¼ W × 26 D × 15 H in. (206.4 × 66 × 38.1 cm) |
|---|---|
| Cutout size | 80 ½ W × 25 ¼ D in. (requires ⅞ in. corner radius) |
| Wells | (6) independent 12 × 20 in. / 1-⁄1 GN; wet operation only |
| Heat output | 625 W per well • Total 3 750 W |
| Electrical | 208 V / 60 Hz / 1-ph, 18.0 A, cord & NEMA 6-30P plug |
| Controls | 6 independent thermostats, pilot lights |
| Drain | (6) ½ in. MPT with ball-valve shut-offs |
| Included items | Positioning clips, mounting clips, breaker gasket |
| Optional accessory | Sheet-pan adapter bar (Vollrath #19186) |
| Certifications | NSF, cULus |
| Warranty | 1-year parts & labor (see VollrathFoodservice.com for details) |
Installation Tips
- Use supplied positioning and mounting clips to center and secure the unit.
- Maintain a ⅞ in. radius on all four cutout corners for a proper fit.
- Fill each well with water before energizing to ensure even heating and protect elements.
Modular drop-ins are built to order and are not cancelable or returnable. Please confirm specifications before purchasing.
