Vollrath  |  SKU: 3640901HD

Vollrath 3640901HD Steam Tables & Food Wells

$4,961.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

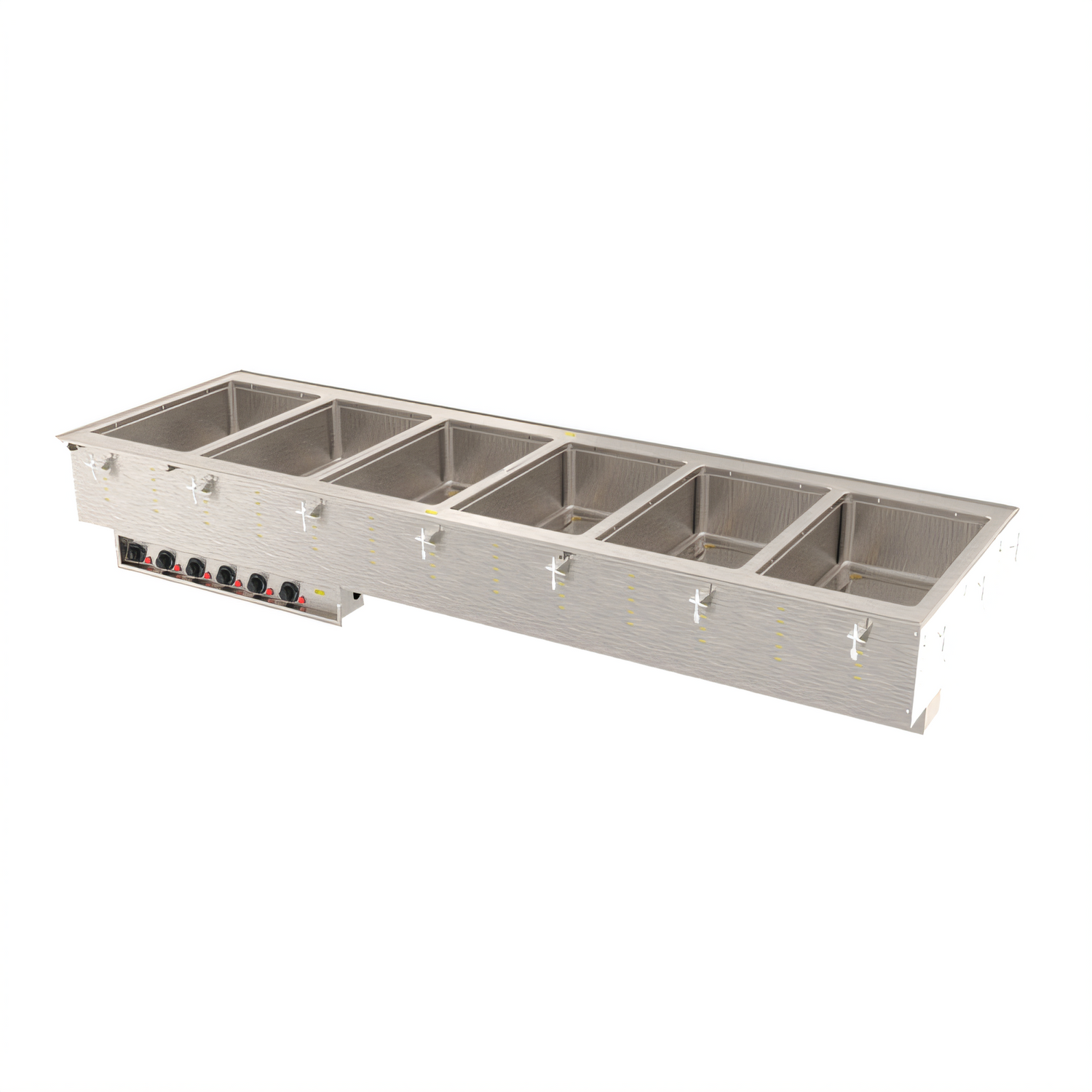

Six-Well Marine-Grade Hot Food Drop-In

Vollrath Model 3640901HD | Infinite Controls | 208-240 V, 1-Phase

Serve every entrée at its ideal temperature with Vollrath’s heavy-duty six-well modular drop-in. Each 12" × 20" well is fabricated from Type-316 marine-grade stainless steel for superior corrosion resistance and is individually heated, drained and controlled for maximum versatility on the line.

Why you’ll love it
  • Six independent, fully insulated wells – hold full-size or fractional pans up to 6" (15.2 cm) deep.
  • Type-316 marine-grade stainless steel resists pitting from chlorides and harsh cleaners.
  • Wet-heat operation meets NSF 4 standards; water bath delivers even, gentle warmth.
  • Infinite control knobs with dedicated power indicator lights for precise, per-well adjustment.
  • Drip-free 18 ga stainless top with continuous flange contains spills and condensation.
  • ½" (1.3 cm) ball-valve drains under every well for quick, mess-free water changes.
  • Stainless control panel is tethered with a 3' (91 cm) cord for flexible mounting.
  • Ships with a 6' (1.8 m) power cord and NEMA 6-50P—no hard-wiring required.
  • Zero-clearance design; includes mounting clips for counters up to 3" (7.6 cm) thick.
  • NSF & cULus listed and proudly made in the USA.
Technical specifications
Number of wells 6 (12" × 20")
Well construction 20 ga Type-316 stainless steel, fully insulated
Operation Wet heat only – water required
Controls Six infinite switches with pilot lights
Total power 1000 W per well (up to 6 kW at 240 V)
Electrical 208-240 V / 60 Hz / 1-ph, 21.6-25 A, NEMA 6-50P
Overall size 81-1/4" W × 26" D × 15" H (206.4 × 66 × 38.1 cm)
Counter cut-out 80-1/2" W × 25-1/4" D (204.5 × 64.1 cm)  •  7/8" (2.2 cm) corner radius
Drain connection ½" MPT per well
Certifications NSF 4 (wet), cULus
Warranty 2 years on HD marine-grade wells (see VollrathFoodservice.com)
Installation & operating tips
  • Indoor use only; ambient room temperature and HVAC airflow can influence holding performance.
  • Fill each well with water before energizing—running the unit dry will damage the elements.
  • Secure with the included clips, plug into a matching NEMA 6-50R receptacle, and you’re ready to serve.
  • Adapter bars are recommended when using fractional pans (sold separately, item 19186).
  • Never modify the factory-installed cord or plug; doing so voids the warranty.
Important: Modular drop-ins are built to order and cannot be canceled or returned once production has begun.

For full warranty details, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Shipping Weight

237.0lbs

Pan Capacity

(6) full size (12" x 20")

Controls

infinite controls

Construction

stainless steel construction

Style

individual pans

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 81-1/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 5000 watts, 208-240v/60/1-ph, 21.6-25 amps, cord with NEMA 6-50P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
