Vollrath 3640901 Steam Tables & Food Wells
Description

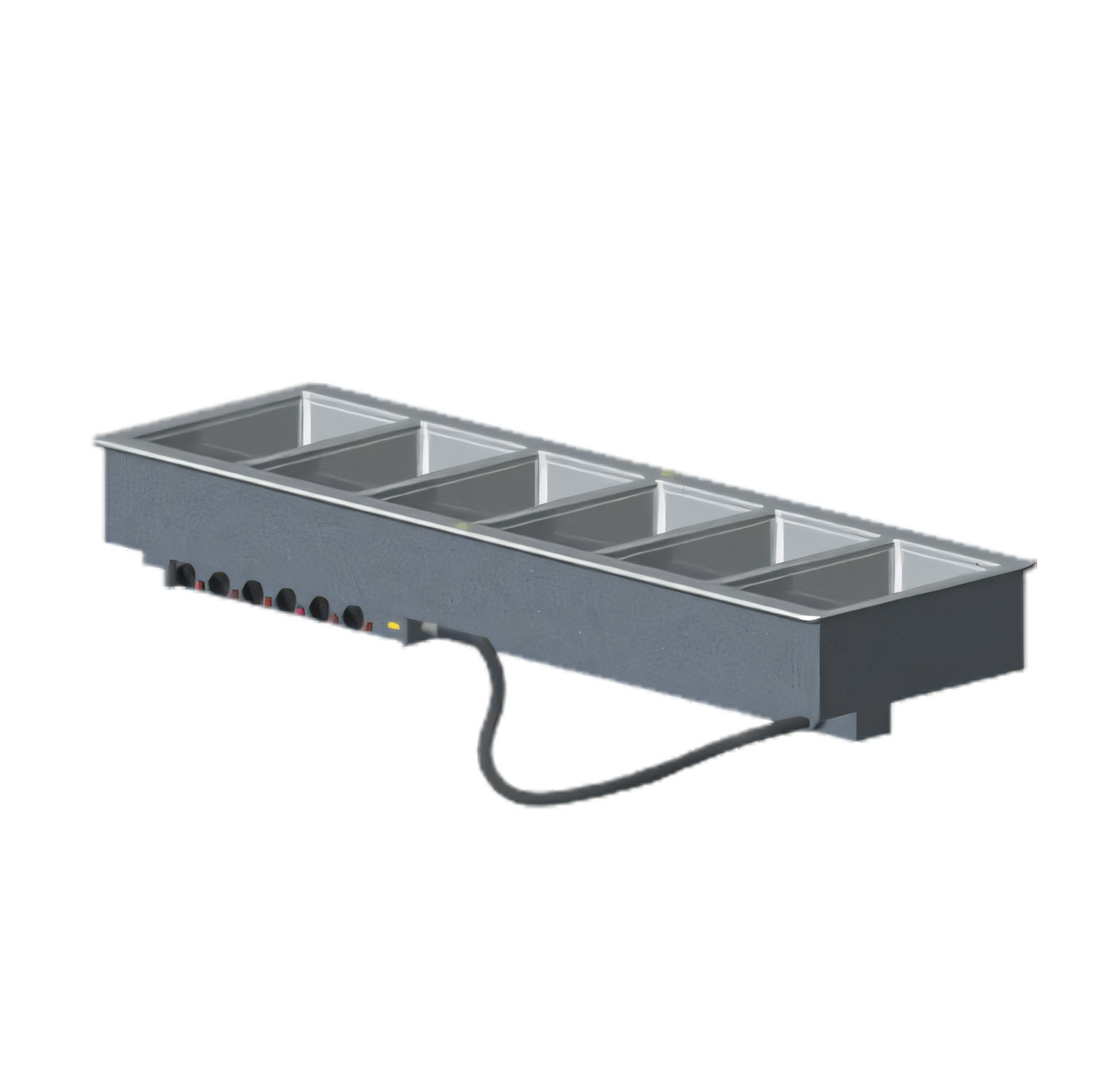

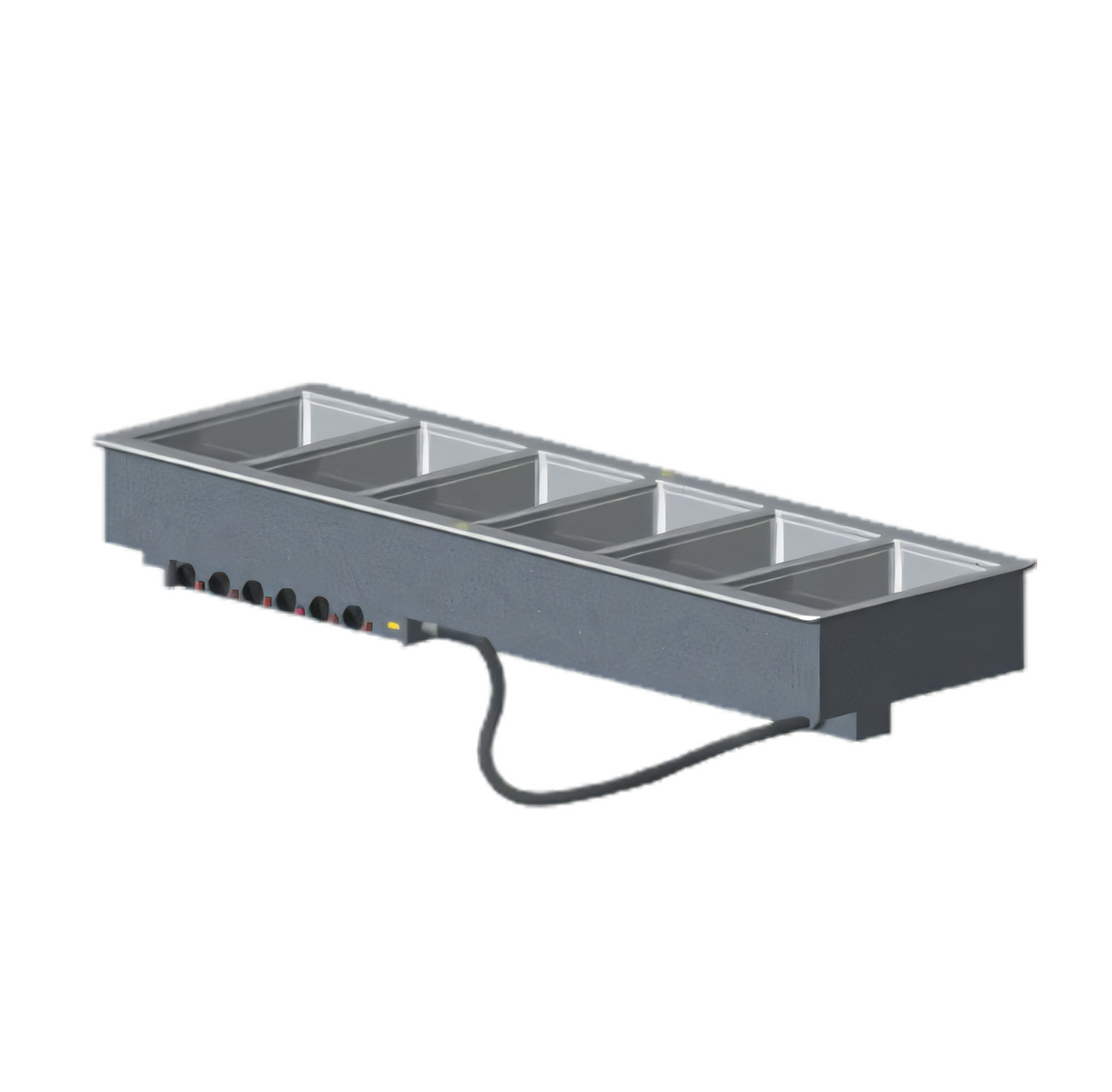

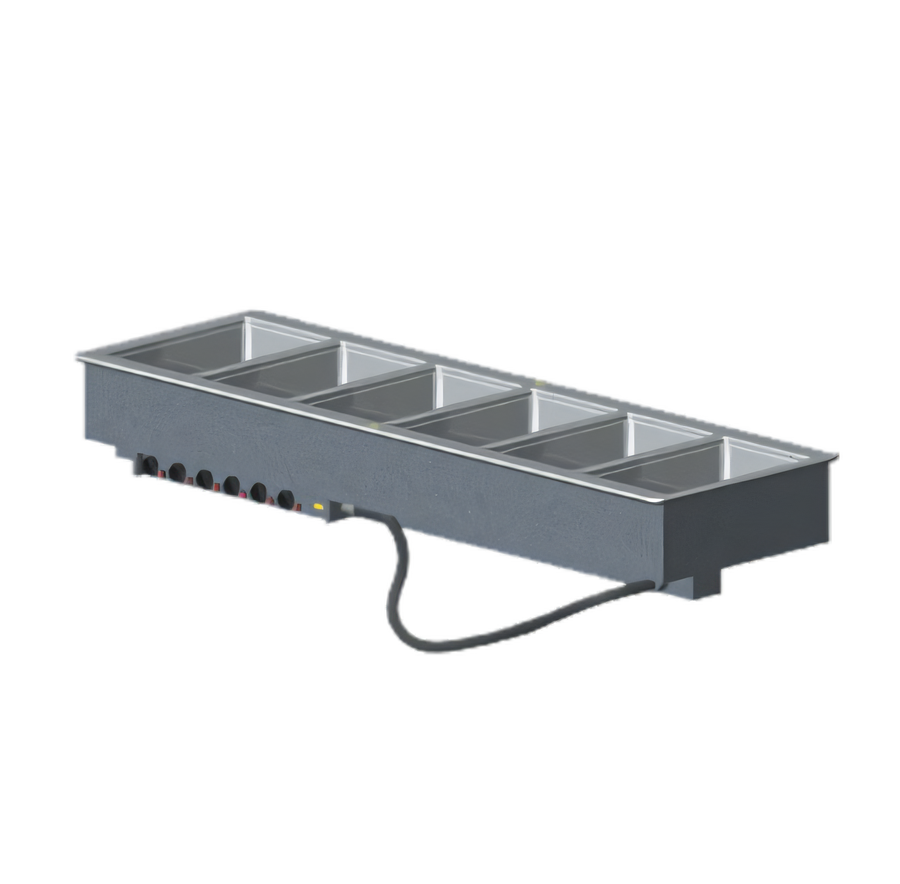

Vollrath 6-Well Drop-In Hot Food Well Module – Infinite Control
Standard manifold • Model 3640901 • Made in USABring dependable, wet-heat holding to any serving line with this self-contained, six-well electric drop-in from Vollrath. Designed for quick, top-mount installation, it delivers precise, independent temperature control for every full-size pan while its full-perimeter drip edge keeps surrounding countertops clean and dry.
Why you’ll love it
- Six 12" × 20" (full-size) 20 ga stainless-steel wells – each accepts pans up to 6" deep.
- 18 ga stainless-steel top with drip-free flange contains spills and condensation.
- Wet operation only – meets NSF 4 performance standards for safe, even heating.
- Independent infinite controls and power-on indicator lights for each well.
- Individual ½" MPT drains with ball-valve shut-offs below the counter.
- High-density fiberglass insulation on all sides and between wells allows zero-clearance installation.
- 6 ft (182 cm) cord with factory-installed NEMA 6-50P plug – no hard-wiring required.
- Includes adjustable mounting & positioning clips for counters up to 3" (7.6 cm) thick.
- NSF and cULus listed; manufactured in Sheboygan, Wisconsin.
Technical specifications
| Overall dimensions | 81-1/4" W × 26" D × 15" H (206.4 × 66 × 38.1 cm) |
|---|---|
| Counter cut-out | 80-1/2" W × 25-1/4" D (204.5 × 64.1 cm) • 7/8" (2.2 cm) corner radius |
| Well size (each) | 12" × 20" • 6" (15.2 cm) depth |
| Heating capacity | 1,000 W per well (≈4.5 kW @ 208 V – 6 kW @ 240 V) |
| Voltage / phase | 208–240 V / 60 Hz / 1-phase |
| Amperage draw | 21.6 – 25 A |
| Power connection | 6 ft cord with NEMA 6-50P plug |
| Construction | Top: 18 ga stainless • Wells: 20 ga stainless • Exterior: 18 ga galvanized steel |
| Drain system | ½" MPT per well with individual shut-offs |
| Controls | Front-mounted stainless panel with six infinite switches & lights |
| Certifications | NSF 4, cULus |
| Warranty | 1-year parts & labor (see full policy) |
Need to hold sheet pans? Add adaptor bar #19186 (sold separately). Auto-fill manifold kits are also available.
