Vollrath 36409 Steam Tables & Food Wells
Description

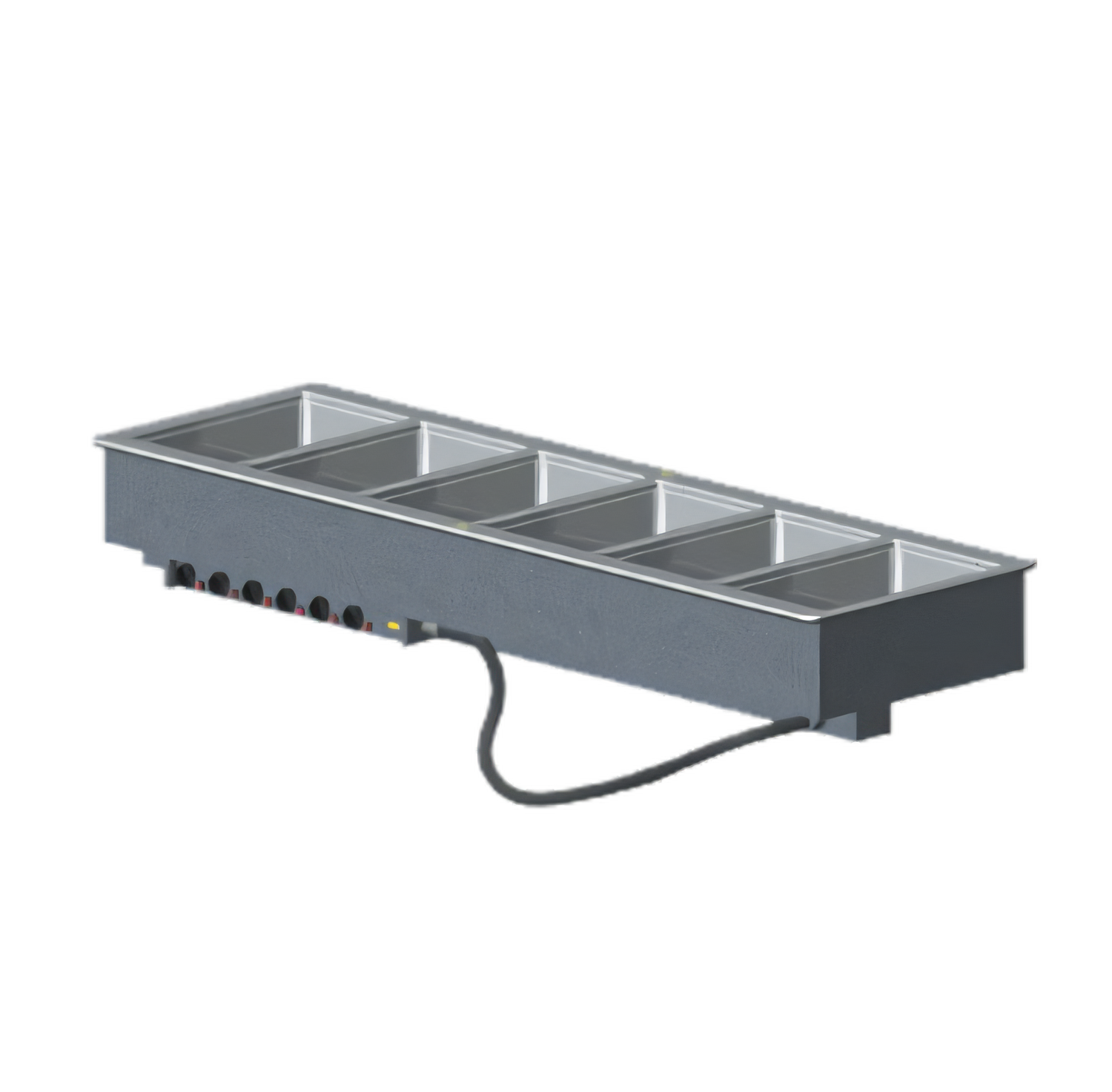

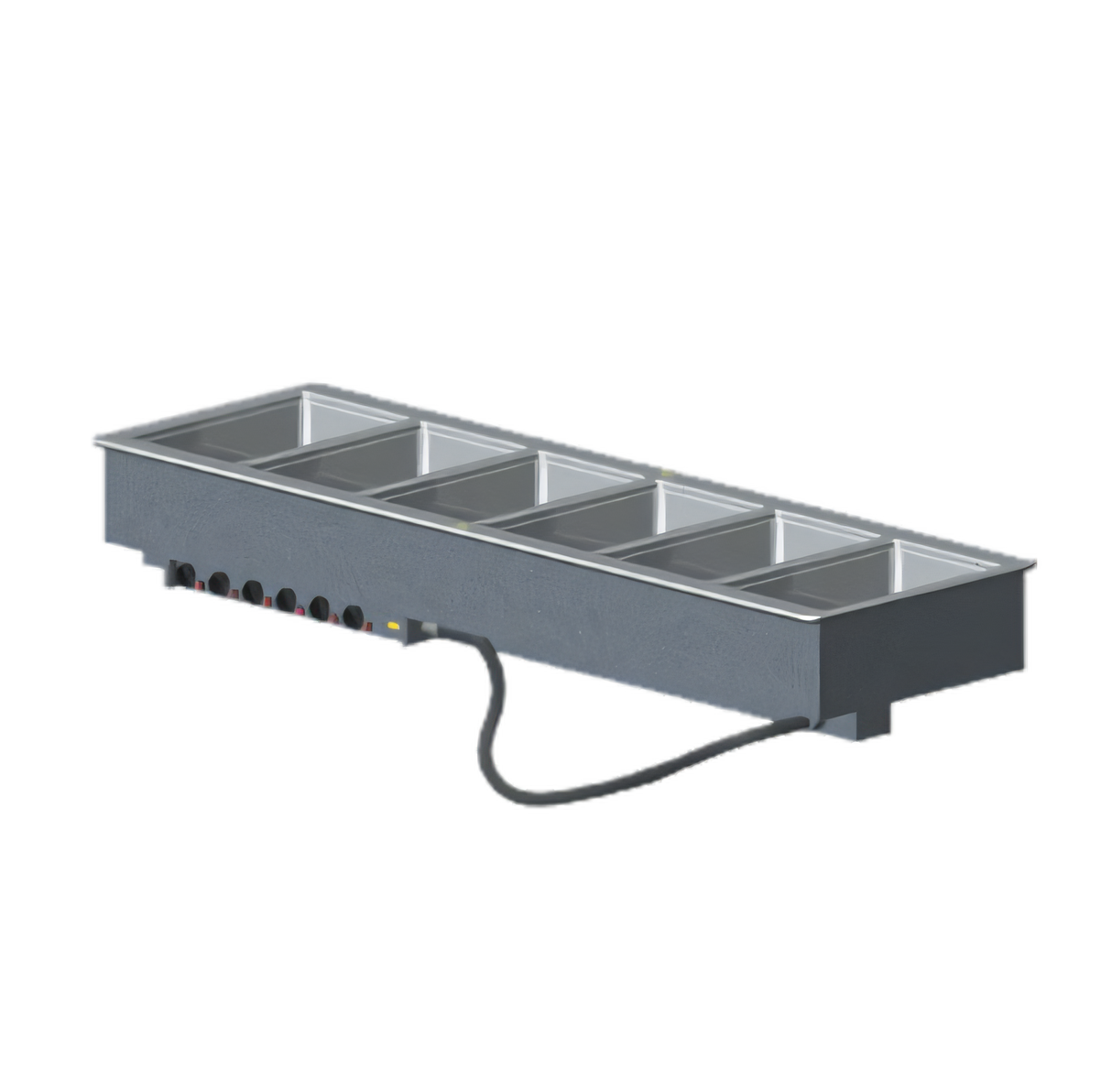

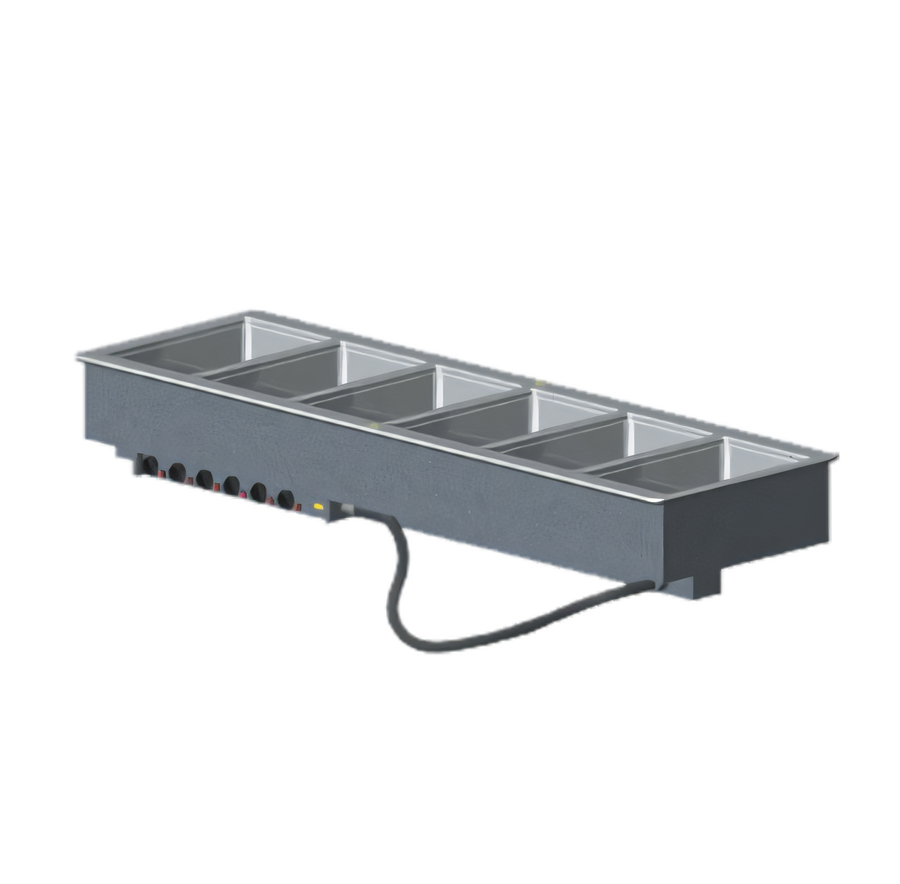

Vollrath Six-Well Hot Food Drop-In Module – 208 V
Model 36409 • Plug-in electric wet well with individual infinite controlsExpand your serving line with the reliability of Vollrath. This U.S-made, six-well drop-in keeps entrées and sides at safe, appetizing temperatures while fitting seamlessly into a 80-½ × 25-¼ in. counter cutout. Simply drop it in, plug it in and start serving.
Why you’ll love it
- Six individual 12 × 20 in. stainless steel wells—each accepts pans up to 6 in. deep
- Wet-operation system delivers even, NSF-4 compliant heat
- Independent infinite control for every well with bright power indicator lights
- Full-perimeter drip-edge and drip-free flange keep counters clean
- ½ in. welded stainless drains with individual ball-valve shut-offs speed change-outs

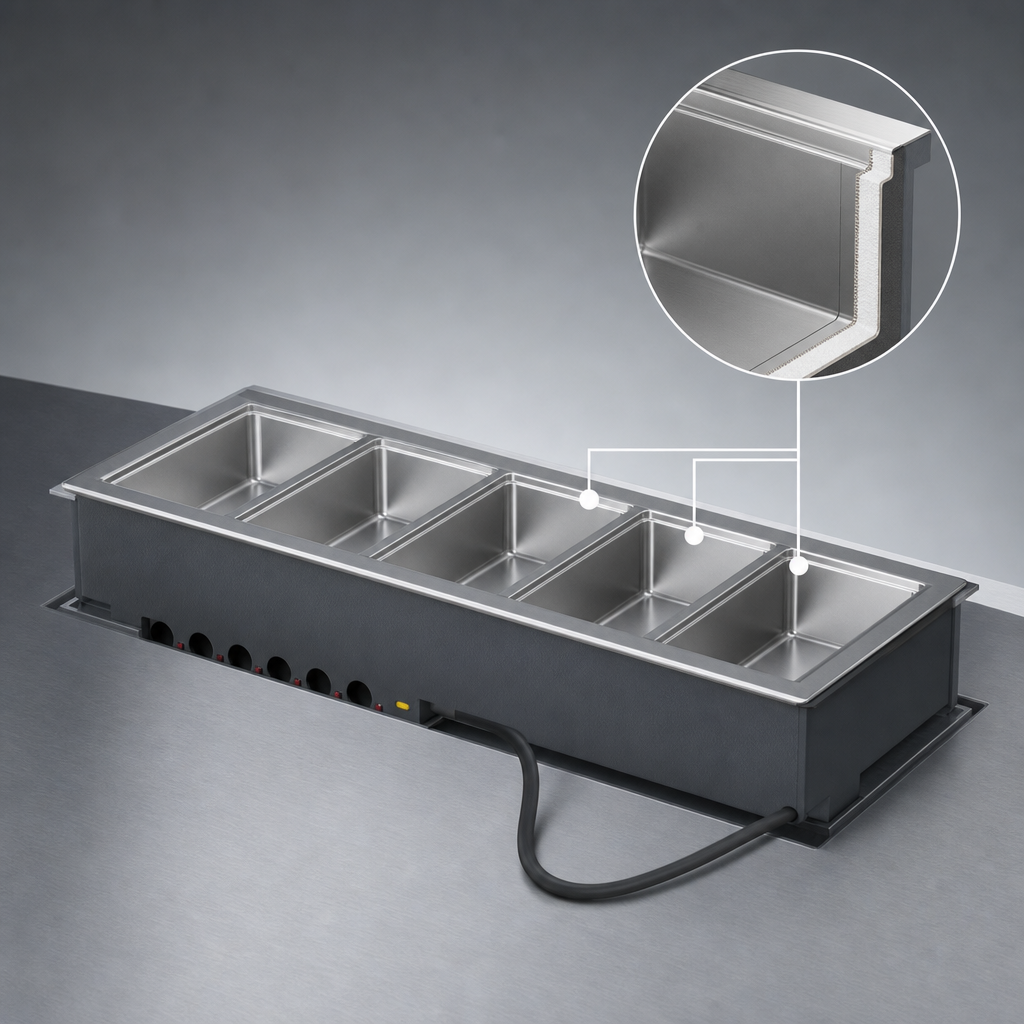

- High-density fiberglass insulation allows zero-clearance installation
- 18-ga stainless steel top & 20-ga deep-drawn wells for long-term durability
- 6 ft cord with NEMA 6-30P—no hard-wiring required
- Includes positioning & mounting clips for counters up to 3 in. thick
- NSF & cULus listed | Made in the USA
Technical specifications
| Wells | (6) full-size 12 × 20 in. | 625 W per well |
|---|---|
| Operation | Wet heat only (use with water) |
| Overall dimensions | 81-¼ W × 26 D × 15 H in. (206.4 × 66 × 38.1 cm) |
| Counter cutout | 80-½ W × 25-¼ D in. (204.5 × 64.1 cm) – 7/8 in. corner radius |
| Total wattage | 3,750 W |
| Electrical | 208 V / 60 Hz / 1-ph – 18.0 A |
| Plug | NEMA 6-30P, 6 ft (182 cm) cord |
| Controls | Six independent infinite switches, panel tethered by 3 ft flexible cord |
| Construction | 18-ga stainless top, 20-ga galvanized exterior housing, 20-ga deep-drawn wells |
| Drain | ½ in. NPT welded drains with individual shut-offs |
| Certifications | NSF, cULus |
| Warranty | 1-year parts & labor (see VollrathFoodservice.com for full policy) |
Drop-in modules are built to order and cannot be canceled or returned. Need a different drain style or auto-fill capability? Ask us about additional Vollrath configurations.
