Vollrath  |  SKU: 3640881HD

Vollrath 3640881HD Steam Tables & Food Wells

$5,927.90
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

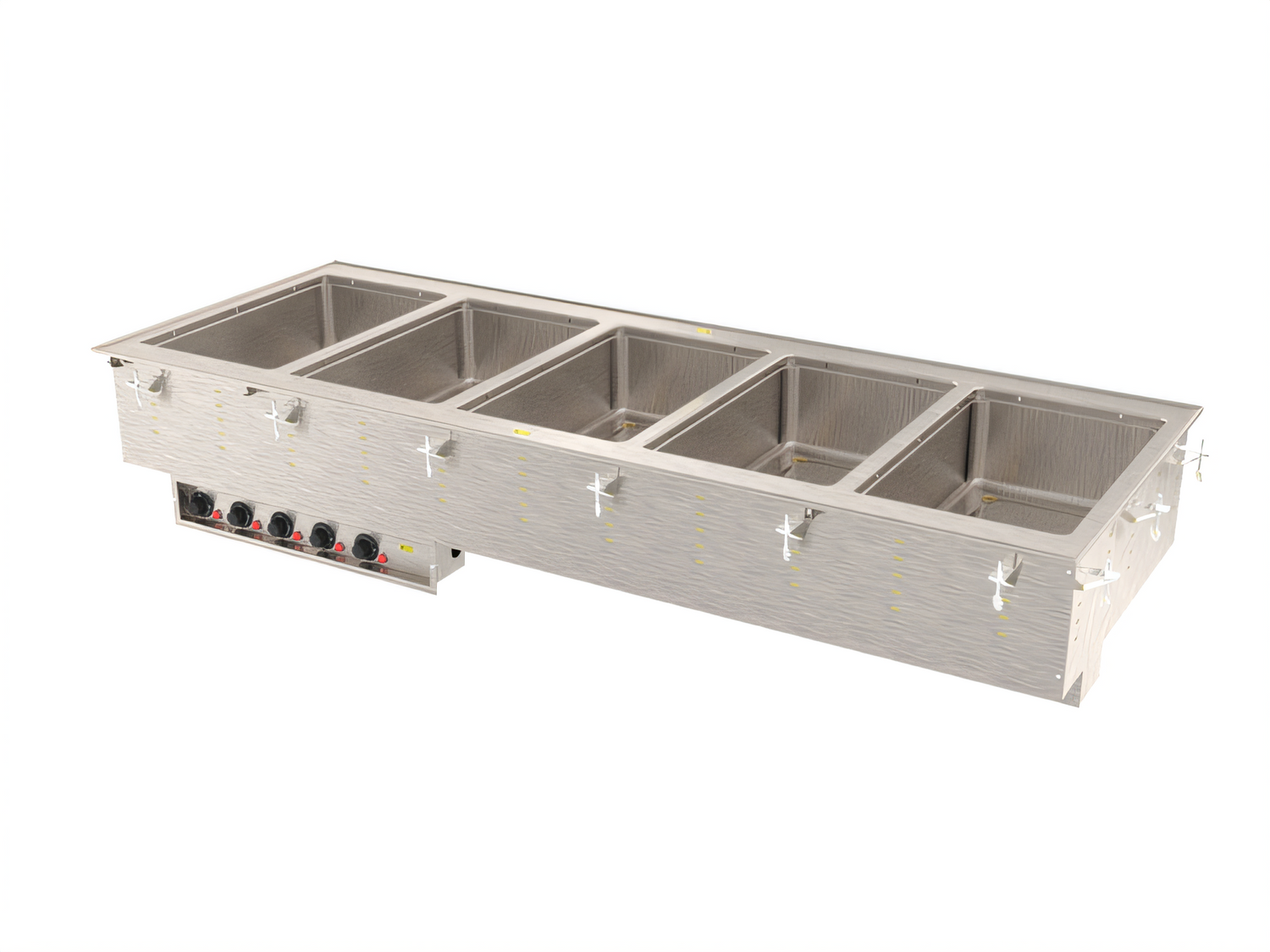

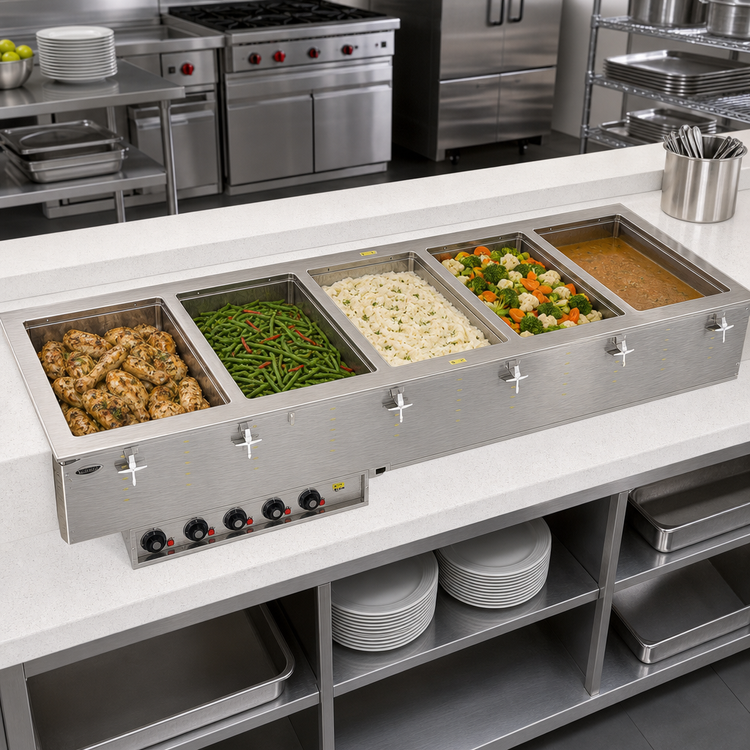

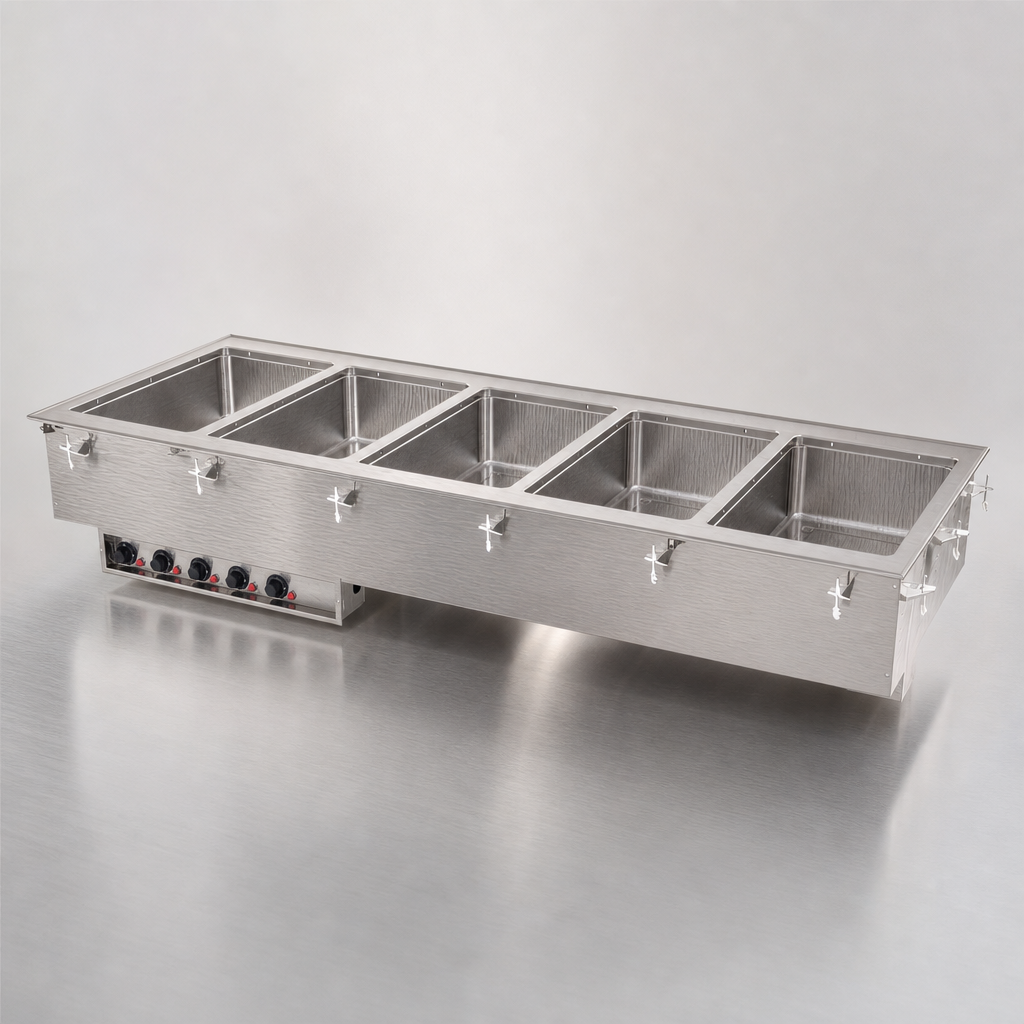

Vollrath 5-Well Modular Hot Drop-In – Marine-Grade, Auto-Fill

Model 3640881HD | 5,000 W | 208-240 V, Single-Phase

Keep five menu items at precise serving temperature with minimal labor. This Made-in-USA drop-in combines corrosion-proof 316 stainless wells, automatic water fill, and individual thermostatic controls for rock-solid performance in the toughest commercial kitchens.

Key advantages

  • (5) independent 12" × 20" full-size wells—each insulated on all sides for maximum efficiency.
  • 20 ga type 316 marine-grade stainless steel fights salt and chemical corrosion.
  • Auto-fill system maintains optimum water level, preventing burnout and labor-intensive refills.
  • One true thermostatic dial and bright power indicator light per well for pinpoint control.
  • Drip-free top flange and included gasket protect the counter cut-out.
  • 1" copper manifold drain with master shut-off plus individual ½" ball valves for each well.
  • 6' factory-installed cord with NEMA 6-30P plug—no hard-wiring required.
  • Zero-clearance installation; mounting clips included for counters up to 3" (7.6 cm) thick.
  • NSF-4 performance (wet operation), cULus listed, and backed by a 2-year Vollrath warranty.
Wet operation only: To meet NSF standards and protect the heating elements, operate each well with water.

Specifications

Model 3640881HD
Wells (5) full-size 12" × 20" × up to 6" deep (accepts fractional pans with adapter bars)
Construction 20 ga 316 stainless wells; 18 ga stainless top; stainless exterior housing
Heating 1000 W per well (5 kW total)  •  Individual thermostatic controls
Water system Automatic fill connection with level sensing
Drainage 1" copper manifold drain, master shut-off, plus individual ½" ball valves
Overall size 68" W × 26" D × 21-1/2" H*
Counter cut-out 67-1/4" W × 25-1/4" D (7/8" corner radius required)
Electrical 208-240 V / 60 Hz / 1-ph  •  18–20.8 A  •  NEMA 6-30P plug
Certifications NSF, cULus, Made in USA
Warranty 2 years parts & labor (see Vollrath warranty for details)

*Manifold drain adds 6-1/2" (16.5 cm) below the counter.

Ideal for

  • High-volume cafeterias, buffets & catering lines
  • Stadium, arena and convention center concessions
  • Seaside or cruise ship operations where corrosion resistance is critical
  • Any kitchen demanding reliable, space-saving hot holding

Install it once—serve flawlessly for years. Vollrath’s marine-grade drop-in truly outperforms every day.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

68.0in

Depth

26.0in

Shipping Weight

210.0lbs

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(5) full size (12" x 20")

Construction

stainless steel construction

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 5000 watts, 208-240v/60/1-ph, 18-20.8 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
