Vollrath 3640881 Steam Tables & Food Wells
Description

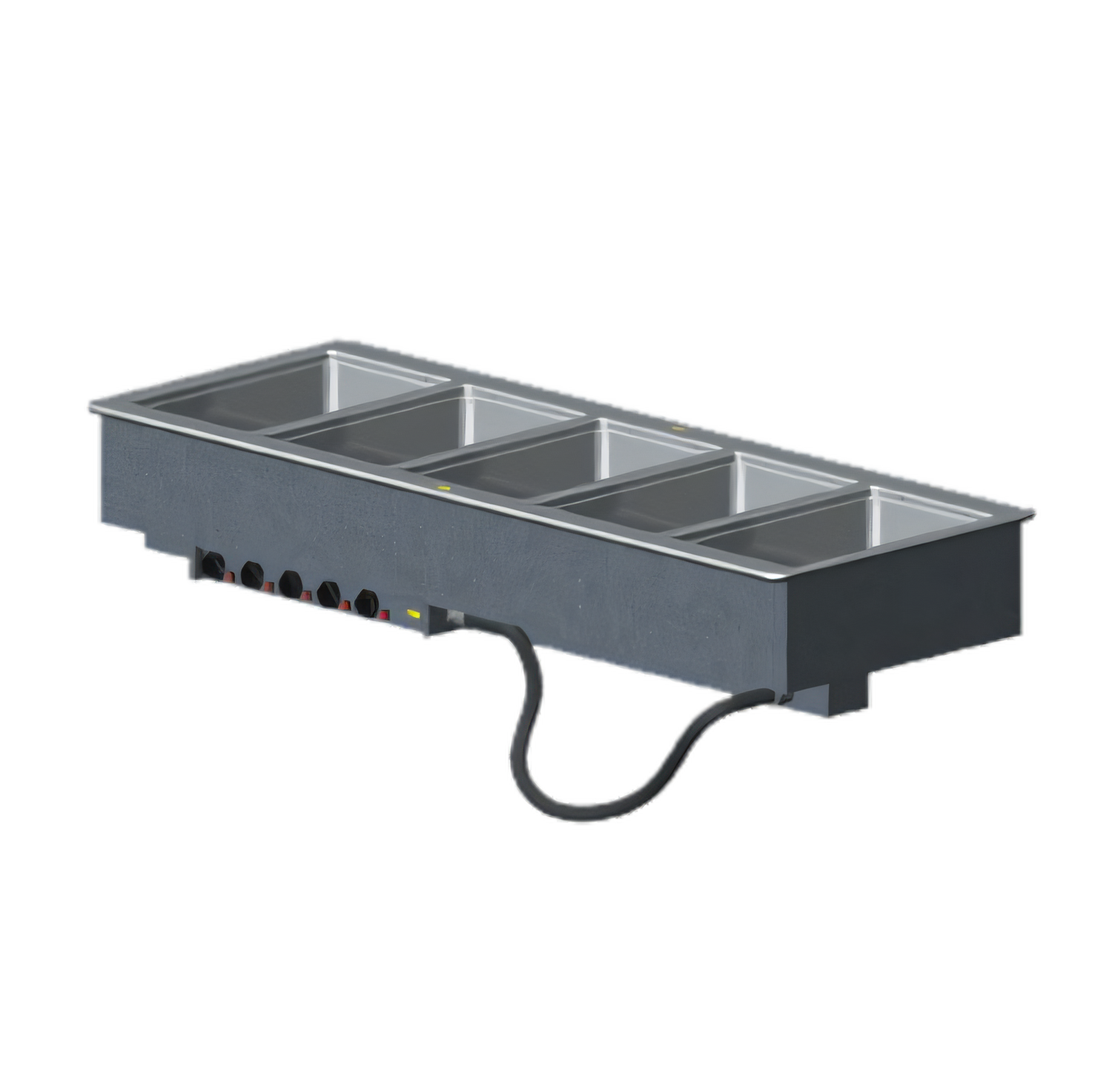

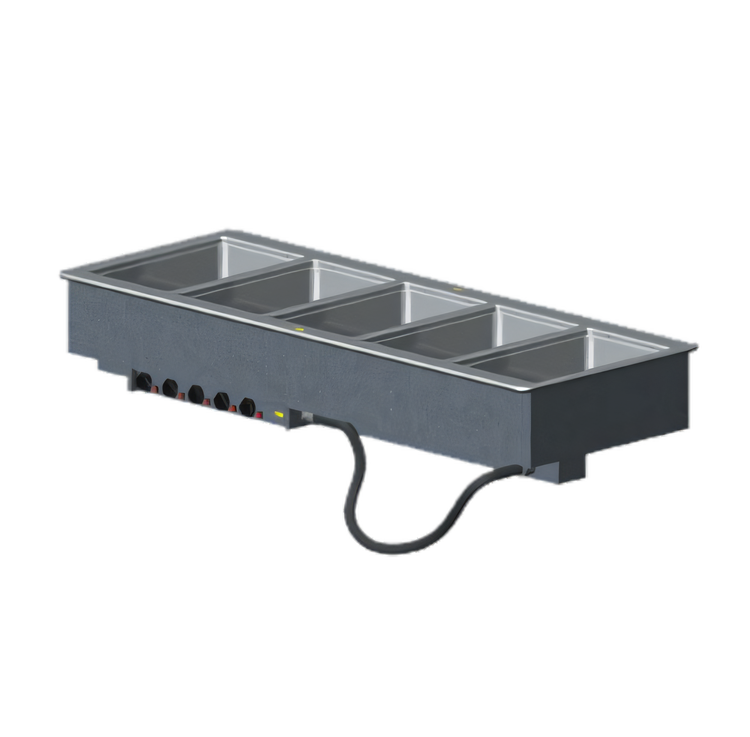

Vollrath 5-Well Auto-Fill Drop-In Hot Food Well
1000 W per well • Thermostatic controls • Model 3640881Serve guests faster and keep every dish at a safe, appetizing temperature with Vollrath’s premium five-well hot module. Designed for easy top-mount installation, this self-contained drop-in features automatic water fill, independent thermostats and a rugged, made-in-USA build that thrives in the busiest kitchens.
Key advantages

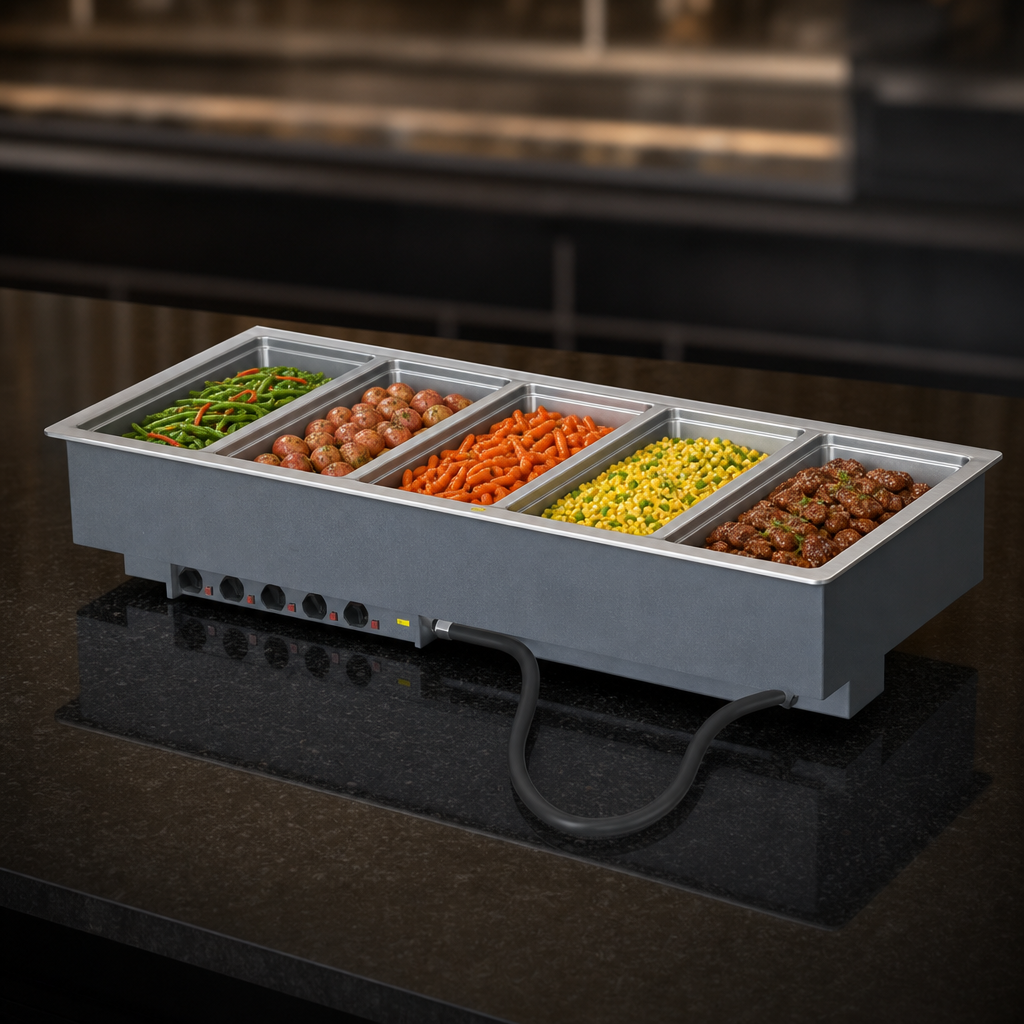

- Five individually insulated 12" × 20" wells deliver consistent moist heat—no hot spots.
- Auto-fill system maintains proper water level for worry-free, all-day service.
- Individual thermostatic knobs & power indicator lights let you dial in each menu item’s perfect holding temp.
- Durable 18 ga stainless top with drip-free flange protects counters and reduces clean-up.
- 1" copper manifold drain with separate shut-offs for each well plus a master valve for fast emptying.
- Zero-clearance installation and included mounting clips (fits counters up to 3" thick).
- Ships ready to plug in—6' power cord with NEMA 6-30P; no hard-wiring required.
- NSF 4 & cULus listed for commercial use; proudly manufactured in Sheboygan, Wisconsin.
Perfect for
- Buffets, cafeterias & dining halls
- Supermarket prepared-food stations
- Hotels, resorts & banquet lines
- Catering operations that need drop-in flexibility
Technical specifications
| Overall dimensions (W × D × H) | 68" × 26" × 21-1/2" (172.7 × 66 × 54.6 cm) |
|---|---|
| Counter cut-out (radius 7/8") | 67-1/4" × 25-1/4" (170.8 × 64.1 cm) |
| Well size (each) | 12" × 20" pan; up to 6" (15.2 cm) deep |
| Heat output | 1,000 W per well / 5,000 W total |
| Electrical | 208-240 V, 60 Hz, 1-ph, 18–20.8 A, corded with NEMA 6-30P |
| Operation | Wet heat only, automatic water fill |
| Controls | Five independent thermostatic dials with power lights |
| Drain | 1" copper manifold; individual ball valves + manifold shut-off |
| Construction | 20 ga stainless wells, 18 ga stainless top, 18 ga galvanized exterior housing; fully insulated |
| Certifications | NSF 4, cULus |
| Country of origin | USA |
Optional accessories: sheet-pan adapter (Vollrath #19186) and adapter bars for fractional pans (sold separately).
Drop-ins are built to order and cannot be cancelled or returned once production begins.
For complete warranty terms, please visit the Vollrath website.
