Description

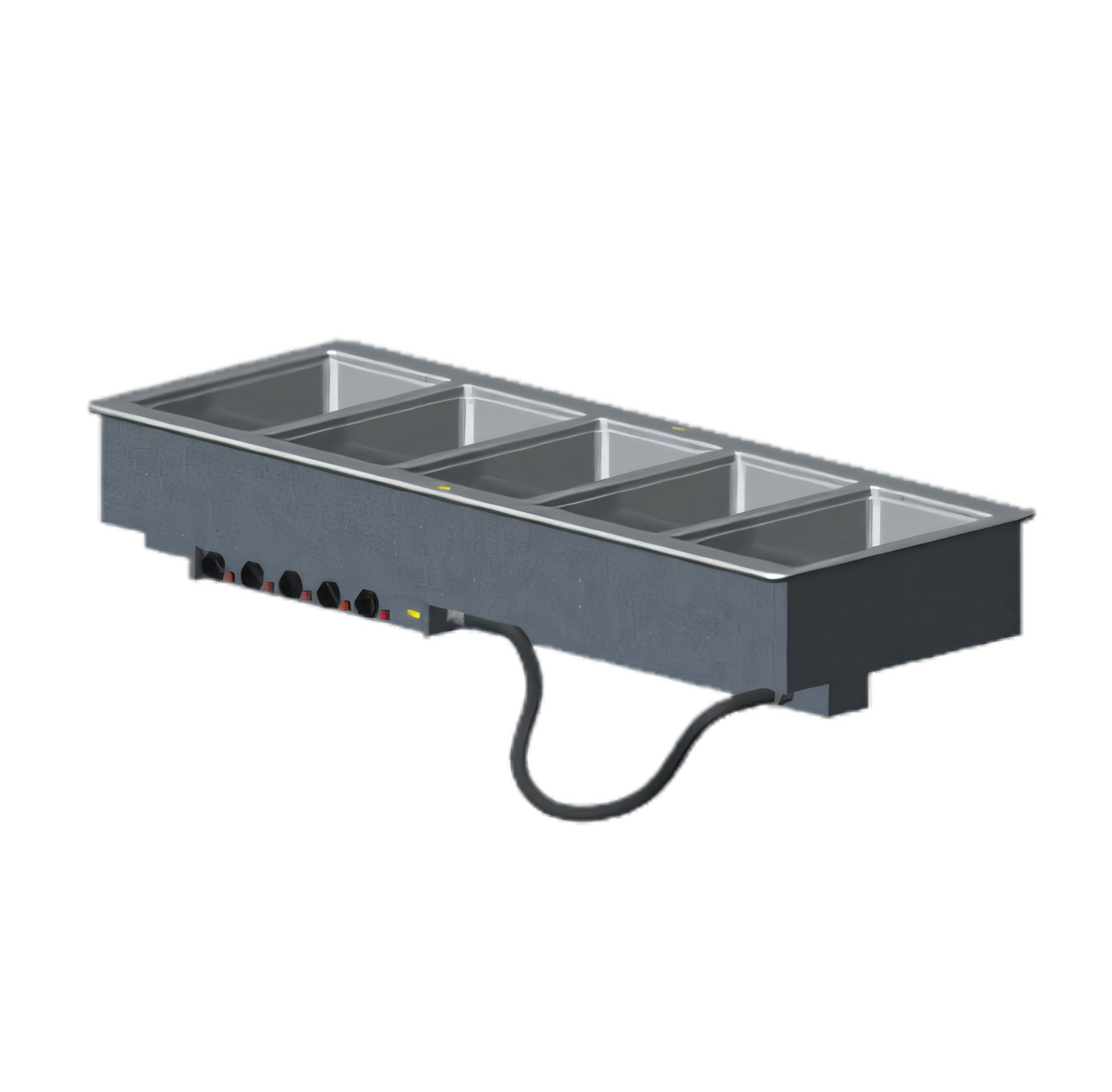

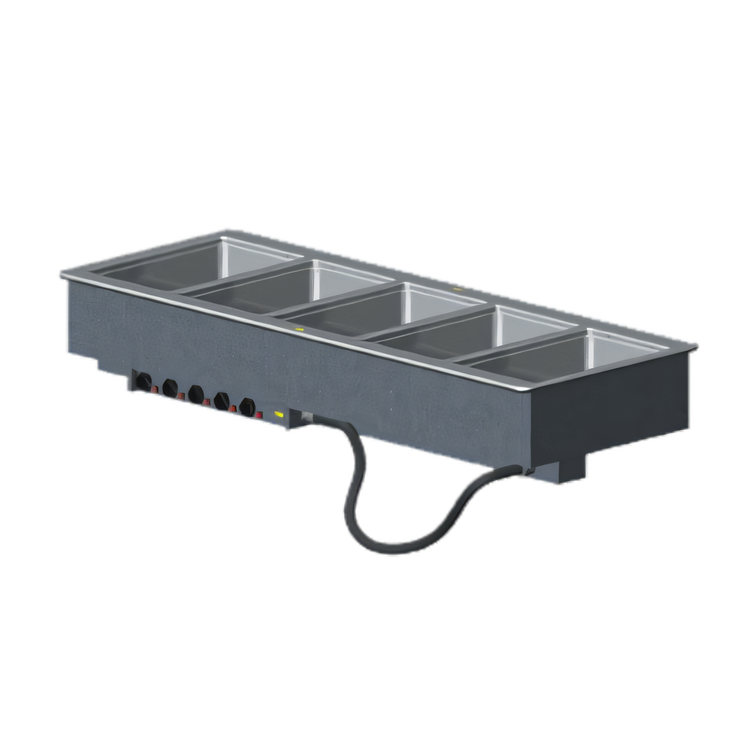

Vollrath 5-Well Drop-In Hot Food Well with Auto-Fill & Manifold Drain
Model 3640880 · 625 W per well · ThermostaticKeep every entrée, side and sauce at a safe, appetizing temperature without constant monitoring. This Made-in-USA, five-well Vollrath drop-in delivers wet-operation consistency, automatic water refill, and individual thermostatic controls—all in one easy-to-install module.
Why You’ll Love It

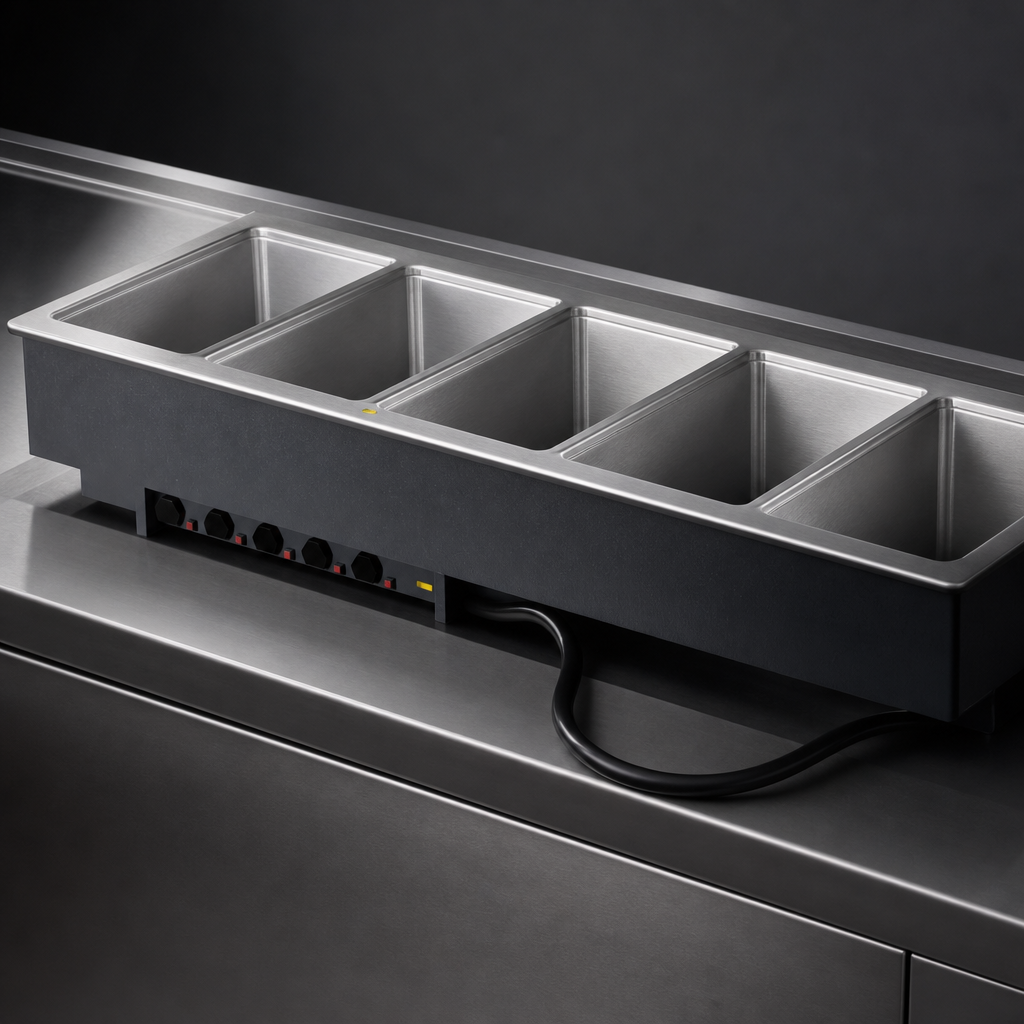

- Five 12" × 20" insulated wells accept full-size or fractional pans up to 6" deep.
- Auto-fill system maintains water level for worry-free wet operation.
- Individual thermostatic controls with power lights for precise holding.
- Drip-free 18 ga stainless steel flange creates a clean, professional counter finish.
- 1" copper manifold drain with individual well shut-offs plus master shut-off speeds cleanup.
- Fully insulated 20 ga stainless wells improve efficiency and protect surrounding cabinetry.
- 6 ft (1.8 m) cord & NEMA 6-20P plug—no hard-wiring required.
- Includes mounting/positioning clips for counters up to 3" thick; zero-clearance installation.
- NSF 4 & cULus listed; built and assembled in the USA.
Technical Specs
| Overall dimensions (W × D × H) | 68" × 26" × 21 1⁄2" (172.7 × 66 × 54.6 cm) |
|---|---|
| Counter cut-out | 67 1⁄4" × 25 1⁄4" (170.8 × 64.1 cm) with 7⁄8" corner radius |
| Number / size of wells | 5 × 12" × 20" full-size, 20 ga stainless |
| Operation | Wet only – auto-fill |
| Heat per well | 625 W (3 125 W total) |
| Controls | Five independent thermostats, panel-mounted |
| Electrical | 208 V / 60 Hz / 1-ph, 15 A, cord & NEMA 6-20P |
| Drain | 1" copper manifold, individual well valves + master shut-off |
| Top construction | 18 ga stainless steel |
| Exterior housing | 18 ga galvanized steel |
| Certifications | NSF 4, cULus |
| Country of origin | United States |
Installation & Use
- Indoor, countertop drop-in; zero side-clearance required.
- Water supply required for auto-fill; 1⁄2" MPT connection.
- For even heating, always operate with water in wells.
- Adapter bars (sold separately) recommended when using fractional pans.
Important: Wet operation only.
Modular drop-ins are built to order and cannot be canceled or returned.
Covered by Vollrath’s standard commercial warranty. See full details at vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
68.0in
Depth
26.0in
Shipping Weight
210.0lbs
Pan Capacity
(5) full size (12" x 20")
Controls
thermostatic controls
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3125 watts, 208v/60/1-ph, 15.0 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
