Vollrath 3640871HD Steam Tables & Food Wells
Description

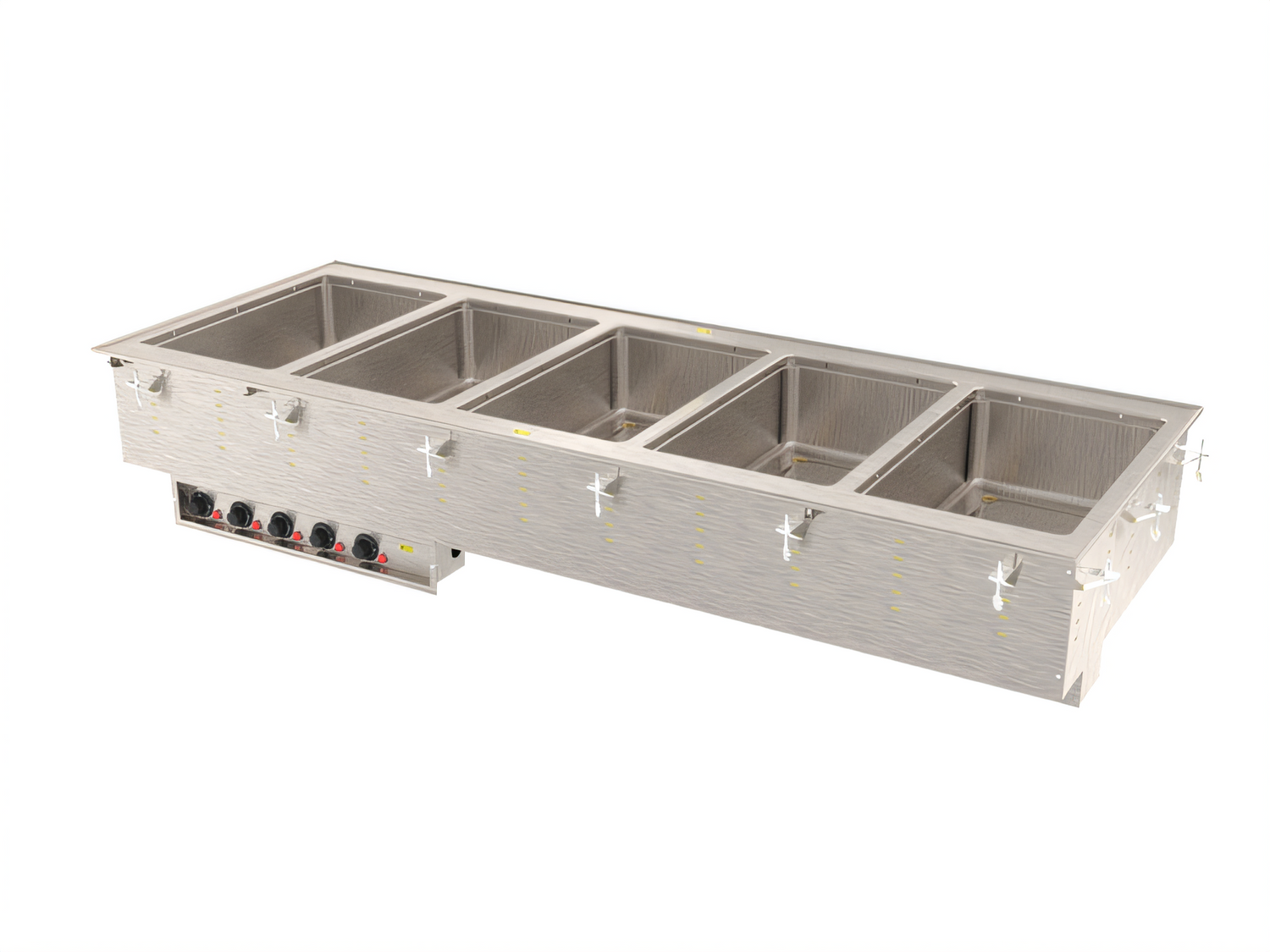

Vollrath Five-Well Marine-Grade Drop-In Hot Food Well – Thermostatic
Model 3640811HD • 1000 W per well (5000 W total) • 208-240 V, 1-phaseKeep every entrée table-ready with Vollrath’s premium five-well modular hot drop-in. Built from corrosion-proof 316 stainless steel, each individually controlled well delivers precise wet-heat holding performance while the insulated housing maximizes energy efficiency. Arrives pre-wired with a 6' cord and NEMA 6-30P plug for quick, zero-clearance installation.
Why You’ll Love It

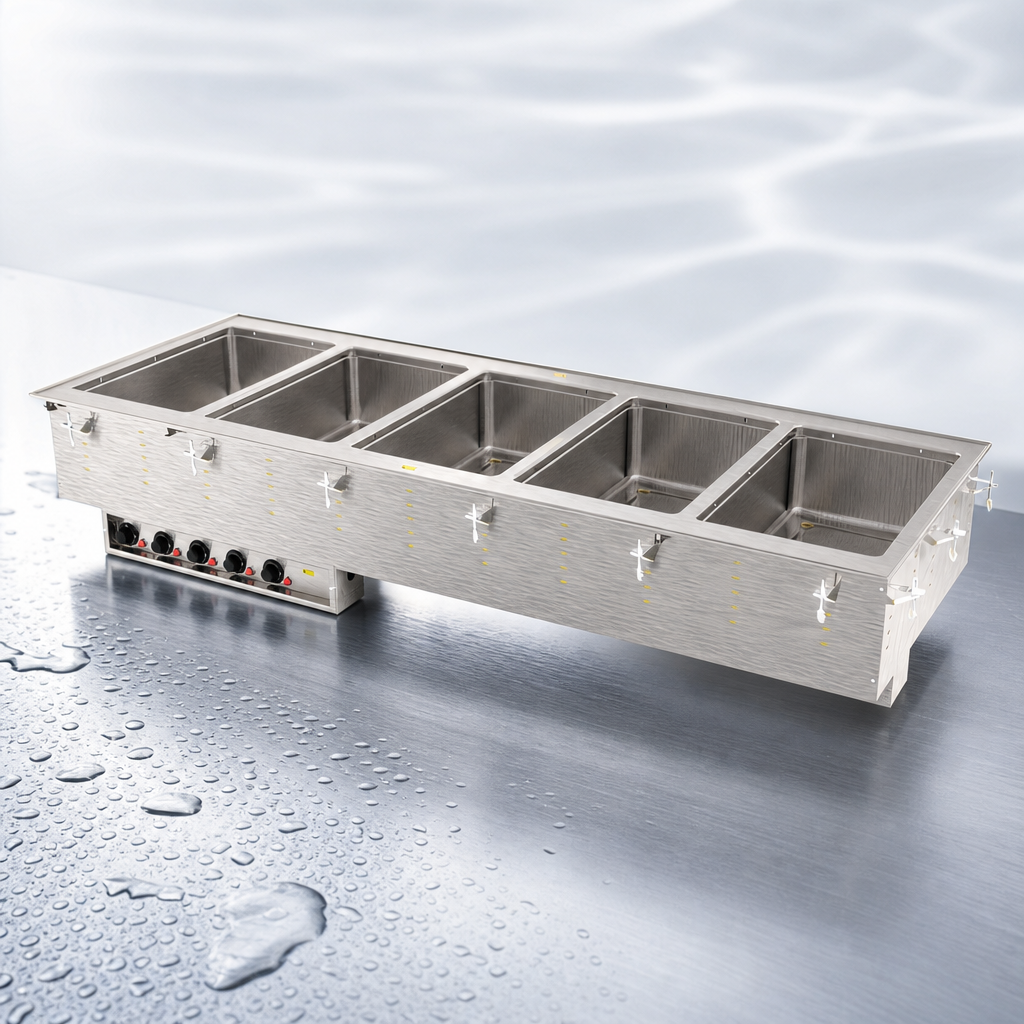

- Marine-grade (SAE 316) stainless wells resist salt, acidic foods, and harsh chemicals.
- Five independent thermostatic controls with power-on indicator lights—dial in each menu item’s perfect temperature.
- Wet operation only for even heat distribution that protects food quality and meets NSF 4 standards.
- Drip-free perimeter flange keeps counter surfaces clean and dry.
- 1" copper manifold drain with individual well shut-off valves plus master manifold shut-off simplifies daily cleanup.
- Removable service panels under each well provide tool-free access to components.
- Includes positioning / mounting clips for counters up to 3" thick—no hard-wiring required.
- Made in the USA, NSF listed, and cULus certified for commercial kitchens.
Technical Specifications
| Pan Capacity | (5) full-size 12" × 20" pans, up to 6" (15.2 cm) deep |
|---|---|
| Overall Dimensions | 68" W × 26" D × 21 ½" H (172.7 × 66 × 54.6 cm) |
| Counter Cut-Out | 67 ¼" W × 25 ¼" D (170.8 × 64.1 cm) with ⅞" corner radius |
| Total Wattage | 5000 W (1000 W per well) |
| Electrical | 208-240 V / 60 Hz / 1-ph, 18-20.8 A, 6' cord with NEMA 6-30P |
| Construction | 20 ga. 316 SS drawn wells, 18 ga. stainless top, stainless exterior housing, full fiberglass insulation |
| Drainage | 1" copper manifold, individual ½" ball valves per well |
| Controls | Remote stainless panel (4' tether) with five thermostats & indicator lights |
| Listings | NSF 4 (wet operation), cULus |
| Country of Origin | United States of America |
Installation Notes
- Zero-clearance design—unit can be mounted directly against surrounding cabinetry.
- Indoor use only; ambient HVAC conditions may affect holding temperature.
- Adapter bars are recommended when using fractional pans (sold separately).
Orders for modular drop-ins cannot be canceled or returned. For complete warranty details visit VollrathFoodservice.com.
