Vollrath 3640871 Steam Tables & Food Wells
Description

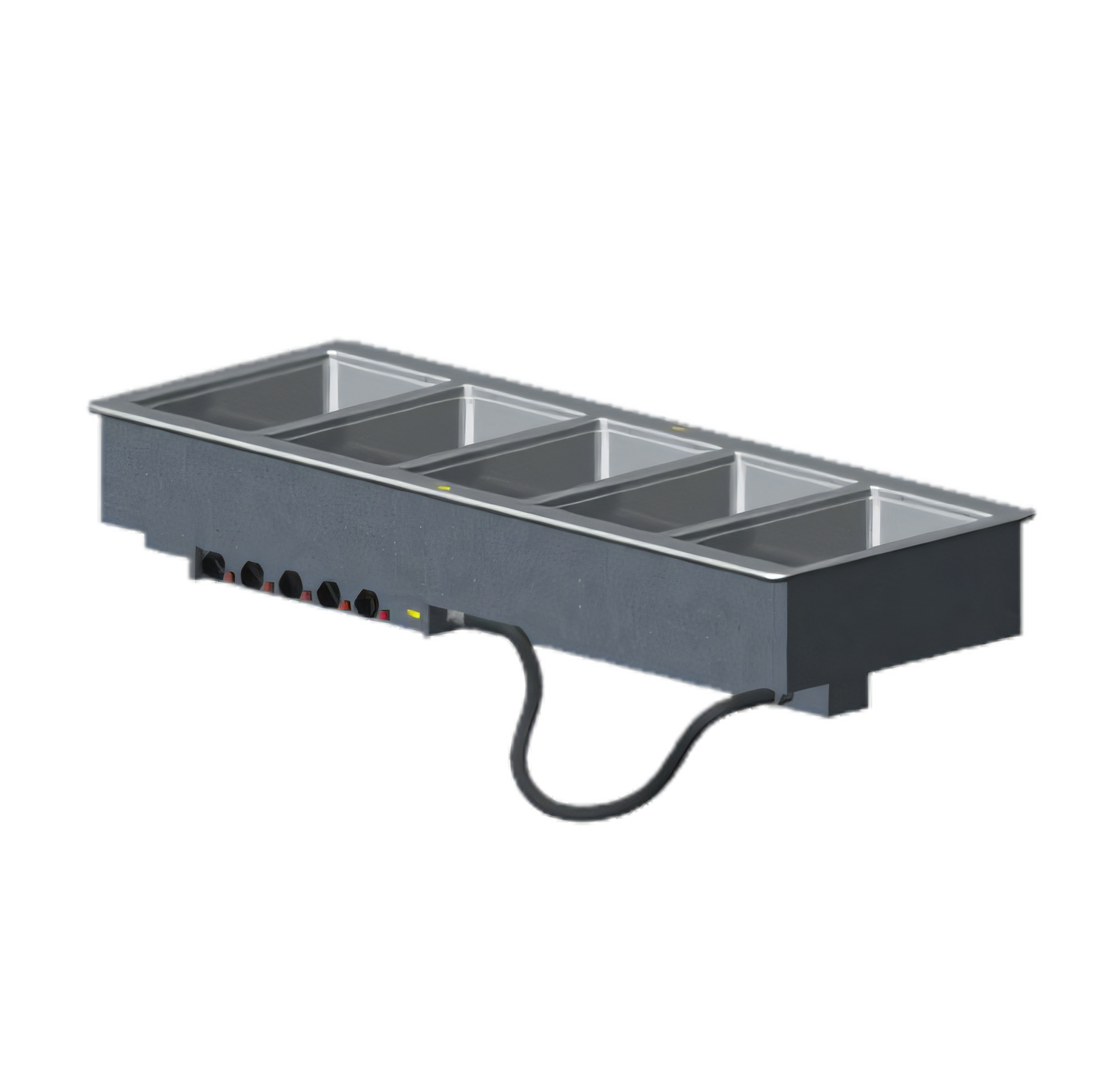

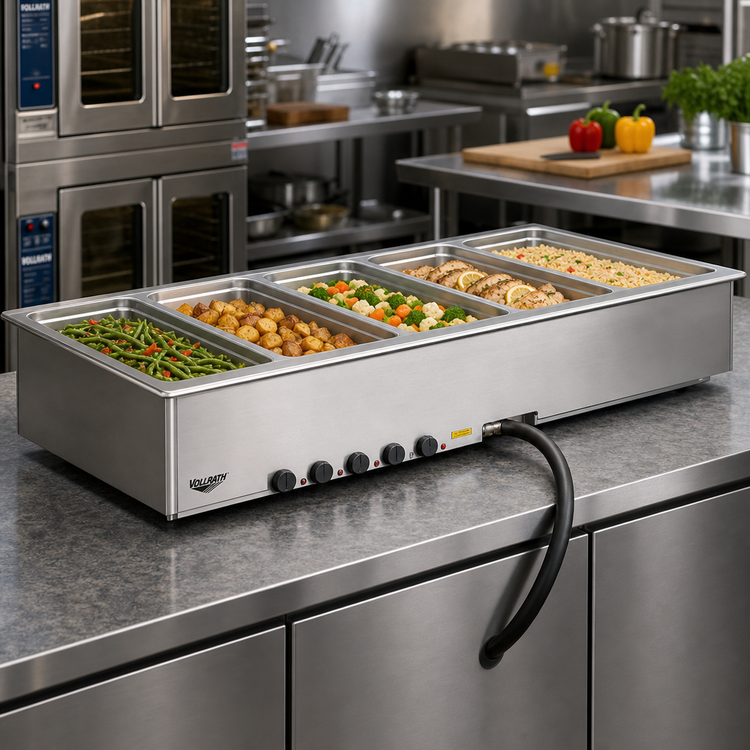

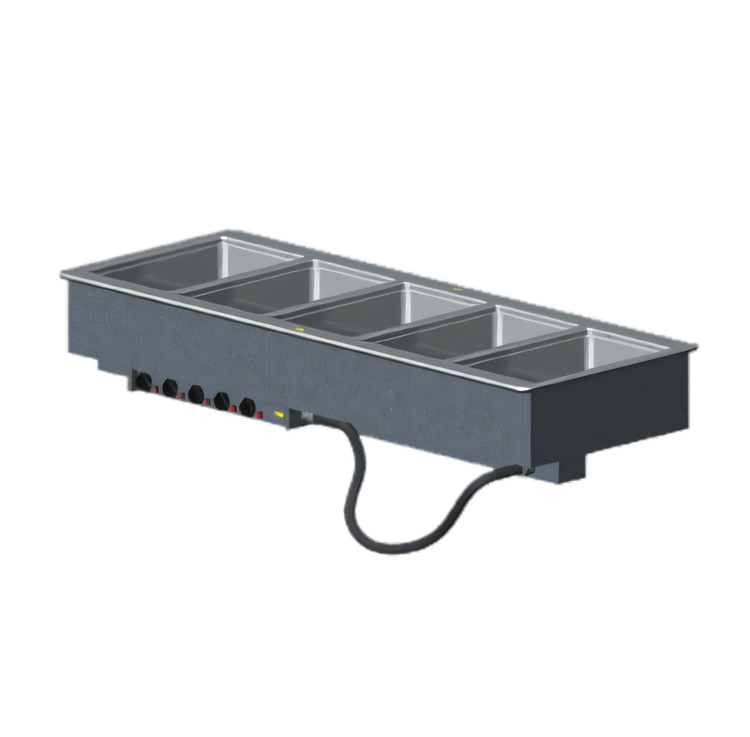

Vollrath 5-Well Hot Drop-In Module — Thermostatic, Manifold Drain
Model 3640871 | 1000 W per well | 208-240 V, 1-Phase | Made in USAAdd high-volume holding power to any serving line with Vollrath’s NSF-listed five-well drop-in. Each full-size 12″ × 20″ well is individually thermostatically controlled for precise temperatures, while a 1″ copper manifold drain with individual shut-offs makes end-of-day cleanup effortless. Set it in the counter cut-out, secure the included clips, and plug it in—no hard-wiring required.
Key features & benefits
- Five 20-gauge, 300-series stainless-steel wells accept full-size or fractional pans up to 6″ deep.
- Wet operation only delivers even heat and meets NSF 4 performance standards.
- Individual thermostatic dial controls with power lights on a stainless panel (4 ft tether) for flexible mounting.
- 1″ copper manifold drain features ball-valve shut-offs on every well plus a master manifold shut-off.
- Heavy insulation on all sides—including between wells—maximizes efficiency and keeps exterior surfaces cooler.
- Drip-free 18-gauge stainless top flange with gasket protects countertops.
- Zero-clearance installation; standard clips secure units to counters up to 3″ thick.
- 6′ cord with NEMA 6-30P; total 5 kW draws only 18–20.8 A at 208-240 V single-phase.
- cULus & NSF listed; fabricated in Sheboygan, Wisconsin, USA.
- Optional accessories: sheet-pan adapter (#19186) and adapter bars for fractional pans (sold separately).
Technical specifications
| Number of wells | 5 (individually insulated) |
|---|---|
| Well size | 12″ × 20″ (full-size steam-table pan) |
| Control type | Thermostatic, one per well |
| Operation | Wet heat only (water required) |
| Total wattage | 5,000 W (1,000 W per well) |
| Electrical | 208-240 V / 60 Hz / 1-ph | 18–20.8 A | NEMA 6-30P plug |
| Drain system | 1″ copper manifold with individual ball valves & master shut-off |
| Construction | 20-ga stainless wells, 18-ga stainless top, 18-ga galvanized housing |
| Overall dimensions | 68″ W × 26″ D × 21½″ H (172.7 × 66 × 54.6 cm) |
| Counter cut-out | 67¼″ W × 25¼″ D (170.8 × 64.1 cm) with ⅞″ (2.2 cm) corner radius |
| Certifications | NSF 4 (wet), cULus Listed |
| Warranty | Standard Vollrath limited warranty (see vollrathfoodservice.com) |
- This unit is designed for moist-heat operation only. Always fill wells with water before energizing.
- Modular drop-ins are built to order and cannot be canceled or returned.
For complete installation instructions, clearance requirements, and warranty details, please refer to the Vollrath website.
