Vollrath 3640870HD Steam Tables & Food Wells

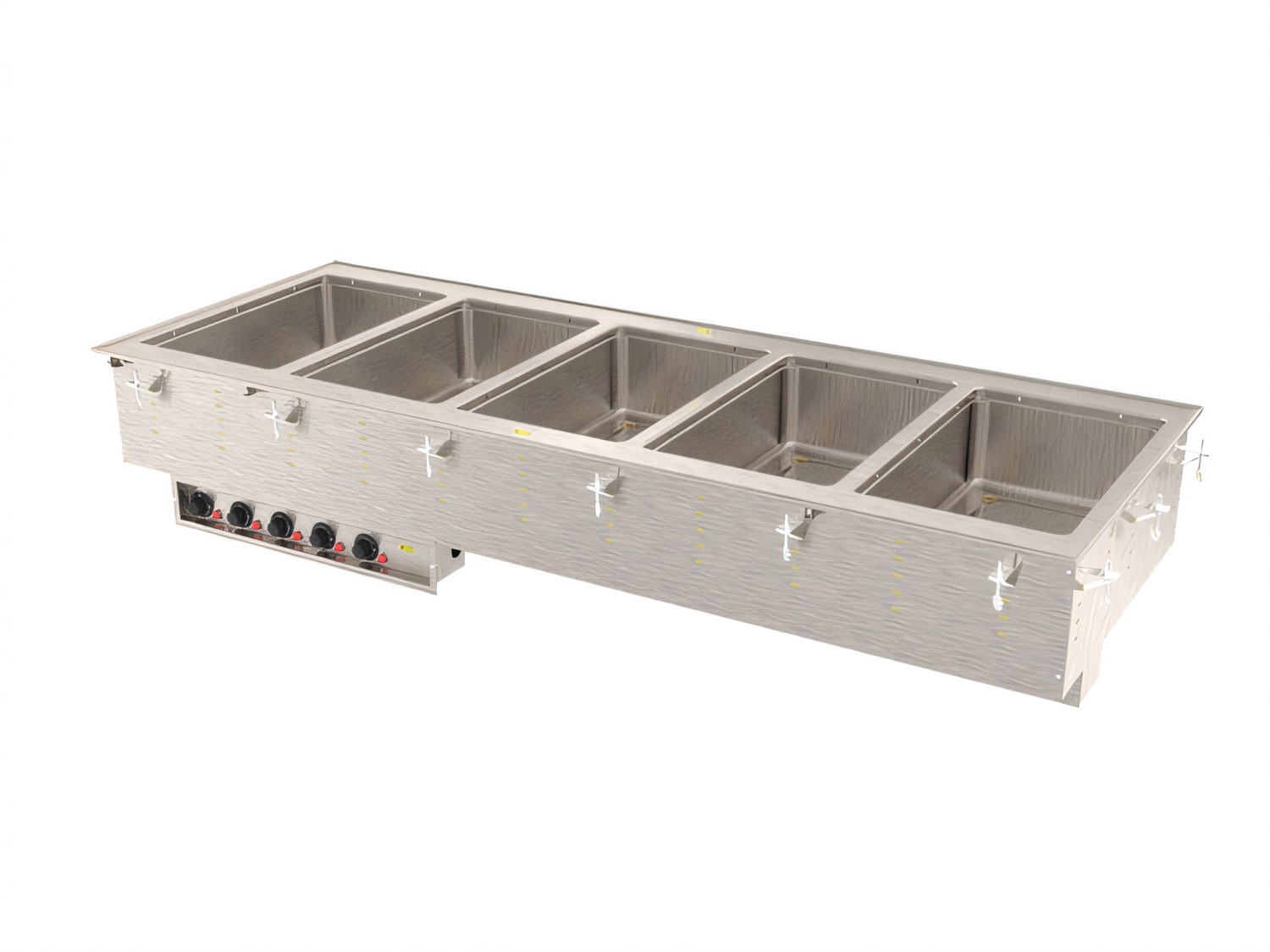

Vollrath 5-Well Modular Hot Drop-In with Marine-Grade Wells

Keep high-volume menu items at perfect serving temperature with this heavy-duty, five-well drop-in from Vollrath. Each full-size well is formed from corrosion-resistant 316 stainless steel and individually controlled so you can hold a variety of foods safely and efficiently—all in a single, self-contained unit that mounts flush with your counter.

Key features & benefits

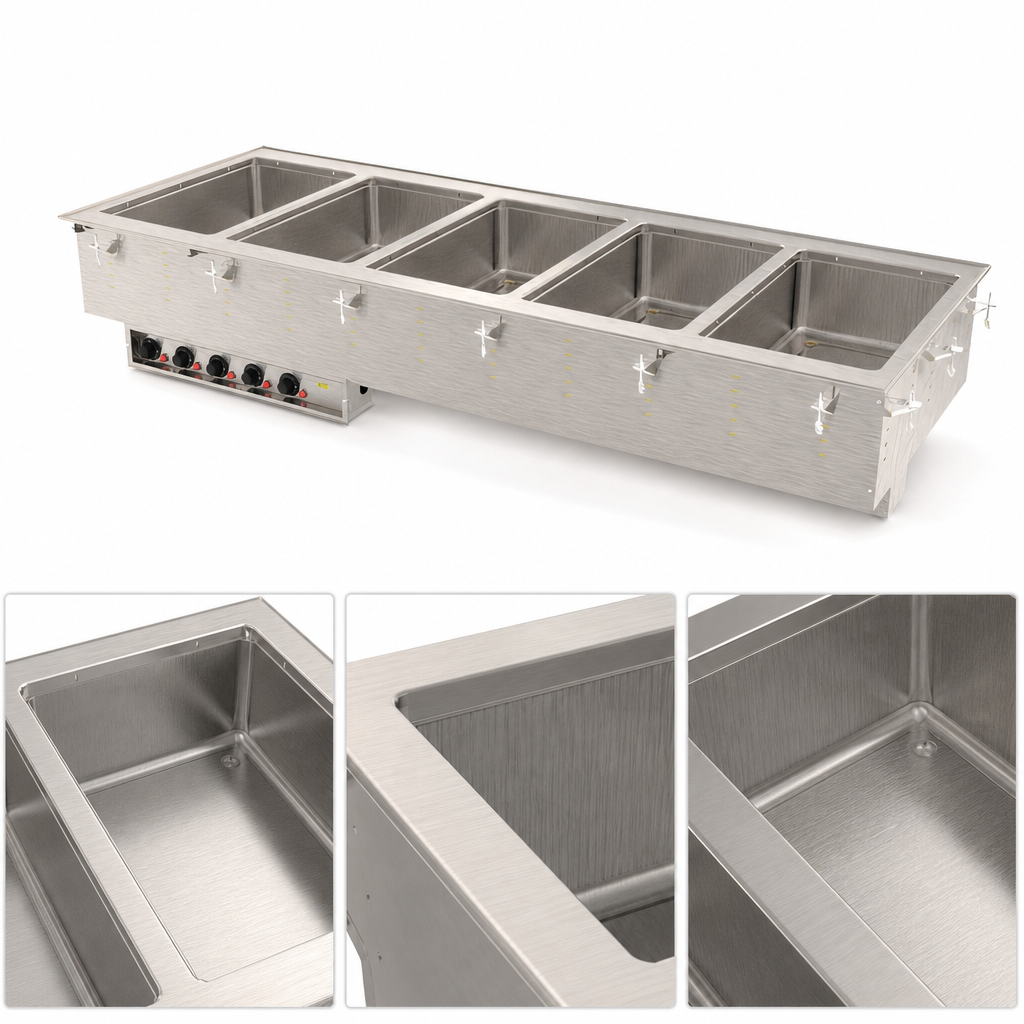

• Five 12" × 20" wells made from 20-ga 316 marine-grade stainless steel—ideal for coastal or high-humidity environments.
• Wet operation only for gentle, even heat distribution up to 6" deep steam table pans (full or fractional with adapter bars).
• Independent thermostatic controls with power indicator lights let you fine-tune holding temps for each menu item.
• 1" copper manifold drain with master shut-off plus ½" ball-valve drains in every well for quick, mess-free water changes.
• Drip-free mounting flange and included clips support zero-clearance, top-mount installation in counters up to 3" thick.
• 18-ga stainless steel top and exterior housing withstand daily commercial use and cleaning chemicals.
• 6' (1.8 m) factory-installed cord with NEMA 6-20P—no hard-wiring required, saving on install costs.
• Removable service panel beneath each well speeds routine maintenance and element access.
• NSF 4 (moist heat), cULus listed; proudly Made in the USA.

Applications

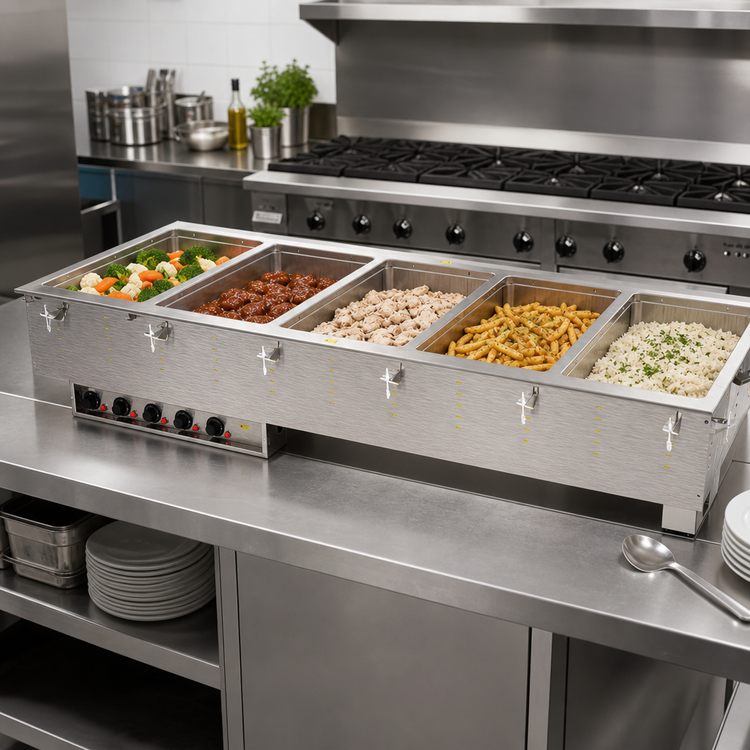

• Buffets & self-service lines
• K-12 and university dining halls
• Hotels, banquets & convention centers
• Convenience stores & delis
• Marine or coastal foodservice operations

Technical specifications

Installation notes

• Zero-clearance design; manifold drain adds 6-1/2" (16.5 cm) below counter—verify cabinet clearance.
• Indoor use only; ambient HVAC conditions may influence holding temperatures.
• Adapter bars (sold separately) recommended when using fractional pans.

Modular drop-ins are built to order and cannot be canceled or returned.
