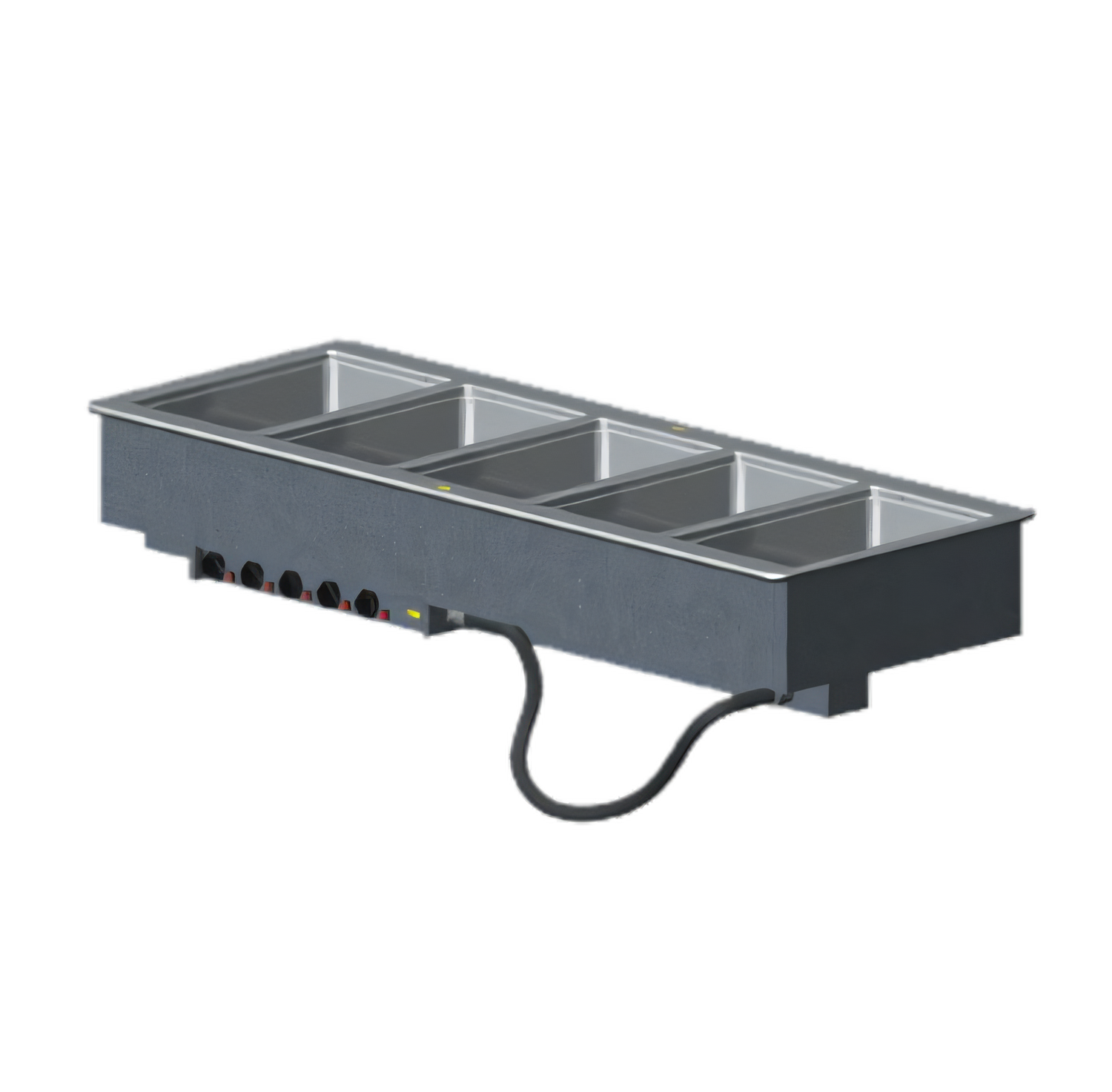

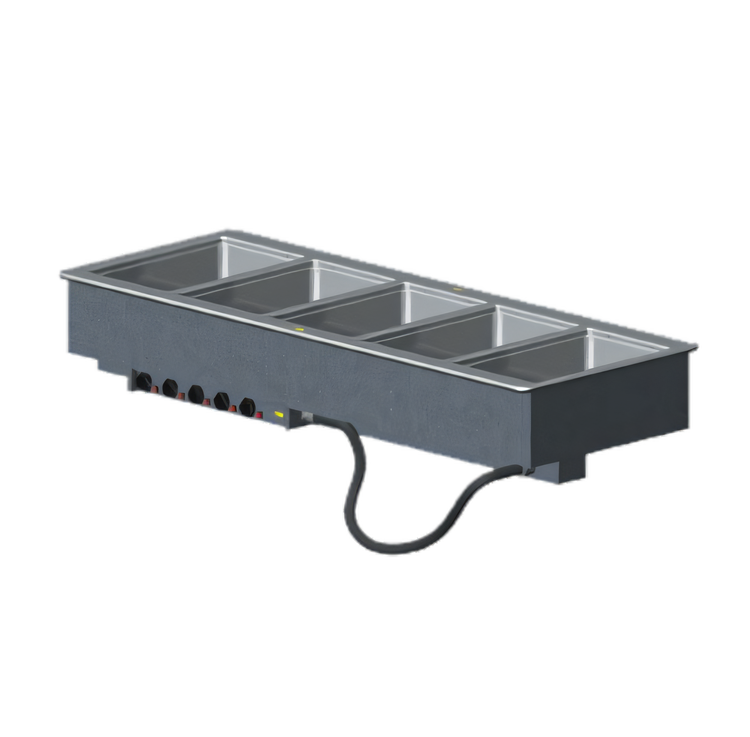

Vollrath 5-Well Drop-In Electric Hot Food Well Unit with Manifold Drain and Thermostatic Controls

Wet Operation Only, 12 x 20 Inch Pan Wells, 208 Volts, 3.125 kW

Keep five full-size pans hot and ready with insulated wet wells, precise thermostatic control, and a durable drop-in design built for busy serving lines.

  • Holds five full-size 12" x 20" pans in insulated individual wells.
  • Wet-operation design with individual thermostatic controls for consistent hot holding.
  • 1" copper manifold drain with individual well shutoffs and a manifold shutoff helps simplify cleanup.
  • Stainless steel top, galvanized exterior housing, and drip-free flange support long-lasting commercial use.
  • Includes positioning clips, power indicator light, and a cord with NEMA 6-20P plug.
  • 208V, single-phase electrical setup with 3.125 kW output.

Overall Dimensions:

68.0"W x 26.0"D x 21.5"H

Product Weight:

150.0 lb

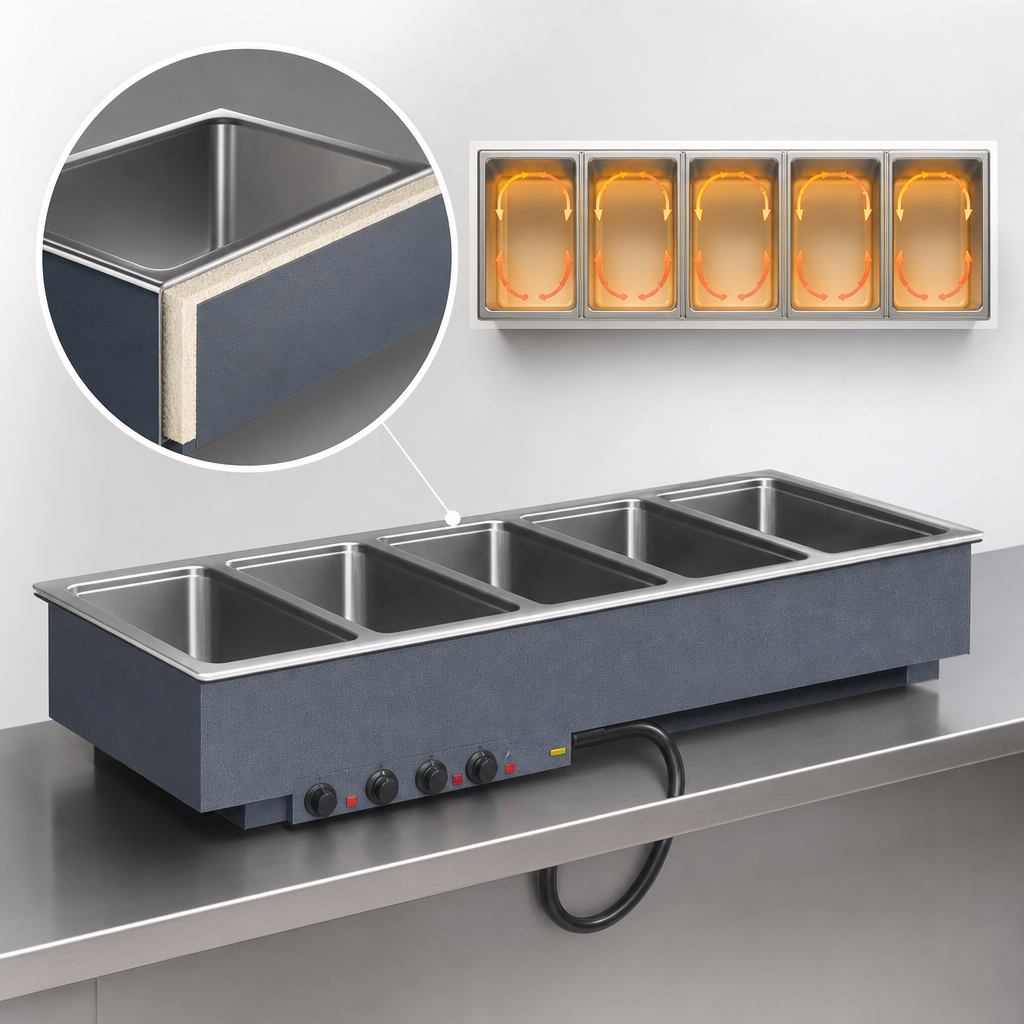

Five Insulated Wells

(5) individual 20-gauge stainless steel wells are insulated to help retain heat for hot holding.

Wet Operation Only

Designed specifically for wet use applications.

Individual Thermostatic Controls

Thermostatic controls are mounted in the panel and include a cord for convenient installation.

Copper Manifold Drain

Includes a 1" copper manifold drain with individual well shutoffs and a manifold shutoff.

Durable Commercial Construction

Features an 18-gauge stainless steel top and 18-gauge galvanized exterior housing.

Drip-Free Flange

Helps contain spills and keep the surrounding counter area cleaner.

Included Positioning Clips

Positioning clips are included to assist with installation and alignment.

Power Indicator Light

Provides a visible indication when the unit is powered on.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Capacity 5 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Controls Thermostatic
Material Stainless Steel
Interior Finish Stainless Steel
Drain Connection Required
Water Connection Not Required
Watts 3.125 kW
Voltage 208 Volts
Amps 15.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 68 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 150 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Each well is designed for a full-size 12" x 20" pan.
This unit is designed for wet operation only.
It operates on 208 Volts, 60 Hz, single-phase power and draws 15.0 amps with a NEMA 6-20P plug.
Yes. It includes a 1" copper manifold drain with individual well shutoffs and a manifold shutoff.
The cutout size is 67-1/4" W x 25-1/4" D and requires a 7/8" corner radius.
Positioning clips are included.
