Vollrath

Vollrath Five-Well Modular Hot Drop-In with Auto-Fill Manifold Drain, Marine-Grade Stainless Steel Wells

SKU: 3640861HD
$5,608.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

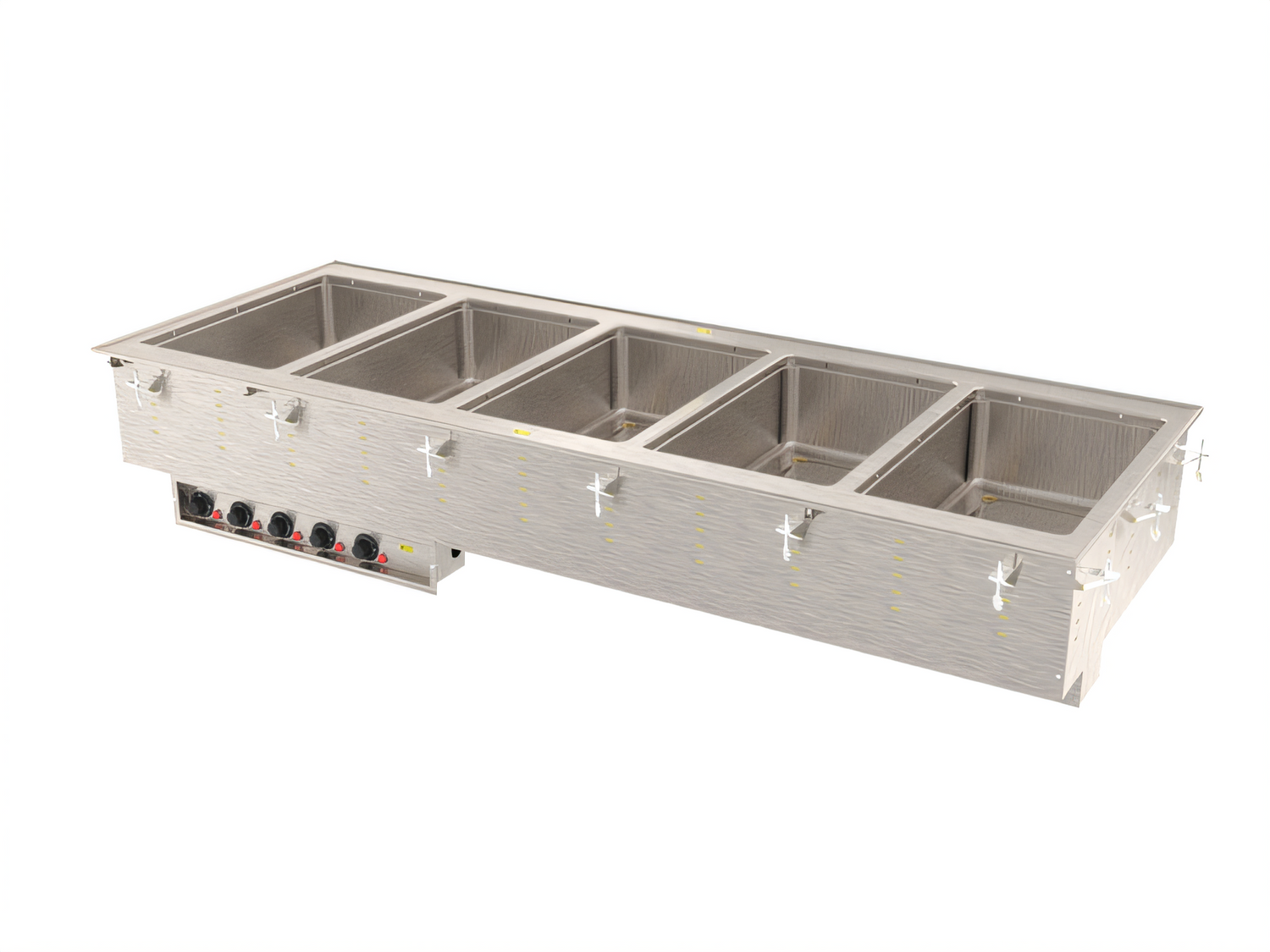

Vollrath Five-Well Modular Hot Drop-In with Auto-Fill Manifold Drain, Marine-Grade Stainless Steel Wells

Drop-In, Wet Operation Only, Infinite Controls, 208-240V

Keep five full-size pans hot and ready with insulated marine-grade wells, auto-fill convenience, and individual infinite controls.

  • Five full-size 12" x 20" wells support high-volume service in a compact drop-in footprint.
  • Marine-grade 316 stainless steel wells and insulated construction help maintain serving temperatures and resist corrosion.
  • Auto-fill manifold drain system includes individual well shutoffs plus a master manifold shutoff.
  • Wet-operation design requires water for even heating and proper moist-heat performance.
  • Individual infinite controls and power indicator lights let you manage each well independently.
  • Includes a 6-foot cord with NEMA 6-30P plug and mounting clips for easier top-mount installation.

Overall Dimensions:

68.0"W x 26.0"D x 21.5"H

Product Weight:

434.0 lb

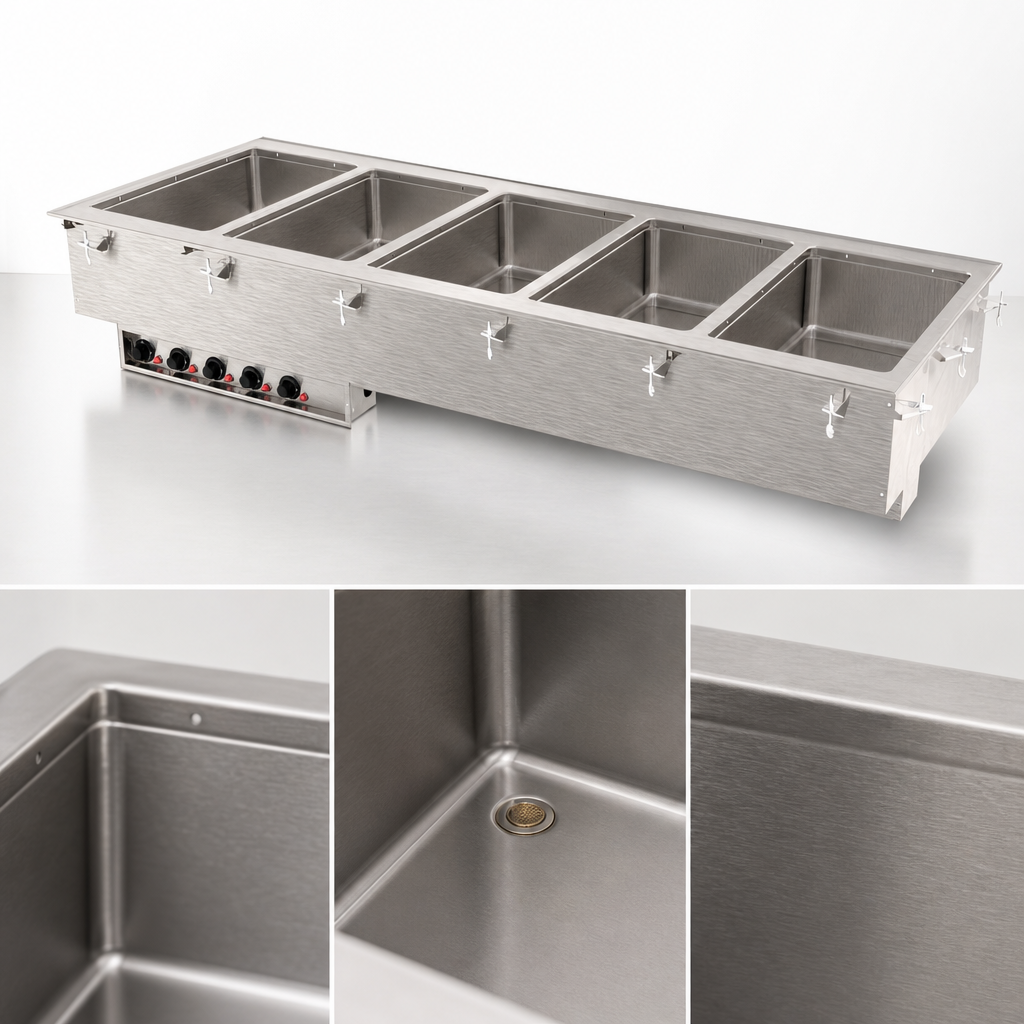

Marine-Grade Wells

Five 20-gauge SAE Type-316 stainless steel wells provide corrosion-resistant, insulated food holding.

Auto-Fill Manifold Drain

1-inch copper manifold drain includes individual well shutoffs and a master manifold shutoff.

Wet-Operation Design

Designed for moist-heat use; water is required for even heating and NSF4 performance.

Individual Infinite Controls

Each well has its own infinite control and power indicator light for independent temperature management.

Stainless Steel Top and Housing

18-gauge stainless steel top and stainless steel exterior housing deliver durable, commercial-grade construction.

Cord-and-Plug Connection

Includes a 6-foot cord with NEMA 6-30P plug; no hard-wiring is required.

Service-Friendly Access

Removable bottom panels provide access for servicing, and mounting clips are included for counter installation.

Pan Compatibility

Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.

Type Hot Food Well Unit
Style Individual Pans
Installation Type Drop-In
Controls Infinite
Pan Capacity 5
Pan Size 12 x 20 Inches
Material Stainless Steel
Interior Finish 316 Stainless Steel
Voltage 208-240 Volts
Watts 5 kW
Amps 18-20.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-30P
Cord Length 6 Feet
Drain Connection Size 1 Inch
Shipping Width 68 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 434 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Two-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It includes a 6-foot cord with a NEMA 6-30P plug.
No. It is wet operation only, and water is required for even heating.
It accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.
The cutout size is 67-1/4" x 25-1/4" and requires a 7/8" corner radius.
It comes with a two-year warranty against defects in materials and workmanship.
