Vollrath 3640861 Steam Tables & Food Wells
Description

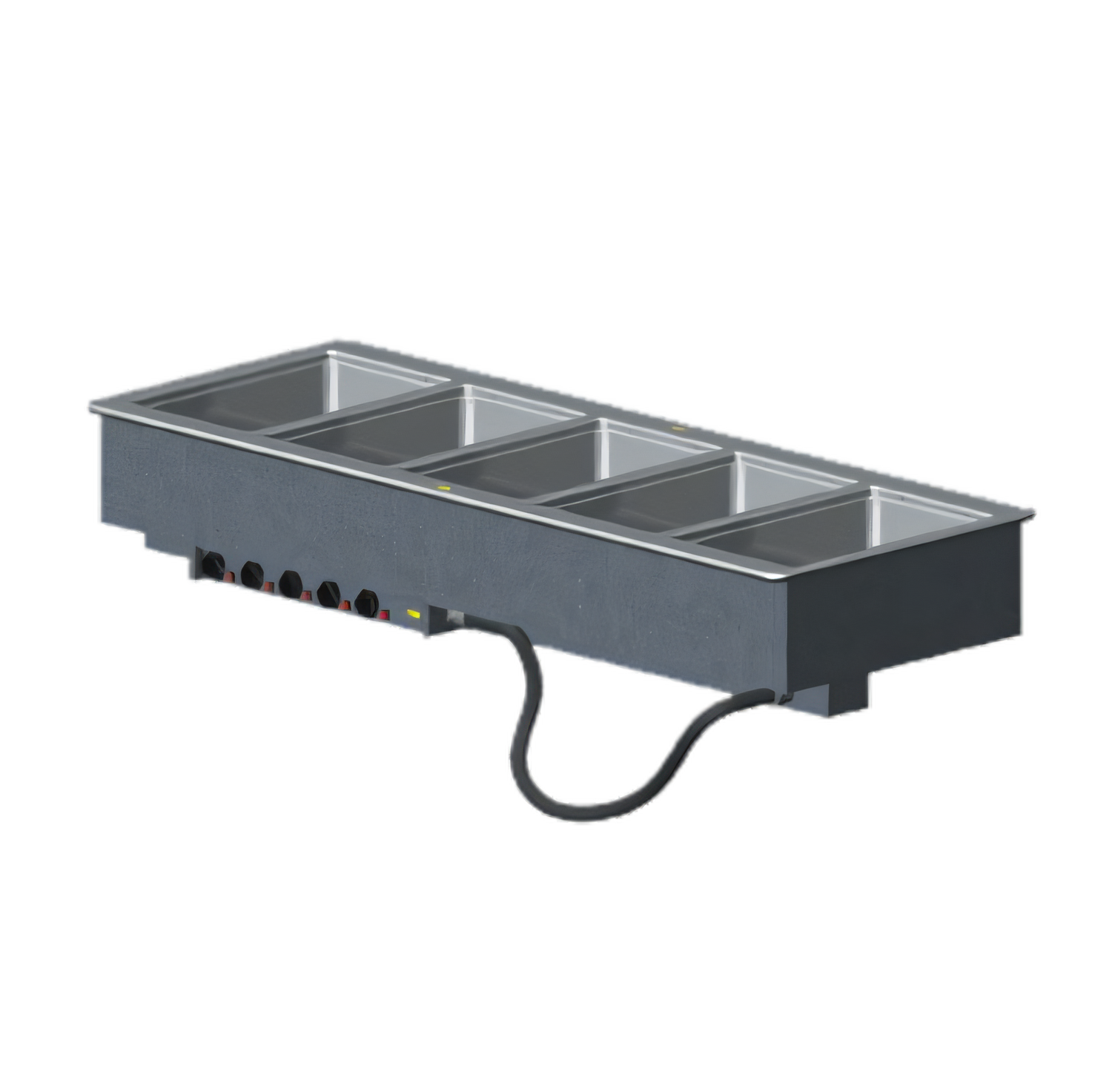

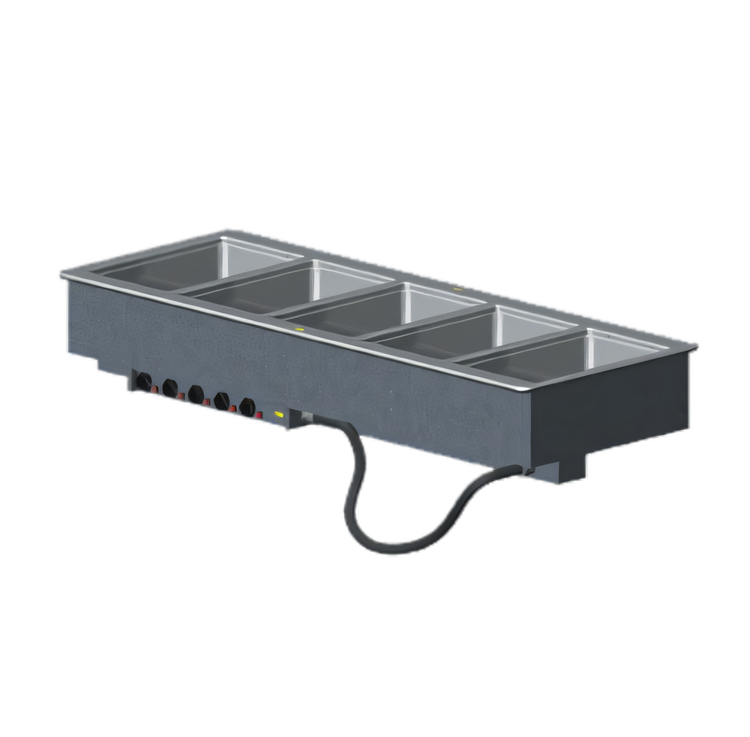

Vollrath Five-Well Hot Drop-In with Auto-Fill & Manifold Drain
Model 3640861 | 1000 W per well · 208-240 V · Plug-in installationDesigned for high-volume cafeterias, buffets and serving lines, this Made-in-USA drop-in keeps five full-size pans of food safely hot and ready. It ships ready to plug into a single 6-30R receptacle—no hard-wiring required—so you can get up and running in minutes, not hours.
Key features & benefits
- Five independent 12" × 20" (full-size) wells – 20 ga 300-series stainless steel, fully insulated for energy efficiency.
- Wet operation only for consistent, gentle heat that preserves food quality.

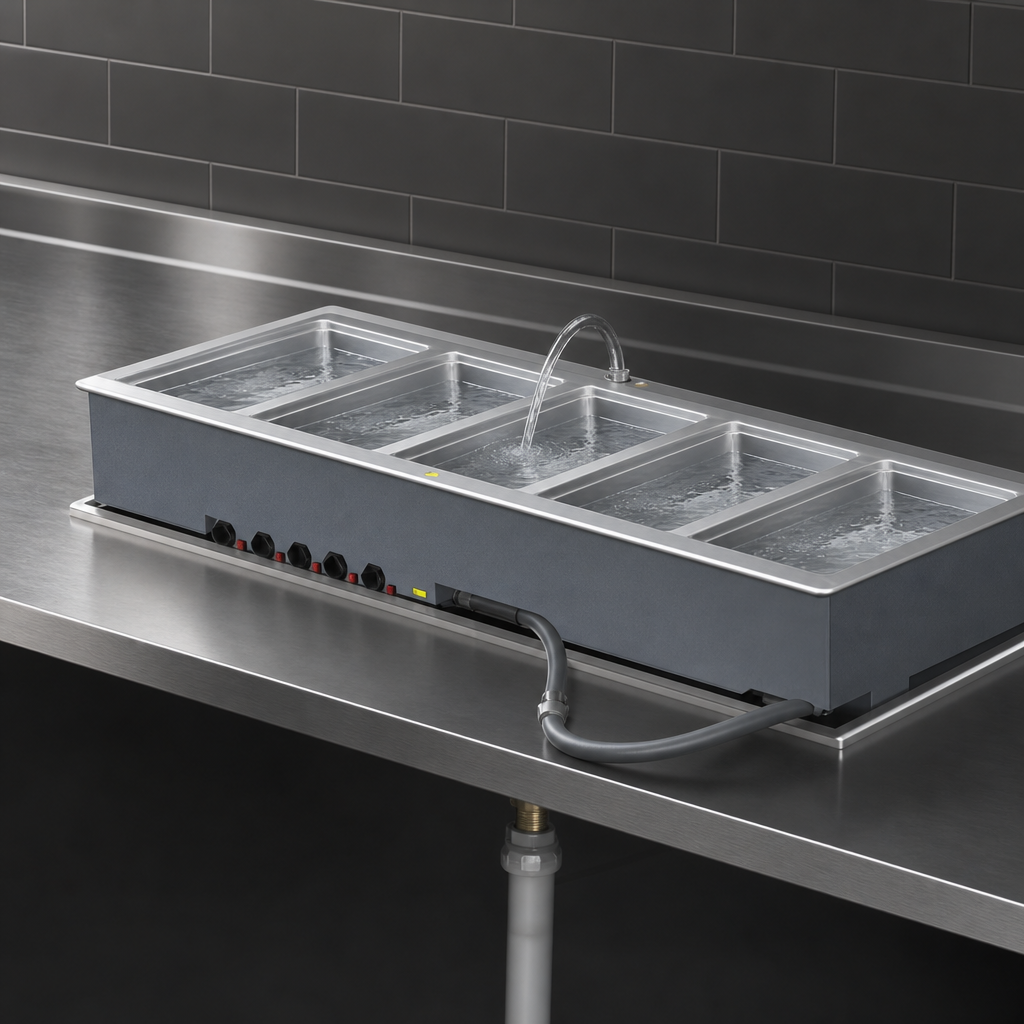

- Automatic water-fill system maintains the correct level and protects elements from burn-out.
- Individual infinite controls with power indicator lights allow precise holding for each menu item.
- 1" copper manifold drain with master shut-off plus individual ball valves for quick, mess-free clean-up.
- Drip-free top flange with factory-installed gasket delivers a clean, sanitary counter transition.
- 18 ga stainless steel top and 18 ga galvanized exterior housing stand up to daily commercial use.
- Ships with mounting clips for counters up to 3" thick & a 6 ft. cord with NEMA 6-30P plug.
- Zero-clearance design lets you install against walls or adjacent equipment to maximize space.
- NSF 4 & cULus listed for moist-heat operation; built and certified in the USA.
Specifications
| Item number | 3640861 |
|---|---|
| Well capacity | (5) full-size pans up to 6" (15.2 cm) deep Adapter bars recommended for fractional pans |
| Overall dimensions | 68" W × 26" D × 21 ½" H* |
| Counter cut-out | 67 ¼" W × 25 ¼" D Requires 7/8" (2.2 cm) corner radius |
| Electrical | 208-240 V / 60 Hz / 1-phase, 5000 W (18-20.8 A) · NEMA 6-30P |
| Control type | Individual infinite switches (one per well) |
| Water system | Auto-fill inlet, wet operation required for NSF performance |
| Drain | 1" copper manifold with master shut-off & individual well valves |
| Construction | 20 ga stainless wells · 18 ga stainless top · 18 ga galvanized housing |
| Certifications | NSF 4 (moist heat), cULus |
| Country of origin | United States of America |
*Overall height includes the manifold drain assembly.
Ideal for
- School & college cafeterias
- Healthcare tray lines
- Hotel breakfast bars
- Corporate dining facilities
- Any high-volume serving line that demands reliable, independent hot holding
Drop-in units are built to order and are not cancellable or returnable. For complete warranty details, visit the Vollrath website or refer to the documentation shipped with the unit.
