Vollrath 3640860HD Steam Tables & Food Wells
Description

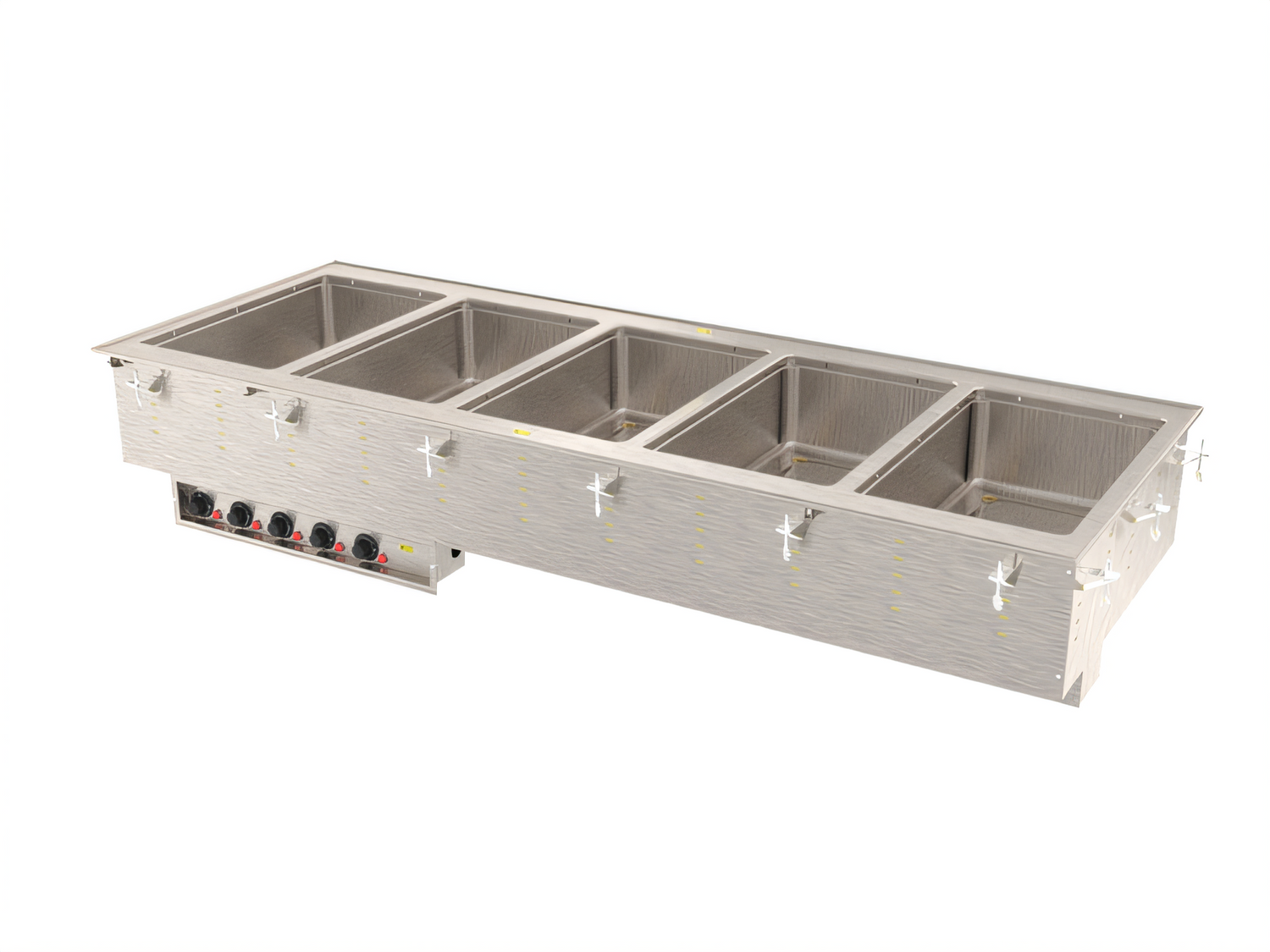

Vollrath 3640860HD Five-Well Modular Hot Drop-In | Auto-Fill, Marine-Grade
68" W x 26" D • 3125 W • 208 V/1-Phase • NEMA 6-20PBuilt for high-volume buffet lines and demanding commercial kitchens, this Vollrath drop-in keeps five full-size pans of food hot, fresh and perfectly hydrated—all day, every day.
Key Benefits

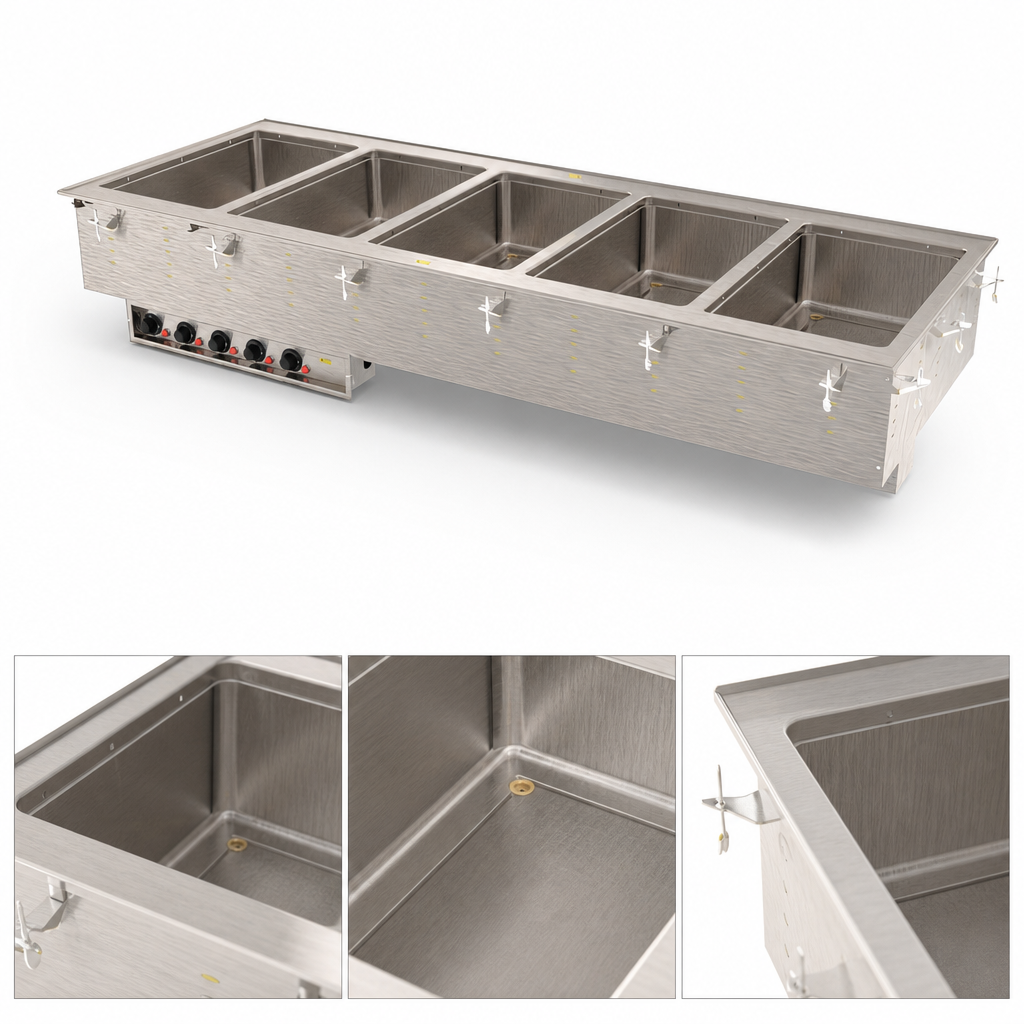

- Corrosion-proof 20 ga 316 marine-grade stainless steel wells—ideal for acidic menu items and coastal operations.
- Auto-fill system maintains the correct water level for consistent, even heat and worry-free service.
- Individual infinite controls with power indicator lights let you dial in holding temps for each well.
- 625 W per well (3,125 W total) delivers rapid recovery while drawing only 15 amps on 208 V single phase.
- 1" copper manifold drain with master shutoff plus ½" ball valves on every well for fast, mess-free clean-up.
- Drip-free flange, fully insulated sides and between wells reduce energy loss and protect counters.
- Ships with 6' (1.8 m) cord and NEMA 6-20P plug—no hard-wiring required.
- Includes mounting clips for counters up to 3" (7.6 cm) thick; zero-clearance installation.
- NSF & cULus listed; proudly made in the USA and backed by Vollrath’s 2-year warranty.
Technical Specifications
| Model | 3640860HD |
|---|---|
| Well Capacity | (5) full-size 12" × 20" pans, up to 6" deep |
| Construction | 20 ga 316 marine-grade SS wells, 18 ga SS top & exterior |
| Operation | Wet heat only | Auto-fill |
| Controls | Remote stainless panel, 4' tether | (5) infinite knobs with pilot lights |
| Heating Power | 625 W / well | 3,125 W total |
| Electrical | 208 V • 60 Hz • 1-phase • 15 A • NEMA 6-20P |
| Overall Dimensions | 68" W × 26" D × 21 ½" H* |
| Counter Cut-Out | 67 ¼" W × 25 ¼" D • 7⁄8" corner radius |
| Drain System | 1" copper manifold with master shutoff & individual ½" ball valves |
| Certifications | NSF 4 (wet operation), cULus |
| Warranty | 2 years parts & labor (see Vollrath.com for details) |
*Manifold drain adds 6 ½" (16.5 cm) to the standard 15" well depth, yielding the listed overall height.
Looking for adapter bars, sheet-pan inserts or replacement parts? Visit VollrathFoodservice.com or contact our team for curated accessories.
