Description

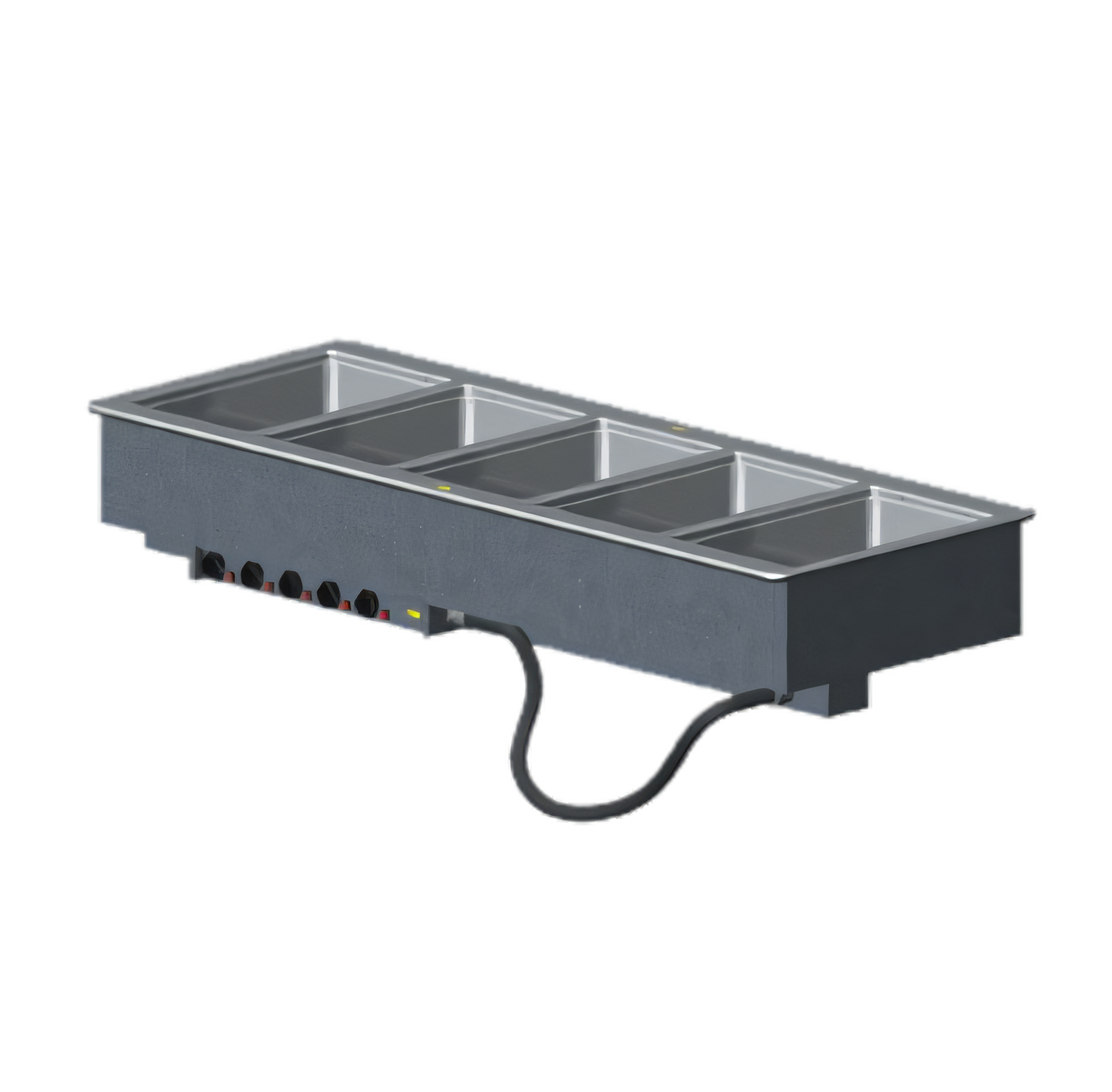

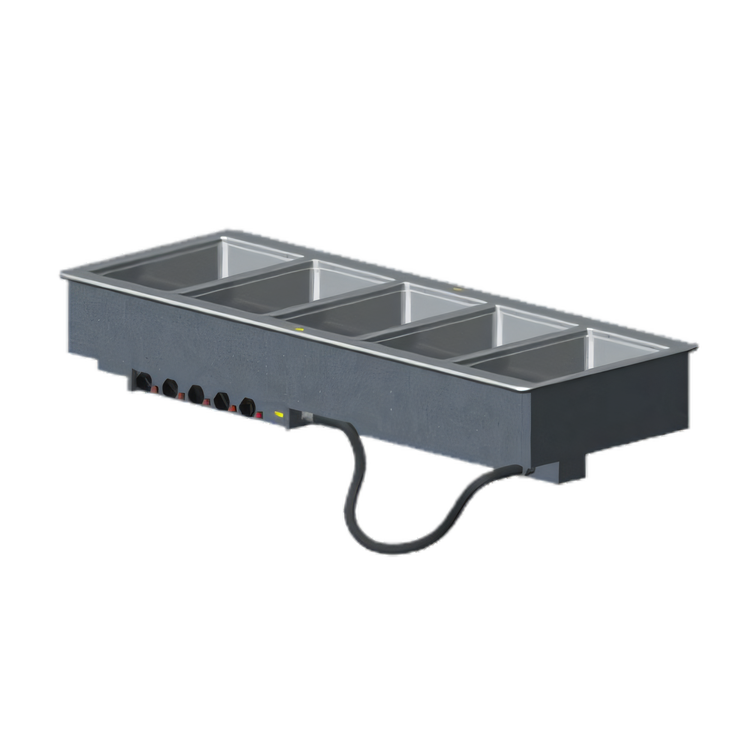

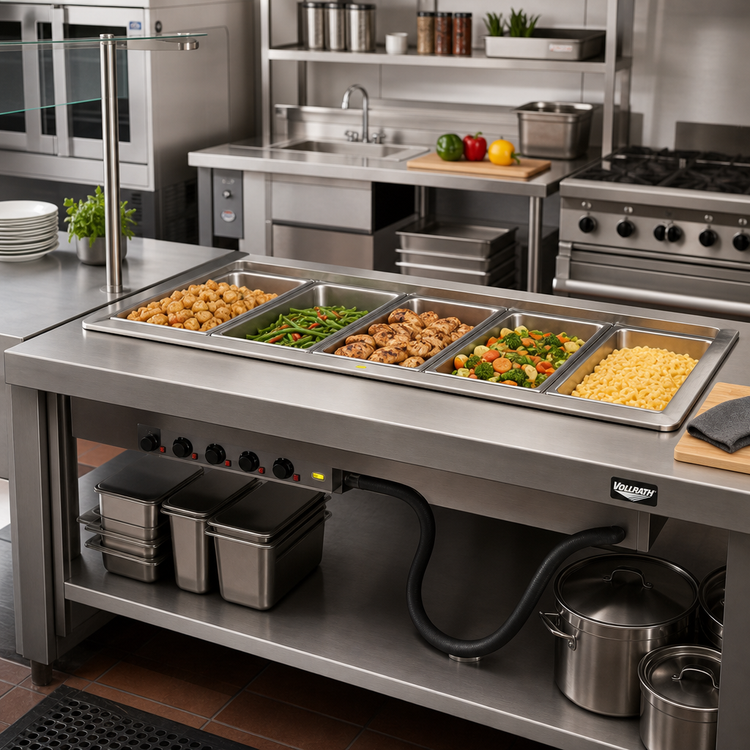

Vollrath 5-Well Drop-In Hot Food Well with Auto-Fill – 208 V, 3,125 W

Item No. 3640860  |  NSF & cULus Listed  |  Made in USA

Built for high-volume cafeterias, buffets and serving lines, this Vollrath modular hot well keeps up to five menu items at safe, appetizing temperatures while eliminating the daily headaches of manual refilling and messy cleanup. Simply drop it into a 67-1/4 ″ × 25-1/4 ″ counter cut-out, plug it in and let the auto-fill system and individual infinite controls do the rest.

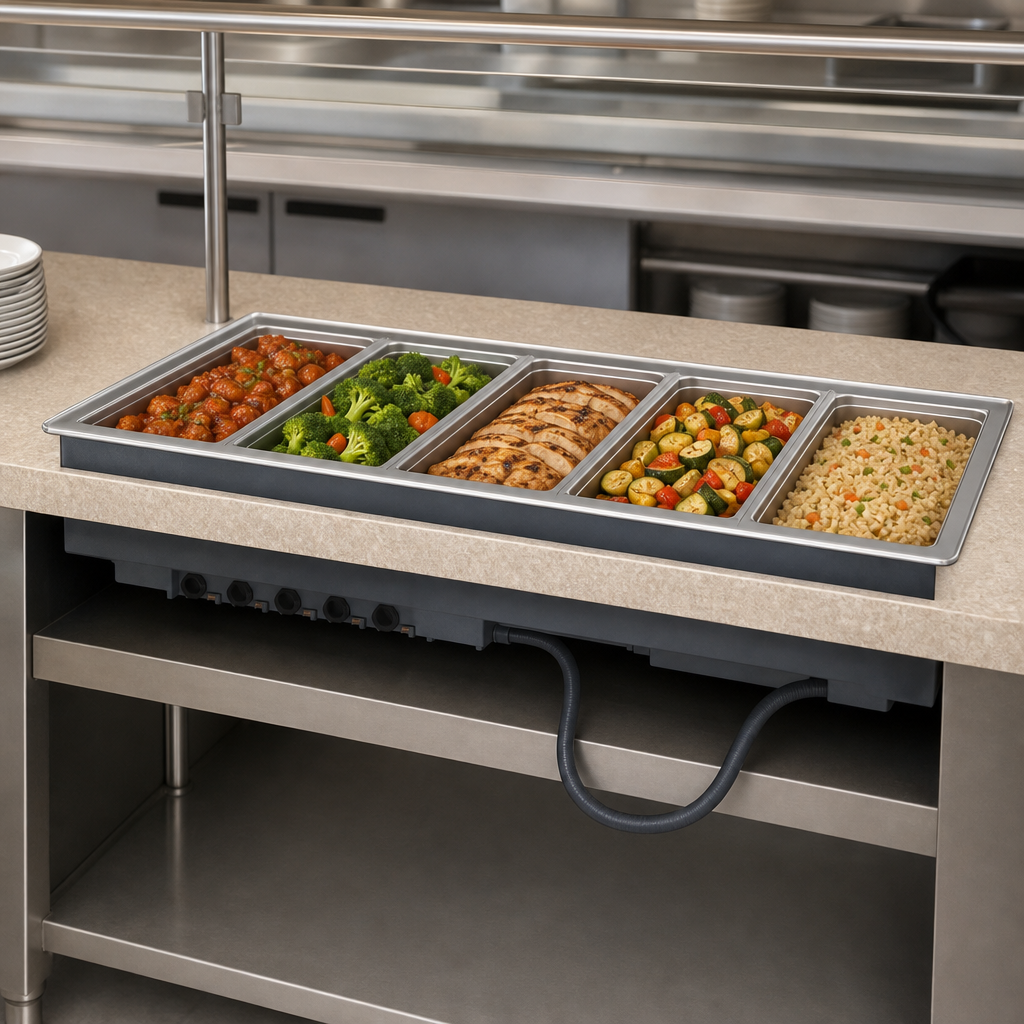

  • Five insulated 12 ″ × 20 ″ full-size wells (20 ga. stainless steel)
  • Wet operation only – meets NSF 4 performance when used with water
  • Automatic water-level control reduces labor and prevents burn-outs
  • Separate infinite control & power indicator light for each well
  • Drip-free 18 ga. stainless steel top flange blends seamlessly with countertop
  • 1 ″ copper manifold drain with individual ball valves & master shutoff
  • Factory-installed 6 ′ cord & NEMA 6-20P plug – no hard-wiring required
  • Zero-clearance installation; gasket & mounting clips for counters up to 3 ″ thick included
  • Accepts pans up to 6 ″ deep; adapter bars recommended for fractional pans
Specifications
Number of wells 5 (individual)
Per-well wattage 625 W
Total wattage 3,125 W
Voltage / phase 208 V / 60 Hz / 1-ph
Amps 15.0 A
Plug type NEMA 6-20P (straight blade)
Controls 5 infinite knobs, panel mounted, tethered cord
Overall dimensions 68 ″ W × 26 ″ D × 21-1/2 ″ H
Counter cut-out 67-1/4 ″ W × 25-1/4 ″ D, 7/8 ″ radius corners
Top construction 18 ga. stainless steel
Exterior housing 18 ga. galvanized steel
Drain 1 ″ copper manifold, individual shutoffs + master shutoff
Agency listings NSF, cULus
Country of origin United States

For even heating, operate with water in each well at all times.

Important: Vollrath modular drop-ins are built to order — orders cannot be canceled or returned once placed.

See the full warranty policy at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

68.0in

Depth

26.0in

Shipping Weight

434.0lbs

Controls

infinite controls

Pan Capacity

(5) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Drain

with drain

Construction

stainless steel top, corrosion resistant steel exterior

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3125 watts, 208v/60/1-ph, 15.0 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
