Vollrath 3640851HD Steam Tables & Food Wells
$4,647.50
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3640851HD Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3640851HD Steam Tables & Food Wells
$4,647.50
Unit price
/
Unavailable
Description

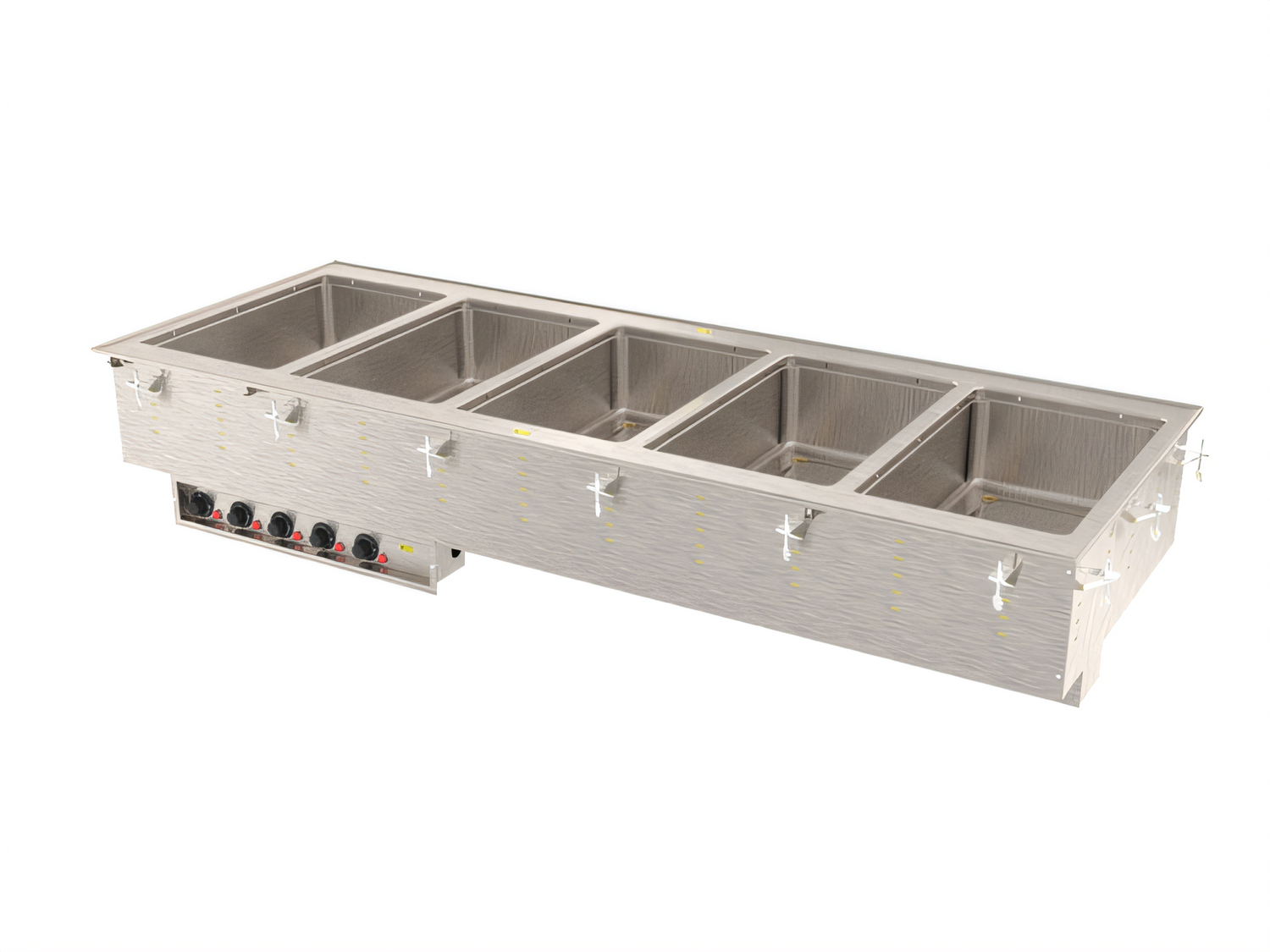

Vollrath 5-Well Marine-Grade Drop-In Hot Food Well
Model 3640801HD • 208-240 V • Infinite ControlsMaintain safe, appetizing serving temperatures across five full-size wells with this heavy-duty drop-in from Vollrath. Built with corrosion-resistant 316 stainless steel and powered by 5 kW of heating performance, it installs quickly, cleans easily, and stands up to the toughest commercial environments.
Key Benefits
- Five independent 12″ × 20″ wells (1000 W each) for precise zone control.

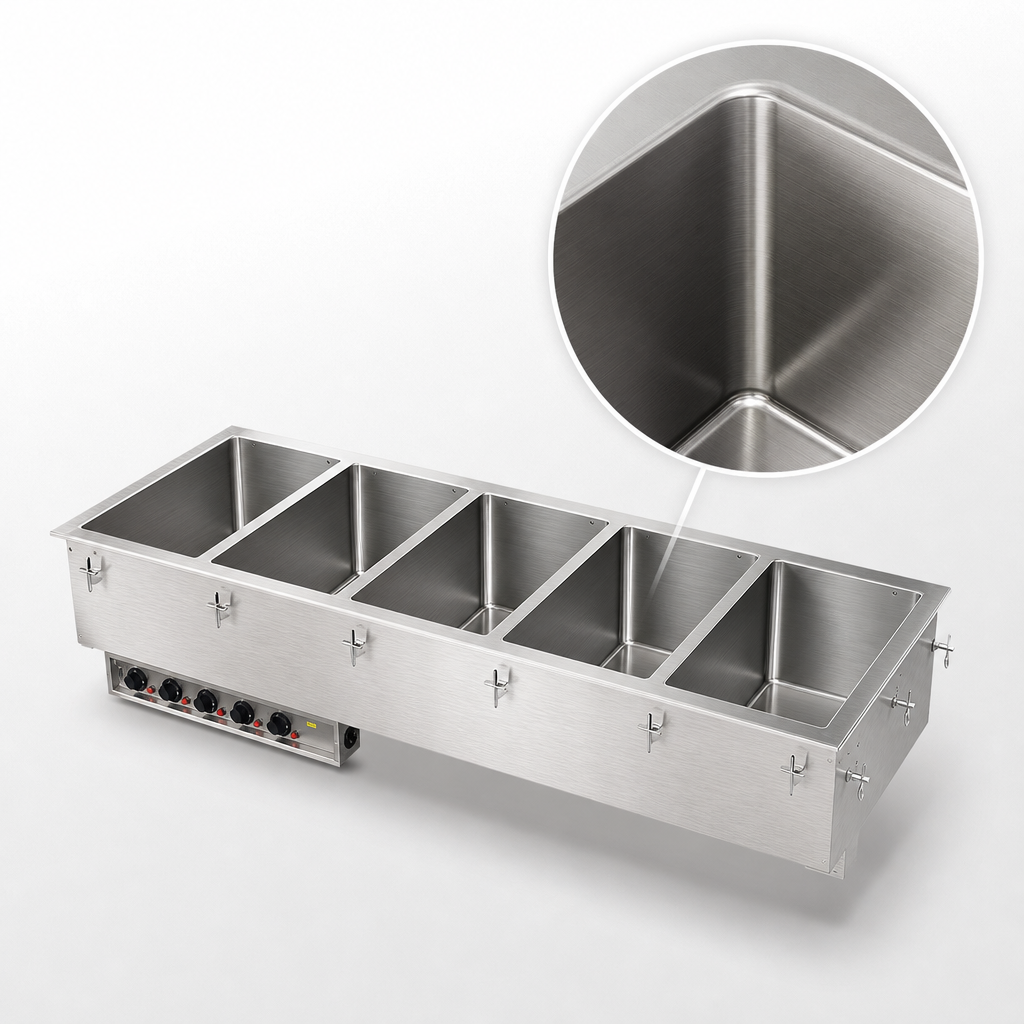

- Drawn 20-ga 316 marine-grade stainless steel resists pitting, chlorine and salt.
- Wet-heat design delivers even, gentle heat and meets NSF 4 performance standards.
- Stainless tethered control panel (4 ft) with individual infinite controls and power lights.
- 1″ copper manifold drain with individual well ball valves plus master shut-off—drain the entire unit in seconds.
- Drip-free flange with factory gasket creates a sanitary, moisture-barrier seal to the countertop.
- Fully insulated on all sides—including between wells—for energy savings and a cooler exterior.
- Ships ready to plug in: 6 ft cord with NEMA 6-30P; no hard-wiring required.
- Made in the USA and listed to NSF & cULus standards for food-service safety.
Wet operation only – always maintain the proper water level in each well.
Dry use may damage the unit and void the warranty.
Technical Specifications
| Capacity | (5) full-size 12″ × 20″ pans, up to 6″ deep |
|---|---|
| Well Construction | 20 ga 316 marine-grade stainless steel |
| Top / Exterior | 18 ga stainless steel with drip-free flange |
| Total Power | 5 kW • 1000 W per well |
| Electrical | 208-240 V / 60 Hz / 1-ph • 18-20.8 A • NEMA 6-30P cord & plug |
| Controls | Individual infinite knobs with indicator lights |
| Drain | 1″ copper manifold drain, individual well shut-offs, master shut-off |
| Overall Dimensions | 68″ W × 26″ D × 21.5″ H |
| Counter Cutout | 67-1/4″ W × 25-1/4″ D • 7/8″ corner radius |
| Installation | Top-mount, zero-clearance; mounting clips for counters up to 3″ thick |
| Certifications | NSF, cULus |
| Origin | Made in USA |
Recommended Accessories
- Sheet-Pan Adapter Bar (Item 19186) for flexible fractional-pan layouts.
- Auto-Fill Kit to maintain optimal water level during long service periods.
Refer to vollrathfoodservice.com for complete installation instructions and full warranty details.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
68.0in
Depth
26.0in
Shipping Weight
207.0lbs
Controls
infinite controls
Wet or Dry operation
wet
Pan Capacity
(5) full size (12" x 20")
Construction
stainless steel construction
Style
individual pans
Insulated or Non-Insulated
insulated
Drain
with drain
Specifications
Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 5000 watts, 208-240v/60/1-ph, 18-20.8 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
