Vollrath | SKU:
3640851
Vollrath 3640851 Steam Tables & Food Wells
$3,914.10
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3640851 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3640851 Steam Tables & Food Wells
$3,914.10
Unit price
/
Unavailable
Description

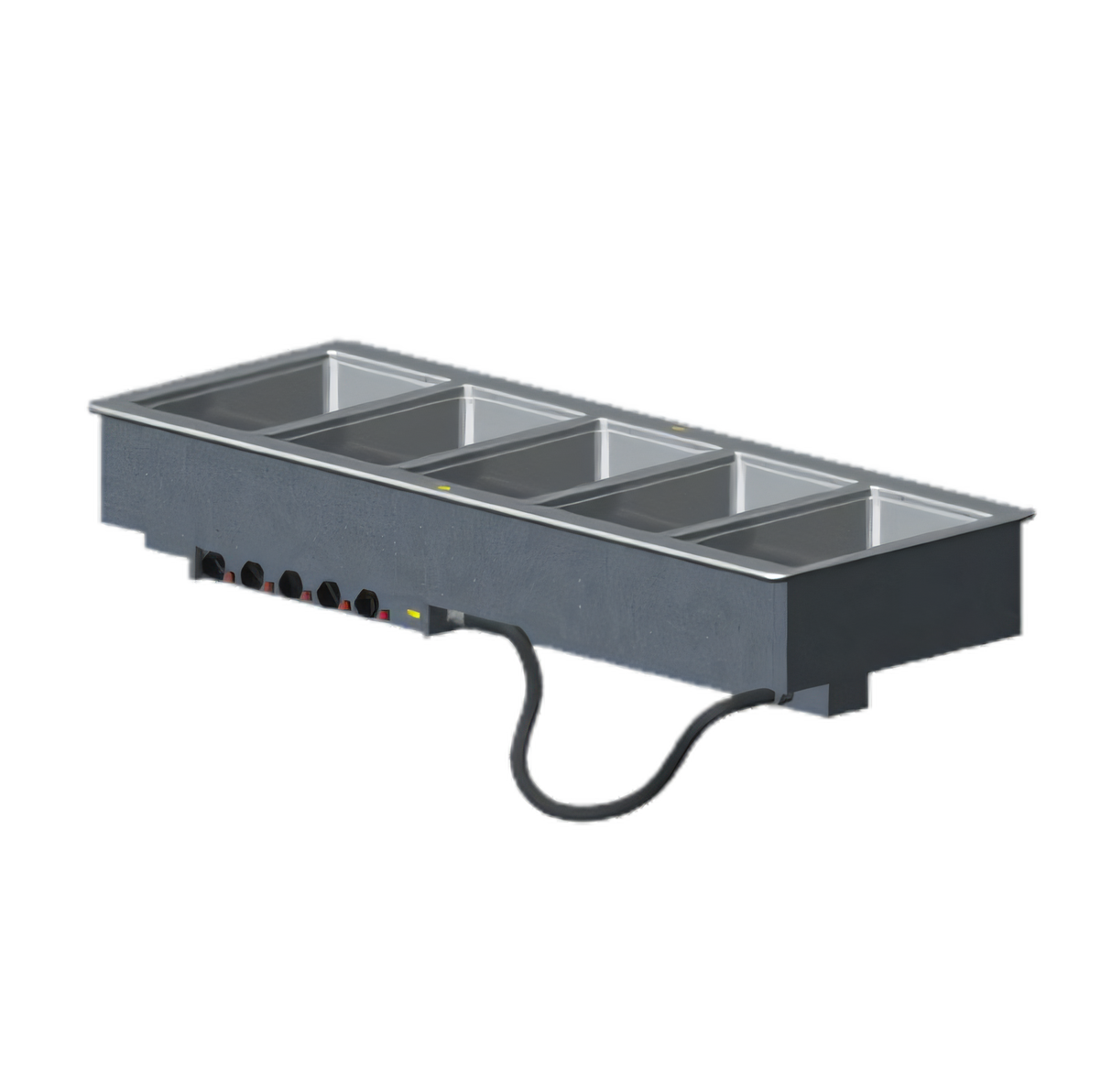

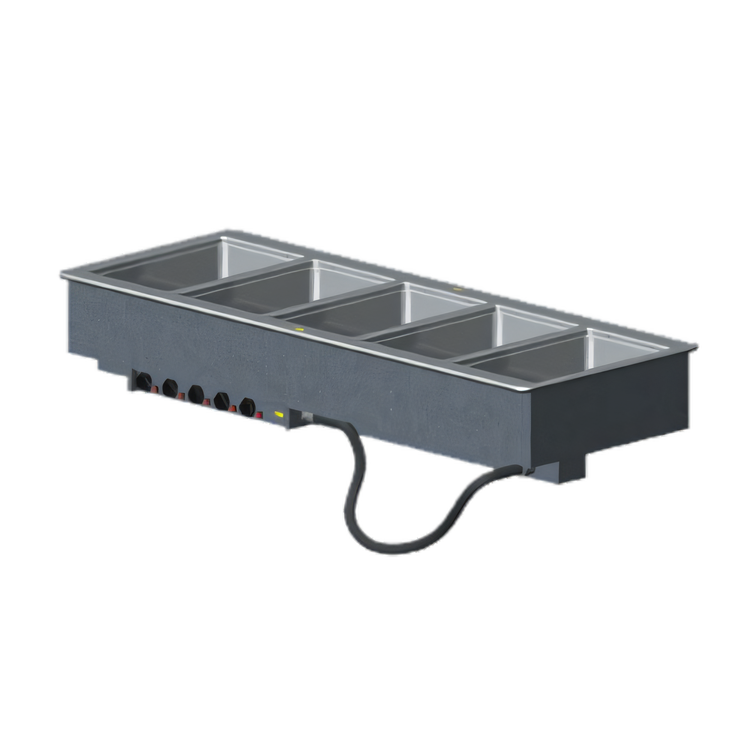

Vollrath Five-Well Hot Food Well Drop-In (208-240 V, Infinite Control)
Model 3640801 | 1000 W per well | Manifold drainBuilt for high-volume buffet lines and make-tables, this Made-in-USA drop-in keeps five full-size steam-table pans perfectly hot and ready for service—without the need for hard-wiring. Just set it, plug it in, add water, and serve with confidence.
Why you’ll love it

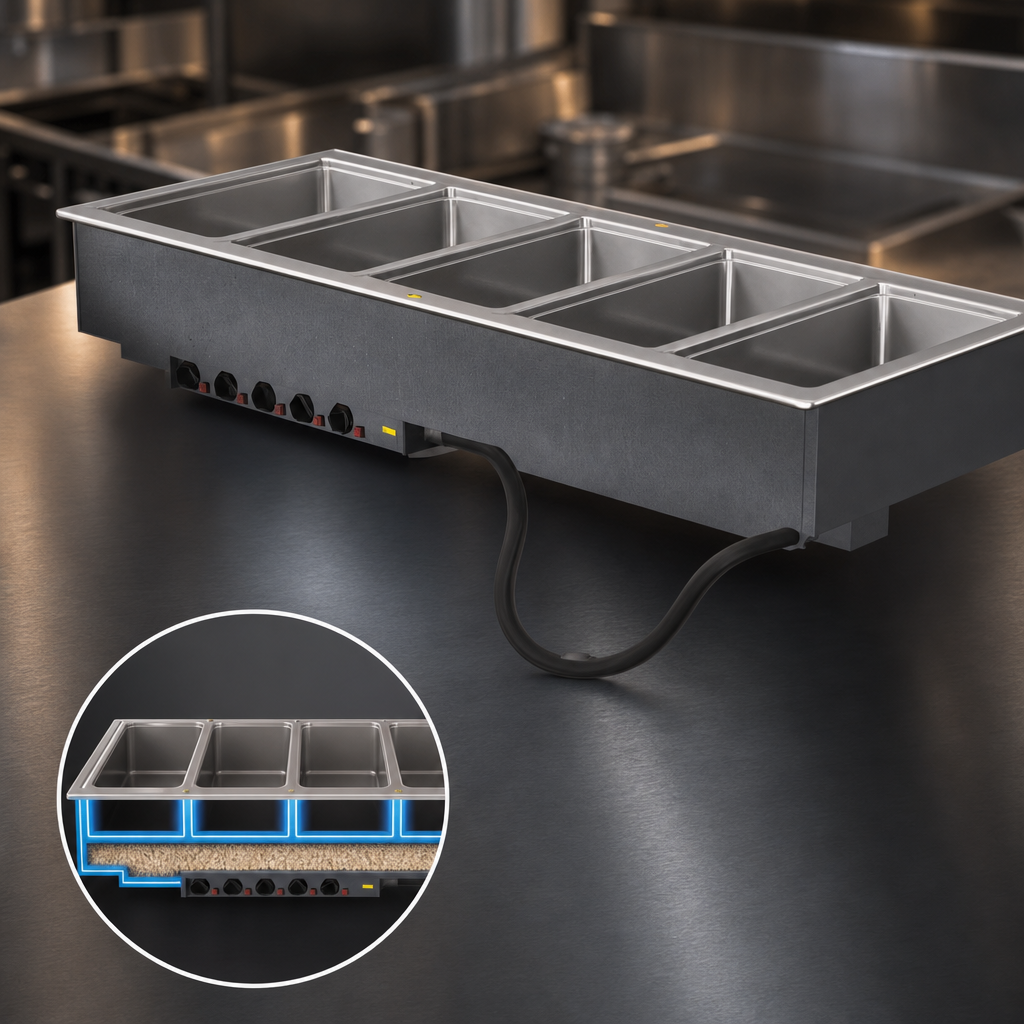

- Five individually insulated 12" × 20" wells deliver even, moist heat for superior food quality.
- Infinite controls with dedicated power indicator lights let you dial in each well independently.
- Drip-free stainless-steel flange creates a clean, finished look above the counter.
- 1" copper manifold drain with individual well shut-offs plus master shut-off speeds clean-up.
- Ships ready to install—6 ft cord with NEMA 6-30P plug, gasket, and mounting clips included.
- Rugged 300-series stainless wells, 18 ga stainless top, and 18 ga galvanized exterior housing stand up to daily commercial use.
- NSF 4 & cULus listed for safe, reliable operation in any professional kitchen.
Technical specifications
| Wells | (5) 12" × 20", 20 ga 300-series stainless, individually insulated |
|---|---|
| Operation | Wet (water bath) only |
| Heat output | 1000 W per well | 5000 W total |
| Controls | 5× infinite manual controls on remote stainless panel (4 ft tether) |
| Overall size | 68" W × 26" D × 21½" H |
| Counter cut-out | 67¼" W × 25¼" D | ⅞" corner radius required |
| Electrical | 208-240 V / 60 Hz / 1-ph | 18-20.8 A | 6 ft cord with NEMA 6-30P |
| Drain | 1" copper manifold with individual ball valves & master shut-off |
| Included | Gasket, positioning clips (counters ≤3"), user manual |
| Certifications | NSF 4, cULus, Made in USA |
Installation & operation tips
- Zero-clearance design allows snug installation next to other equipment.
- Always maintain recommended water level for even heating and NSF compliance.
- Accepts fractional pans up to 6" deep—use Vollrath adapter bars for best fit (sold separately).
Orders for drop-ins cannot be cancelled or returned once processed. Refer to VollrathFoodservice.com for full warranty policy details.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
68.0in
Depth
26.0in
Shipping Weight
207.0lbs
Controls
infinite controls
Pan Capacity
(5) full size (12" x 20")
Insulated or Non-Insulated
insulated
Style
individual pans
Drain
with drain
Construction
stainless steel top, corrosion resistant steel exterior
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 5000 watts, 208-240v/60/1-ph, 18-20.8 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
