Vollrath  |  SKU: 3640850HD

Vollrath 3640850HD Steam Tables & Food Wells

$4,647.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

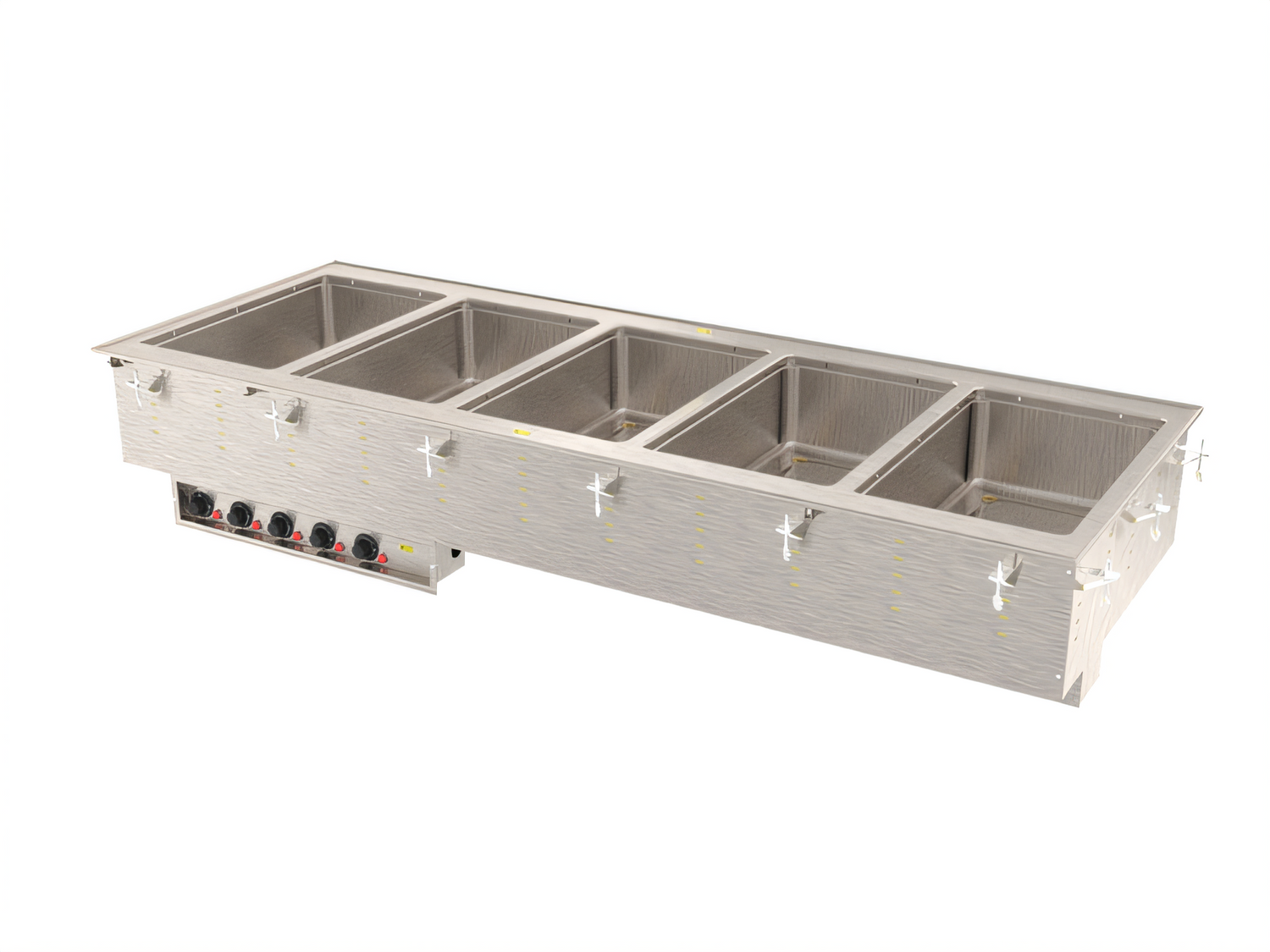

Vollrath Five-Well Marine-Grade Drop-In Hot Food Well

68" W x 26" D | 208 V | Infinite Controls | Manifold Drain

Designed for demanding, high-volume service lines, this Vollrath modular drop-in keeps five full-size pans of food hot, fresh and safe. Each individually controlled 316 marine-grade well resists corrosion from salt, steam and hard water, making it the perfect long-term solution for buffets, cafeterias and coastal operations.

Key Features

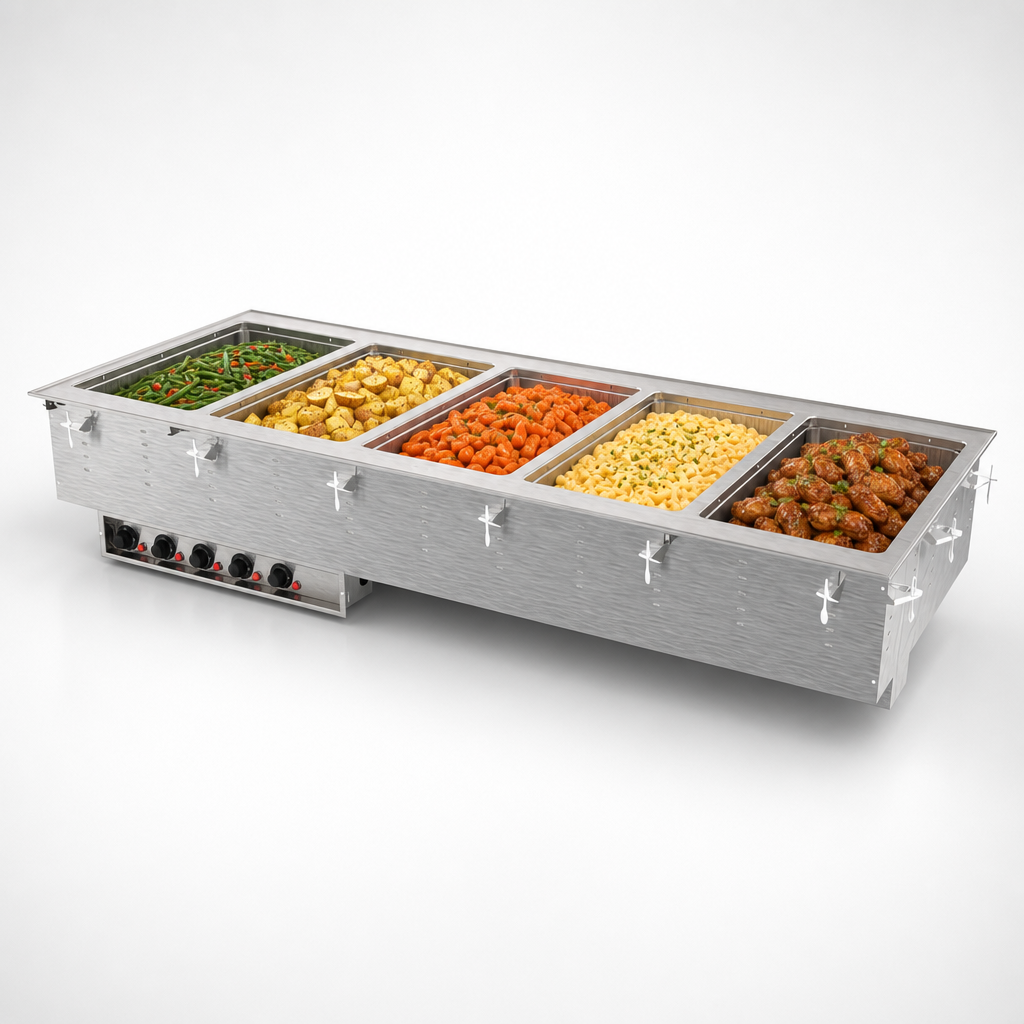

  • Five 12" x 20" drawn wells – 20-ga 316 stainless steel for superior corrosion resistance.
  • Wet-heat operation for even heat transfer and NSF 4 compliance.
  • 625 W per well (3,125 W total) with individual infinite controls and power-on lights.
  • Remote stainless-steel control panel on a 4 ft (121.9 cm) tether for flexible mounting.
  • 1" copper manifold drain with individual well ball valves plus master shut-off.
  • Fully insulated on all sides, including between wells, for energy savings and cooler counter tops.
  • 18-ga stainless-steel top with drip-free flange and included gasket for a sanitary, flush install.
  • Includes mounting/positioning clips for counters up to 3" (7.6 cm) thick—no hard-wiring required.
  • 6 ft (1.8 m) cord with NEMA 6-20P plug; zero-clearance installation.
  • NSF & cULus listed; made in the USA.
Wet Operation Required: Always operate the unit with water in each well to ensure even heating and maintain NSF certification.

Ideal Applications

  • Buffet and cafeteria serving counters
  • Hotels, resorts and cruise ships
  • Stadiums, arenas and convention centers
  • Any venue exposed to salt air, chlorides or hard-water conditions

Specifications

Model 3640850HD (or equivalent)
Number of Wells 5 (full-size 12" x 20")
Operation Wet heat only
Control Type Individual infinite controls
Wattage 3,125 W (625 W per well)
Voltage / Phase 208 V / 60 Hz / 1-ph
Amperage 15.0 A
Plug NEMA 6-20P (pre-wired 6 ft cord)
Overall Dimensions 68" W x 26" D x 21 1/2" H*
Cutout Size 67 1/4" W x 25 1/4" D – 7/8" corner radius
Well Material 316 (SAE Type) marine-grade stainless steel, 20-ga
Top Material 18-ga stainless steel
Drain 1" copper manifold with individual shut-off valves
Certifications NSF, cULus
Country of Origin Made in USA

*Manifold drain adds 6 1/2" (16.5 cm) to overall height.

Installation & Clearance

  • Zero-clearance design—safe to install next to other equipment.
  • Indoor use only; ambient temperature and HVAC can affect holding performance.
  • Adapter bars (sold separately) recommended when using fractional pans.
Special-Order Item: Vollrath drop-ins are built to order; orders cannot be canceled or returned once placed.

Refer to VollrathFoodservice.com for complete warranty details.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

68.0in

Depth

26.0in

Shipping Weight

196.0lbs

Construction

stainless steel construction

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(5) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3125 watts, 208v/60/1-ph, 15.0 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
