Vollrath  |  SKU: 3640850

Vollrath 3640850 Steam Tables & Food Wells

$3,805.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

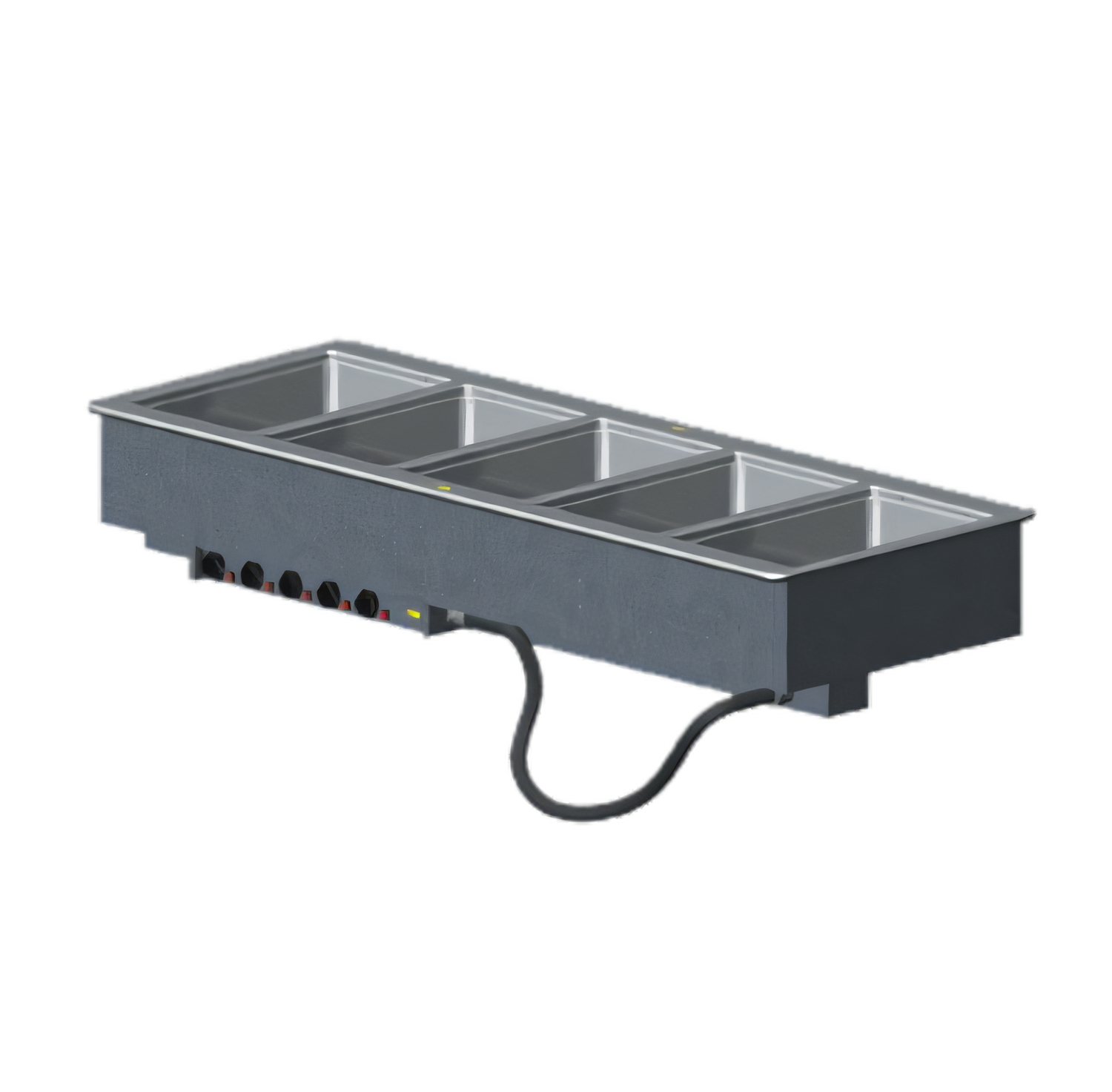

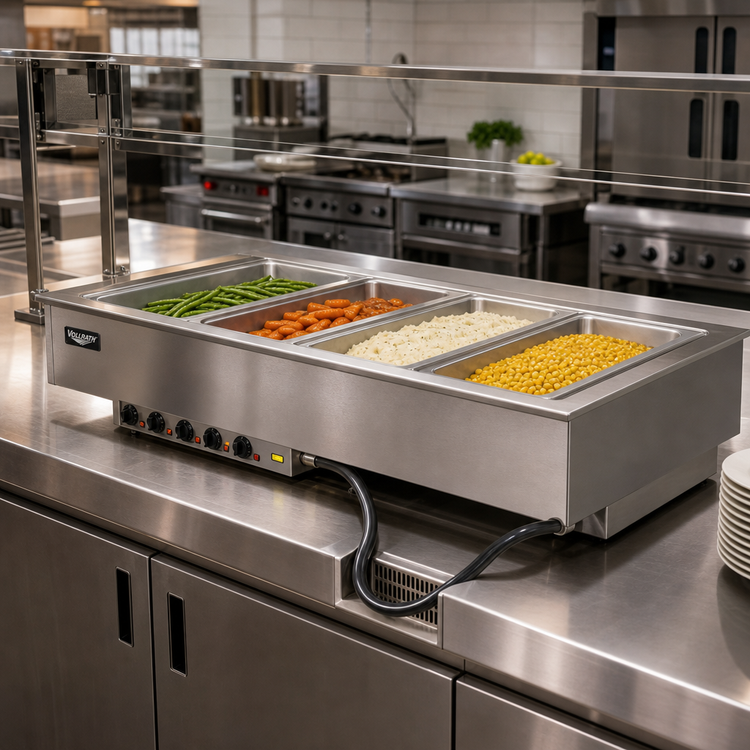

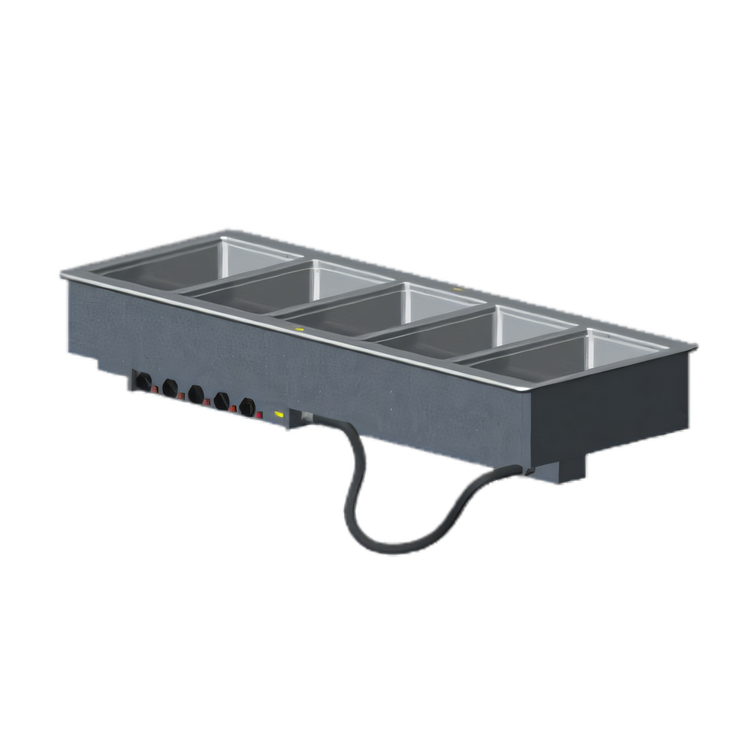

Vollrath 5-Well Electric Drop-In Hot Food Well

208 V • 3,125 W • Manifold Drain • Model 3640850 (625 W per well)

Keep multiple menu items piping hot and ready for service with this Made-in-USA, five-well drop-in from Vollrath. Designed for wet operation only, each 12" × 20" well is separately heated and controlled, giving you the precision and flexibility today’s kitchens demand—all without the cost and complexity of hard-wiring.

Key Features

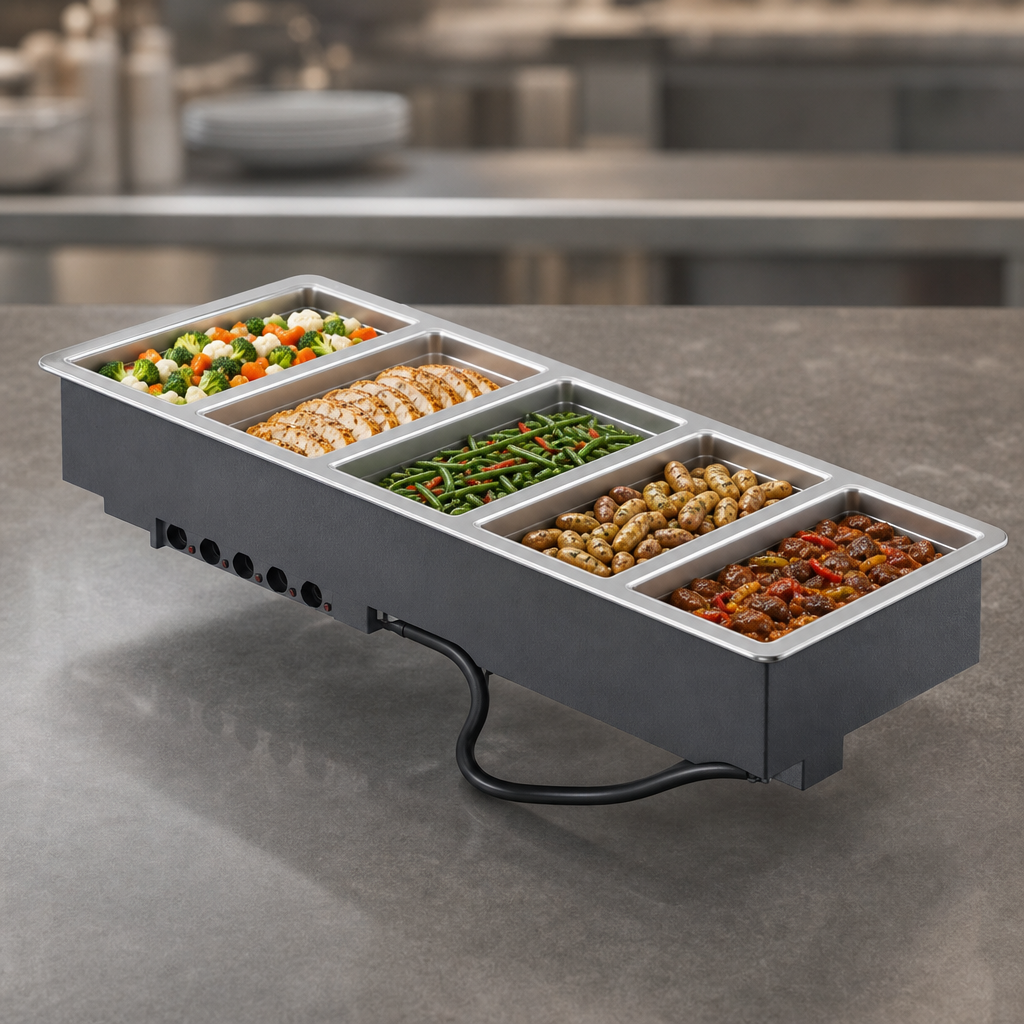

  • Five individually insulated 20 ga stainless-steel wells — accept full-size or fractional pans up to 6" deep
  • Infinite switch for each well with independent power-on light
  • 1" copper manifold drain with ball-valve shut-offs (one per well) plus master shut-off
  • Drip-free 18 ga stainless-steel top flange with factory-installed gasket for a clean, sanitary counter interface
  • 18 ga galvanized steel exterior for long-lasting structural strength
  • Fully insulated on all sides—including between wells—for energy-efficient performance
  • 4' tethered stainless-steel control panel mounts remotely for ergonomic operation
  • 6' factory-wired cord with NEMA 6-20P plug; no electrician required for installation
  • Zero-clearance design and included mounting clips fit counters up to 3" thick
  • NSF & cULus listed for commercial safety and sanitation

Specifications

Wells / Size 5 × Full-size (12" × 20")
Heating Method Wet operation (water bath)
Total Wattage 3,125 W  (625 W per well)
Voltage / Phase 208 V  / 60 Hz / 1-ph
Amperage / Plug 15.0 A  •  NEMA 6-20P
Controls 5 independent infinite switches with indicator lights
Drain 1" copper manifold with individual & master shut-offs
Overall Dimensions 68" W × 26" D × 21-1/2" H*
Counter Cutout 67-1/4" W × 25-1/4" D, 7/8" corner radius
Cord Length 6' (1.8 m)
Certifications NSF, cULus
Country of Origin USA

*Manifold drain adds 6-1/2" to height below counter.

Important: Operate with water in each well at all times. Running the unit dry can damage heating elements and void the warranty.

What’s Included

  • Five-well drop-in hot module with factory-installed gasket
  • Remote stainless-steel control panel (4' tether)
  • Mounting/positioning clips
  • 6' power cord with plug

Drop-in units are built to order and cannot be cancelled or returned. For complete warranty details visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

68.0in

Depth

26.0in

Shipping Weight

196.0lbs

Controls

infinite controls

Pan Capacity

(5) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Drain

with drain

Construction

stainless steel top, corrosion resistant steel exterior

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3125 watts, 208v/60/1-ph, 15.0 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
