Vollrath 3640811HD Steam Tables & Food Wells
Description

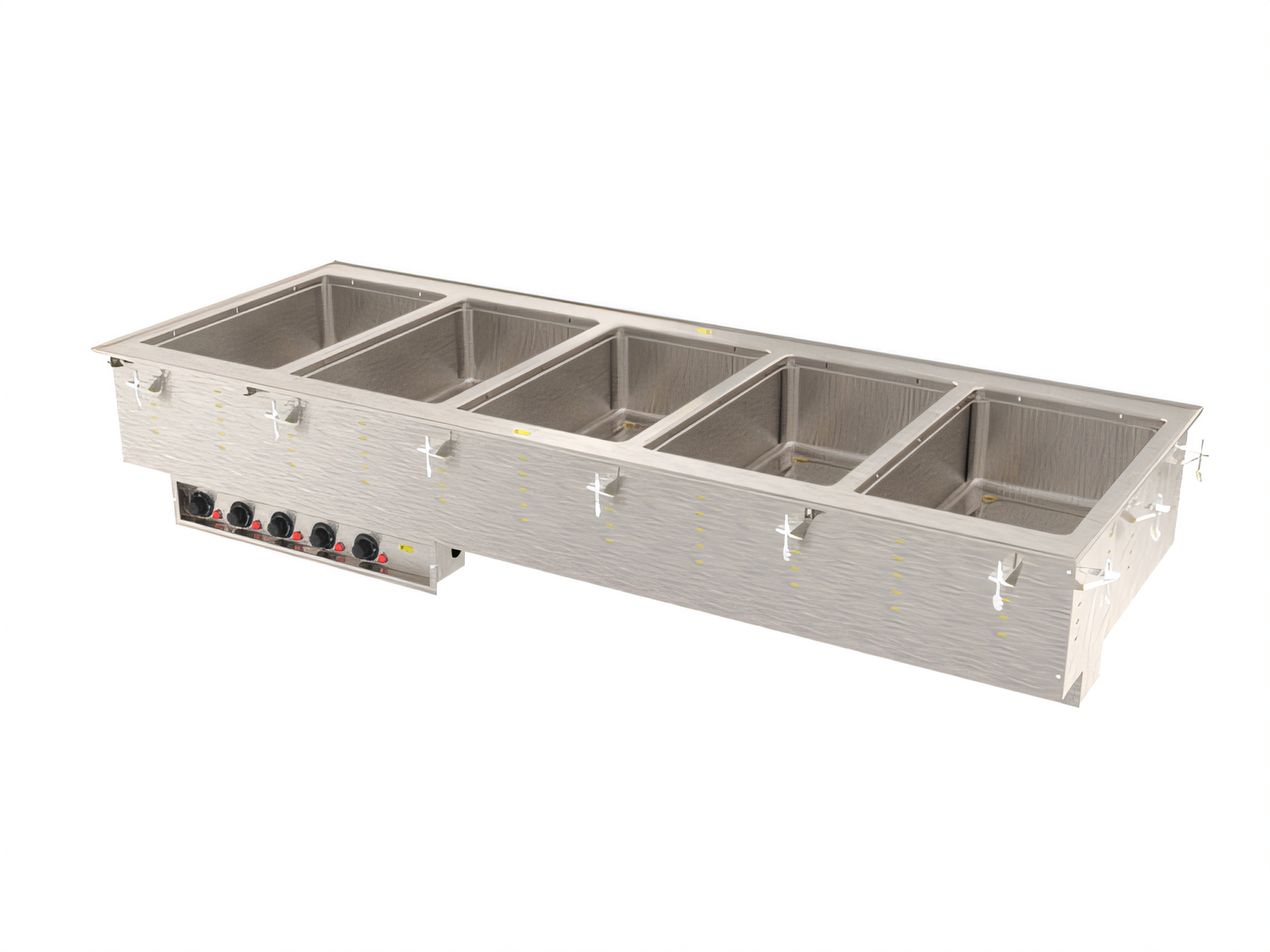

Vollrath 5-Well Marine-Grade Drop-In Hot Food Well — Thermostatic Control, 208-240 V
Model series 36408 11HD • 1,000 W per well • Made in the USAGive your serving line the power of five individually-controlled hot wells in one seamless, top-mounted unit. Engineered from corrosion-resistant 316 marine-grade stainless steel and insulated on every side, this Vollrath drop-in keeps entrées, sides, and sauces at precise temperatures while standing up to the harshest kitchen environments.
Why You’ll Love It

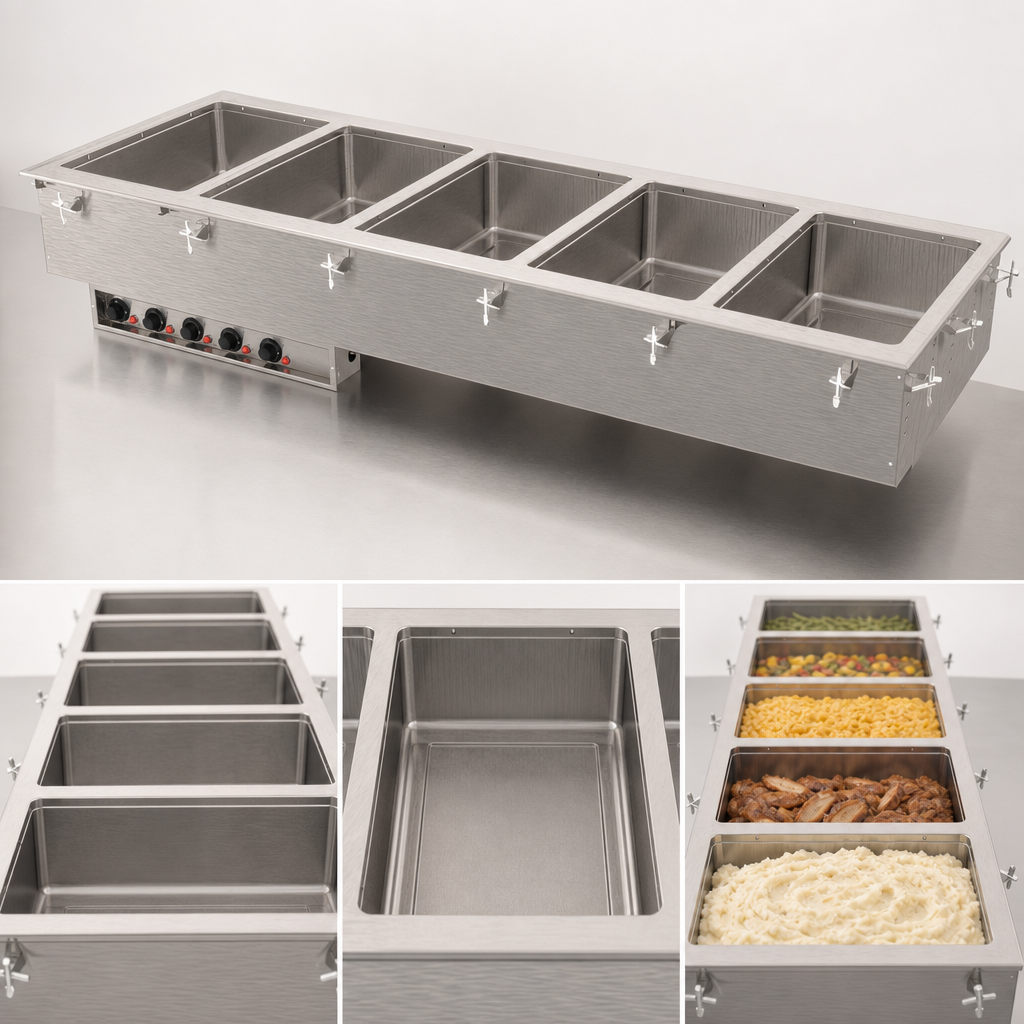

- (5) independent 12" × 20" wells accept full or fractional pans up to 6" deep.
- 20-gauge Type-316 marine-grade stainless steel wells resist pitting and chemical corrosion.
- Wet-heat operation delivers even temperature distribution and meets NSF 4 performance standards.
- Individual thermostatic knobs with power indicator lights—dial in each menu item separately.
- Insulation on all sides (including between wells) maximizes energy efficiency and keeps counters cool.
- Drip-free 18-gauge stainless steel top flange for a clean, seamless counter transition.
- ½" drains with individual ball-valve shut-offs speed cleanup; no shared manifold required.
- Includes mounting/positioning clips for counters up to 3" thick—zero-clearance installation.
- 6' factory-wired cord with NEMA 6-30P plug—no hard-wiring needed.
- NSF & cULus listed; backed by Vollrath’s 2-year limited warranty.
Technical Specifications
| Capacity | Five full-size (12" × 20") steam table pans, up to 6" deep |
|---|---|
| Well Construction | 20-ga 316 marine-grade stainless steel, fully insulated |
| Top / Exterior | 18-ga stainless steel top with drip-free flange; stainless steel housing |
| Controls | Five independent thermostatic controls on remote panel (4' tethered), each with power light |
| Operation | Wet heat only (water required) |
| Drainage | ½" NPT drains with individual ball-valve shut-offs |
| Electrical | 5,000 W total, 208-240 V / 60 Hz / 1-ph, 18–20.8 A, NEMA 6-30P cord & plug included |
| Overall Dimensions | 68" W × 26" D × 15" H |
| Counter Cut-Out | 67¼" W × 25¼" D, ⅞" corner radius required |
| Certifications | NSF, cULus |
| Country of Origin | USA |
Installation Notes
- Indoor use only; ambient room temperature & HVAC may affect performance.
- Zero-clearance design—no extra counter space behind or below the unit is required.
- Adapter bars are recommended when using fractional pans (sold separately).
- Optional sheet-pan adapter (Vollrath #19186) available.
Covered by Vollrath’s two-year limited warranty against defects in materials and workmanship. See the full policy at vollrathfoodservice.com.
Drop-in units are built to order and cannot be canceled or returned.
