Vollrath 3640811 Steam Tables & Food Wells
Description

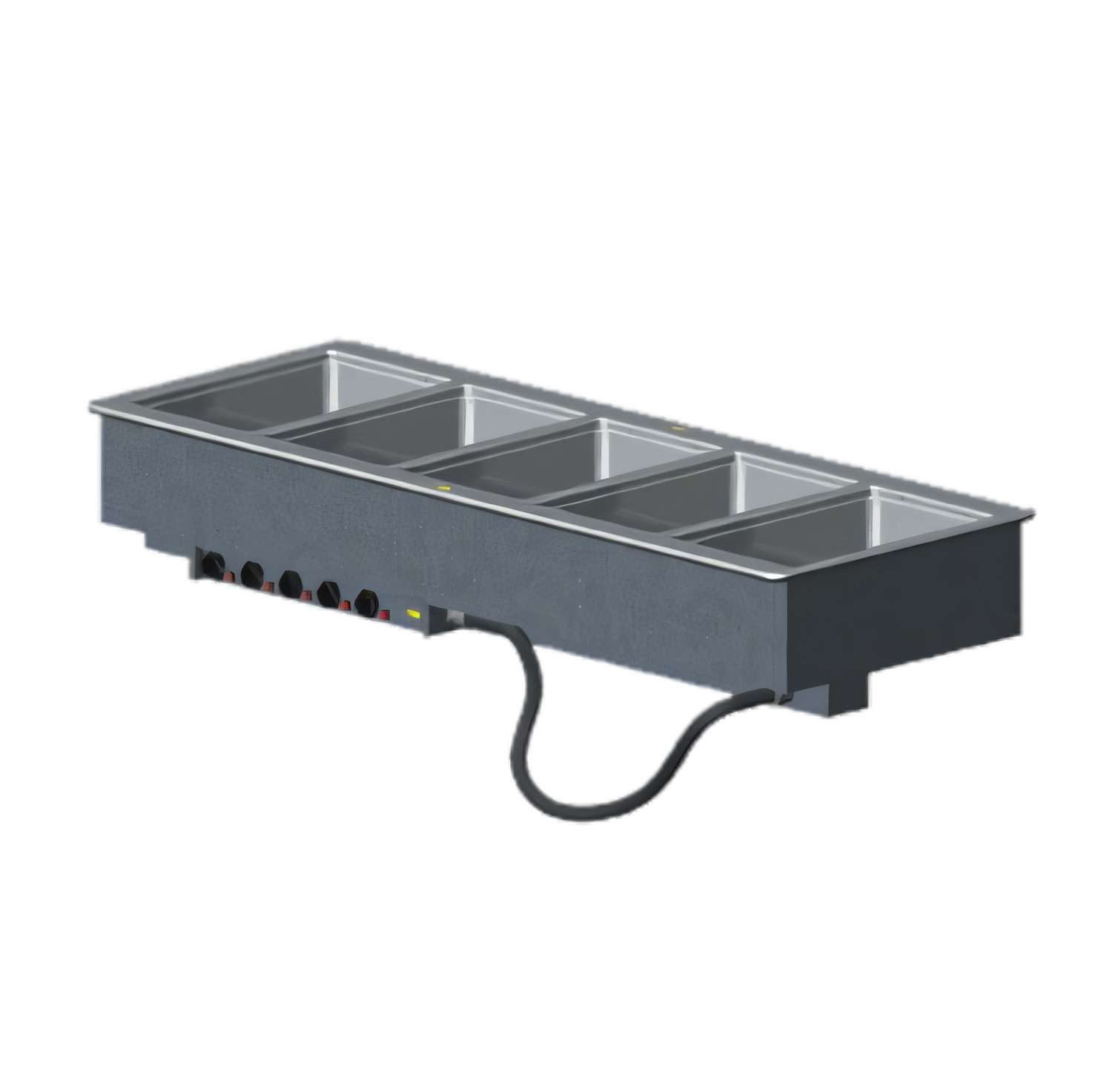

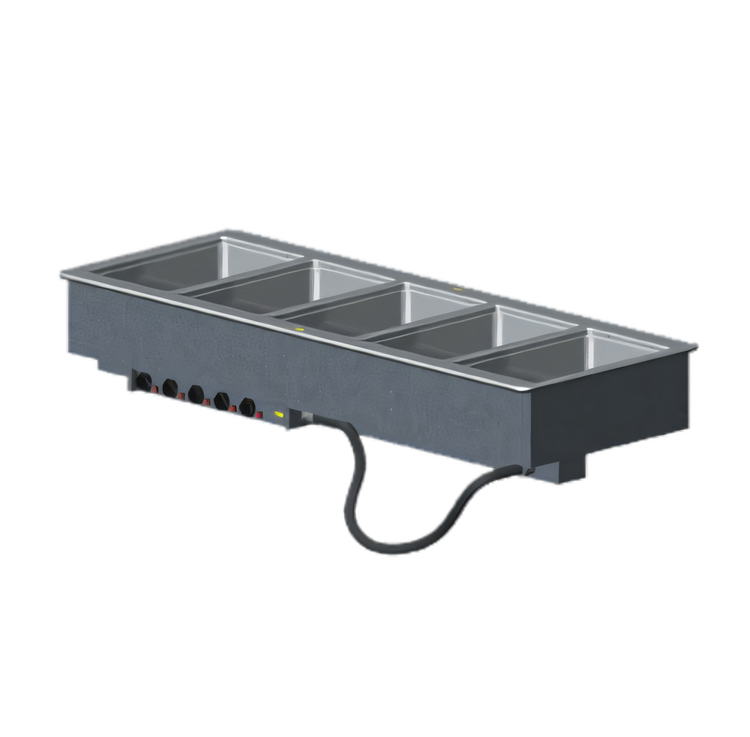

Vollrath 5-Well Drop-In Hot Food Well – Thermostatic, 208-240 V
Model 3640811 | 1000 W per well • 5 kW total outputKeep entrées, sides and sauces at safe, appetizing temperatures with the Vollrath thermostatic five-well ServeWell® drop-in module. Built for demanding commercial kitchens, this wet-operation hot well installs flush into your counter for a clean, professional presentation and zero-clearance fit.
Why You’ll Love It

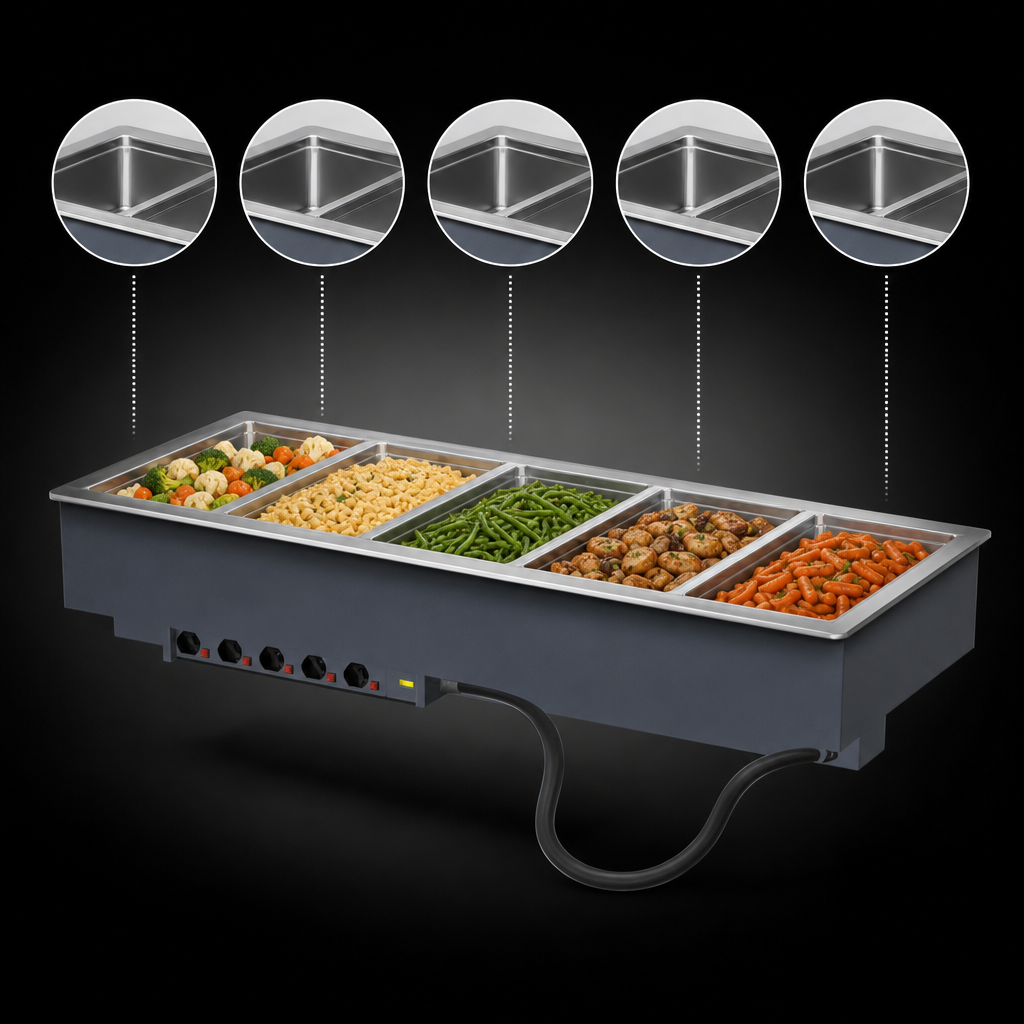

- Five 12 × 20 in. individual wells – each fully insulated 20-gauge stainless steel for precise, even heat.
- Independent thermostatic controls with power indicator lights for exact hold on every menu item.
- Wet operation only – water bath promotes consistent heat transfer and food quality.
- Drip-free 18-gauge stainless steel top flange resists mess and wipes clean fast.
- Individual ½ in. drains with ball-valve shut-offs for quick well-by-well emptying.
- Factory-wired 6 ft (1.8 m) cord and NEMA 6-30P plug – no hard wiring required.
- Remote stainless steel control panel with 4 ft (1.2 m) tether for flexible mounting.
- Includes gasket and positioning clips for counters up to 3 in. (7.6 cm) thick.
- Accepts full-size or fractional pans up to 6 in. (15.2 cm) deep – use adapter bars for fractional sizes.
- NSF 4 & cULus listed and proudly Made in the USA.
Technical Specs
| Overall dimensions | 68 in. W × 26 in. D × 15 in. H (172.7 × 66 × 38.1 cm) |
|---|---|
| Counter cut-out | 67 1⁄4 in. W × 25 1⁄4 in. D (170.8 × 64.1 cm) – 7⁄8 in. corner radius |
| Well material | 20-ga 300-series stainless steel (insulated on all sides) |
| Top flange | 18-ga stainless steel, drip-free design |
| Exterior housing | 18-ga galvanized steel |
| Heat output | 1000 W per well / 5000 W total |
| Electrical | 208-240 V, 60 Hz, 1-phase, 18–20.8 A, NEMA 6-30P |
| Controls | Five individual thermostats, panel-mounted with indicator lights |
| Drain connection | ½ in. MPT per well (individual shut-offs) |
| Installation clearance | Zero-clearance; indoor use only |
Installation & Operation Notes
- For NSF performance, maintain moist heat—add water before powering on.
- Countertop must provide the specified cut-out and corner radius.
- Do not modify the factory cord or plug; doing so voids warranty.
Warranty & Returns
Covered by Vollrath’s standard limited warranty against defects in materials and workmanship. Review full terms at vollrathfoodservice.com. Note: Modular drop-ins are non-cancelable and non-returnable.
