Vollrath Five-Well Drop-In Hot Food Well, 5 Full-Size Pans, Thermostatic, Wet Operation, 208V

SKU: 3640810HD
$4,549.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

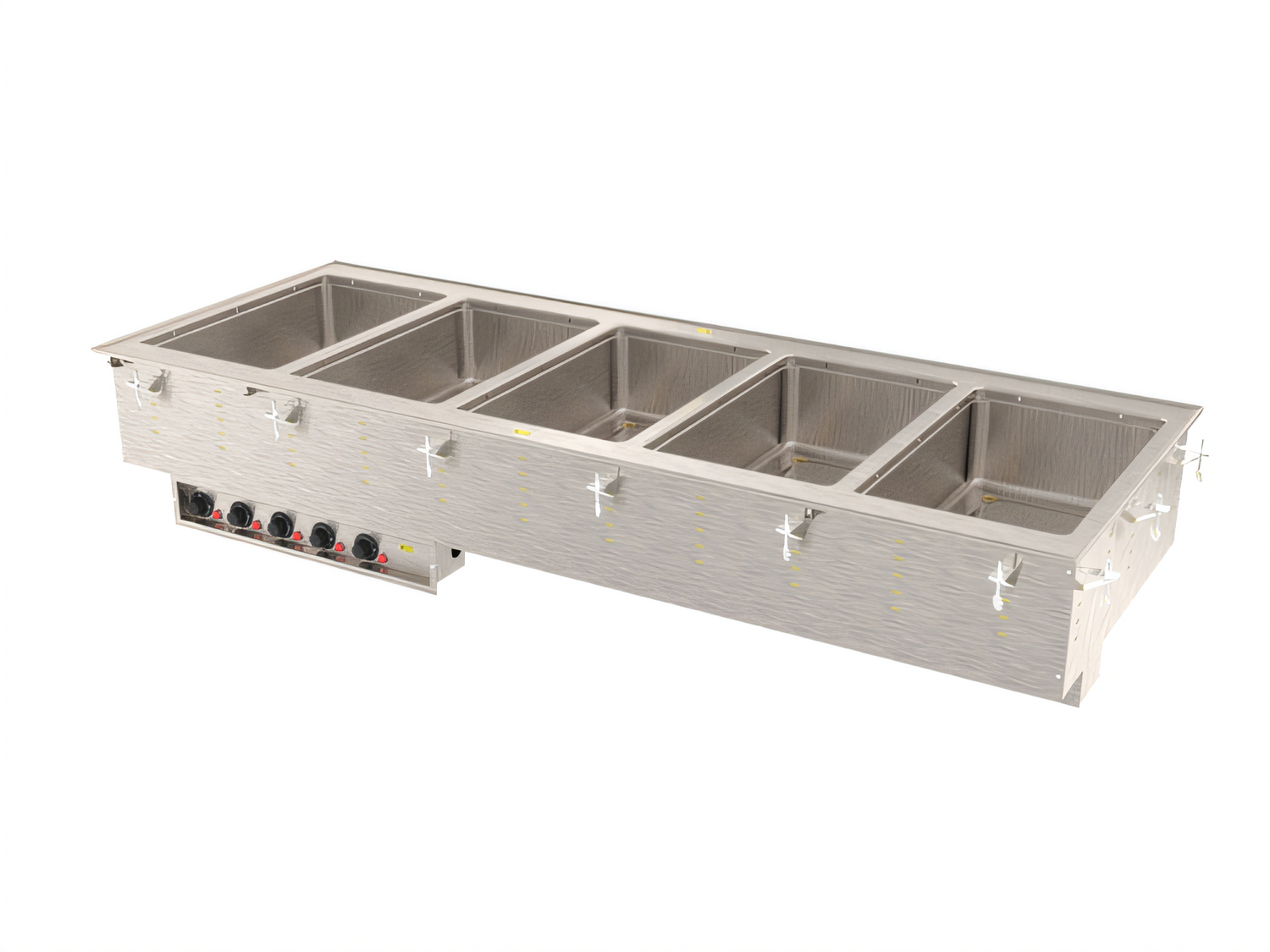

Vollrath Five-Well Drop-In Hot Food Well, 5 Full-Size Pans, Thermostatic, Wet Operation, 208V

Marine-Grade 316 Stainless Steel Wells with Individual Drains and Plug-In Cord

Keep five full-size pans of hot food at serving temperature in a plug-in, wet-operation drop-in built for heavy-use buffet lines.

  • Five-well hot food drop-in with individual thermostatic controls for precise temperature management.
  • Marine-grade 316 stainless steel wells and stainless steel top/exterior construction for durability and corrosion resistance.
  • Wet-operation design requires water for even heating and consistent food holding.
  • Insulated construction helps retain heat on all sides, including between wells.
  • Includes a 6-foot cord with NEMA 6-20P plug, so hard-wiring is not required.
  • Drip-free flange, individual drain shutoffs, and mounting clips support easier installation and cleanup.

Overall Dimensions:

68.0"W x 26.0"D x 15.0"H

Product Weight:

150.0 lb

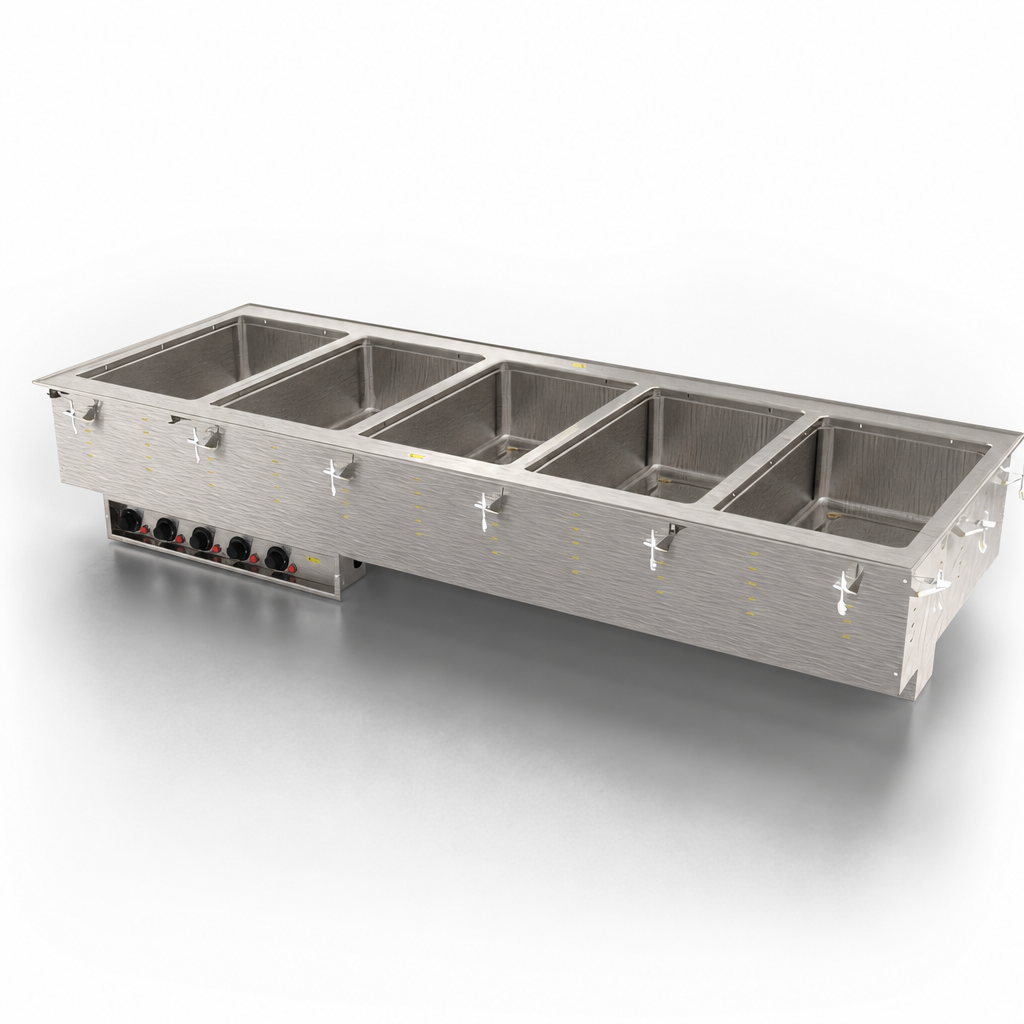

Five Individual Wells

Holds five full-size 12 x 20-inch pans for high-volume hot food service.

Marine-Grade 316 Stainless Steel Wells

Drawn wells use SAE Type 316 stainless steel for improved corrosion resistance in demanding foodservice environments.

Individual Thermostatic Controls

Each well has its own thermostatic control and power indicator light for independent temperature management.

Wet Operation Only

Designed for moist heat operation; water is required for even heating and proper food holding performance.

Plug-In Electrical Connection

Includes a 6-foot cord with NEMA 6-20P plug, eliminating the need for hard-wiring.

Easy Drop-In Installation

Standard mounting clips and a drip-free flange simplify top-mount installation on compatible counters.

Service-Friendly Design

Removable bottom access panels and individual drain shutoffs support maintenance and cleaning.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Controls Thermostatic
Pan Capacity 5 Full-Size Pans
Pan Size 12 x 20 Inches
Compartments 5
Material Stainless Steel
Interior Finish 316 Stainless Steel
Voltage 208 Volts
Amps 15 Amps
Watts 3.125 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Cord Length 6 Feet
Drain Connection Size 1/2 Inch MPT
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 68 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 150 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Two-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It includes a 6-foot cord with a NEMA 6-20P plug and does not require hard-wiring.
It is set up for five full-size 12 x 20-inch pans and accepts full-size and fractional pans up to 6 inches deep.
No. It is wet-operation only, and water is required for even heating and proper food holding.
The cutout size is 67-1/4 inches W x 25-1/4 inches D with a 7/8-inch corner radius.
A sheet pan adapter is available, item no. 19186.
It comes with a two-year warranty against defects in materials and workmanship. Refer to vollrathfoodservice.com for the full warranty policy.
