Vollrath  |  SKU: 3640810

Vollrath 3640810 Steam Tables & Food Wells

$3,819.15
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

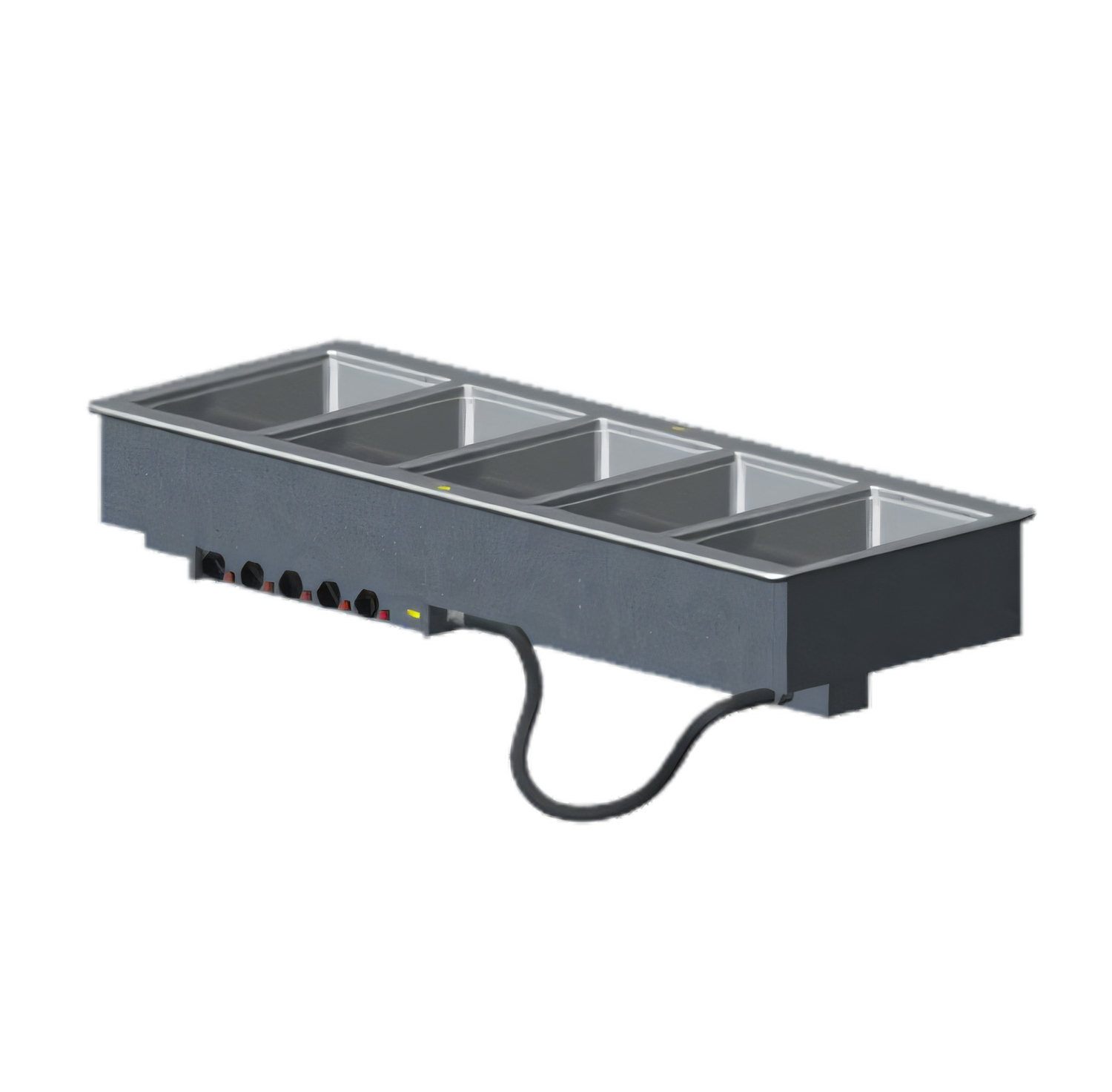

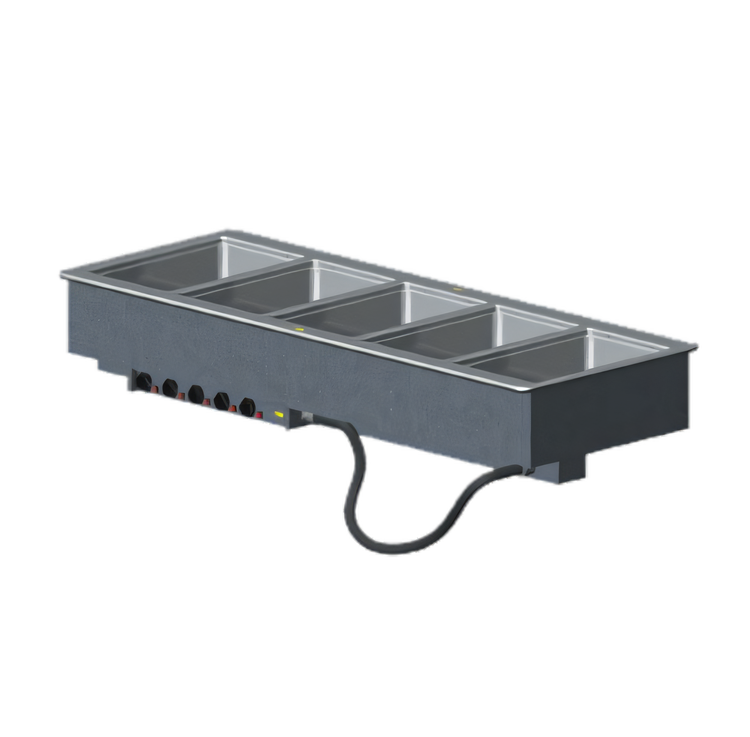

Vollrath Five-Well Drop-In Hot Food Well – 208 V

Model 3640810  |  Thermostatic Controls | Made in USA

Hold entrées, sides and sauces at safe, appetizing temperatures with this rugged Vollrath five-well drop-in. Built for wet-heat operation only, it delivers uniform heating, fast service and simple installation—perfect for buffets, cafeterias and serving lines.

Key features & benefits

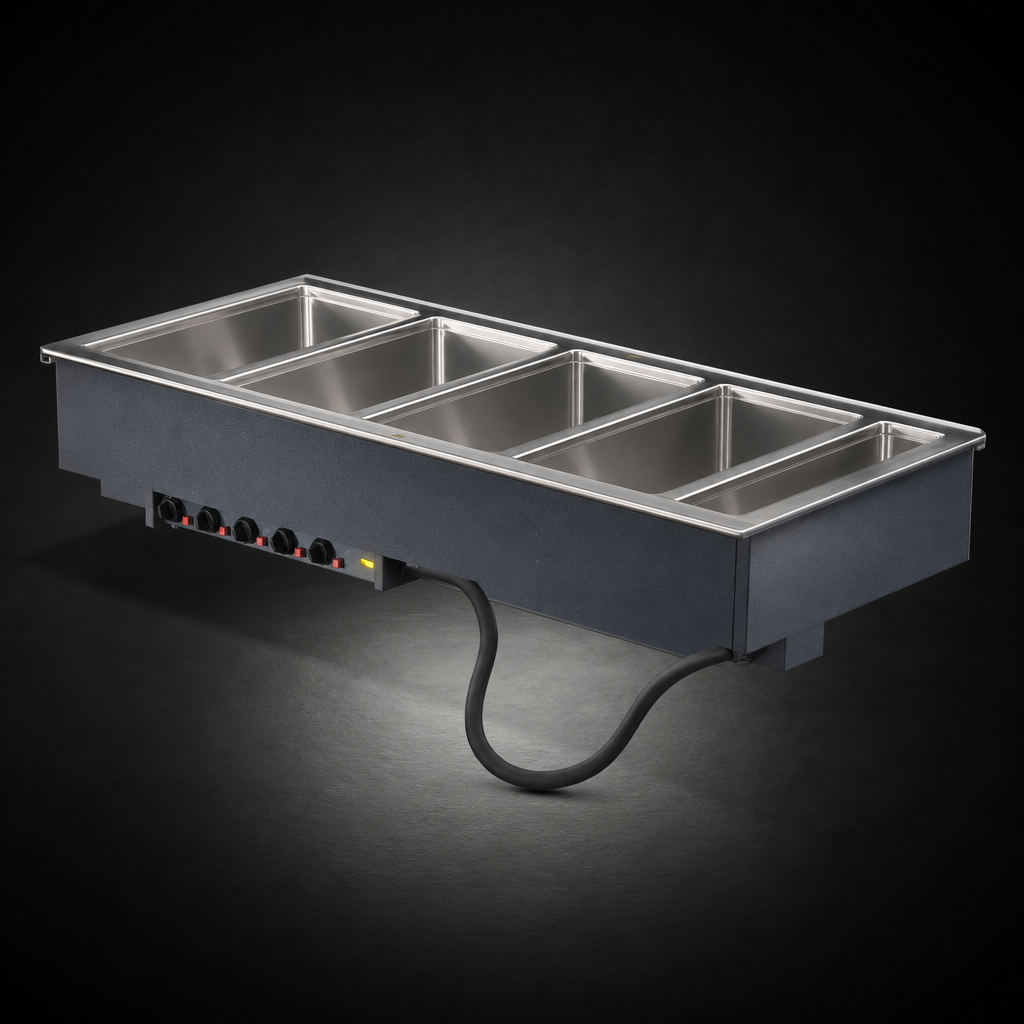

  • Five individually insulated 12" × 20" wells constructed of 20-gauge stainless steel.
  • Independent thermostatic controls with bright power-on indicators for precise temperature management.
  • Wet operation only—meets NSF 4 performance standards when water is used.
  • Drip-free 18-gauge stainless steel top flange with factory-installed gasket for a clean, sanitary seal.
  • ½" individual drains with ball-valve shut-offs speed clean-up and change-outs.
  • Zero-clearance drop-in design installs into a 67-¼" × 25-¼" cut-out (7/8" corner radius); mounting clips for counters up to 3" thick included.
  • Accepts full-size and fractional pans up to 6" deep (adapter bars recommended for fractional pans).
  • 6 ft (1.8 m) cord with NEMA 6-20P plug—no hard-wiring required.
  • NSF listed and cULus certified for sanitation and safety.

Specifications

Item number 3640810
Total wells 5 (full-size)
Operation Wet heat only
Power per well 625 W
Total wattage 3,125 W
Voltage / phase 208 V / 60 Hz / 1-ph
Amperage 15.0 A
Plug type NEMA 6-20P (factory installed)
Overall dimensions 68" W × 26" D × 15" H
Counter cut-out 67-¼" W × 25-¼" D  |  7/8" corner radius
Construction Top: 18-ga stainless  |  Wells: 20-ga stainless  |  Exterior: 18-ga galvanized
Drain connection ½" NPT per well with individual shut-off valves
Listings NSF, cULus
Country of origin USA

What’s included

  • Five-well drop-in unit with pre-wired control panel
  • Mounting/positioning clips and perimeter gasket
  • Operator’s manual

Optional accessories (sold separately)

  • Sheet-pan adapter (Item 19186)
  • Adapter bars for fractional pans
  • Auto-fill kit for continuous water-level maintenance
Important: Operate each well with water to maintain even heating and to comply with NSF standards. Do not modify the attached cord or plug.

Drop-in units are built to order and are non-returnable. View the full warranty policy at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

68.0in

Depth

26.0in

Shipping Weight

150.0lbs

Pan Capacity

(5) full size (12" x 20")

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge stainless steel insulated wells, 68"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3125 watts, 208v/60/1-ph, 15.0 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
