Vollrath 3640801HD Steam Tables & Food Wells
Description

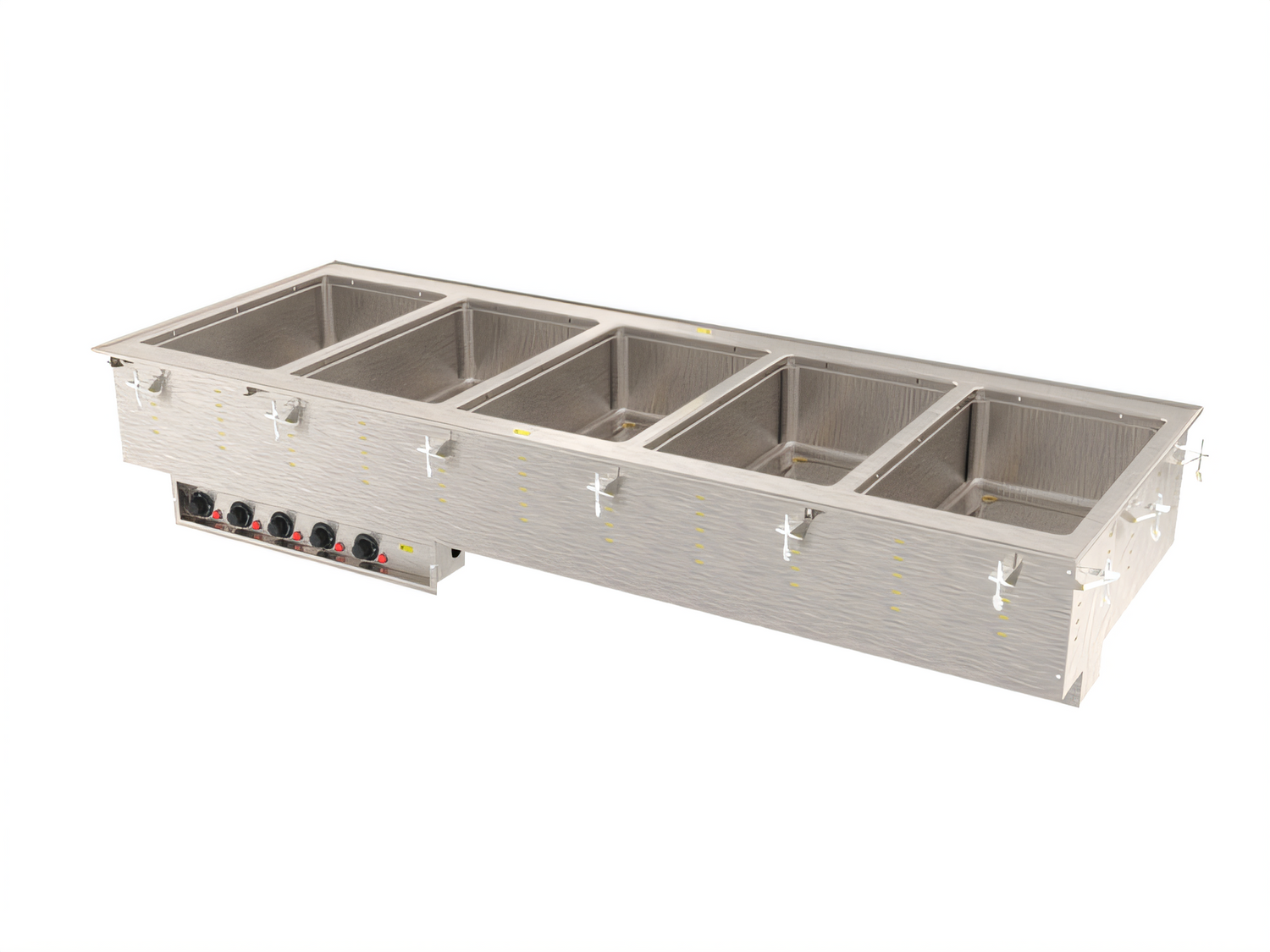

Vollrath 5-Well Modular Drop-In Hot Food Well – Marine-Grade Stainless Steel
Model 3640801HD | Infinite Controls | 208-240 VKeep five full-size pans perfectly hot and ready to serve with this U.S-made, marine-grade drop-in from Vollrath. Built for demanding commercial environments, each well delivers dependable wet-heat performance while resisting the harsh effects of salt, acidic foods, and cleaning chemicals.
Why you’ll love it
- Five independent 12 × 20 in. (1/1 GN) wells – 1,000 W each, fully insulated.

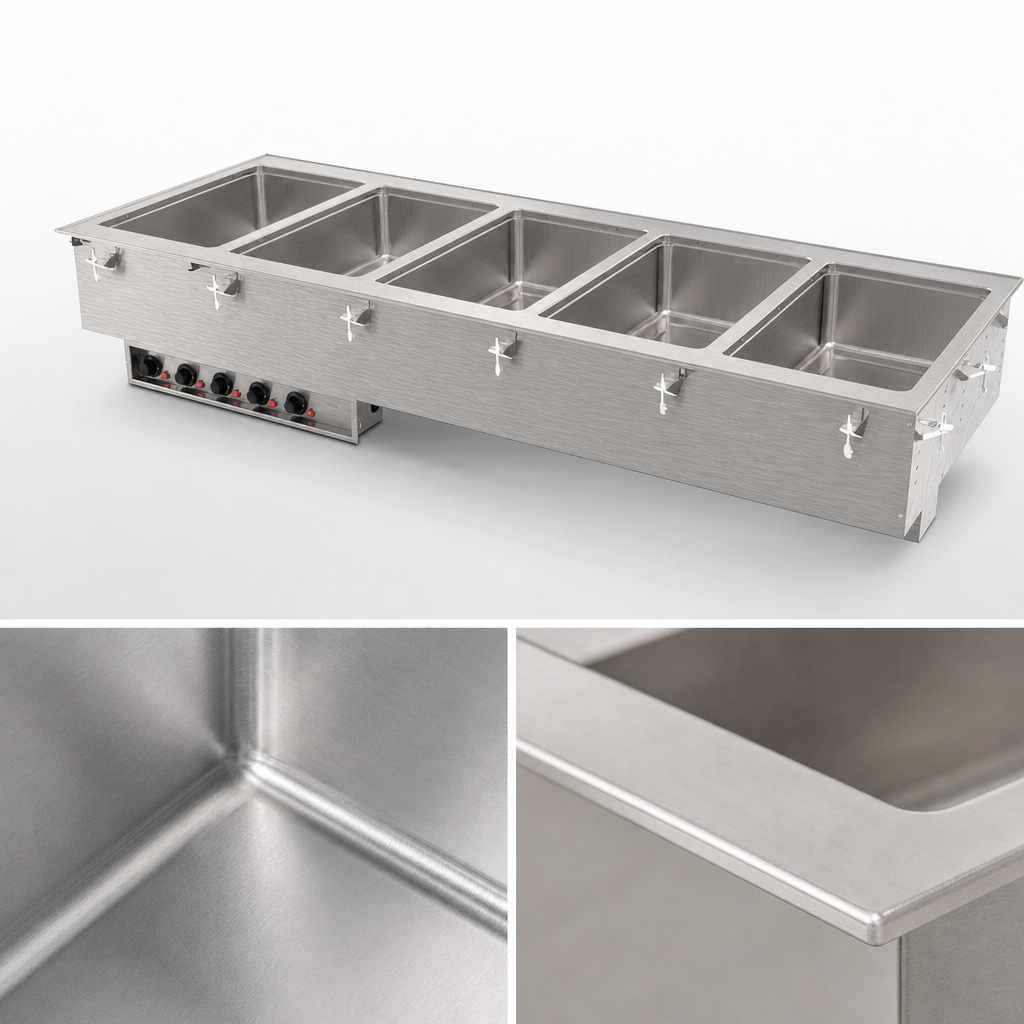

- Drawn 20-gauge 316 stainless steel wells offer superior corrosion resistance.
- Individual infinite controls with power indicator lights let you fine-tune every pan.
- Wet-heat operation meets NSF 4 standards for safe, even holding.
- ½ in. drains with ball-valve shut-offs on every well for quick, drip-free cleanup.
- 18-gauge stainless top with drip-free flange drops into a 67¼ × 25¼ in. cut-out.
- Ships ready to install: 6 ft cord, NEMA 6-30P plug, gasket, and mounting clips (fits counters up to 3 in. thick).
- Zero-clearance design—ideal for tight buffet lines or cook-serve stations.
- NSF and cULus listed; backed by Vollrath’s 2-year warranty.
Technical specifications
| Capacity | 5 full-size (12 × 20 in.) pans, up to 6 in. deep |
|---|---|
| Operation | Wet heat only (water required) |
| Controls | Five individual infinite switches with indicator lights |
| Well material | 20-ga SAE 316 marine-grade stainless steel |
| Top / housing | 18-ga stainless steel |
| Drain | ½ in. NPT drains with individual ball valves |
| Total power | 5,000 W | 18–20.8 A |
| Electrical | 208-240 V / 60 Hz / 1-ph — factory-installed 6 ft cord with NEMA 6-30P |
| Overall size | 68 W × 26 D × 15 H in. (172.7 × 66 × 38.1 cm) |
| Counter cut-out | 67¼ W × 25¼ D in. (170.8 × 64.1 cm) — ⅞ in. corner radius required |
| Certifications | NSF, cULus |
| Origin | Made in USA |
What’s in the box
- Remote stainless steel control panel (4 ft tether)
- Mounting / positioning clips and perimeter gasket
- Service access panels on each well
- Installation & operation manual
Using fractional pans? Add Vollrath adapter bars (item 19186, sold separately) for the best fit.
Warranty & terms
Covered by a 2-year parts-and-labor warranty from Vollrath. Full policy details are available at vollrathfoodservice.com.
Modular drop-ins are custom equipment and cannot be cancelled or returned once ordered.
