Vollrath | SKU:
3640801
Vollrath 3640801 Steam Tables & Food Wells
$3,514.90
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3640801 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3640801 Steam Tables & Food Wells
$3,514.90
Unit price
/
Unavailable
Description

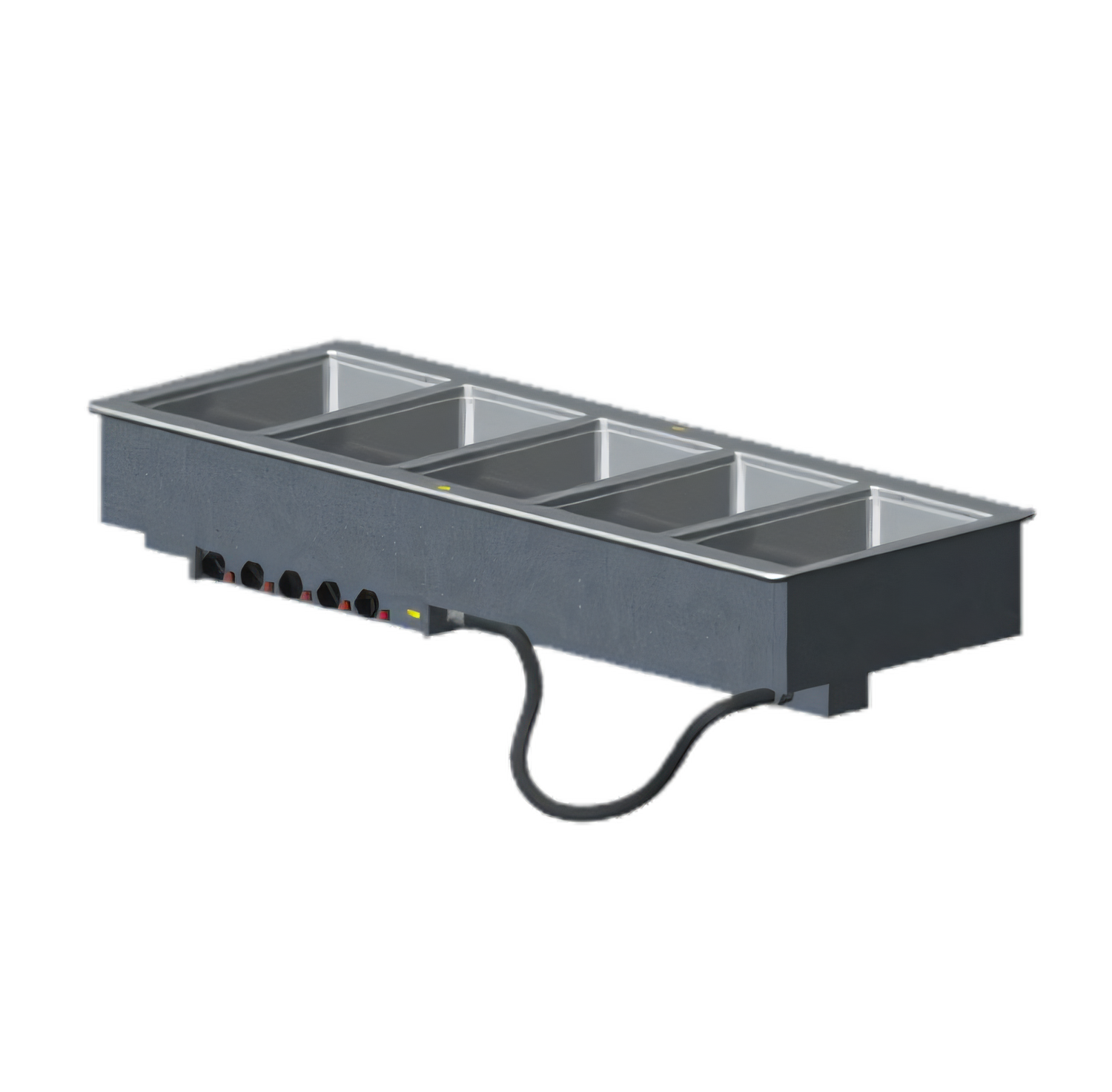

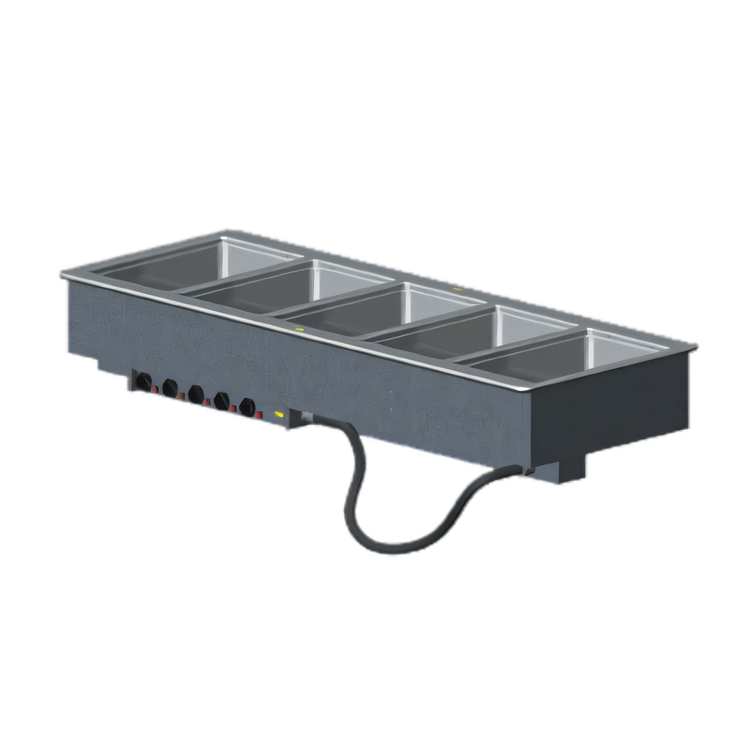

Vollrath 5-Well Electric Drop-In Hot Food Well Unit
Standard Drain • Infinite Controls • Model 3640801Keep five menu items held safely at serving temperature without hard-wiring. Vollrath’s made-in-the-USA 5-well drop-in delivers even, moist heat in a compact, fully insulated module that installs flush with virtually any countertop.
Key benefits
- Five individual 12 × 20 in. 300-series stainless-steel wells – 1,000 W each (5,000 W total)
- Wet operation ensures uniform holding temperatures and meets NSF 4 performance standards
- Infinite control knob & power-indicator light for each well—dial in exact holding temps
- 1⁄2 in. NPT drain with dedicated ball valve per well; drip-free top flange keeps counters clean

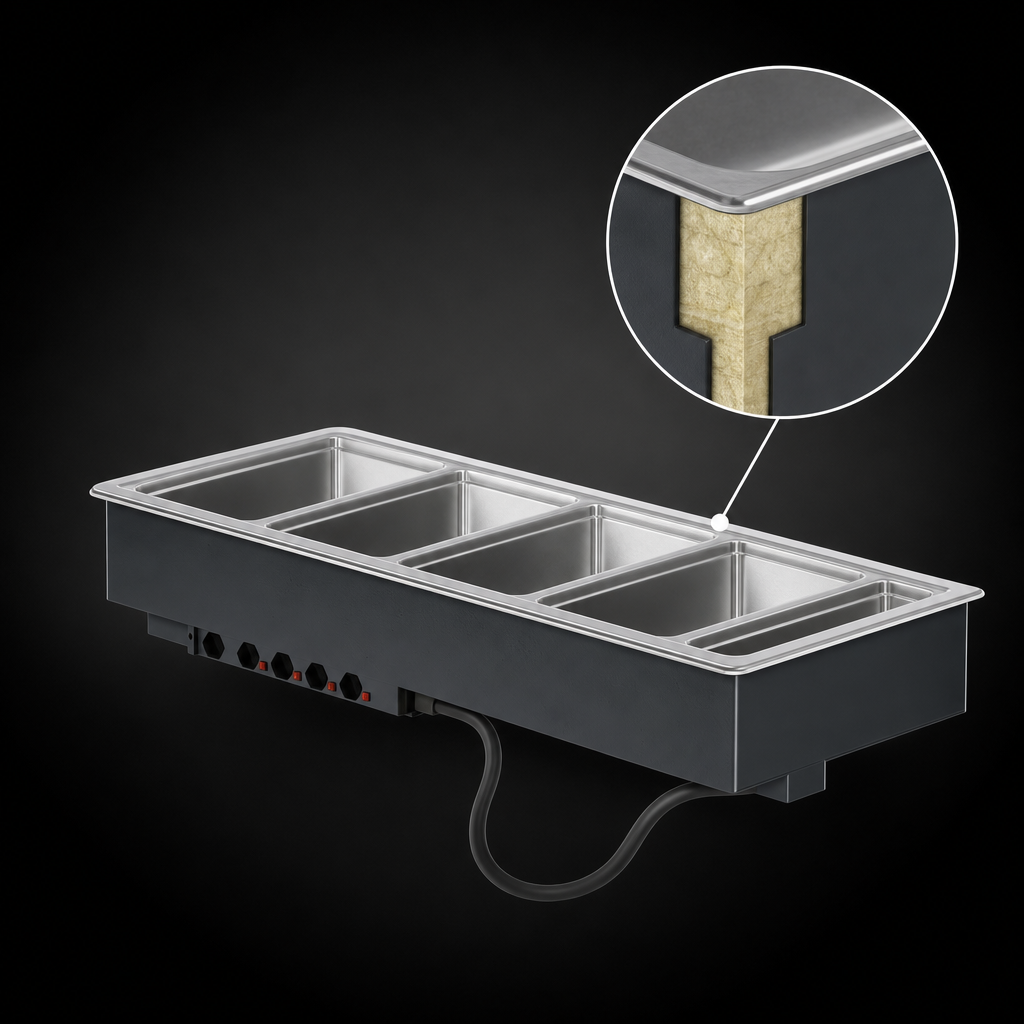

- Fully insulated on all sides (including between wells) for energy-efficient operation
- 6-ft cord with factory-installed NEMA 6-30P plug—no electrician required
- Remote stainless control panel with 4-ft tether for flexible mounting
- Mounting clips included; zero-clearance installation into counters up to 3 in. thick
- Accepts full-size or fractional steam table pans up to 6 in. deep (adapter bars recommended)
- NSF & cULus listed; built in Sheboygan, Wisconsin
Wet operation only: unit must be operated with water in each well for safe, even heating.
Technical specifications
| Overall dimensions | 68 W × 26 D × 15 H in. (172.7 × 66 × 38.1 cm) |
|---|---|
| Countertop cutout | 67 1⁄4 W × 25 1⁄4 D in. (170.8 × 64.1 cm) with 7⁄8 in. corner radius |
| Well size (each) | 12 × 20 in.; up to 6 in. pan depth |
| Controls | Five individual infinite switches, power lights |
| Drain | ½ in. NPT per well, manual shut-off valves |
| Construction | 18-ga stainless top, 20-ga drawn wells, 18-ga galvanized exterior, drip-free flange |
| Electrical | 5,000 W • 208-240 V • 18–20.8 A • 60 Hz • 1-ph • NEMA 6-30P cord & plug |
| Agency listings | NSF/ANSI 4, cULus |
| Country of origin | Made in USA |
What’s included
- Five-well drop-in module with attached 6-ft cord & plug
- Remote control panel (4-ft tether)
- Mounting / positioning clips
- Factory-installed individual drains & valves
Optional accessories
- Sheet-pan adapter bar – item 19186 (sold separately)
Drop-in hot wells are built to order and cannot be canceled or returned. See complete warranty terms at vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
15.0in
Width
68.0in
Depth
26.0in
Shipping Weight
205.0lbs
Controls
infinite controls
Pan Capacity
(5) full size (12" x 20")
Insulated or Non-Insulated
insulated
Style
individual pans
Drain
with drain
Construction
stainless steel top, corrosion resistant steel exterior
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge stainless steel insulated wells, 68"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 5000 watts, 208-240v/60/1-ph, 18-20.8 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
