Vollrath 36408 Steam Tables & Food Wells
Description

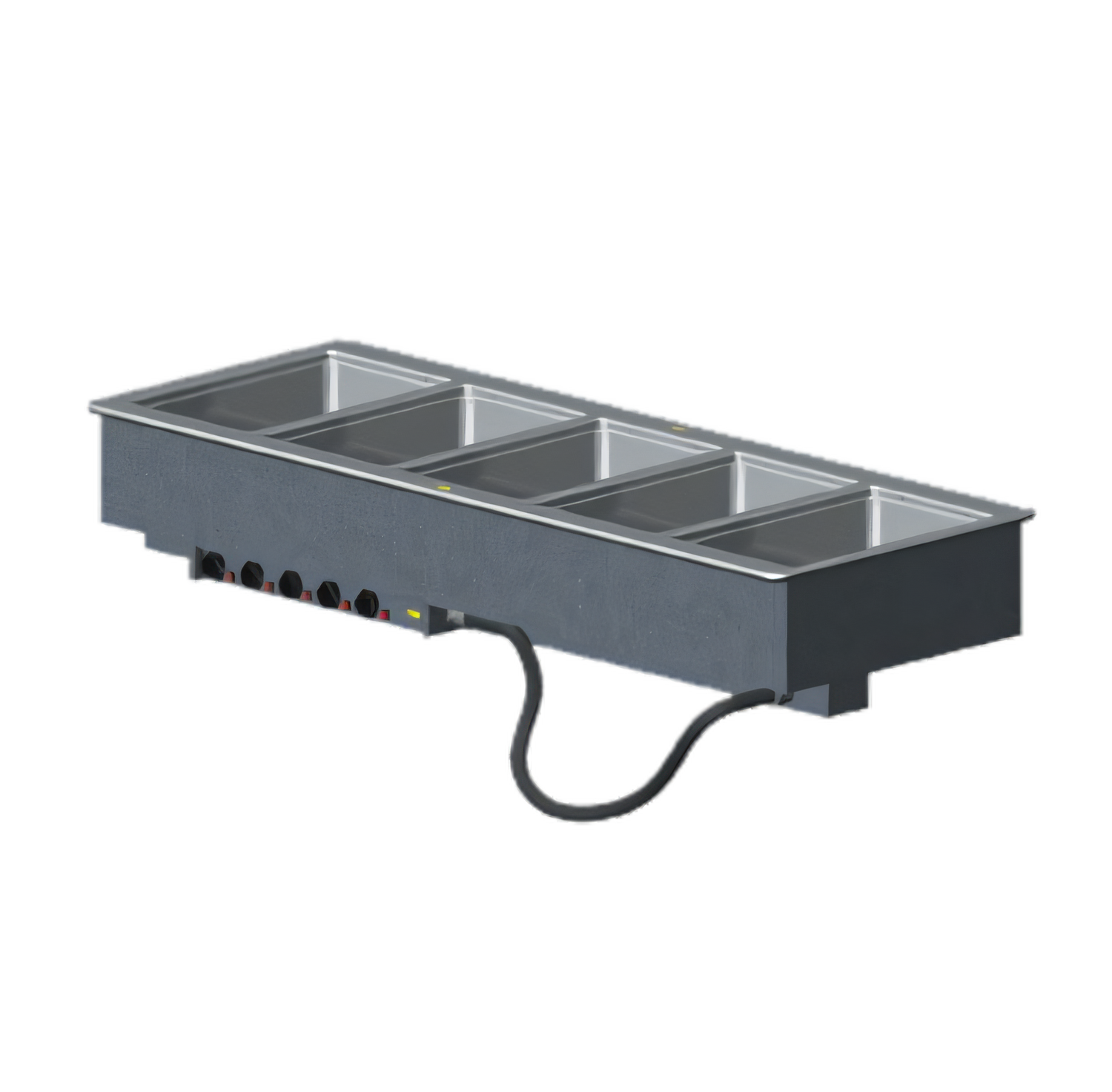

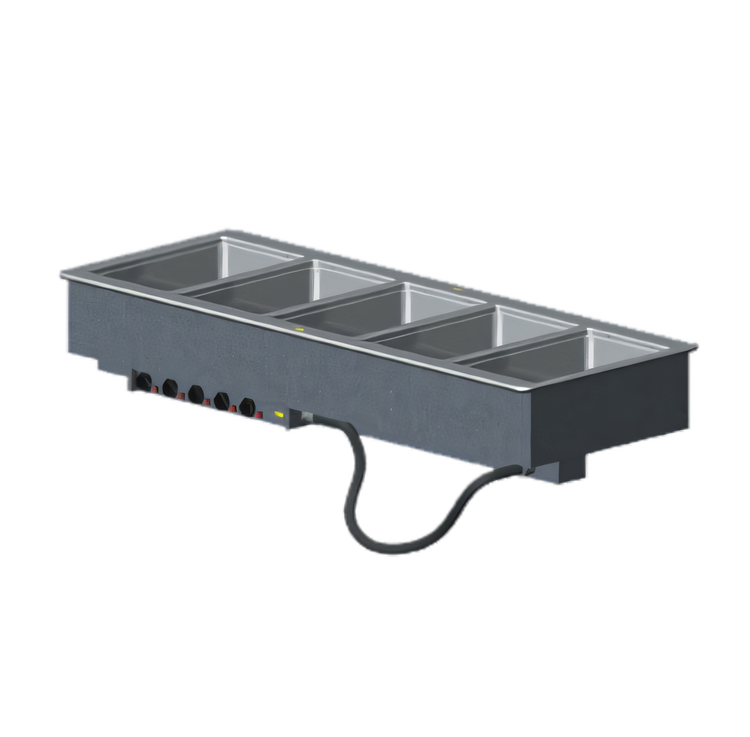

Vollrath 5-Well Drop-In Hot Food Well Unit – 208 V, Infinite Control
Model 36408 | Standard drains | Made in the USAKeep up to five menu items hot, fresh and ready for service with Vollrath’s modular drop-in hot well system. Engineered for wet operation only, this self-contained unit installs easily in your counter cut-out and plugs into a single 6-20P receptacle—no hard-wiring required.
Why you’ll love it
- Five individual 12" × 20" wells provide 625 W each (3,125 W total) for consistent holding temperatures.
- 20-gauge stainless-steel, deep-drawn wells resist corrosion and clean up fast.
- 18-gauge stainless top with drip-free full-perimeter flange contains spills and adds strength.
- High-density glass-fiber insulation on all sides allows zero-clearance installation.
- Individual infinite controls with power indicator lights let you dial in each well independently.
- Each well has its own ½" stainless drain with ball-valve shut-off for quick water changes.

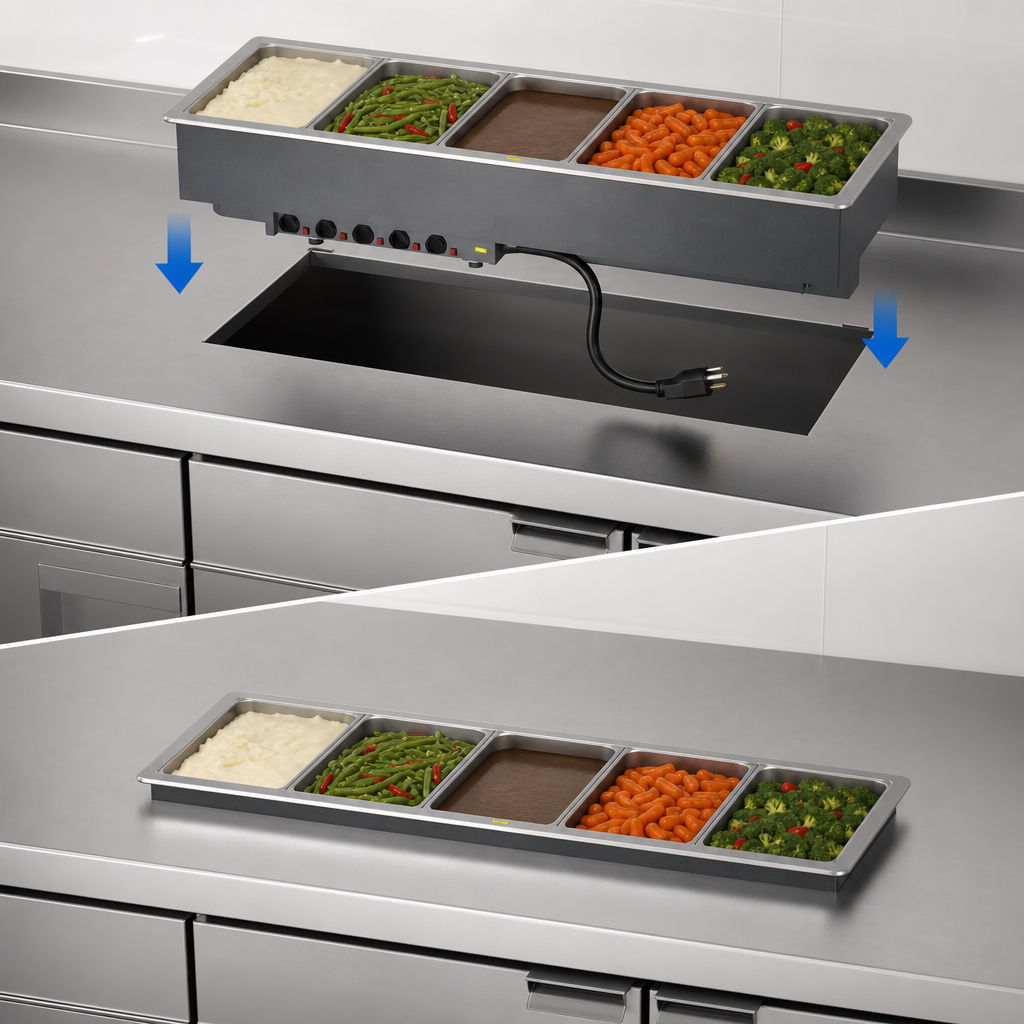

- Supplied positioning clips center the unit perfectly in a 67 ¼" × 25 ¼" cutout (7⁄8" corner radius).
- 6 ft factory-installed cord and NEMA 6-20P plug—simply drop in, plug in, and you’re ready.
- NSF & cULus listed for food-service safety and sanitation.
Technical specifications
| Wells / Pan Size | (5) 12" × 20" full-size (accepts fractional pans up to 6" deep) |
|---|---|
| Operation | Wet heat only – water required for even heat distribution |
| Controls | Individual infinite switches, panel-mounted, with power indicators |
| Total Wattage | 3,125 W (625 W per well) |
| Electrical | 208 V / 60 Hz / 1 ph, 15 A, NEMA 6-20P cord & plug |
| Exterior Construction | 18-gauge stainless top, 18-gauge galvanized steel housing |
| Overall Dimensions | 68" W × 26" D × 15" H |
| Cut-out Required | 67 ¼" W × 25 ¼" D, 7⁄8" corner radius |
| Drain Fittings | ½" MPT per well with individual ball valves |
| Accessories | Sheet-pan adapter bar (Item 19186) – sold separately |
| Agency Listings | NSF, cULus |
| Origin | Made in USA |
Covered by Vollrath’s standard one-year parts & labor warranty. For complete details visit vollrathfoodservice.com .
