Vollrath  |  SKU: 36407HD

Vollrath 36407HD Steam Tables & Food Wells

$3,509.30
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

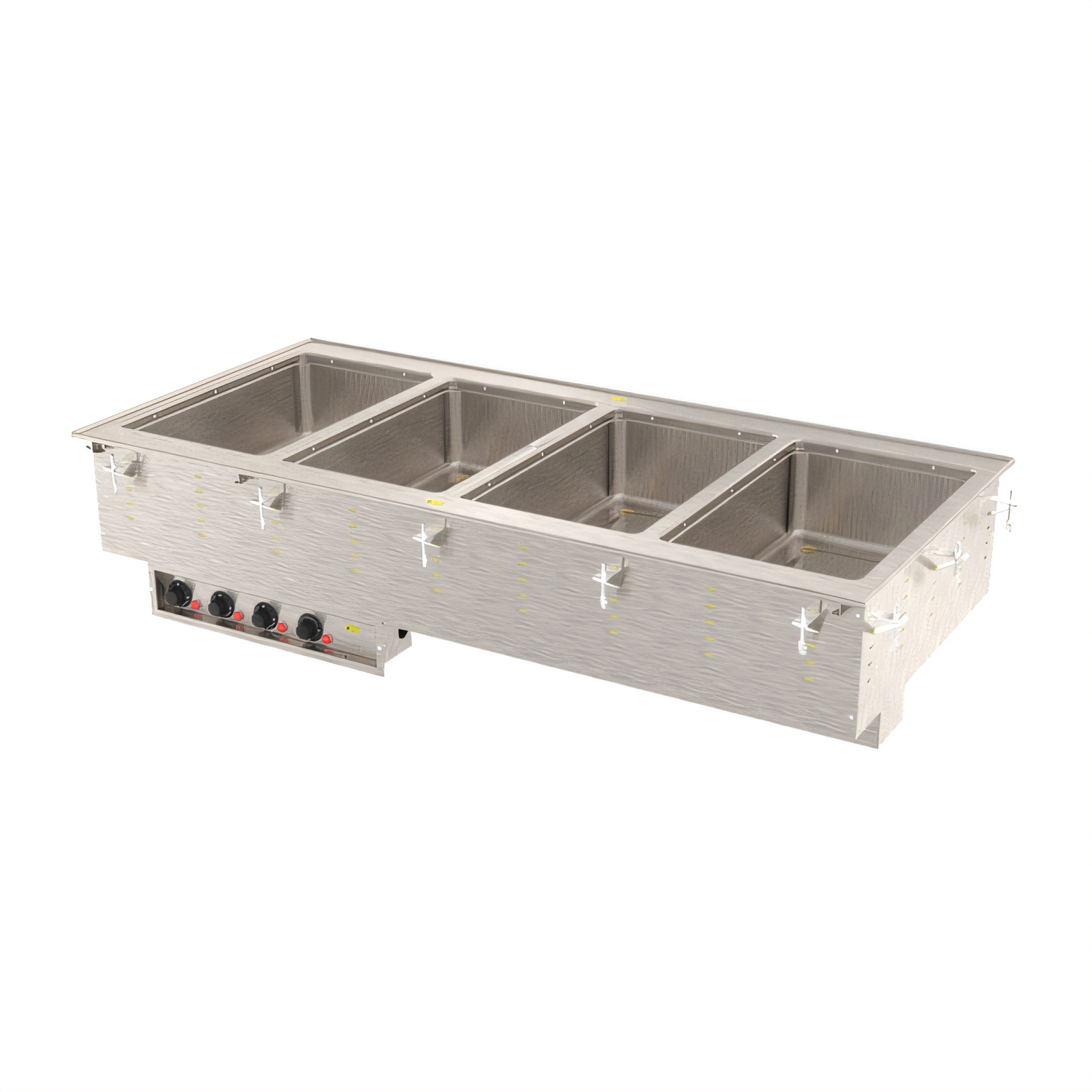

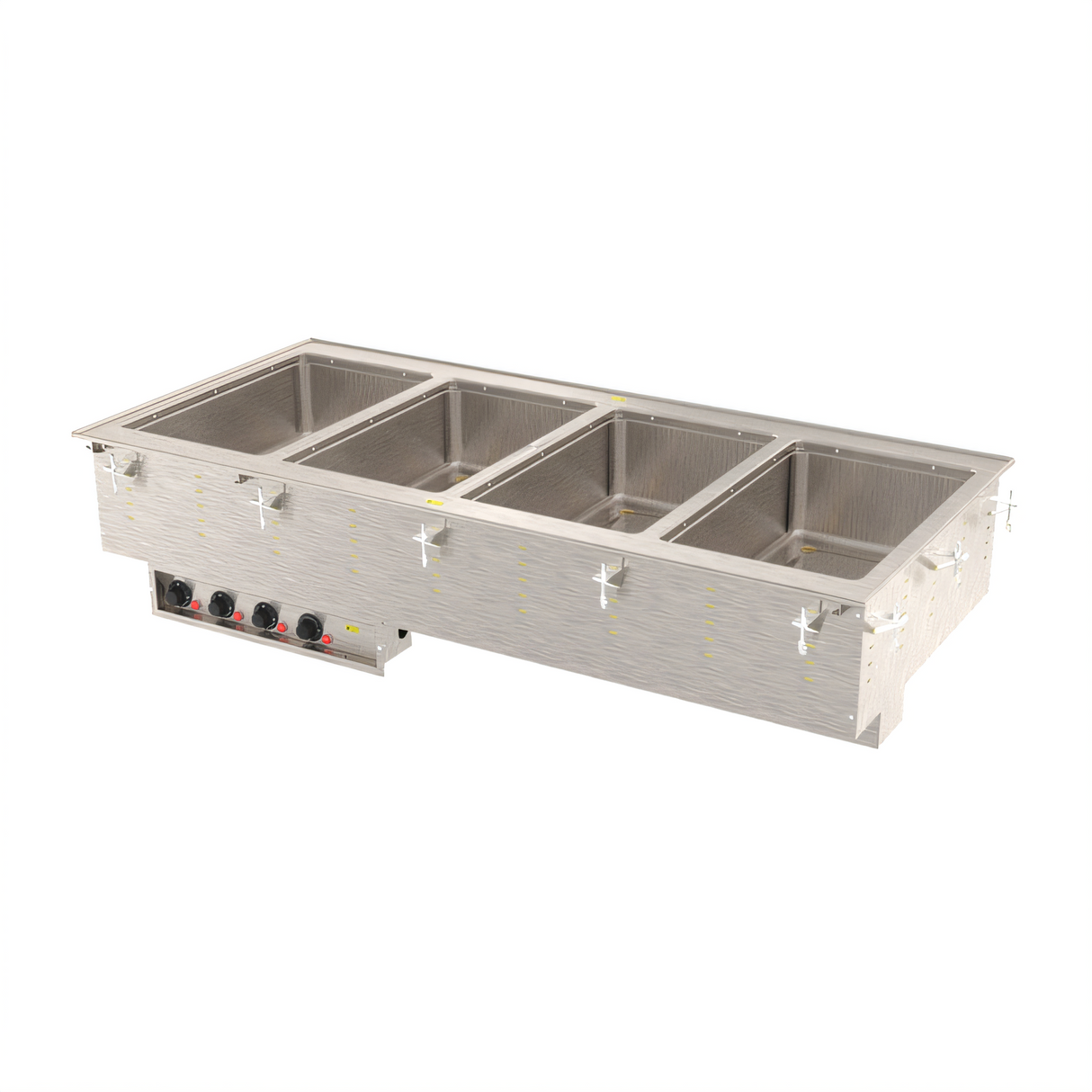

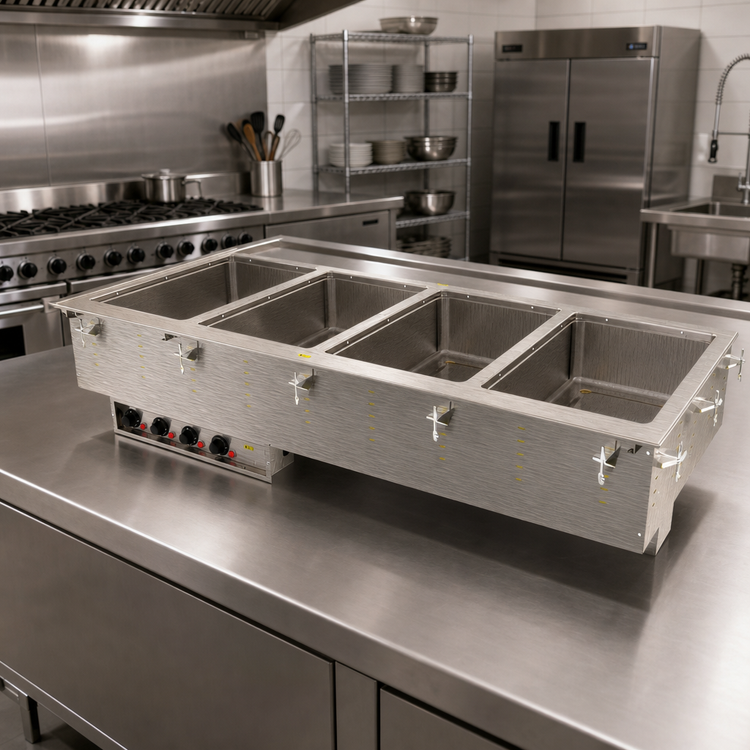

4-Well Marine-Grade Drop-In Hot Food Well

by Vollrath • 208 V • Infinite Controls • Made in USA

Engineered for demanding commercial kitchens, this Vollrath modular hot well keeps entrées, sides and sauces at safe, appetizing temperatures while protecting your counter from heat and moisture. Four individually-controlled, 316 marine-grade stainless steel wells deliver superior corrosion resistance and long service life—ideal for coastal, outdoor-adjacent or high-humidity environments.

Key Features

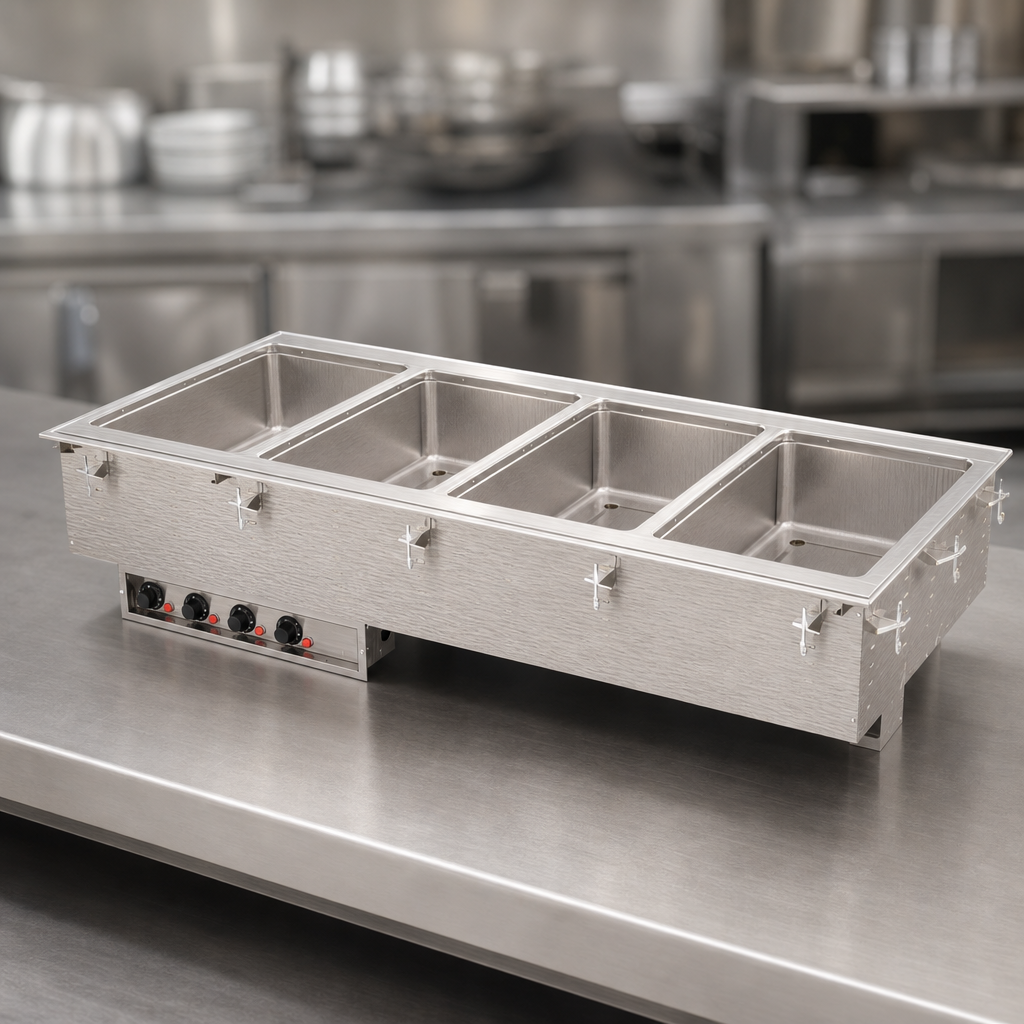

  • Four separate 12" × 20" wells — 20-gauge, drawn SAE 316 stainless steel
  • 625 W per well (2,500 W total) with independent infinite controls & power lights
  • Wet operation only for even heat distribution and NSF 4 compliance
  • Foam-insulated on all sides (including between wells) to maximize efficiency
  • Drip-free 18-gauge stainless steel top with factory-installed gasket
  • ½" NPT drains with individual ball-valve shut-offs for mess-free water changes
  • 6 ft cord and NEMA 6-15P plug — no hard-wiring required
  • Removable bottom service panels simplify maintenance
  • Includes mounting clips for counters up to 3" thick; zero-clearance installation
  • Accepts full-size pans or fractional pans up to 6" deep (adapter bars recommended)
  • NSF listed, cULus certified & backed by a 2-year limited warranty

Specifications

Wells (qty / size) 4 × 12" × 20" full-size; 6" max pan depth
Heat Output 625 W per well  |  2,500 W total
Operation Wet only (fill with water before energizing)
Controls Individual infinite knobs with pilot lights (remote panel, 4 ft tether)
Construction • 20-ga 316 SS wells
• 18-ga stainless top
• Stainless exterior housing
Drainage ½" MPT drains with individual shut-offs
Overall Dimensions 54 3⁄4" W × 26" D × 15" H
Counter Cut-out 54" W × 25 1⁄4" D – 7⁄8" corner radius required
Electrical 208 V / 60 Hz / 1-ph • 12.0 A • cord & NEMA 6-15P plug
Certifications NSF 4, cULus
Country of Origin USA

Included With Your Unit

  • Remote control panel with 4 ft tether
  • Mounting / positioning clips
  • Factory-installed gasket for a drip-free seal
Important: This drop-in is designed for wet operation only. Always keep wells filled with water during use to prevent element damage and to meet NSF performance standards.

Modular drop-ins are built to order and cannot be cancelled or returned. See the full warranty policy at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

54.75in

Depth

26.0in

Shipping Weight

197.0lbs

Construction

stainless steel construction

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2500 watts, 208v/60/1-ph, 12.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
