Vollrath  |  SKU: 3640781HD

Vollrath 3640781HD Steam Tables & Food Wells

$5,081.75
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

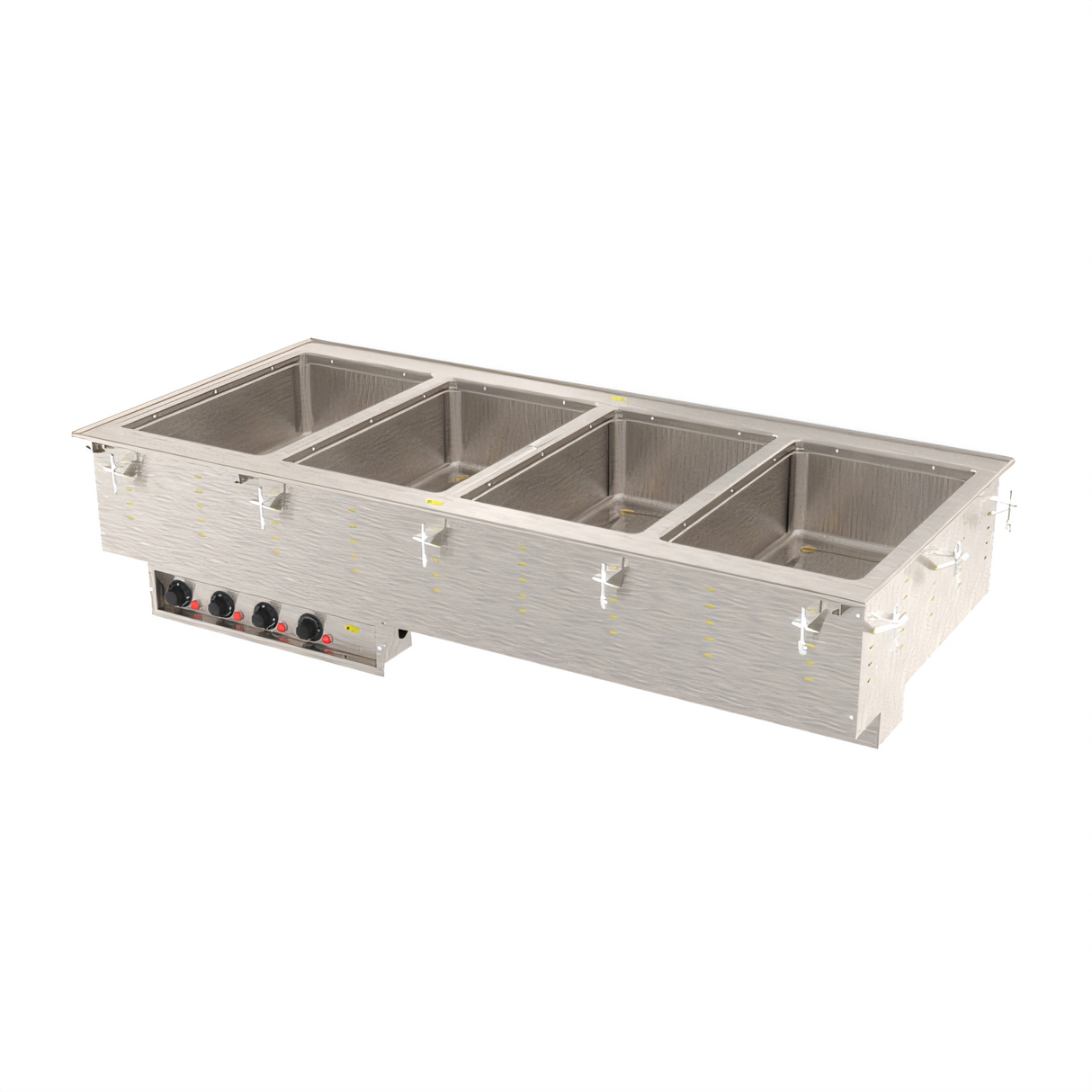

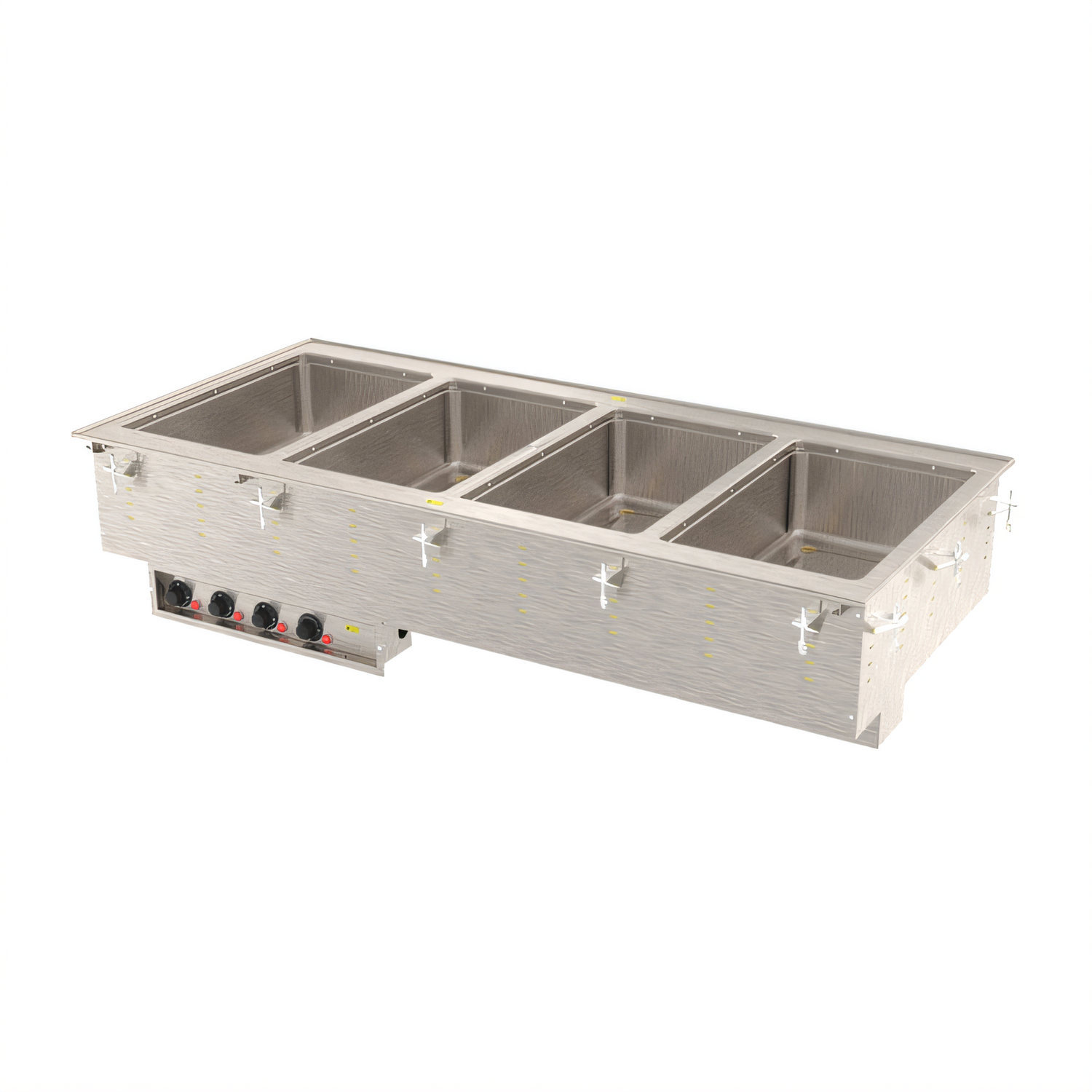

Vollrath 4-Well Modular Hot Drop-In with Auto-Fill

Marine-Grade 316 Stainless • Thermostatic Controls • 208-240 V

Built for demanding buffet and cafeteria lines, this Vollrath drop-in hot well keeps multiple menu items at safe-serving temperatures while standing up to the toughest kitchen environments. Just mount, plug in, and let the auto-fill system handle water levels for you.

Key Features

  • (4) full-size 12 × 20 in wells—each individually heated.
  • 20-ga SAE 316 marine-grade stainless steel wells resist pitting and chloride corrosion.

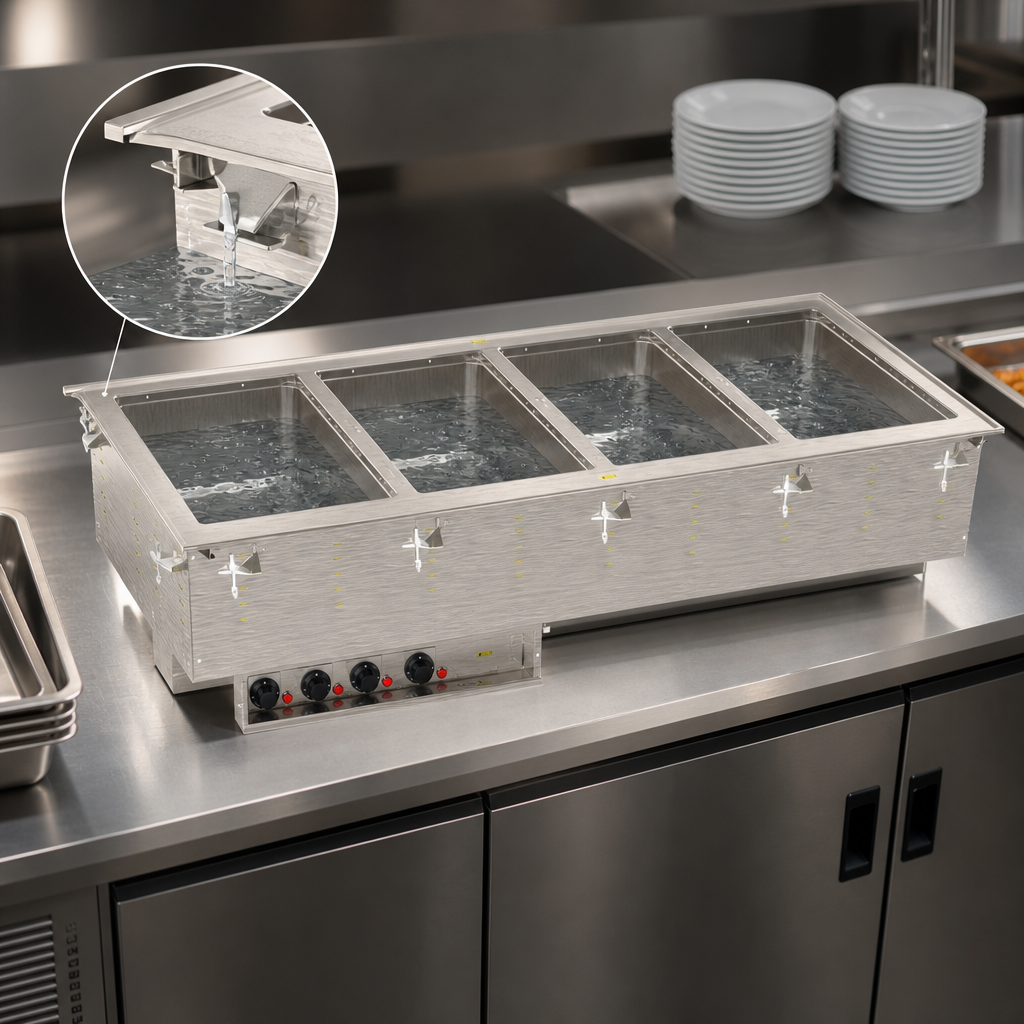

  • Automatic water fill for consistent wet-operation performance and labor savings.
  • Independent thermostatic controls with power-on indicators let you fine-tune holding temps.
  • Drip-free flange protects surrounding counters from condensation.
  • 1 in copper manifold drain with individual ball valves and master shut-off for fast, clean emptying.
  • Insulated on all sides—including between wells—for better efficiency and cooler exterior surfaces.
  • 18-ga stainless top & housing, plus included mounting clips for counters up to 3 in thick.
  • 6 ft cord with NEMA 6-30P plug—no hard-wiring required.
  • NSF 4 & cULus listed; Made in USA; backed by a 2-year Vollrath warranty.

Specifications

Number of wells 4 (individually controlled)
Well size 12 in × 20 in; accepts pans up to 6 in deep
Construction 20-ga 316 SS wells; 18-ga stainless top & exterior housing
Operation Wet heat only  |  Automatic water fill
Total wattage 4,000 W (1,000 W per well)
Electrical 208–240 V / 60 Hz / 1-Ph  |  14.4–16.7 A  |  NEMA 6-30P
Controls Remote stainless panel (4 ft tether) with individual thermostats & indicator lights
Drain 1 in copper manifold, individual well shut-offs, master shut-off
Overall dimensions 54 3⁄4 in W × 26 in D × 21 1⁄2 in H
Counter cutout 54 in W × 25 1⁄4 in D; 7⁄8 in corner radius
Included Mounting/positioning clips, factory-installed auto-fill & drain manifold
Certifications NSF 4, cULus
Country of origin United States

Optional Accessories

  • Sheet-pan adapter bar (Item 19186)
  • Full- & fractional-size pans up to 6 in deep
Important: Operate with water in wells at all times to maintain even heating and NSF compliance. Indoor use only.

For complete warranty details, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

54.75in

Depth

26.0in

Shipping Weight

197.0lbs

Wet or Dry operation

wet

Style

individual pans

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
