Vollrath 3640780HD Steam Tables & Food Wells

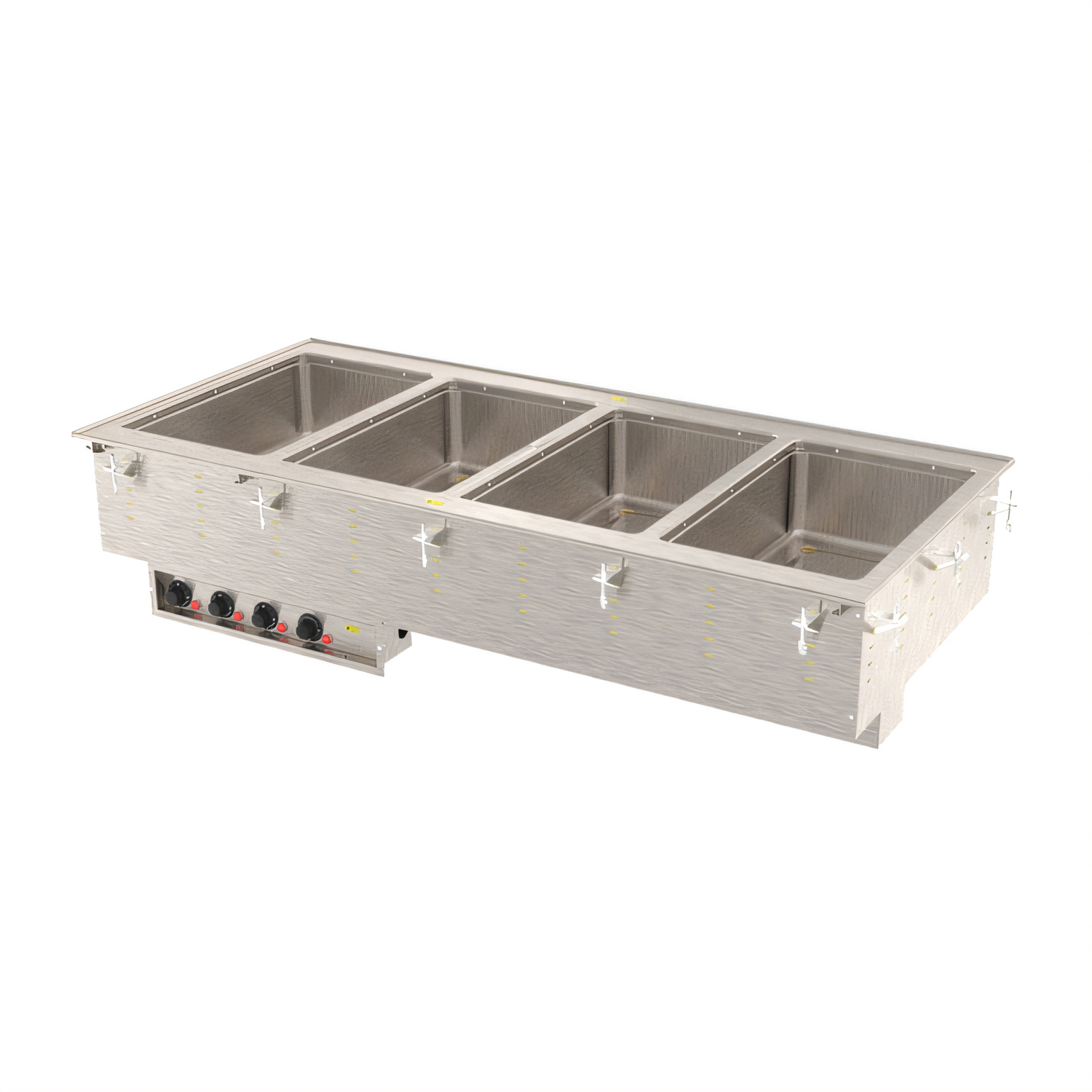

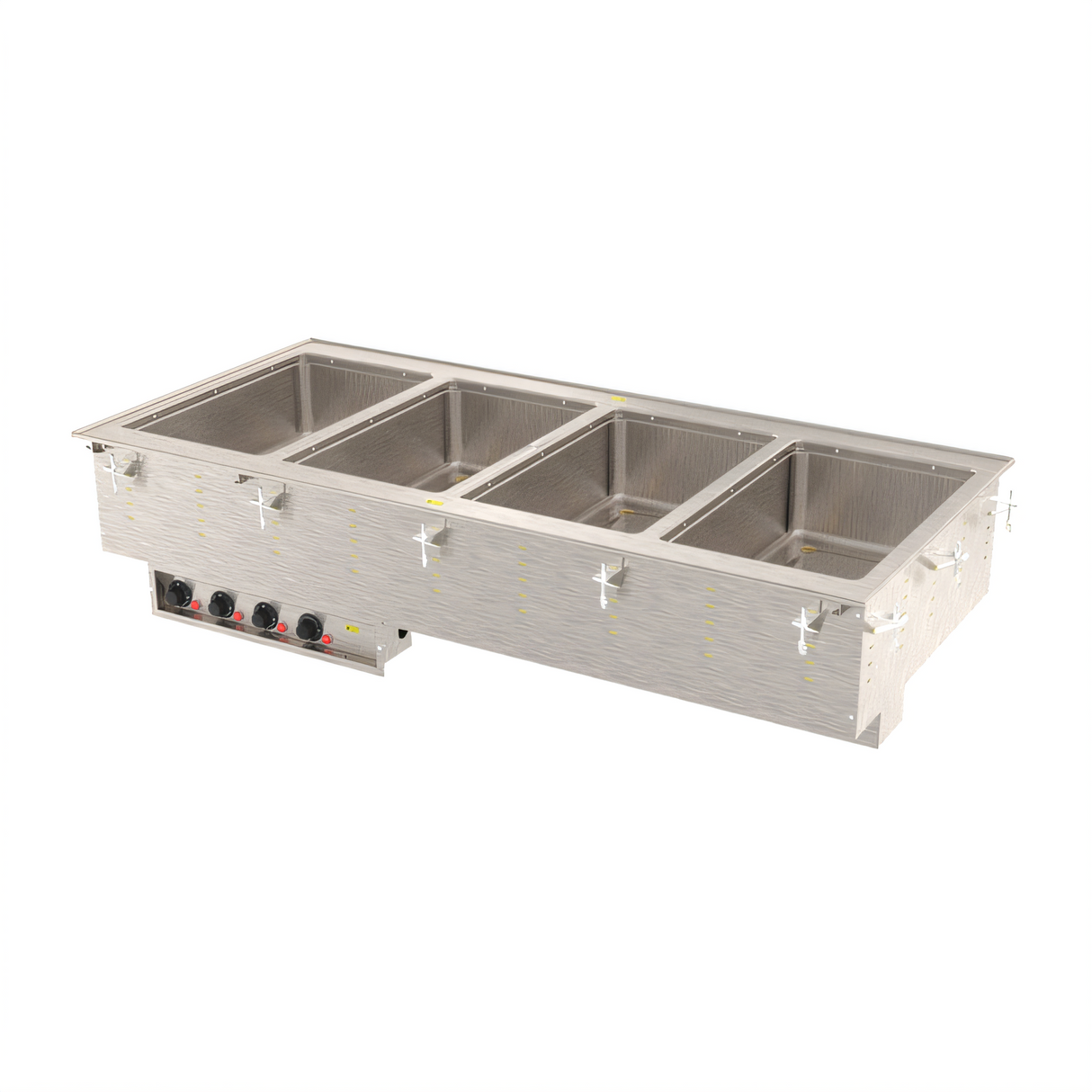

Vollrath 4-Well Marine-Grade Hot Food Drop-In with Auto-Fill – 208 V / 625 W-per-Well

Built for high-volume, high-moisture holding, this U.S.-made Vollrath hot food well delivers precise, independent temperature control in a compact drop-in package. Marine-grade 316 stainless steel wells stand up to corrosive steam and cleaning chemicals, while the automatic water fill system keeps your pans perfectly surrounded by hot water all service long.

Why You’ll Love It

• Four individual 12 × 20 in wells (full-size steam table pans) accept pans up to 6 in (15.2 cm) deep.

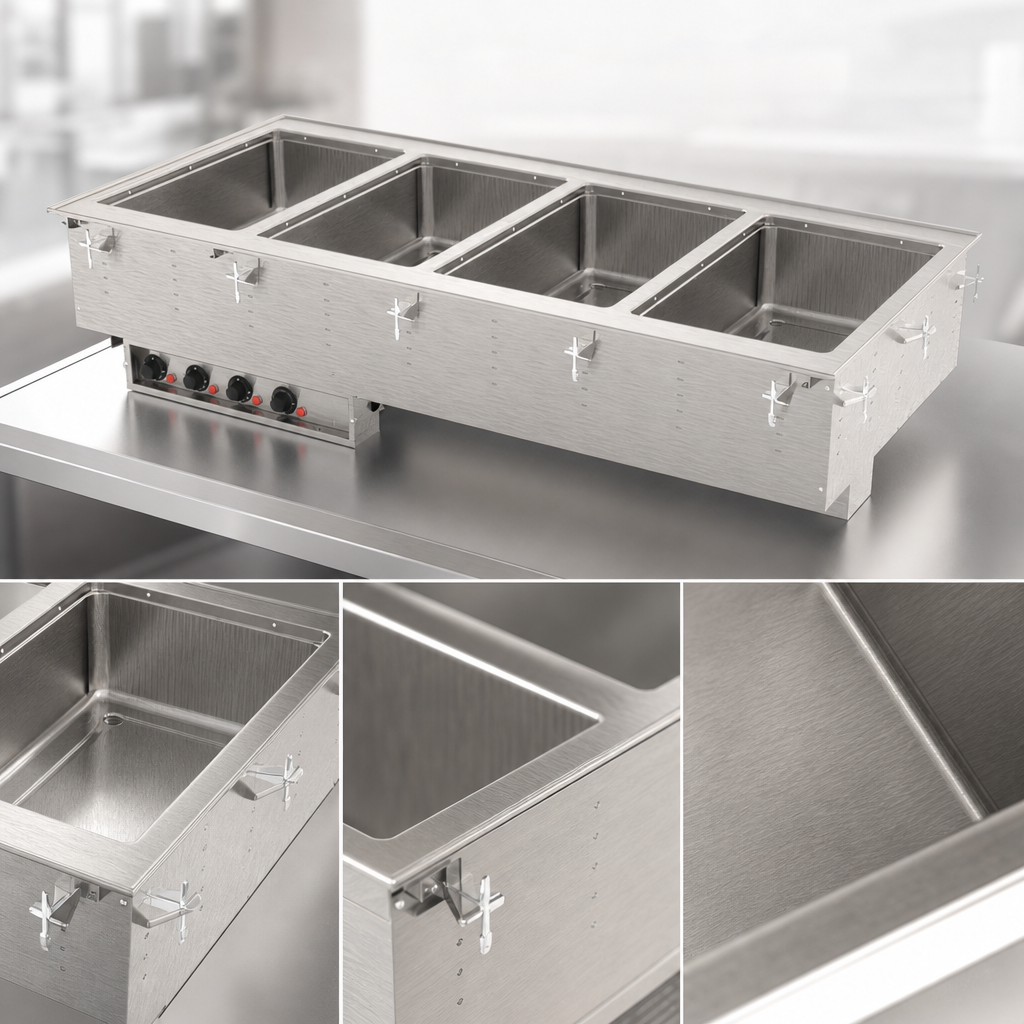

• 20-gauge SAE 316 marine-grade stainless steel resists corrosion far better than 304 SS.
• Auto-fill maintains the correct water level automatically—no more babysitting.
• Independent thermostatic controls with pilot lights let you dial in each well separately.
• 1 in copper manifold drain with individual ball valves and master shut-off simplifies end-of-day cleanup.
• Drip-free 18-gauge stainless top flange keeps counters dry and food-safe.
• Fully insulated sides and partitions maximize energy efficiency and protect cabinetry.
• No hard-wiring—6 ft (1.8 m) cord & NEMA 6-15P plug included.
• Zero-clearance, drop-in design with mounting clips for counters up to 3 in (7.6 cm) thick.
• NSF & cULus listed; backed by Vollrath’s 2-year warranty.

Technical Specifications

Installation & Use Tips

• Unit is wet-operation only; fill wells with water before energizing for even heat.
• Adapter bars (sold separately) are recommended when using fractional pans.
• Indoor use only; HVAC and ambient room temperature can affect holding temps.
• Orders for drop-ins are non-cancelable and non-returnable—confirm cut-out dimensions before purchasing.

Full warranty details are available at vollrathfoodservice.com.
