Vollrath

Vollrath 4-Well Drop-In Electric Hot Food Well Unit with Auto-Fill and Thermostatic Controls

SKU: 3640780
$4,543.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Vollrath 4-Well Drop-In Electric Hot Food Well Unit with Auto-Fill and Thermostatic Controls

Full-size 12 x 20 inch wells; wet operation only; 208V, 1-phase, NEMA 6-15P.

Keep soups, sauces, and entrées at safe serving temperatures with four insulated full-size wells, auto-fill convenience, and independent thermostatic control.

  • Four individual insulated wells keep multiple foods hot and ready for service.
  • Wet operation only; auto-fill helps maintain proper water levels for even heat.
  • Independent thermostatic controls and power indicator lights let you manage each well separately.
  • Stainless steel top and wells with galvanized steel exterior housing stand up to commercial use.
  • 1 inch copper manifold drain with individual well shutoffs simplifies draining and cleanup.
  • Includes mounting clips, a drip-free flange, and a cord with NEMA 6-15P plug; no hard-wiring required.

Overall Dimensions:

54.75"W x 26.0"D x 21.5"H

Product Weight:

188.0 lb

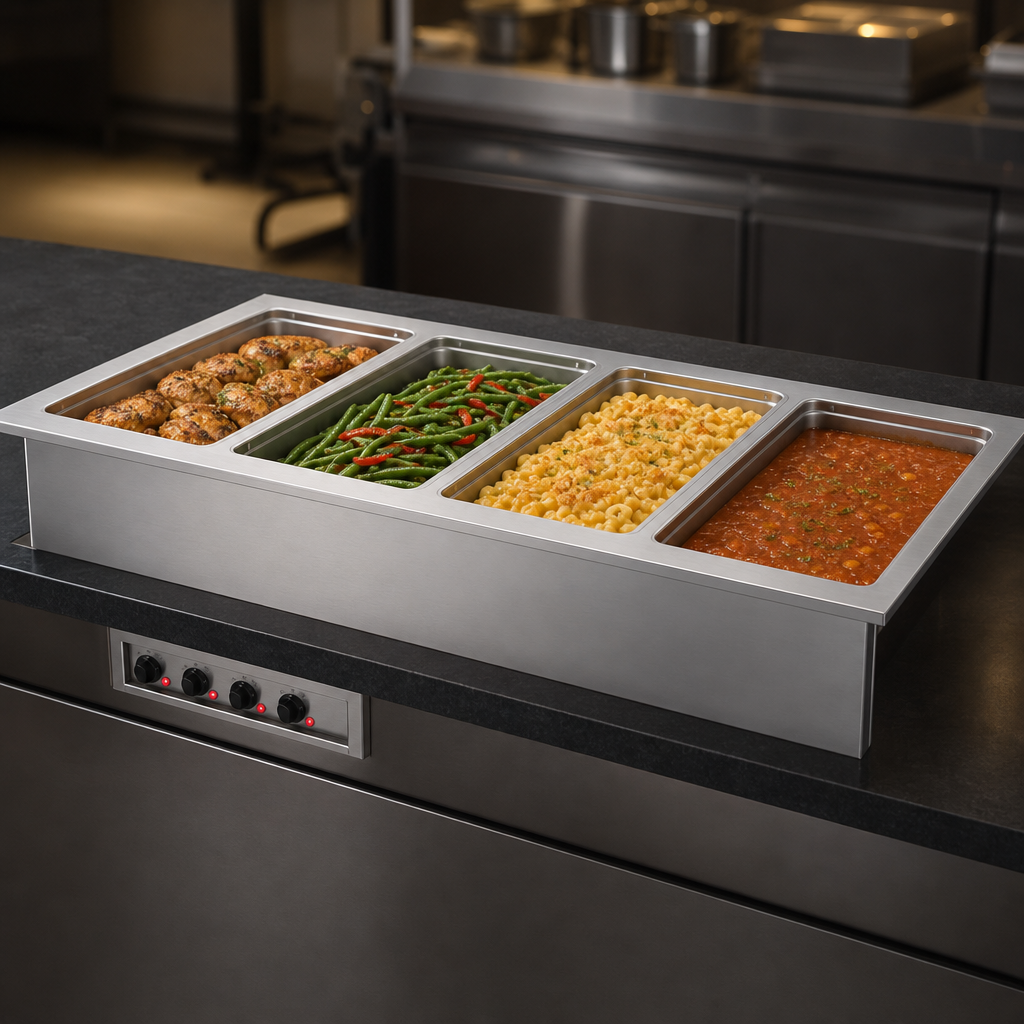

Four Full-Size Insulated Wells

Holds four 12 x 20 inch pans in insulated wells to help retain heat during service.

Wet Operation with Auto-Fill

Water is required for even heating, and the auto-fill feature helps maintain the proper water level.

Individual Thermostatic Control Panel

Each well has its own thermostatic control and power indicator light mounted in a stainless steel control panel.

Durable Stainless Steel Construction

Stainless steel top and wells pair with a galvanized steel exterior housing for commercial durability.

Manifold Drain with Shutoffs

A 1 inch copper manifold drain includes individual well shutoffs and a master manifold shutoff for easier draining.

Easy Drop-In Installation

Includes positioning clips, a gasket, and a drip-free flange to support top-mount installation.

Cord and Plug Included

Ships with a 6 foot cord and NEMA 6-15P plug; hard-wiring is not required.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Controls Thermostatic
Pan Capacity 4
Pan Size 12 x 20 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized Steel
Voltage 208 Volts
Amps 12 Amps
Watts 2.5 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Cord Length 6 Feet
Drain Connection Size 1 Inch
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 55 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 188 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year warranty

Frequently Asked Questions

Yes. It is wet operation only, and water is required for even heating of the food product.
It holds four full-size 12 x 20 inch pans and also accepts fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.
This unit operates on 208 Volts, 60 Hz, 1-phase power and draws 12 Amps. It comes with a NEMA 6-15P plug.
No. The unit includes a cord and plug and does not require hard-wiring.
The required cutout size is 54 x 25-1/4 inches with a 7/8 inch corner radius.
Yes. A sheet pan adapter is available as item 19186.
