Vollrath 3640771HD Steam Tables & Food Wells
Description

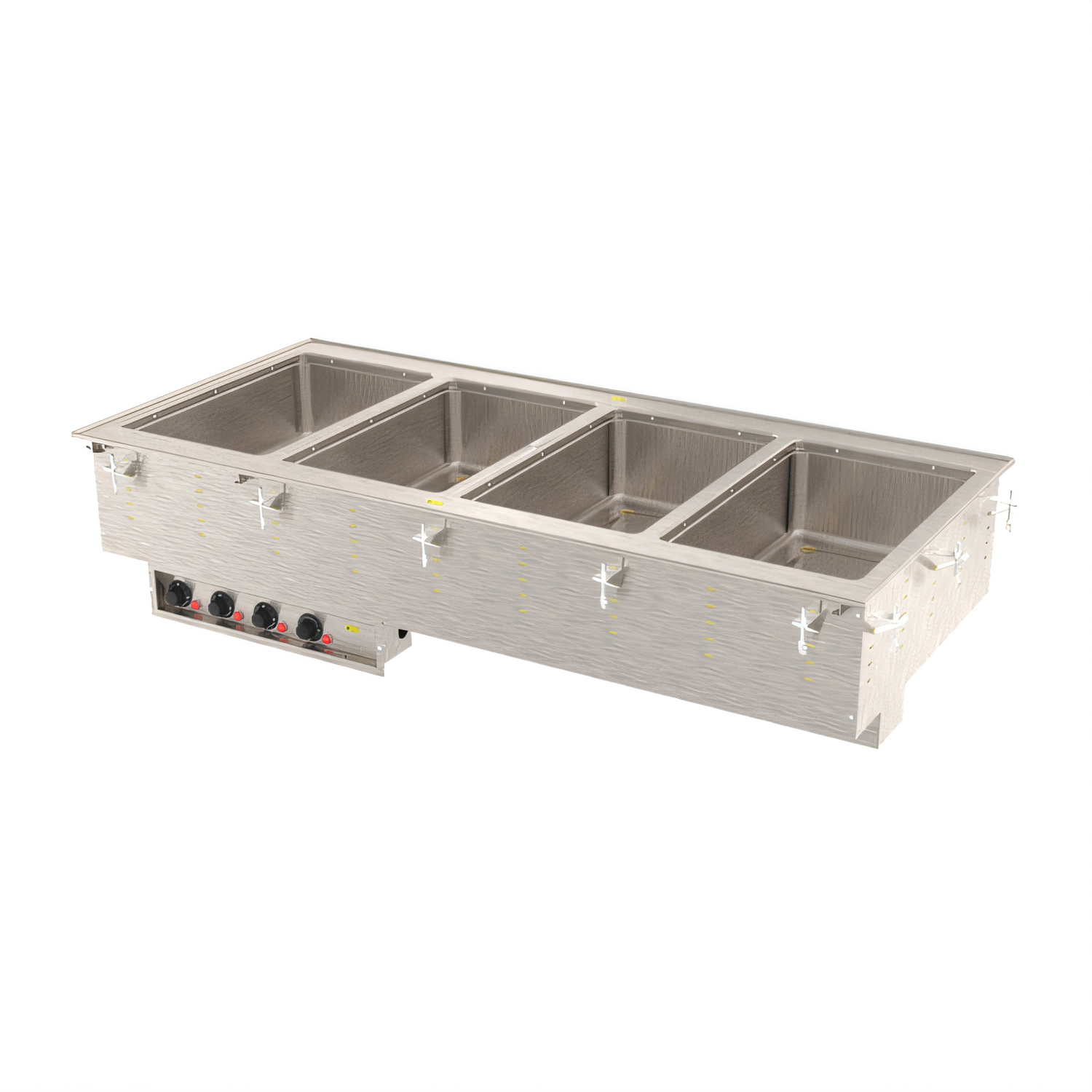

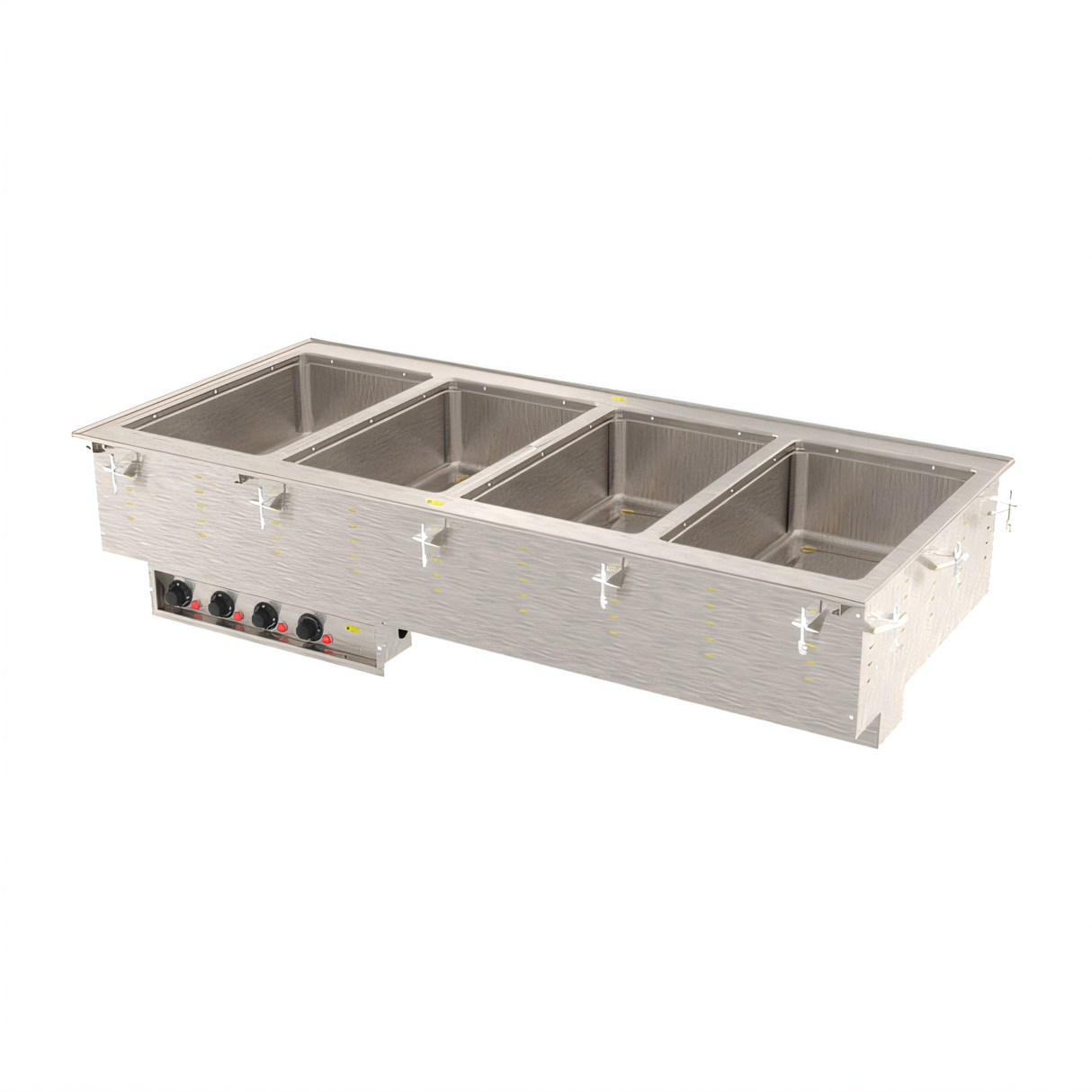

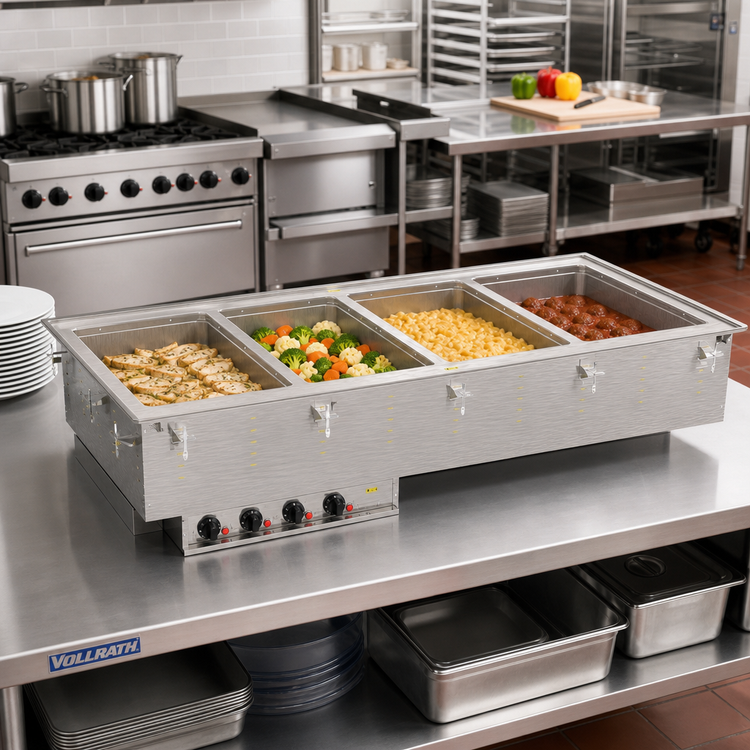

Vollrath 3640771HD Four-Well Marine-Grade Hot Drop-In
4 × 12" × 20" thermostatically-controlled wells | 208-240 V | NEMA 6-30PEngineered for demanding commercial kitchens, the Vollrath 3640771HD Hot Food Well Module keeps four different menu items at perfect serving temperature—all inside a single, easy-to-install drop-in unit. Marine-grade 316 stainless-steel wells, independent thermostatic controls and an integrated 1" copper manifold drain give you the durability, precision and convenience you expect from Vollrath.
Key features & benefits

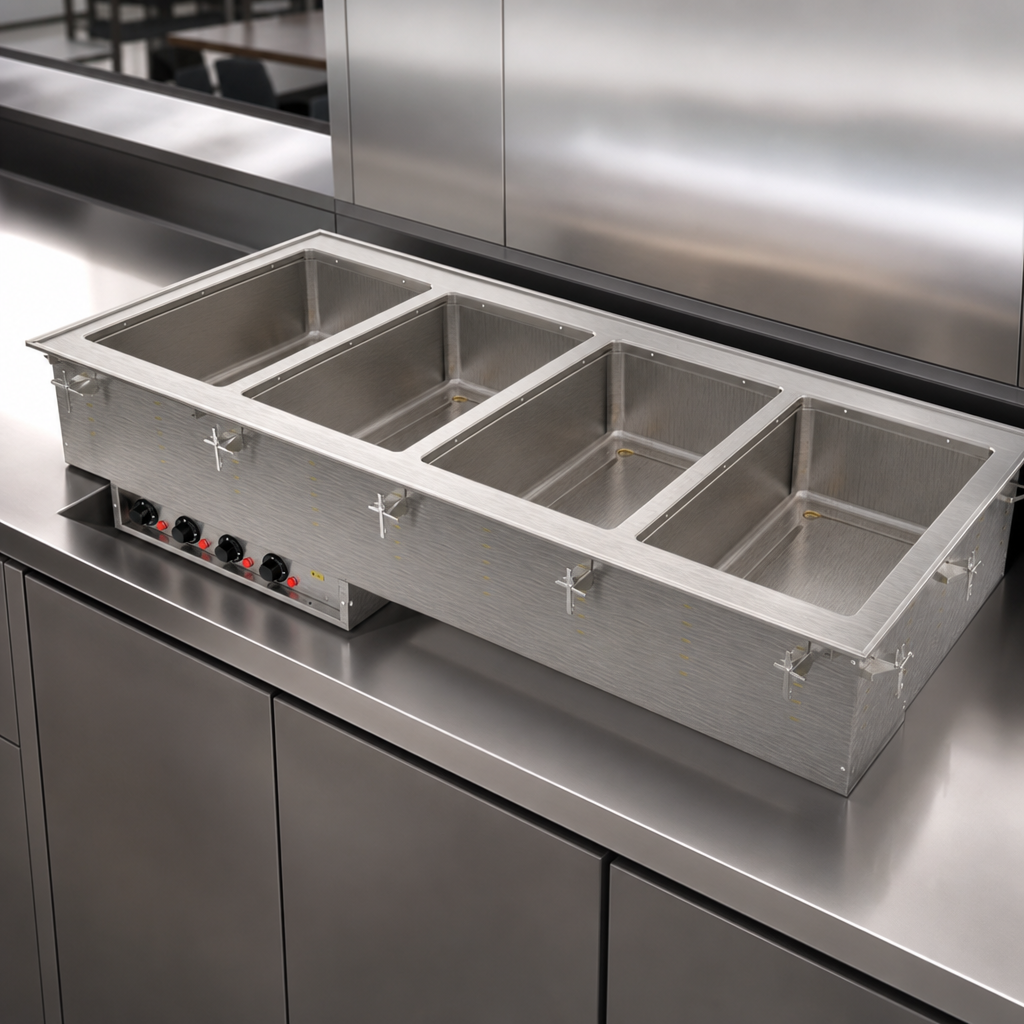

- Marine-grade 316 stainless wells resist corrosion from acidic or salty foods and cleaning chemicals.
- Precise holding via four individual thermostatic controls with power-on indicator lights.
- Wet operation only delivers consistent, even heat that meets NSF 4 performance standards.
- Integrated drain system – 1" copper manifold with master shut-off plus individual ball valves for each well speeds cleanup and change-outs.
- Drip-free flange and included gasket create a sanitary, spill-proof seal with the countertop.
- Rapid installation – 18 ga stainless top, zero-clearance design and positioning clips for counters up to 3" thick.
- Plug-and-play – 6' (1.8 m) cord with NEMA 6-30P; no hard-wiring required.
- Made in the USA and backed by a 2-year Vollrath warranty.
Technical specifications
| Model | 3640771HD |
|---|---|
| Capacity | (4) full-size 12" × 20" wells (accepts pans up to 6" deep) |
| Control type | Individual thermostatic dial per well |
| Total power | 4,000 W (1,000 W per well) |
| Electrical | 208-240 V / 60 Hz / 1-phase, 14.4-16.7 A, NEMA 6-30P |
| Overall dimensions | 54 ¾" W × 26" D × 21 ½" H |
| Counter cut-out | 54" W × 25 ¼" D (requires ⅞" corner radius) |
| Well construction | 20 ga 316 SS (marine grade), fully insulated |
| Top & housing | 18 ga stainless-steel top, stainless exterior housing |
| Drain | 1" copper manifold with individual well shut-offs & master valve |
| Cord length | 6' (1.8 m) |
| Listings | NSF, cULus |
| Origin | Made in USA |
| Warranty | 2 years (see vollrathfoodservice.com for full policy) |
What’s in the box
- Vollrath 3640771HD four-well drop-in
- Remote stainless control panel (4' tethered cable, factory wired)
- Mounting/positioning clips & gasket
- Installation & operation manual
Modular drop-ins cannot be cancelled or returned once ordered. Do not modify the factory-installed cord or plug, as this will void warranty coverage.
