Vollrath 3640771 Steam Tables & Food Wells

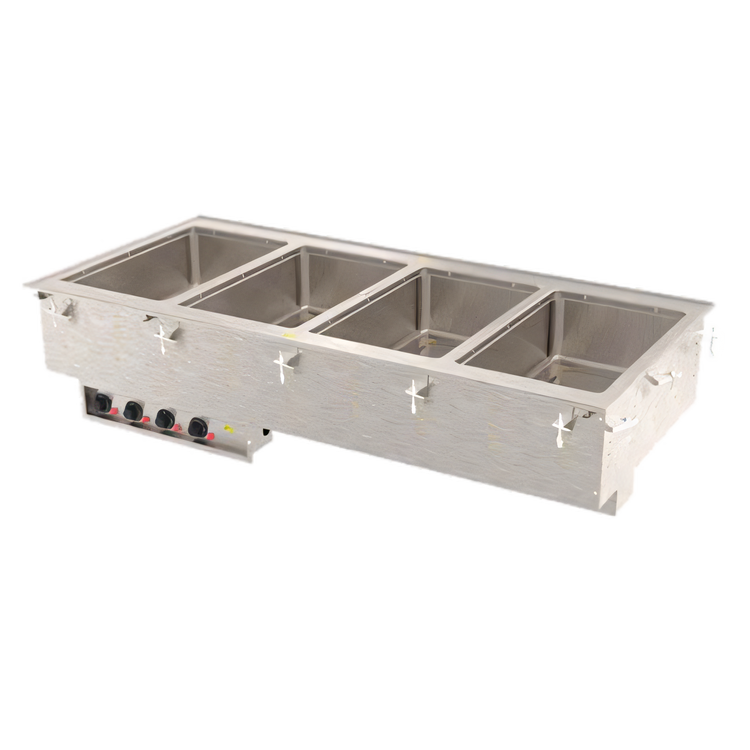

Vollrath 4-Well Drop-In Hot Food Well – Thermostatic, 208-240 V

Built for high-volume service lines, this U.S-made Vollrath hot well module keeps four full-size steam-table pans at safe serving temperatures while giving you plug-and-play convenience—no hard-wiring required. Independent thermostatic controls, heavy-duty stainless construction and a drip-free flange make it the go-to choice for hotels, schools and catering operations.

Key benefits

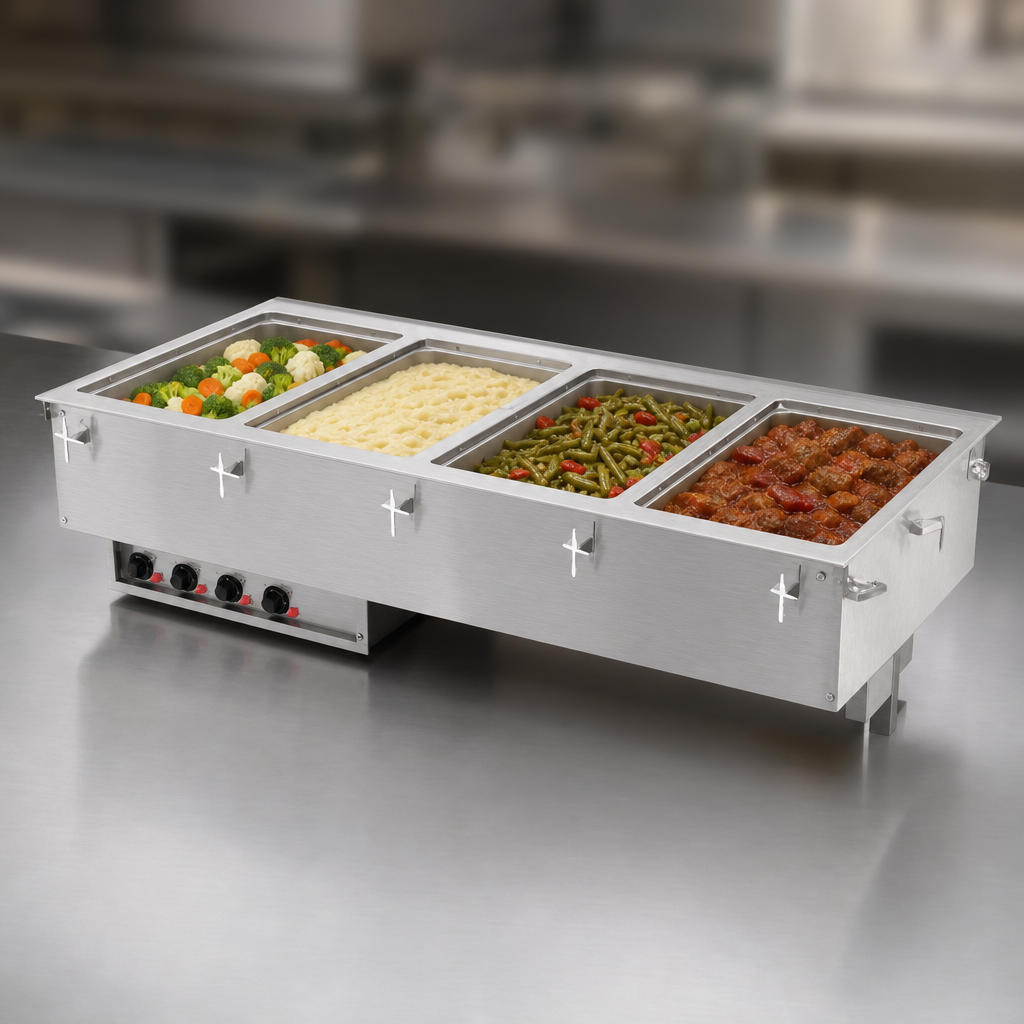

• Four individual 12 in × 20 in wells (20 ga. 300-series stainless) – fully insulated for superior heat retention.
• Wet heat only for NSF 4 compliance; provides gentle, even holding without hot spots.
• Precise thermostatic controls with power-on lights mounted to a stainless panel (4 ft tether for flexible placement).
• 1 in copper manifold drain with ball-valve shutoff for each well plus master shutoff – empty all wells from a single point.
• Drip-free stainless flange mounts flush to the countertop for a clean, professional look.
• 6 ft cord with factory-installed NEMA 6-30P plug—just drop in, tighten the mounting clips (included) and you’re ready to serve.
• Zero-clearance design; fits counters up to 3 in (7.6 cm) thick.
• NSF & cULus listed; fabricated in Sheboygan, Wisconsin, USA.

Specifications

*Manifold drain adds 6-1/2 in (16.5 cm) to height below countertop.

Installation & operation notes

• Indoor use only; HVAC and ambient room temperature will affect performance.
• Unit meets NSF 4 standards only when operated with water in each well.
• Do not modify the factory cord or plug—doing so voids the warranty.
• Adapter bars are recommended when using fractional pans (sold separately).
