Vollrath 3640770HD Steam Tables & Food Wells
Description

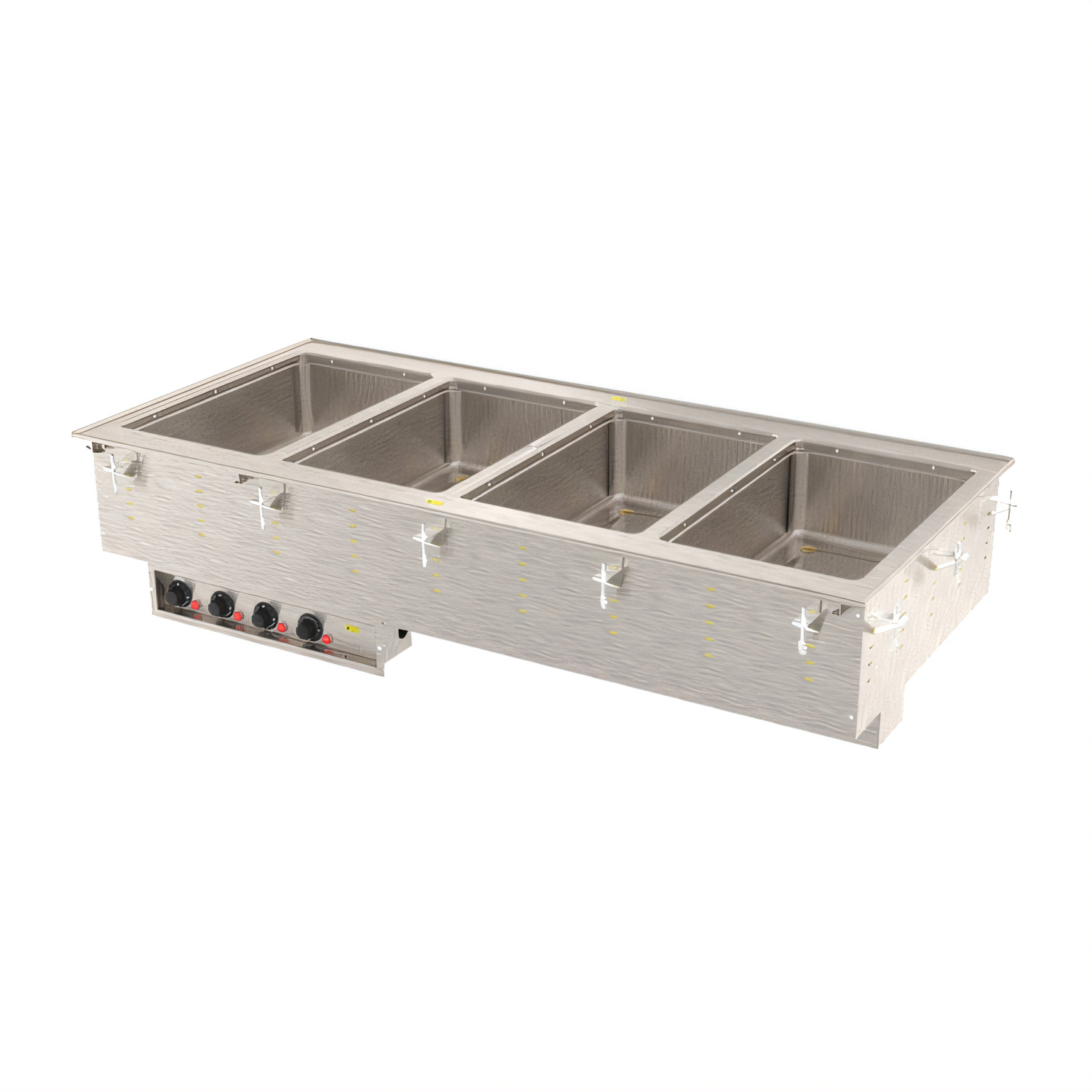

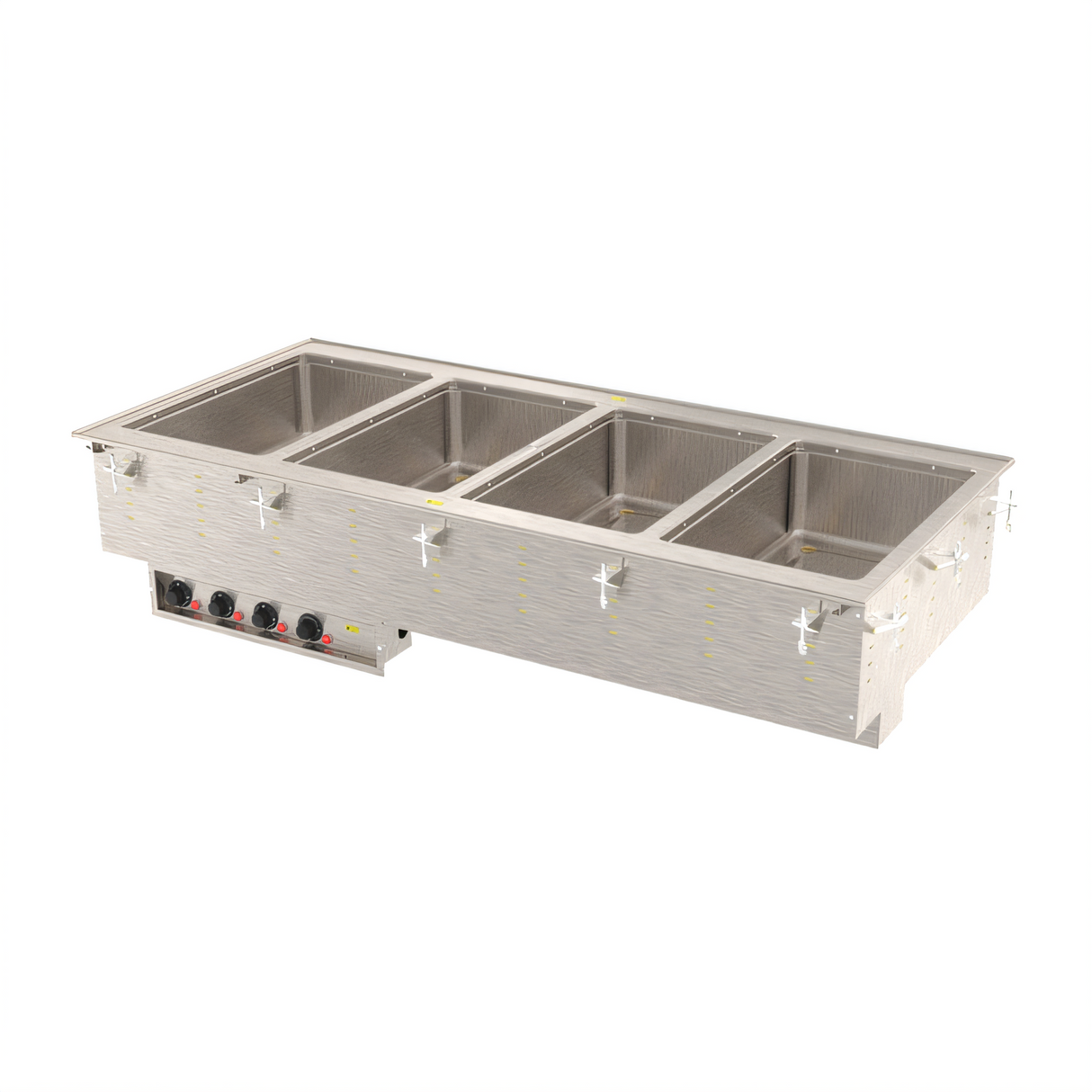

Vollrath Four-Well Modular Hot Drop-In – 208 V / 2 500 W
Marine-grade 316 stainless-steel wells • Thermostatic controls • Manifold drainKeep entrées, sides and sauces at safe, appetizing serving temperatures with this NSF-listed, made-in-USA drop-in hot well. Designed for wet operation only, its four individually controlled wells accept full-size 12" × 20" pans up to 6" deep. The factory-installed 6-15P cord & plug make installation as easy as “drop, plug and serve.”
Key benefits

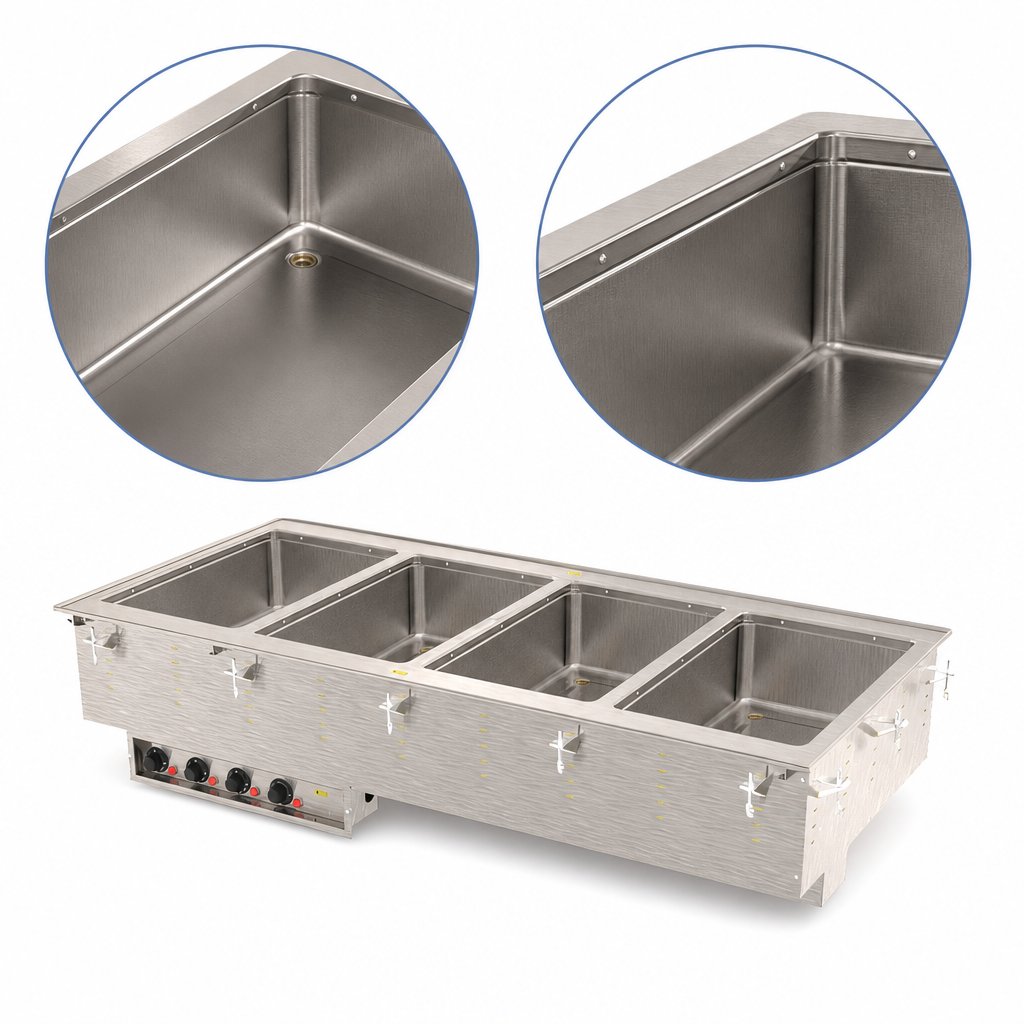

- Four 20 ga SAE 316 marine-grade stainless-steel wells resist pitting & corrosion from chlorides and cleaning chemicals.
- Independent thermostatic controls with power indicator lights provide precise holding for each well.
- 1" copper manifold drain with individual well shut-offs plus master shut-off speeds cleanup.
- Fully insulated on all sides (including between wells) for energy-efficient performance.
- 18 ga stainless-steel top with drip-free flange ensures a sanitary, flush installation.
- Zero-clearance design and included mounting clips fit counters up to 3" thick.
- 6' (1.8 m) cord—no hard-wiring required.
- cULus & NSF 4 listed for wet operation; made in Sheboygan, Wisconsin, USA.
Specifications
| Number of wells | 4 (individually insulated) |
|---|---|
| Pan capacity | (4) 12" × 20" full-size or equivalent fractional pans, up to 6" deep |
| Construction | 20 ga 316 stainless wells, 18 ga stainless top, stainless exterior housing |
| Operation mode | Wet heat only – water required for even heating |
| Controls | 4 thermostatic knobs in remote stainless panel (4' tether) with power lights |
| Overall dimensions | 54-3/4"W × 26"D × 21-1/2"H |
| Counter cut-out | 54"W × 25-1/4"D with 7/8" corner radius |
| Electrical | 208 V / 60 Hz / 1-phase, 12.0 A, 2 500 W total |
| Cord & plug | 6' cord with NEMA 6-15P |
| Drain | 1" copper manifold with individual ball valves & master shut-off |
| Certifications | NSF 4, cULus |
| Warranty | 2-year parts & labor (see Vollrath warranty for details) |
| Included | Mounting/positioning clips, under-flange gasket |
Ideal for
- Buffet lines & serving counters
- Supermarkets & delis
- Cafeterias & K-12 kitchens
- Healthcare & hospitality foodservice
- Coastal venues where corrosion resistance is critical
Modular drop-ins are built to order and cannot be cancelled or returned. For full warranty terms visit vollrathfoodservice.com.
