Vollrath

Vollrath 4-Well Drop-In Electric Hot Food Well with Manifold Drain, Thermostatic Controls, Wet Operation, 208V

SKU: 3640770
$3,416.75
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

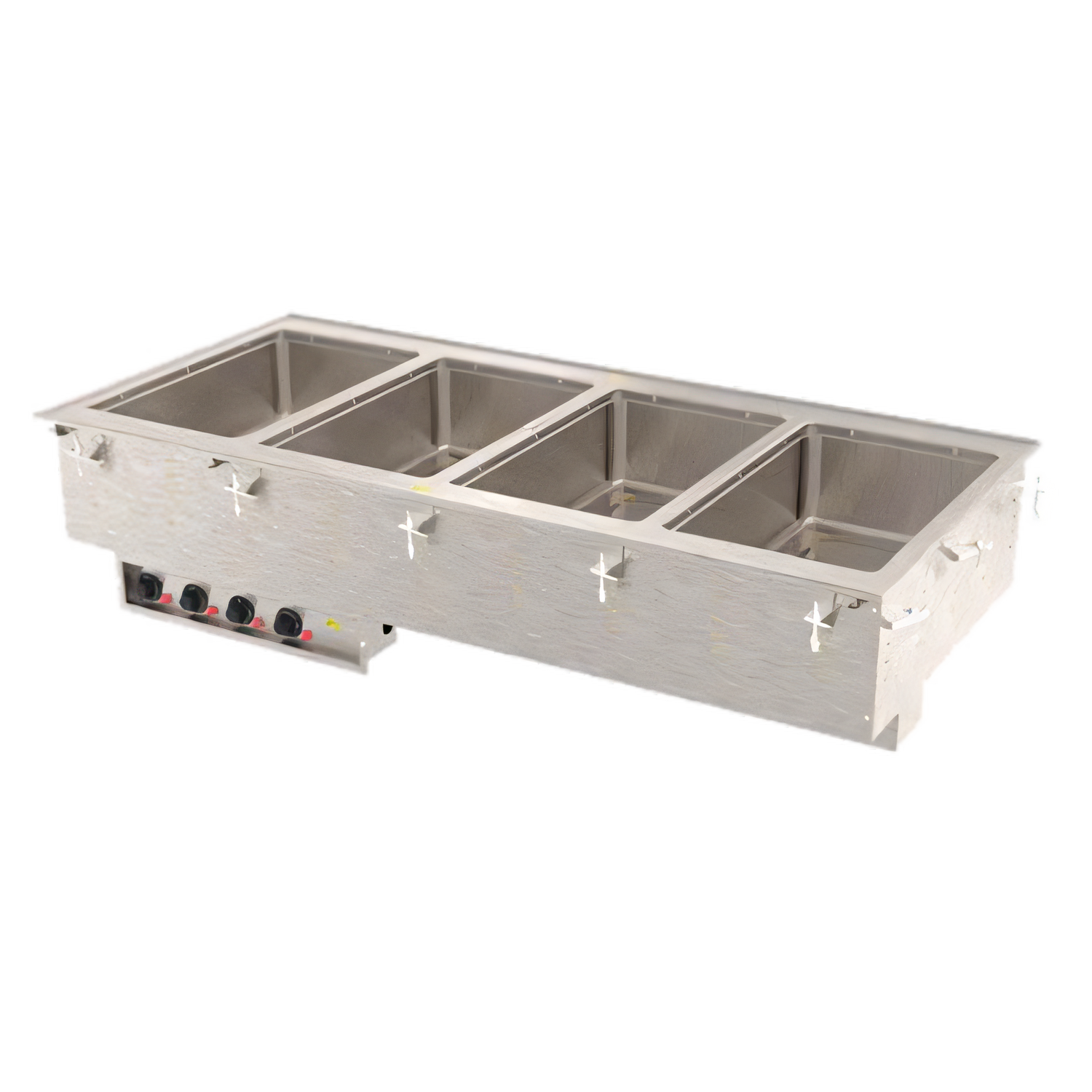

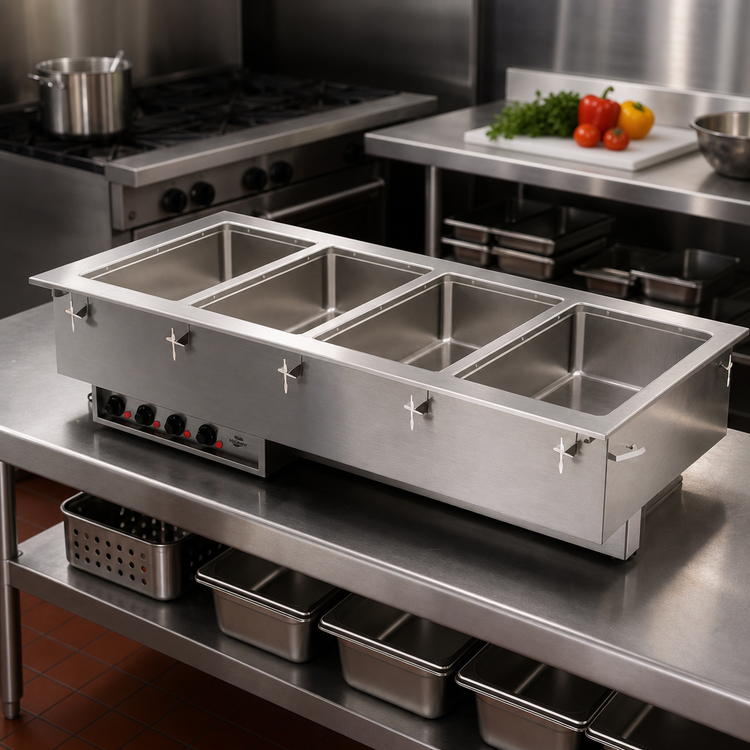

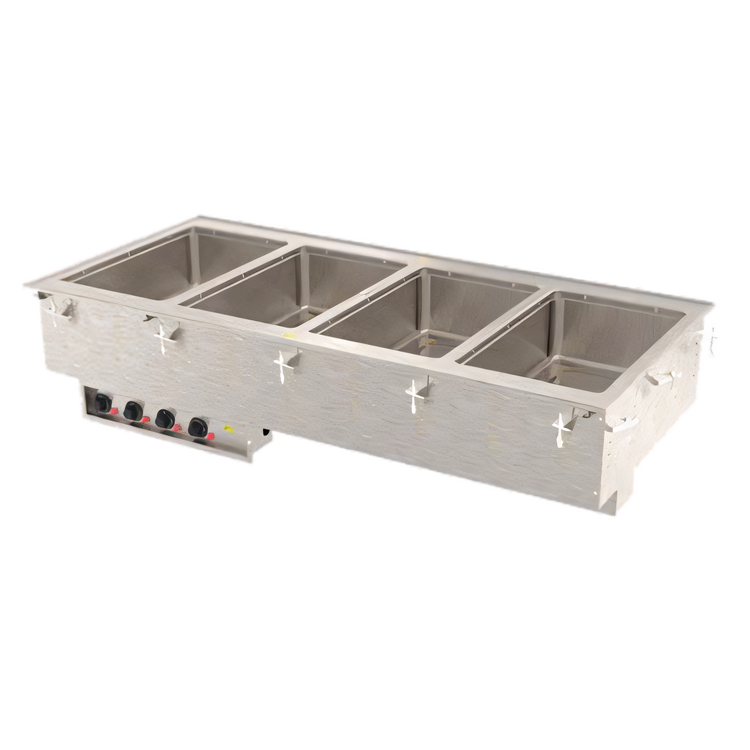

Vollrath 4-Well Drop-In Electric Hot Food Well with Manifold Drain, Thermostatic Controls, Wet Operation, 208V

Individual insulated 12 x 20 inch wells; cord with NEMA 6-15P plug

Built for busy buffet lines, this four-well drop-in hot food module delivers individual thermostatic control, wet-operation heating, and easy-drain serviceability in a durable stainless steel package.

  • Four insulated full-size wells keep multiple menu items hot in one compact drop-in module.
  • Wet-operation design requires water for even heating and consistent holding temperatures.
  • Individual thermostatic controls and power indicator light let each well be managed separately.
  • 1-inch copper manifold drain includes individual well shutoffs plus a manifold shutoff for easier cleanup.
  • Stainless steel top and wells with galvanized exterior housing are built for commercial durability.
  • Includes positioning clips and a cord with NEMA 6-15P plug; no hard-wiring required.

Overall Dimensions:

54.75"W x 26.0"D x 21.5"H

Product Weight:

181.0 lb

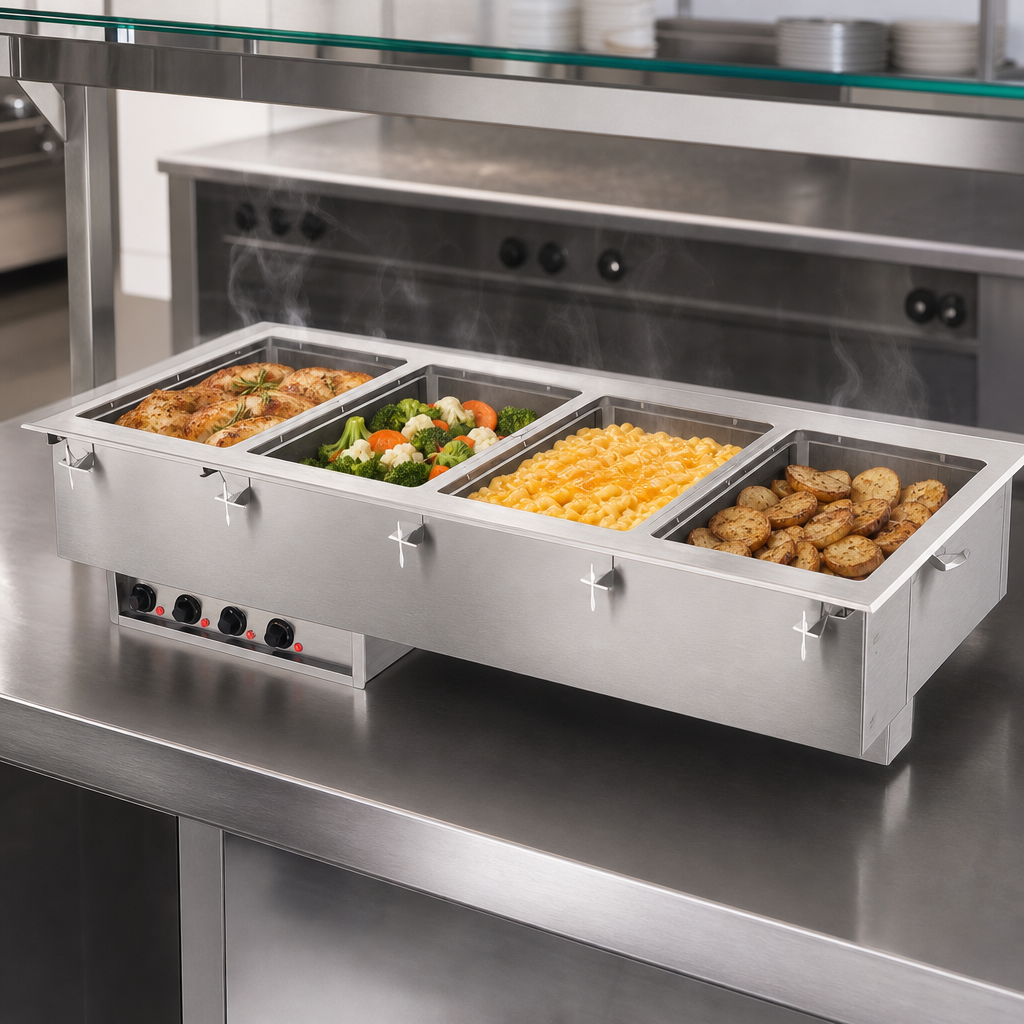

Four Full-Size Wells

Holds four 12" x 20" pans in insulated stainless steel wells for multi-item serving lines.

Individual Thermostatic Controls

Each well has its own thermostatic control and power indicator light for independent temperature management.

Wet-Operation Heating

Designed for wet use only; water is required for even heating and proper food holding.

Manifold Drain With Shutoffs

Features a 1" copper manifold drain with individual well shutoffs and a master manifold shutoff for easier draining.

Durable Stainless Steel Construction

Built with an 18-gauge stainless steel top and stainless steel wells, plus a galvanized exterior housing.

Cord-and-Plug Power Connection

Supplied with a cord and NEMA 6-15P plug for straightforward electrical hookup; hard-wiring is not required.

Positioning Clips Included

Includes mounting/positioning clips to help secure the drop-in during installation.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Controls Thermostatic
Pan Capacity 4
Pan Size 12 Inches x 20 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 208 Volts
Amps 12.0 Amps
Watts 2.5 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Cord Length 6 Feet
Drain Connection Required
Drain Connection Size 1 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 55 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 181 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year warranty

Frequently Asked Questions

No. It is wet operation only, and water is required for even heating.
It has four individual full-size wells sized for 12" x 20" pans.
No. It comes with a cord and NEMA 6-15P plug.
This unit operates on 208 Volts, 60 Hz, single-phase power and draws 12.0 amps at 2.5 kW.
The cutout size is 54" x 25-1/4" with a 7/8" corner radius.
