Vollrath | SKU:
3640761HD
Vollrath 3640761HD Steam Tables & Food Wells
$4,718.45
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3640761HD Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3640761HD Steam Tables & Food Wells
$4,718.45
Unit price
/
Unavailable
Description

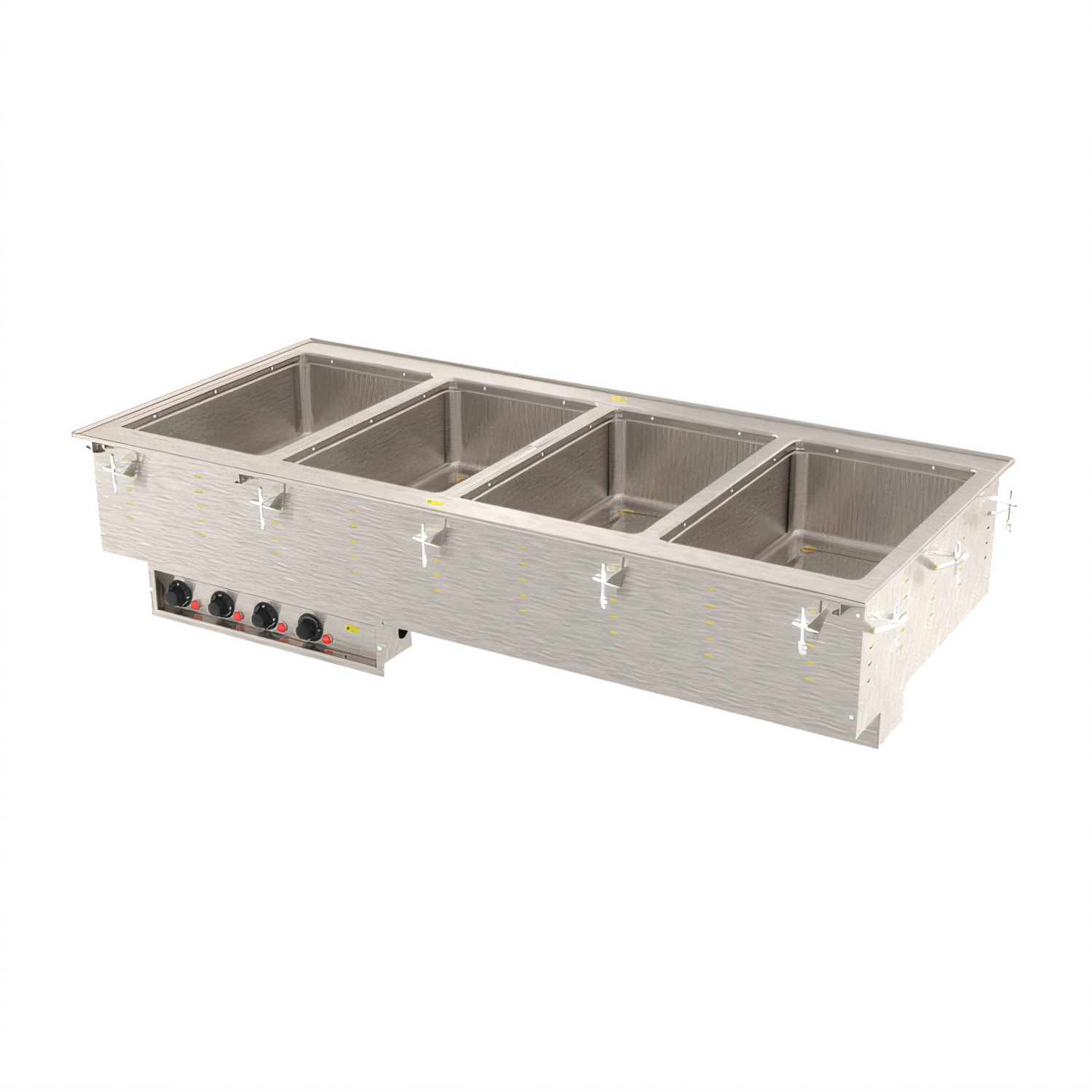

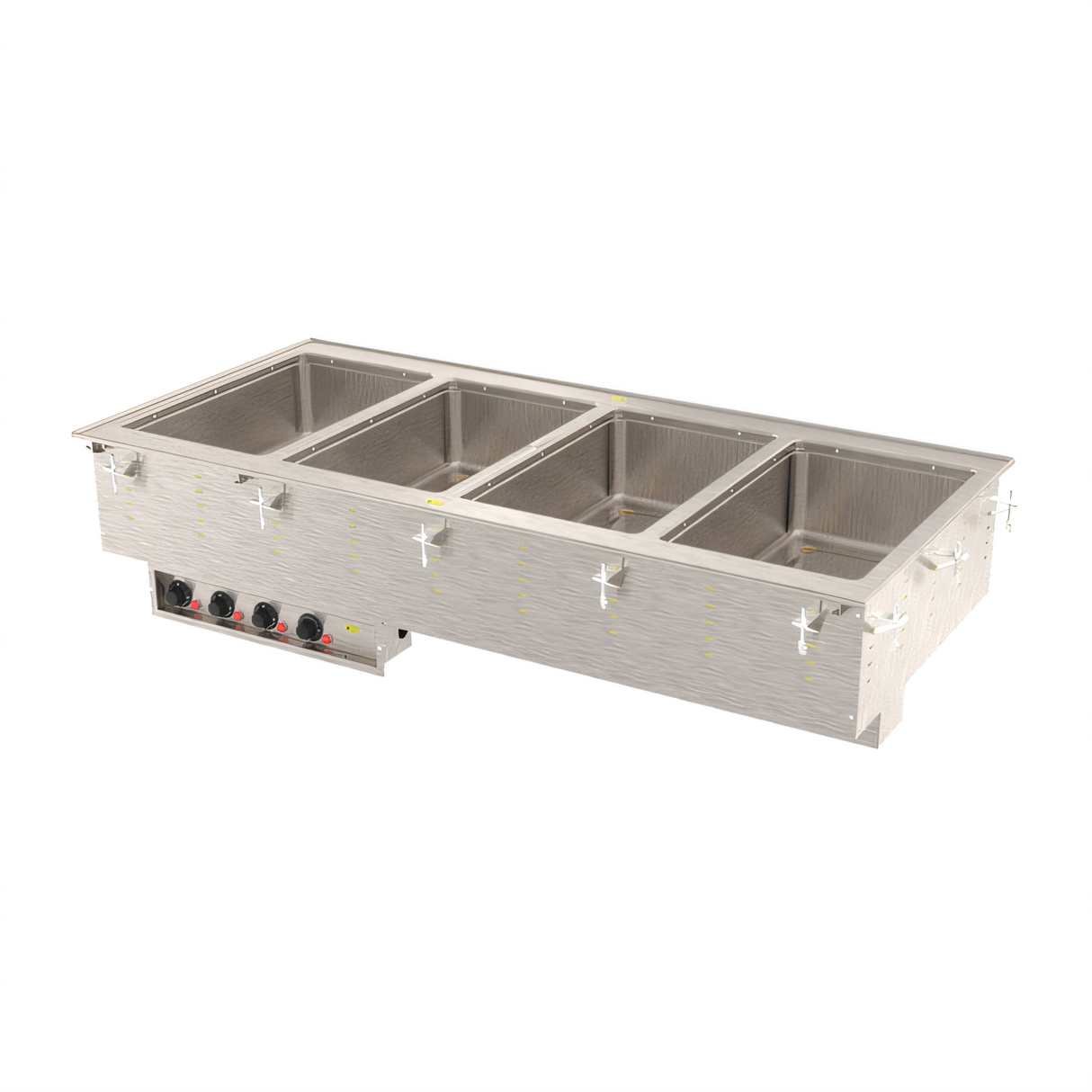

Vollrath 4-Well Modular Hot Drop-In – Marine-Grade, Auto-Fill
Model 3640751HD | 54 ¾" W × 26" D | 208-240 V | 4000 WGive every guest a perfect, piping-hot serving. Vollrath’s marine-grade 4-well drop-in combines rugged 316 stainless steel construction with automatic water fill and individual infinite controls, delivering reliable, even heat without hard-wiring or guesswork.
Why you’ll love it
- Four independent 12" × 20" drawn wells—Type-316 stainless for superior corrosion resistance.
- Wet-operation only design evenly blankets food pans in moist heat.

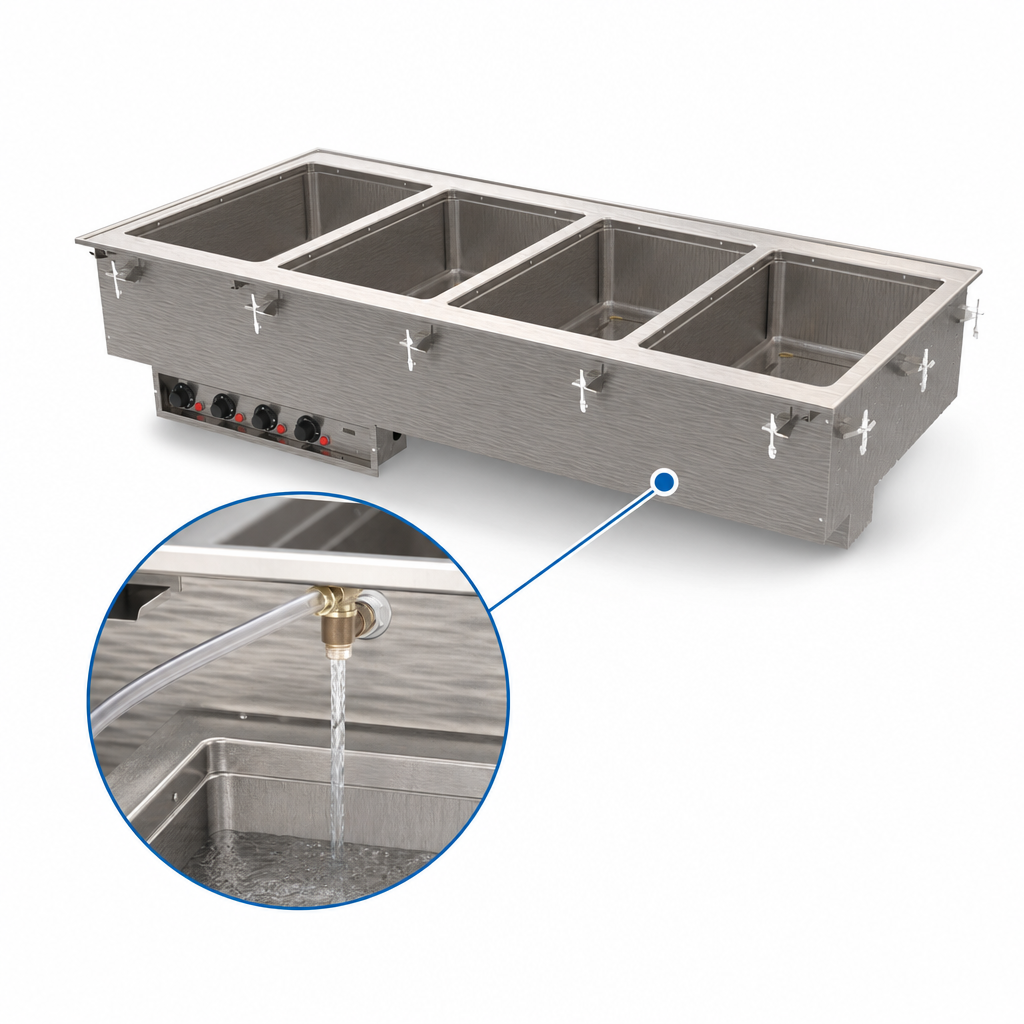

- Auto-fill system keeps water at the proper level all day—no manual refills.
- Individual infinite control knobs with power indicators let you dial in each well separately.
- Fully insulated wells, sides & manifold conserve energy and protect surrounding cabinetry.
- Drip-free top flange with included gasket creates a clean, flush counter install.
- 1" copper manifold drain with individual ball-valve shut-offs plus master shut-off.
- 18-ga stainless top & housing stand up to high-volume use and daily cleaning.
- Ships ready to plug in—6 ft cord with NEMA 6-30P; no electrician required.
- Made in the USA; NSF 4 & cULus listed; backed by Vollrath’s 2-year warranty.
Technical specifications
| Item number | 3640751HD |
|---|---|
| Wells / size | 4 × (12" × 20") full-size; accepts fractional pans up to 6" deep |
| Operation | Wet heat, auto-fill, individual infinite controls |
| Total wattage | 4000 W (1000 W per well) |
| Electrical | 208-240 V / 60 Hz / 1-ph, 14.4–16.7 A, cord & NEMA 6-30P plug |
| Overall dimensions | 54 ¾" W × 26" D × 21 ½" H (139.1 × 66 × 54.6 cm) |
| Cut-out required | 54" W × 25 ¼" D, 7/8" corner radius |
| Mounting hardware | Positioning clips for counters up to 3" (7.6 cm) thick included |
| Drainage | 1" copper manifold with individual well shut-offs & master shut-off |
| Construction | 20-ga 316 stainless wells, 18-ga stainless top & housing, insulated |
| Agency listings | NSF 4, cULus |
| Country of origin | USA |
Important: This unit is designed for wet-operation only. Running wells dry may damage
the equipment and void the warranty.
Drop-ins cannot be cancelled or returned once ordered. For full warranty details, visit vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
54.75in
Depth
26.0in
Shipping Weight
187.0lbs
Construction
stainless steel construction
Controls
infinite controls
Style
individual pans
Insulated or Non-Insulated
insulated
Pan Capacity
(4) full size (12" x 20")
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
