Vollrath | SKU:
3640761
Vollrath 3640761 Steam Tables & Food Wells
$4,100.70
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3640761 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3640761 Steam Tables & Food Wells
$4,100.70
Unit price
/
Unavailable
Description

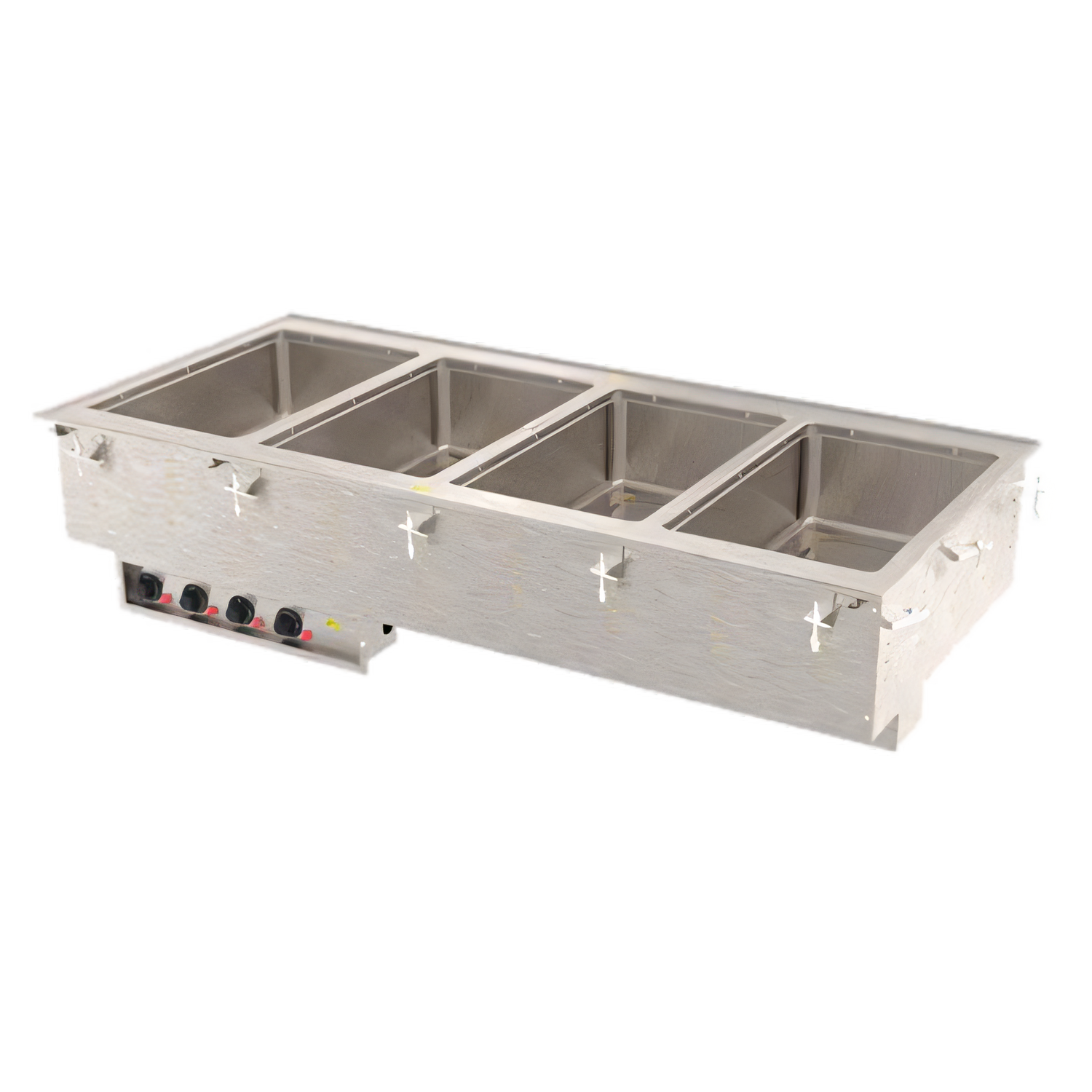

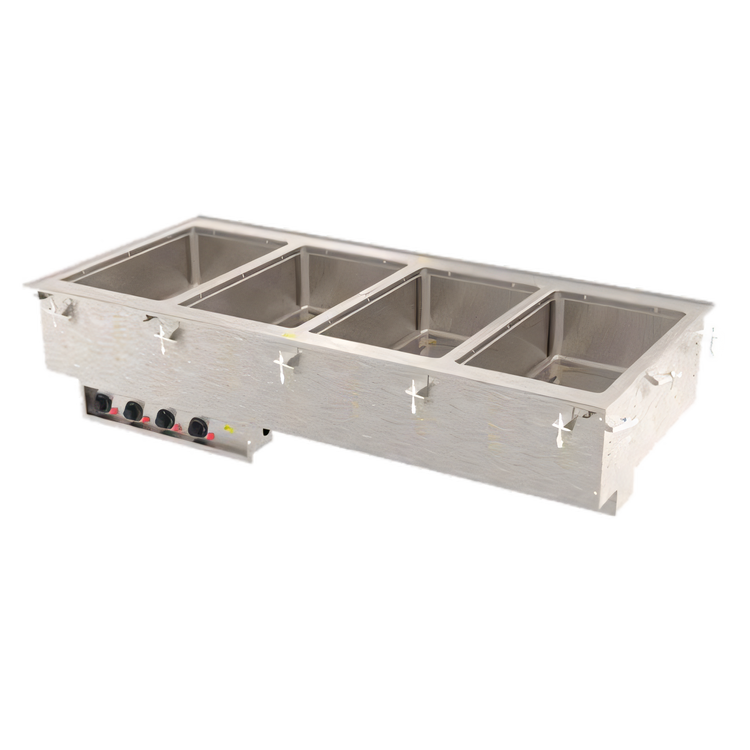

Vollrath 4-Well Drop-In Hot Food Well with Auto-Fill (208-240 V)
1000 W per well • Manifold drain • NEMA 6-30P plugEngineered for high-volume service lines, this Vollrath four-well hot module keeps entrées and sides at safe, appetizing temperatures all day long—without hard-wiring or constant refills. Simply drop it into a 54 × 25-1/4 inch counter cut-out, hook up power and water, and start serving.
Key Features
- (4) 12" × 20" 20-gauge stainless steel wells—fully insulated on every side, including between wells.

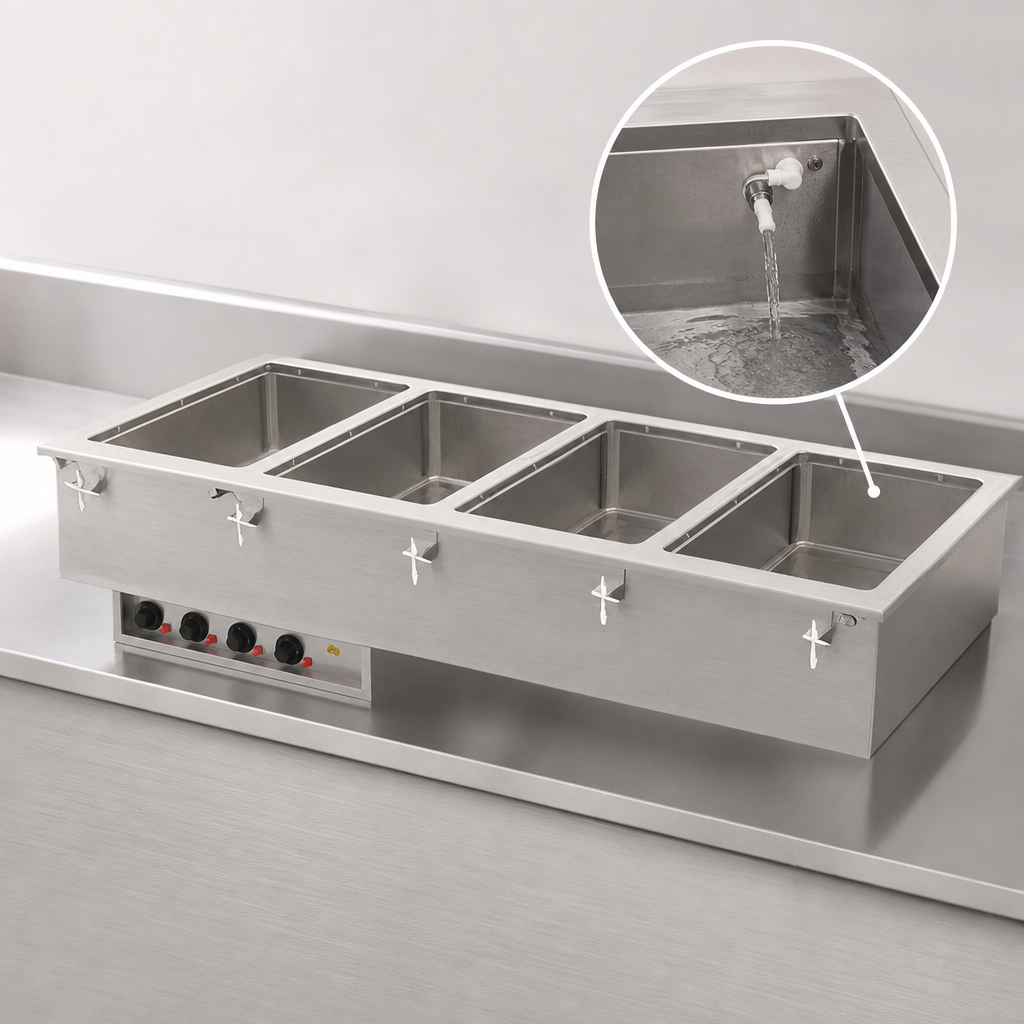

- Wet-operation only design with built-in auto-fill keeps water levels optimal for even heat distribution.
- 18-gauge stainless steel top with drip-free flange delivers a clean, flush countertop appearance.
- Individual infinite controls and power lights in a stainless steel remote panel (4 ft tether) let staff dial in each well separately.
- 1" copper manifold drain with individual ball valves plus a master shut-off for fast, mess-free emptying.
- 6 ft cord and NEMA 6-30P plug—no electrician required.
- Mounting clips included for counters up to 3" thick.
- NSF 4 and cULus listed; proudly made in the USA.
Technical Specifications
| Number of wells | 4 full-size (12" × 20") |
|---|---|
| Operation | Wet only • Auto-fill |
| Controls | 4 independent infinite dials with indicator lights |
| Total wattage | 4,000 W (1,000 W per well) |
| Electrical | 208-240 V / 60 Hz / 1-ph • 14.4–16.7 A • NEMA 6-30P |
| Overall dimensions | 54-3/4" W × 26" D × 21-1/2" H |
| Counter cut-out | 54" W × 25-1/4" D (7/8" corner radius required) |
| Top material | 18-gauge stainless steel |
| Well material | 20-gauge 300-series stainless steel |
| Exterior housing | 18-gauge galvanized steel |
| Drain system | 1" copper manifold with individual well shut-offs & master valve |
| Certifications | NSF 4 (wet), cULus |
| Country of origin | USA |
Perfect For
- Buffet lines, cafeterias, and food courts
- Quick-service and fast-casual restaurants
- Catering kitchens and banquet halls
- Any operation needing reliable, high-capacity hot holding
Installation & Use: This custom drop-in is non-returnable. Confirm cut-out and electrical
specifications prior to purchase. Unit must be operated with water in the wells to meet NSF performance standards.
For full warranty terms, please visit vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
54.75in
Depth
26.0in
Shipping Weight
187.0lbs
Controls
infinite controls
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Pan Capacity
(4) full size (12" x 20")
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
