Vollrath  |  SKU: 3640760HD

Vollrath 3640760HD Steam Tables & Food Wells

$4,718.45
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

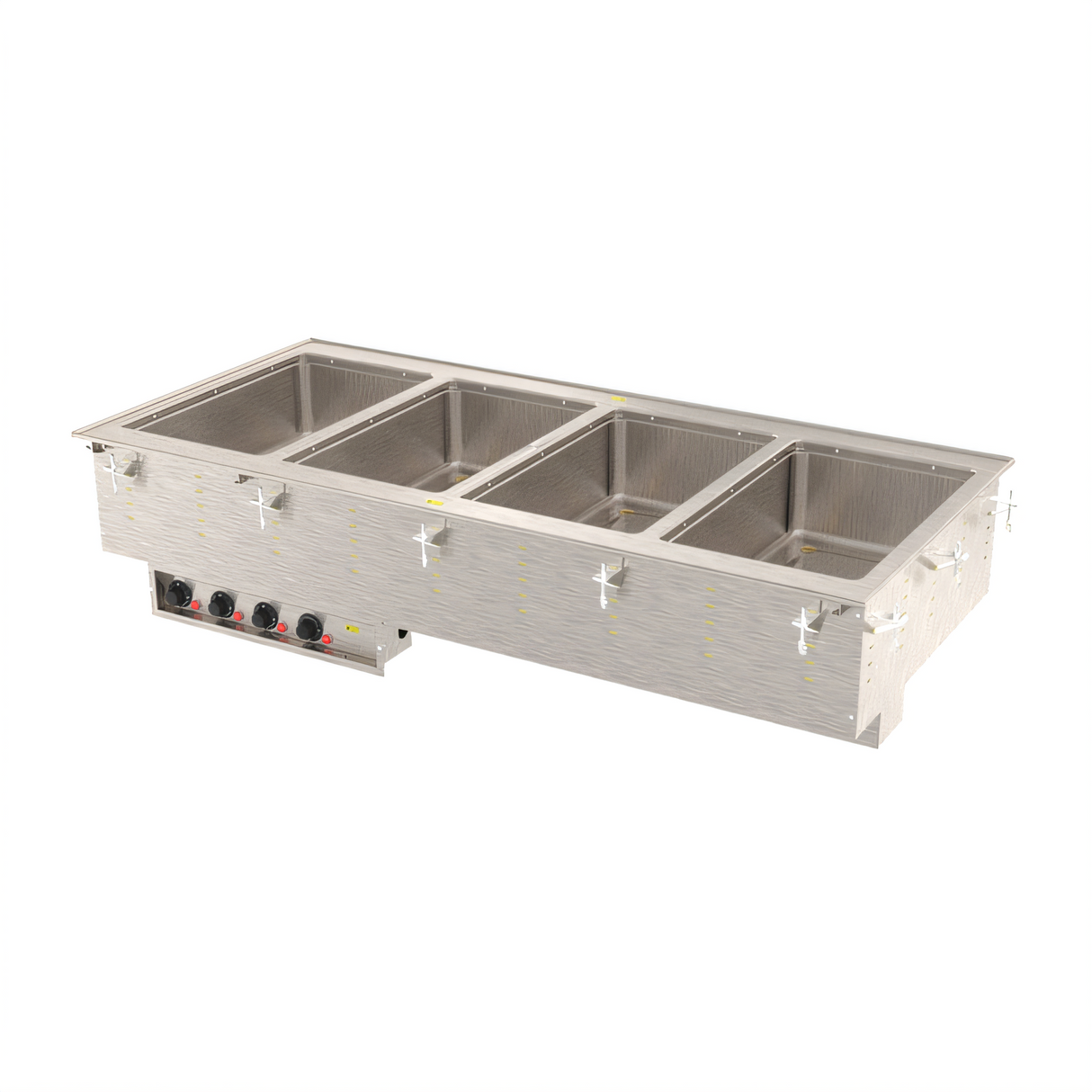

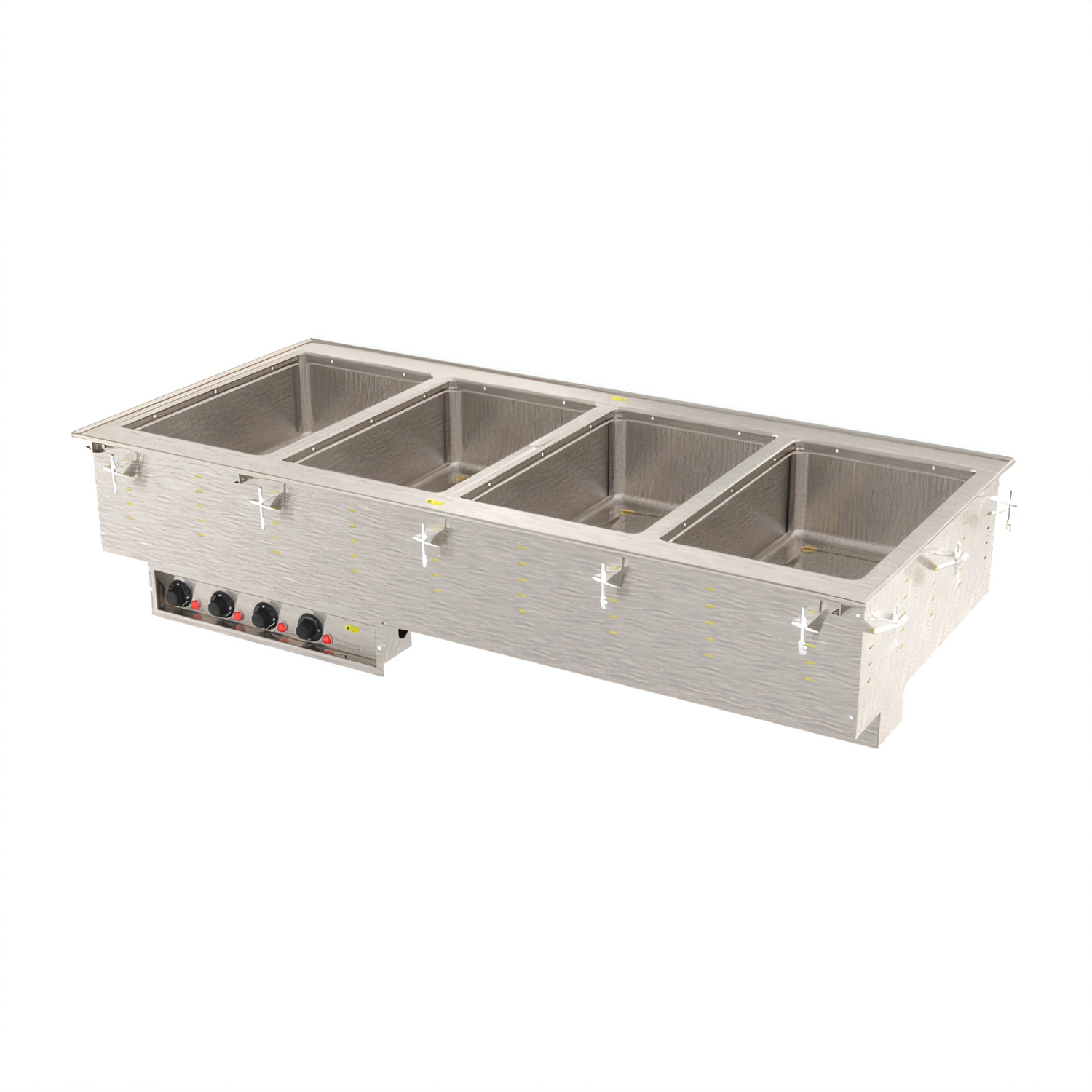

4-Well Marine-Grade Hot Food Drop-In with Auto-Fill – 208 V

Vollrath | Model 3640760HD | 2,500 W Total (625 W per well)

Built for high-volume buffet lines, cafeterias, and serving counters, this Made-in-USA Vollrath drop-in holds four full-size steam pans at safe serving temperatures without the corrosion worries of ordinary wells. 316 marine-grade stainless steel, auto-fill water level control, and individual infinite controls give you consistent results with minimal labor.

Why You’ll Love It

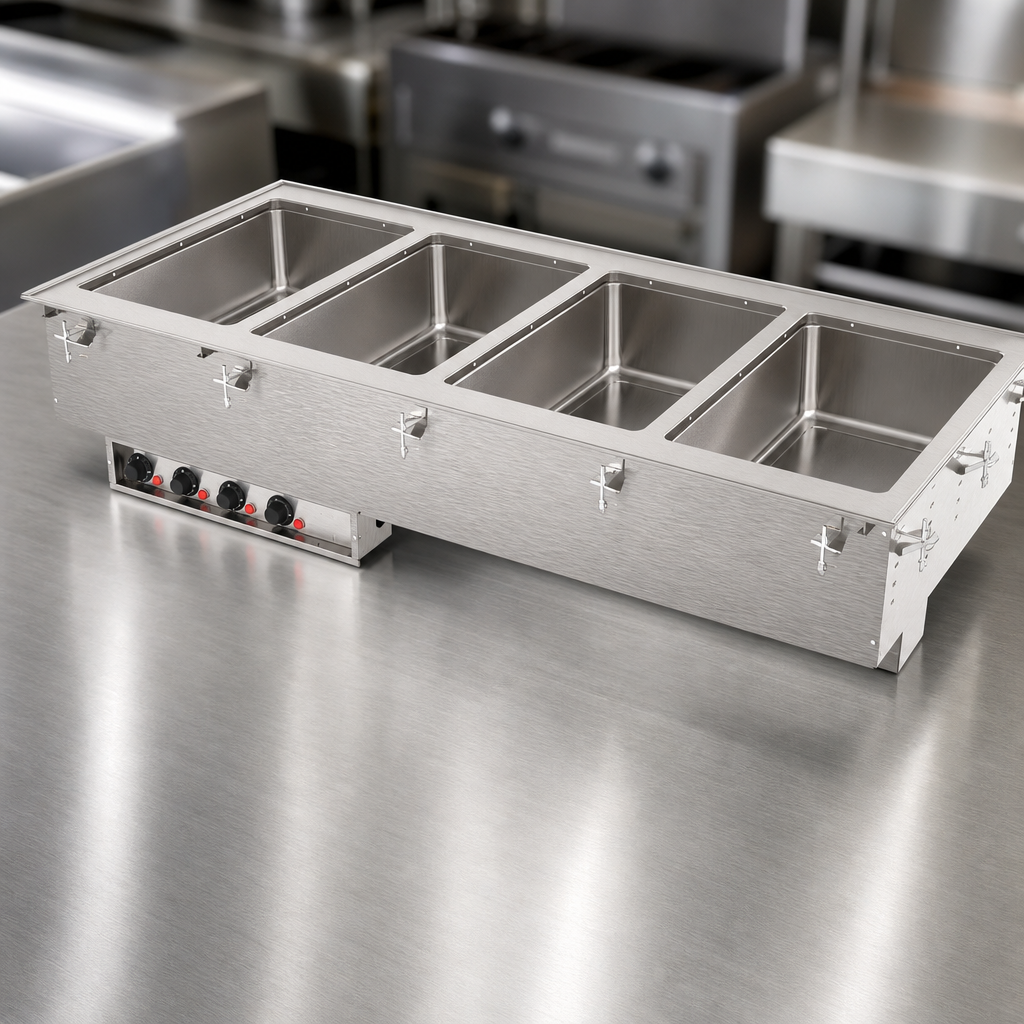

  • Four separate 12" × 20" wells formed from 20 ga 316 marine-grade stainless steel for unmatched corrosion resistance.
  • Wet-operation only design with auto-fill keeps water at the ideal level—no constant refilling or burnt food edges.
  • Individual infinite controls and power-indicator lights let you fine-tune each menu item independently.
  • 1" copper manifold drain with ball valves on every well plus a master shut-off makes end-of-day cleanup fast and splash-free.
  • Drip-free flange and included gasket protect counter tops from moisture.
  • Fully insulated on all sides (including between wells) for energy-efficient heat retention.
  • 18 ga stainless steel top and exterior housing stand up to daily abuse.
  • Ships with mounting clips for counters up to 3" thick—no hard-wiring required thanks to the factory-installed 6' cord and NEMA 6-15P plug.
  • Accepts full-size or fractional pans up to 6" deep; adapter bars recommended for fractional pans.
  • NSF & cULus listed; backed by Vollrath’s 2-year parts & labor warranty.

Specifications

Overall dimensions 54-3/4" W × 26" D × 21-1/2" H (139.1 × 66 × 54.6 cm)
Counter cut-out 54" W × 25-1/4" D (137.2 × 64.1 cm) with 7/8" corner radius
Wells (qty × size) 4 × full-size (12" × 20"), 20 ga 316 S/S, insulated
Operation Wet only, auto-fill; individual infinite controls
Power 2,500 W total (625 W per well)
Electrical 208 V / 60 Hz / 1-ph, 12.0 A, 6' cord, NEMA 6-15P
Drain system 1" copper manifold, individual well shut-offs & master valve
Certifications NSF 4 (wet operation), cULus, Made in USA
Included Mounting clips, under-counter gasket, remote control panel (4' tether)

Installation & Operating Tips

  • This is a zero-clearance, top-mount unit designed for indoor use only.
  • Maintain water in each well during operation to meet NSF performance and ensure even heating.
  • Always open the master drain valve before individual valves when emptying the wells.
Important: Modular drop-ins are built to order and cannot be canceled or returned once the order is placed. Please verify cut-out dimensions and electrical requirements before purchasing.

For complete warranty details, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

54.75in

Depth

26.0in

Shipping Weight

188.0lbs

Controls

infinite controls

Style

individual pans

Construction

stainless steel construction

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2500 watts, 208v/60/1-ph, 12.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
