Vollrath 3640760 Steam Tables & Food Wells
Description

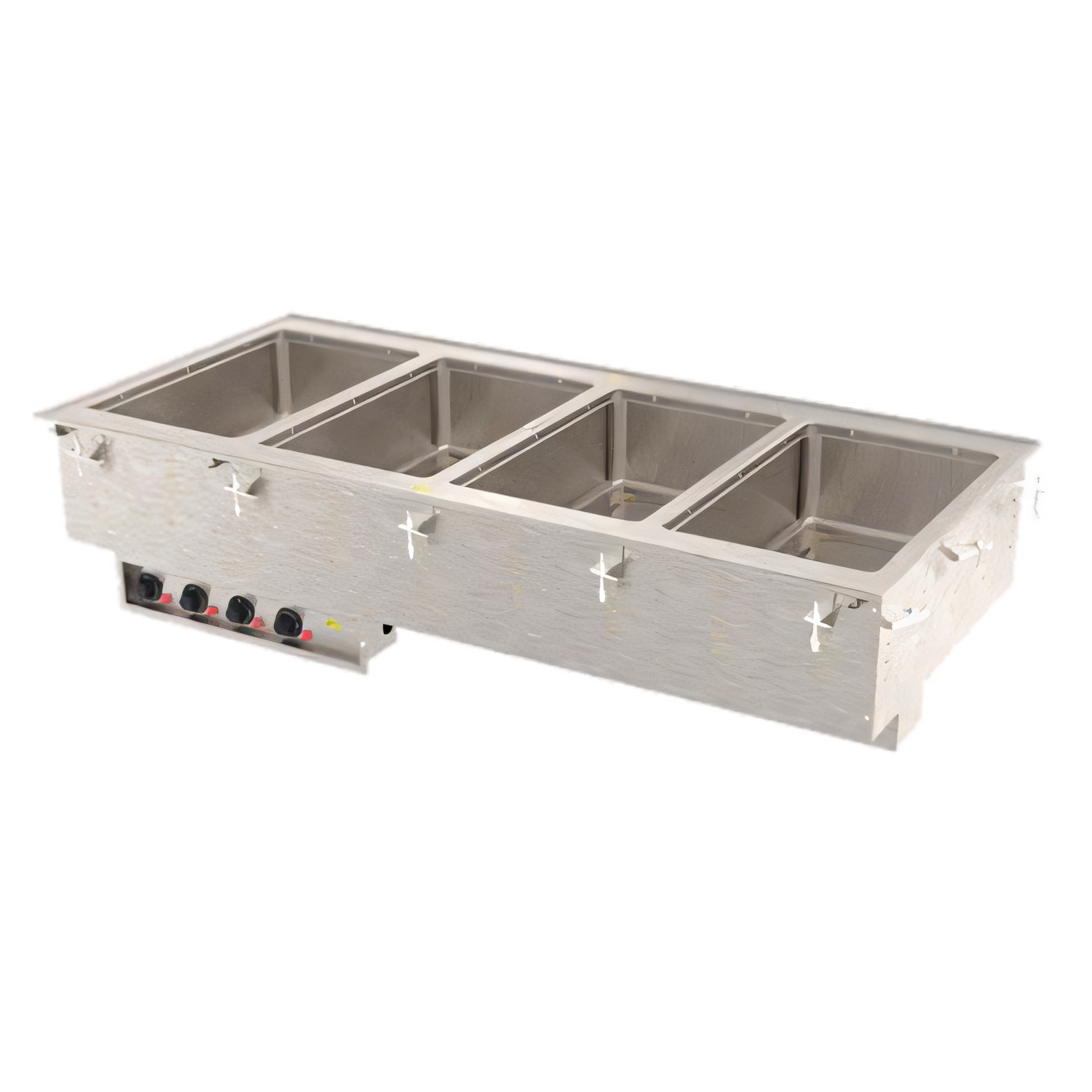

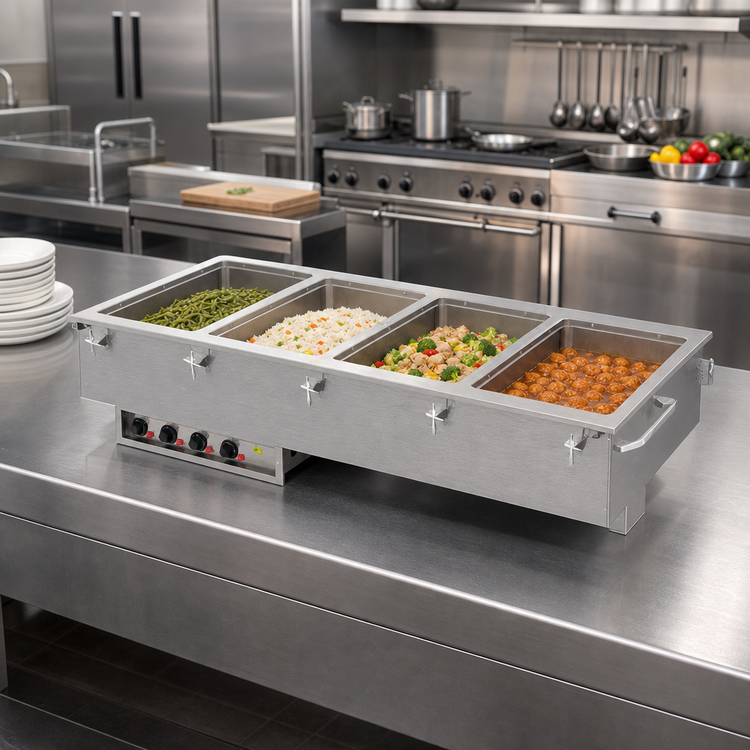

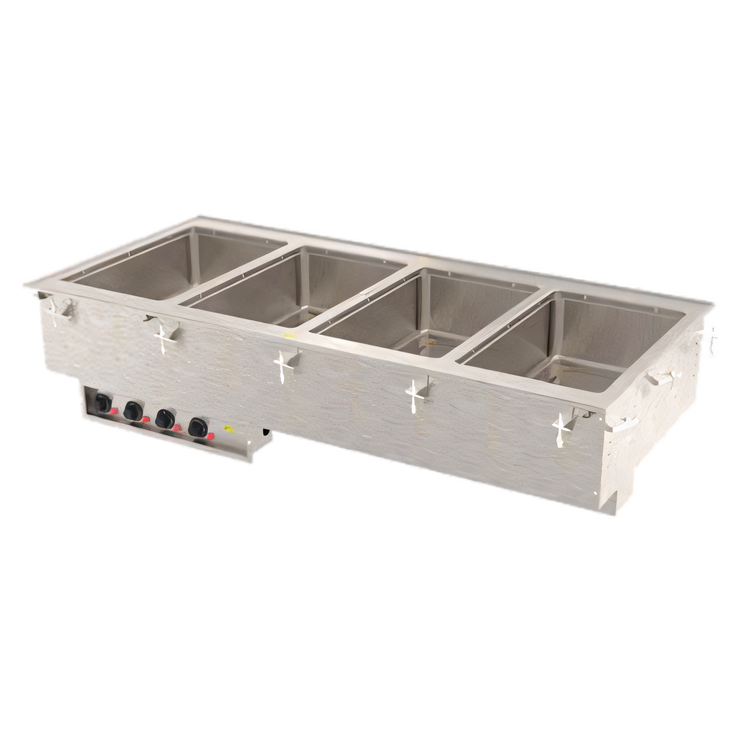

Vollrath 4-Well Drop-In Hot Food Well with Auto-Fill – 208 V
Model 3640760 · Manifold Drain · Infinite ControlsBuilt for high-volume buffet lines, cafeterias, and serving counters, this Vollrath four-well hot module delivers consistent, moisture-rich heat without hard-wiring. Just drop it in, plug it in, and keep your menu items at safe, appetizing temperatures all day long.
Key Features

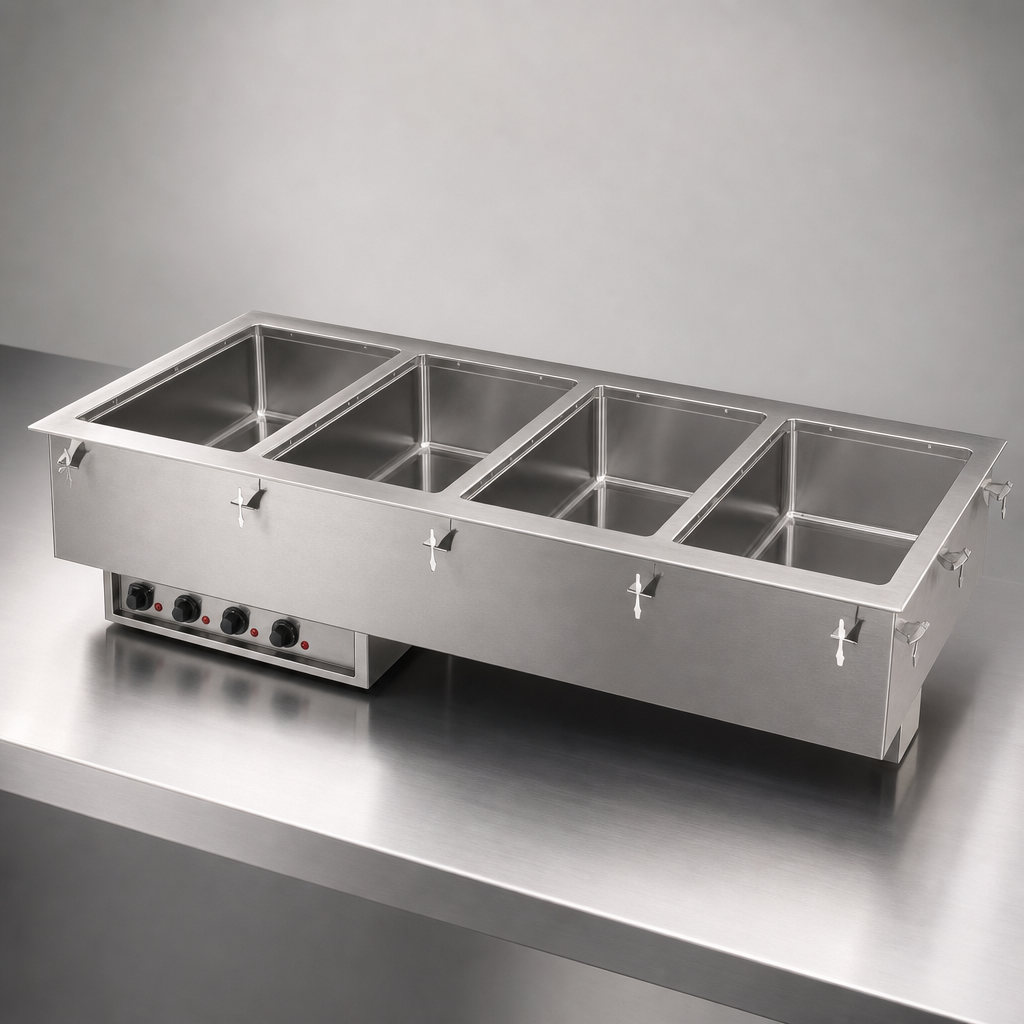

- (4) independent 12" × 20" full-size wells, 20-ga 300-series stainless steel, fully insulated on every side and between wells.
- Auto-fill system maintains correct water level automatically for worry-free wet operation.
- Infinite heat control & dedicated power light for each well, mounted on a remote stainless panel with 4 ft (1.22 m) tether.
- 1" copper manifold drain with master shut-off plus individual ball valves—quickly empty one or all wells.
- Drip-free full-perimeter flange protects counter surfaces; includes gasket and mounting clips for counters up to 3" thick.
- Rugged build: 18-ga stainless top, 18-ga galvanized exterior housing, and Made-in-USA craftsmanship.
- Plug-and-play 6 ft (1.8 m) cord with NEMA 6-15P—no electrician required.
- Zero-clearance installation, indoor use, NSF & cULus listed.
Technical Specifications
| Model & Item # | 3640760 – Manifold Drain with Auto-Fill |
|---|---|
| Well Capacity | 4 × Full-size (12" × 20") pans, up to 6" deep (fractional pans with adapter bars) |
| Heat Type | Wet heat only (water required) |
| Controls | (4) Infinite switches with individual indicator lights |
| Output | 625 W per well / 2,500 W total |
| Electrical | 208 V / 60 Hz / 1-Ph · 12 A · NEMA 6-15P |
| Overall Dimensions | 54 3⁄4" W × 26" D × 21 1⁄2" H |
| Cut-Out Size | 54" W × 25 1⁄4" D · 7⁄8" corner radius required |
| Drain | 1" copper manifold with master & individual well shut-offs |
| Construction | 18-ga stainless top · 20-ga wells · 18-ga galvanized housing |
| Certifications | NSF, cULus |
| Country of Origin | USA |
Cut-out must include a 7⁄8" (2.2 cm) corner radius to ensure proper fit.
Modular drop-ins are built to order and cannot be cancelled or returned. Refer to vollrathfoodservice.com for complete warranty details.
