Vollrath  |  SKU: 3640751HD

Vollrath 3640751HD Steam Tables & Food Wells

$4,004.65
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

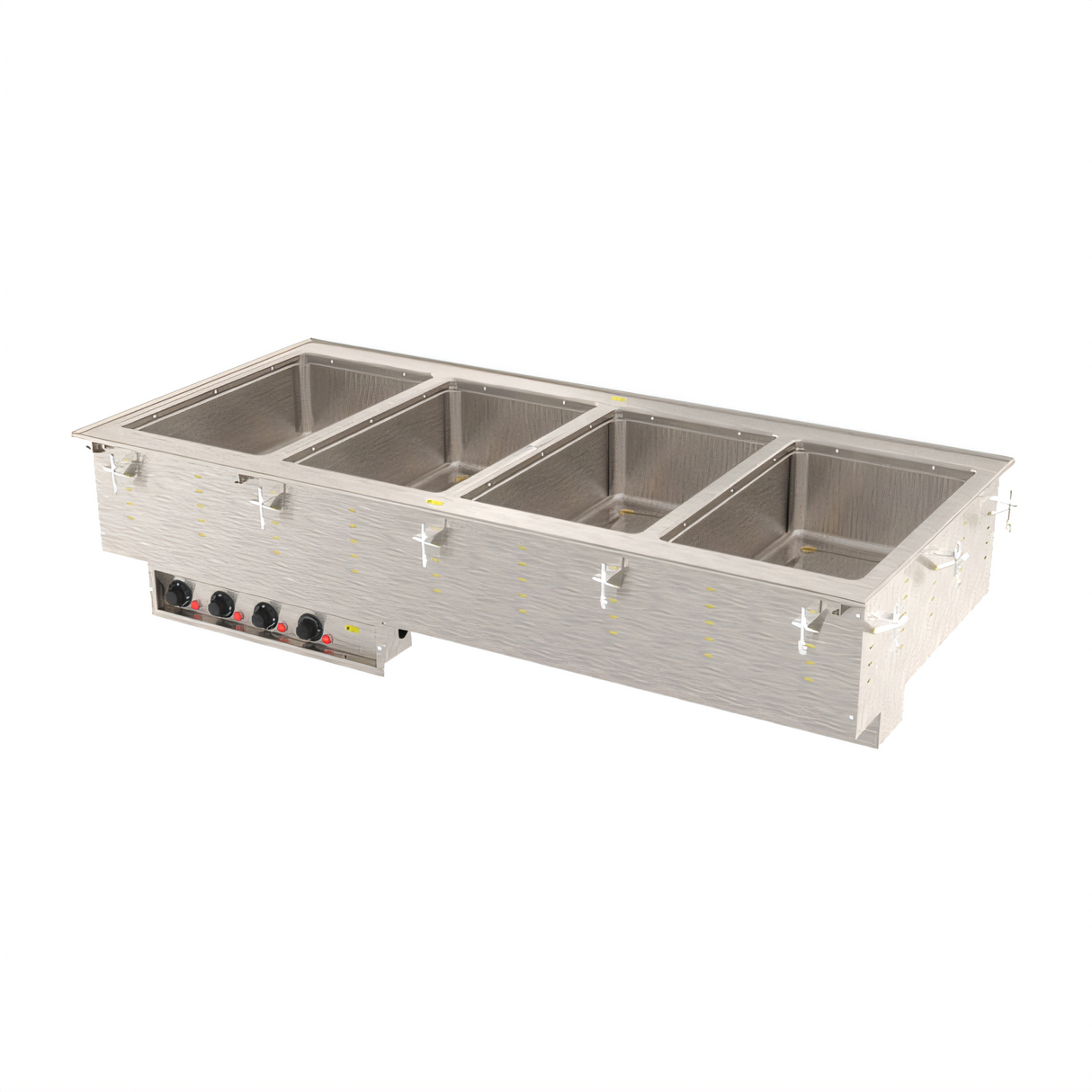

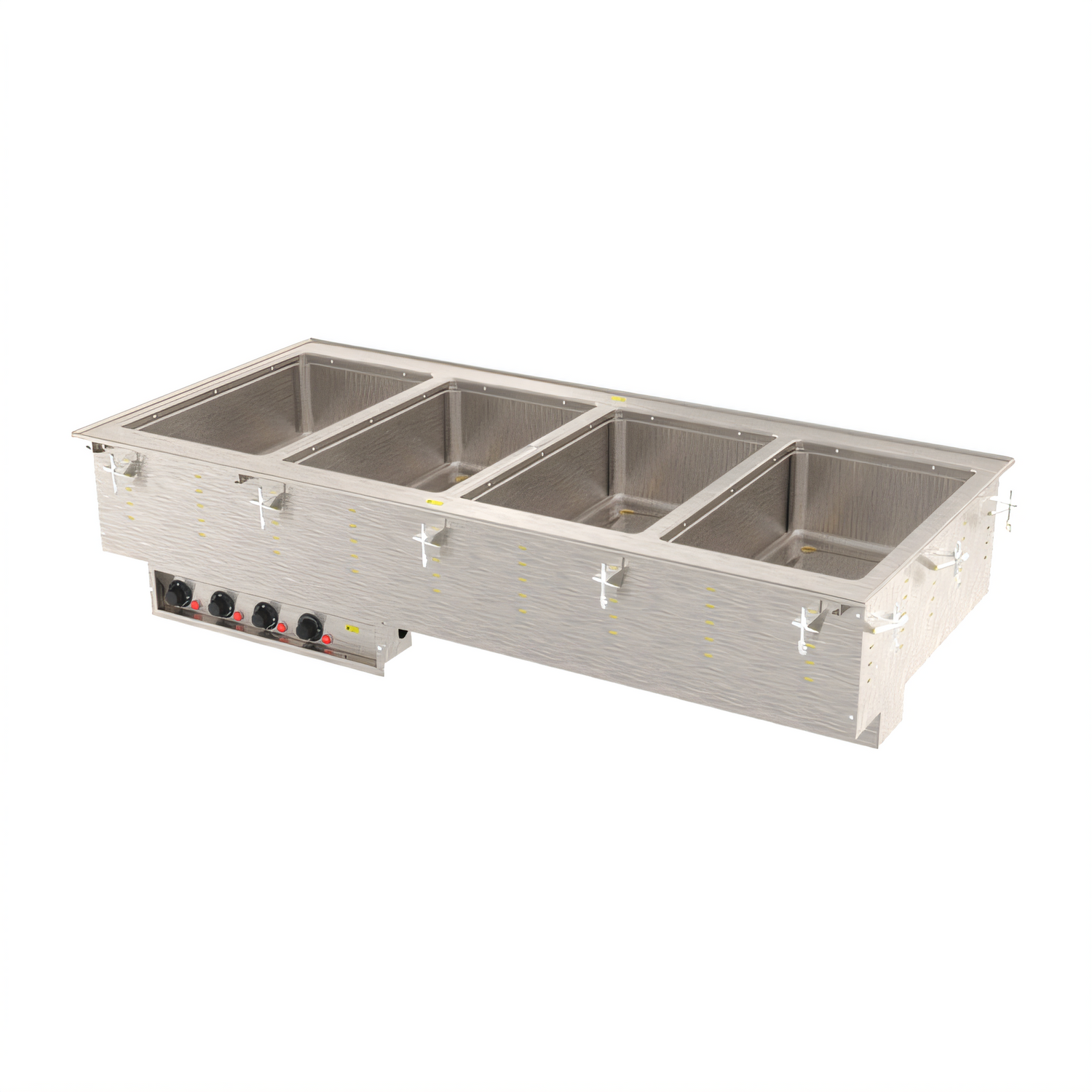

Vollrath 4-Well Marine-Grade Hot Drop-In

208-240 V • 1000 W per well • Infinite controls • Manifold drain

Engineered for high-volume kitchens, this Vollrath drop-in keeps four full-size steam-table pans at safe serving temperatures while standing up to the most corrosive environments. Heavy-duty 316 marine-grade wells, individual infinite controls and a one-inch copper manifold drain make this unit a reliable, service-friendly choice for buffets, cafeterias and cruise ships alike.

Why you’ll love it

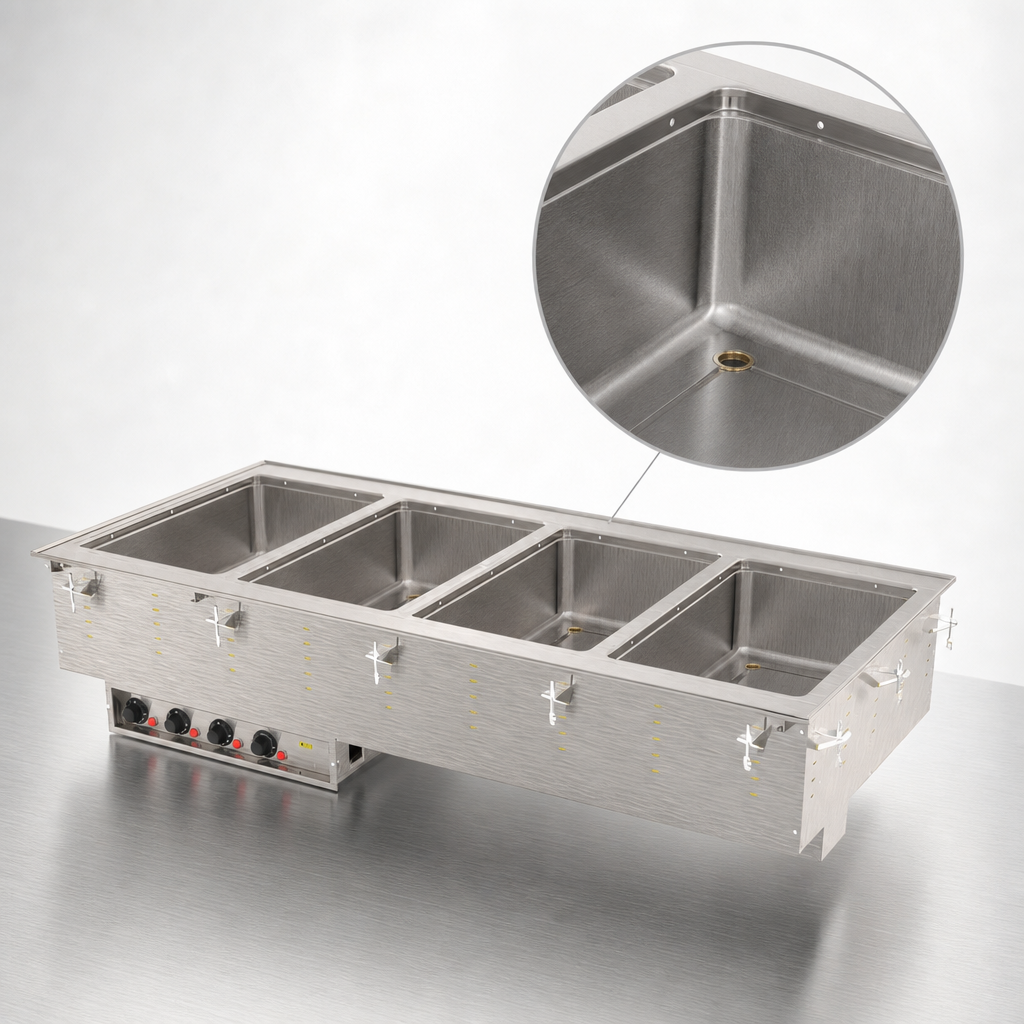

  • (4) independent 12" × 20" drawn wells – 20-gauge, SAE 316 stainless for superior corrosion resistance.
  • Wet operation only for even, NSF-compliant heat distribution.
  • Individual infinite controls on a tethered stainless-steel panel with power indicator lights.
  • 1" copper manifold drain with individual ball-valve shutoffs and master shutoff for fast, drip-free cleanup.
  • Fully insulated on all sides (including between wells) to improve efficiency and protect surrounding cabinetry.
  • 18-gauge stainless top and durable exterior housing – zero-clearance installation rated.
  • Ships with 6 ft (1.8 m) cord and NEMA 6-30P plug – no hard-wiring required.
  • Includes mounting/positioning clips for counters up to 3" (7.6 cm) thick.
  • Accepts full-size or fractional pans up to 6" (15.2 cm) deep – adapter bars recommended for fractional pans.
  • NSF & cULus listed; made in the USA.

Specifications

Wells 4 × full-size (12" × 20") marine-grade 316 stainless, 20 ga
Operation Wet only
Controls 4 × infinite dials, remote panel (4 ft / 121.9 cm tether) with indicator lights
Total Power 4,000 W (1,000 W per well)
Electrical 208-240 V / 60 Hz / 1-phase, 14.4-16.7 A, 6 ft cord with NEMA 6-30P
Drain 1" copper manifold, individual well shutoffs + master shutoff
Overall Dimensions 54 3⁄4" W × 26" D × 21 1⁄2" H (139.1 × 66 × 54.6 cm)
Counter Cutout 54" W × 25 1⁄4" D (137.2 × 64.1 cm) – 7⁄8" (2.2 cm) corner radius required
Pan Capacity Up to 6" (15.2 cm) deep
Construction 18-ga stainless top, stainless exterior housing, fully insulated
Certifications NSF 4 (wet), cULus, Made in USA
Warranty 2-year parts & labor (see Vollrath warranty for details)
Important: This unit meets NSF 4 performance standards only when operated with water in each well. Dry operation may damage the equipment and void the warranty.

Orders for drop-ins cannot be canceled or returned once placed. For full warranty terms, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

54.75in

Depth

26.0in

Shipping Weight

180.0lbs

Controls

infinite controls

Construction

stainless steel construction

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
