Description

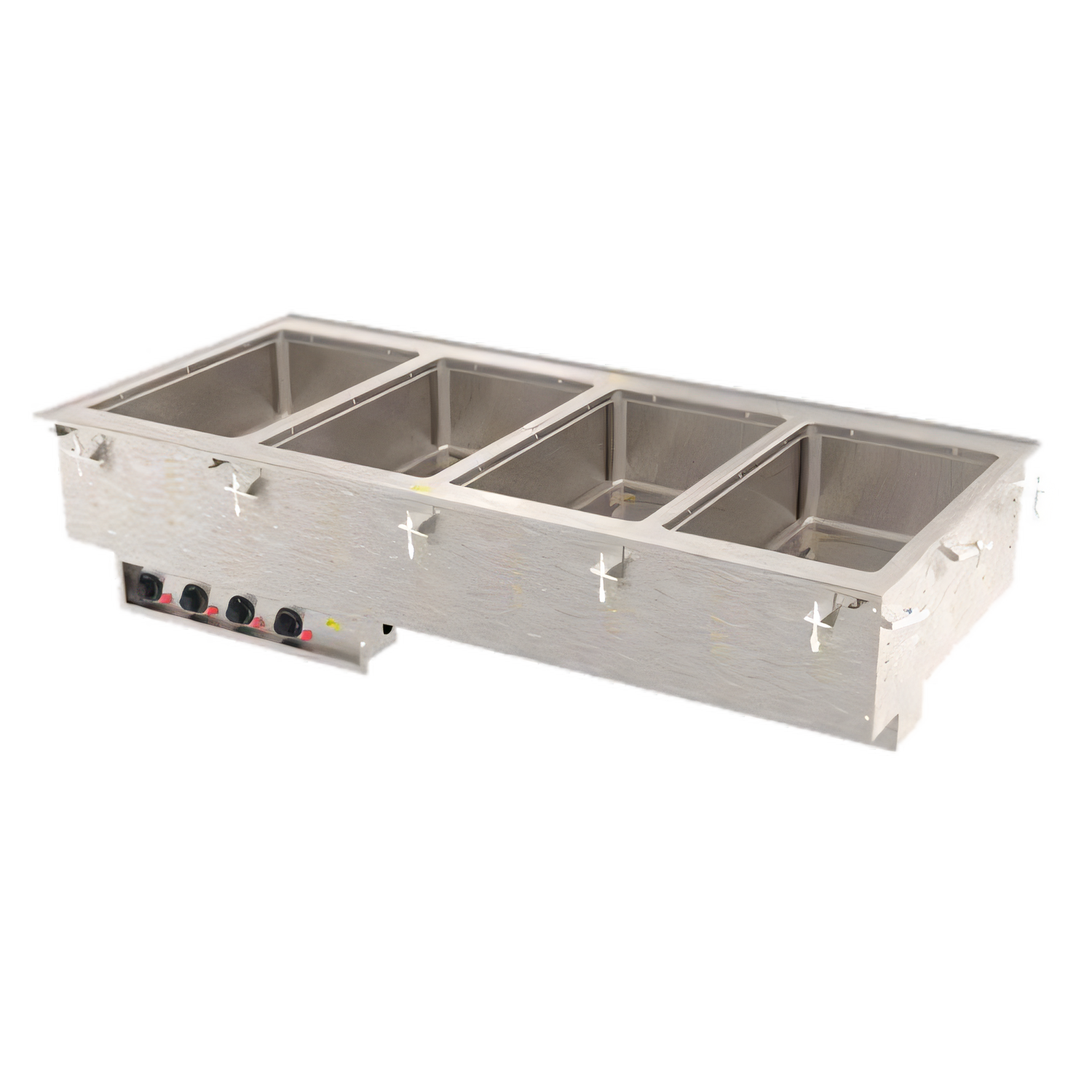

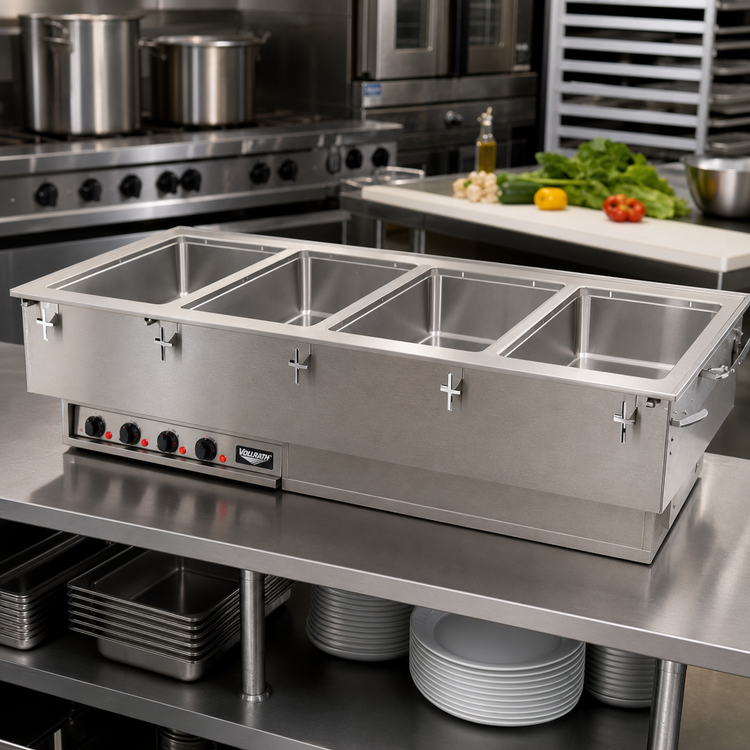

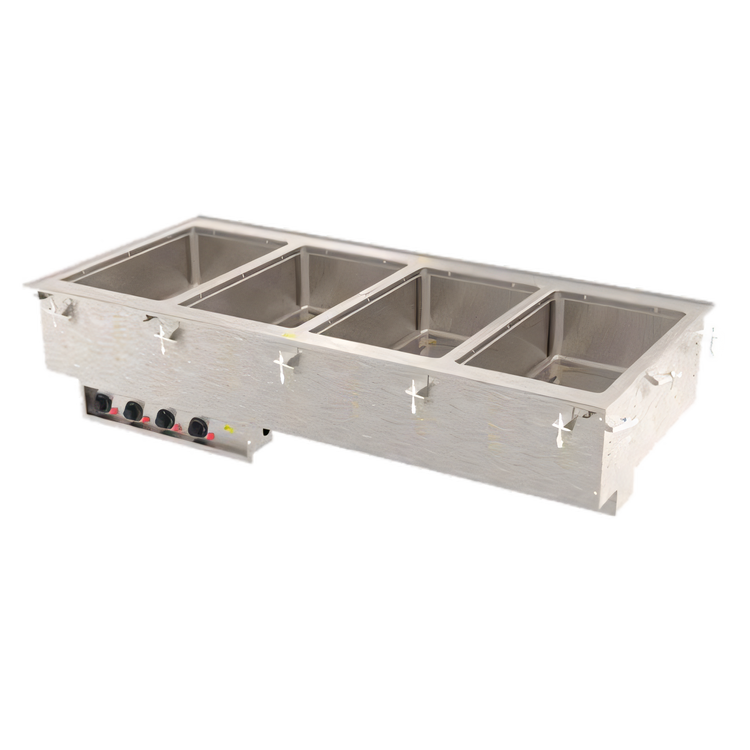

Vollrath 4-Well Electric Drop-In Hot Food Well – Manifold Drain, 208-240 V

Item #3640751 | 1000 W per well | Wet operation only

Serve hot entrées and sides at safe, appetizing temperatures with this U.S-made four-well drop-in from Vollrath. Engineered for top-mount installation and shipped with a factory-installed cord and plug, it delivers professional performance without the need for hard-wiring.

Key features

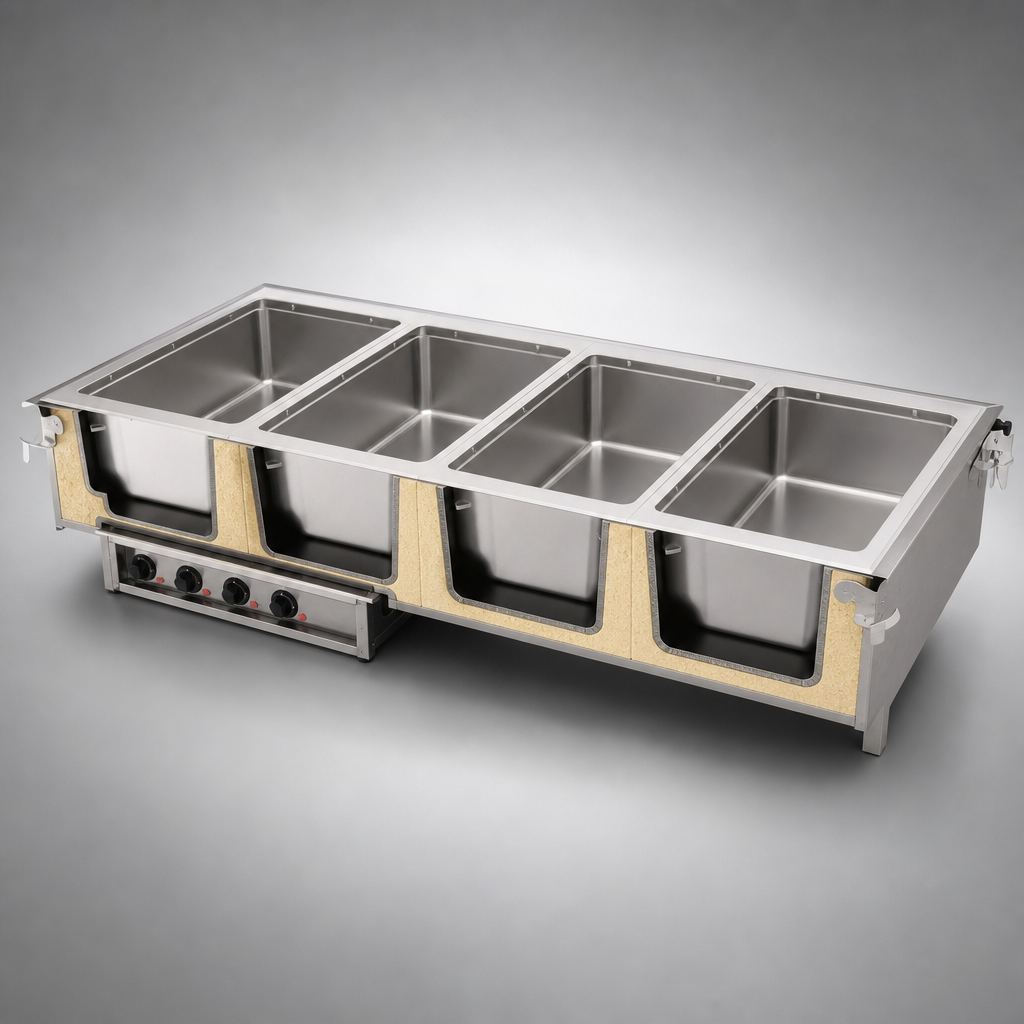

  • (4) independent 12 × 20 in wells—20-ga stainless steel and fully insulated.
  • Wet-heat design meets NSF 4 requirements for even food temps.
  • Infinite control for each well plus power indicator lights on a remote panel (4 ft tether).
  • 1 in copper manifold drain with master shut-off and individual ball valves for every well.
  • 18-ga stainless drip-free flange protects your counter; zero-clearance installation.
  • 6 ft cord with NEMA 6-30P plug—no electrician needed.
  • Mounting clips included for counters up to 3 in thick.
  • Accepts full-size or fractional pans up to 6 in deep (adapter bars recommended).
  • NSF & cULus listed; proudly made in the USA.

Perfect for

  • Buffet lines & cafeterias
  • Convenience stores & delis
  • Catering and banquet service stations
  • Back-of-house holding applications

Technical specifications

Item number 3640751 (manifold drain, infinite controls)
Number of wells 4 × full-size (12 × 20 in)
Operation Wet heat only
Total wattage 4000 W (1000 W per well)
Electrical 208-240 V / 60 Hz / 1-ph – 14.4-16.7 A
Plug NEMA 6-30P (factory-installed 6 ft cord)
Controls 4 independent infinite switches with pilot lights
Drain 1 in copper manifold with master & individual well shut-offs
Pan capacity Up to 6 in (15.2 cm) pan depth
Overall dimensions 54 3⁄4 W × 26 D × 21 1⁄2 H in (139.1 × 66 × 54.6 cm)
Counter cut-out 54 W × 25 1⁄4 D in (137.2 × 64.1 cm) – 7⁄8 in corner radius
Construction 20-ga stainless wells, 18-ga stainless top, 18-ga galvanized exterior
Certifications NSF 4, cULus
Country of origin Made in USA
Warranty 1-year limited (see VollrathFoodservice.com for details)
Important: This unit is designed for wet operation only. Always keep water in each well during use to ensure even heating and maintain NSF compliance.

Modular drop-ins cannot be cancelled or returned once ordered. Do not modify the factory-installed cord or plug—doing so will void the warranty.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

54.75in

Depth

26.0in

Shipping Weight

180.0lbs

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
