Vollrath 3640750HD Steam Tables & Food Wells
Description

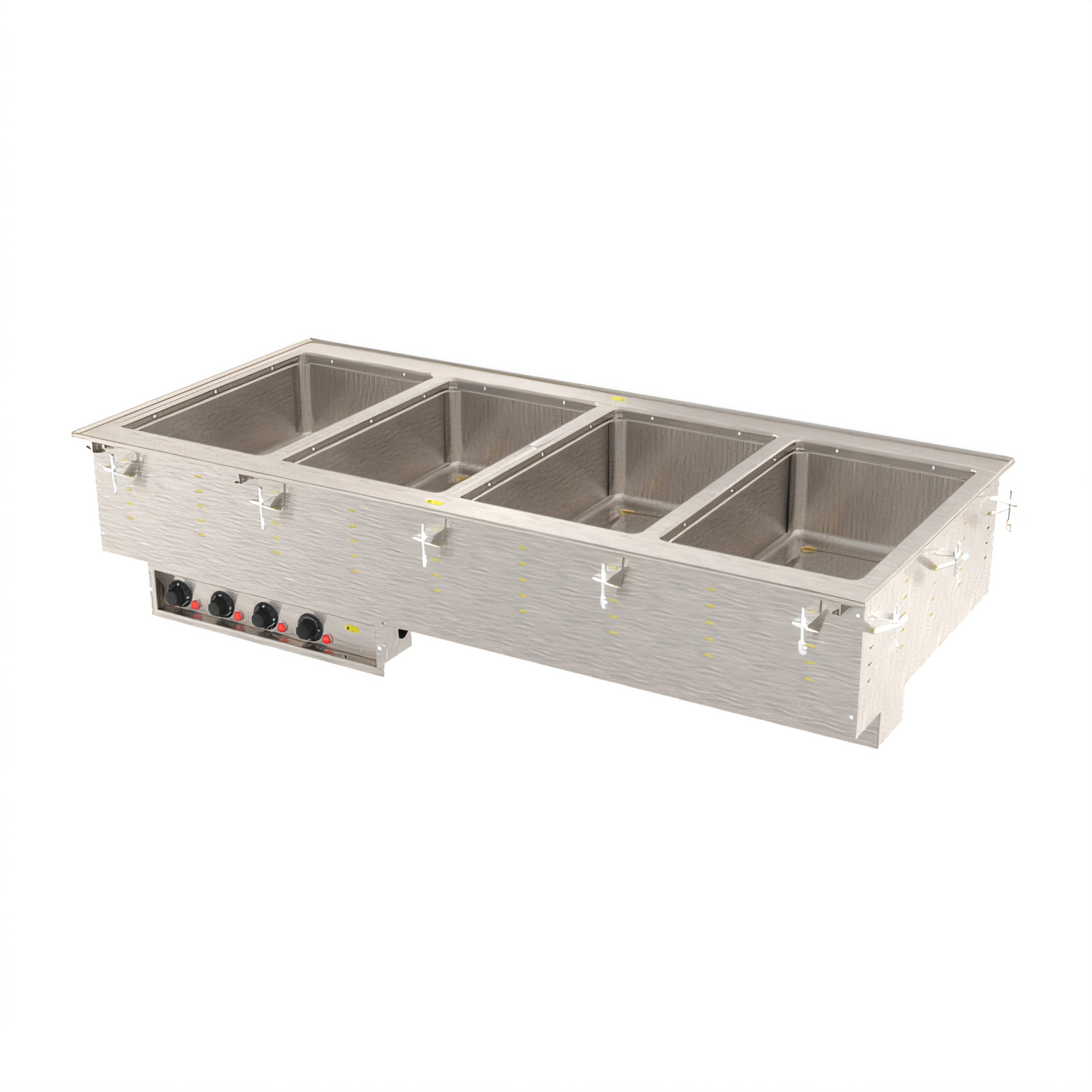

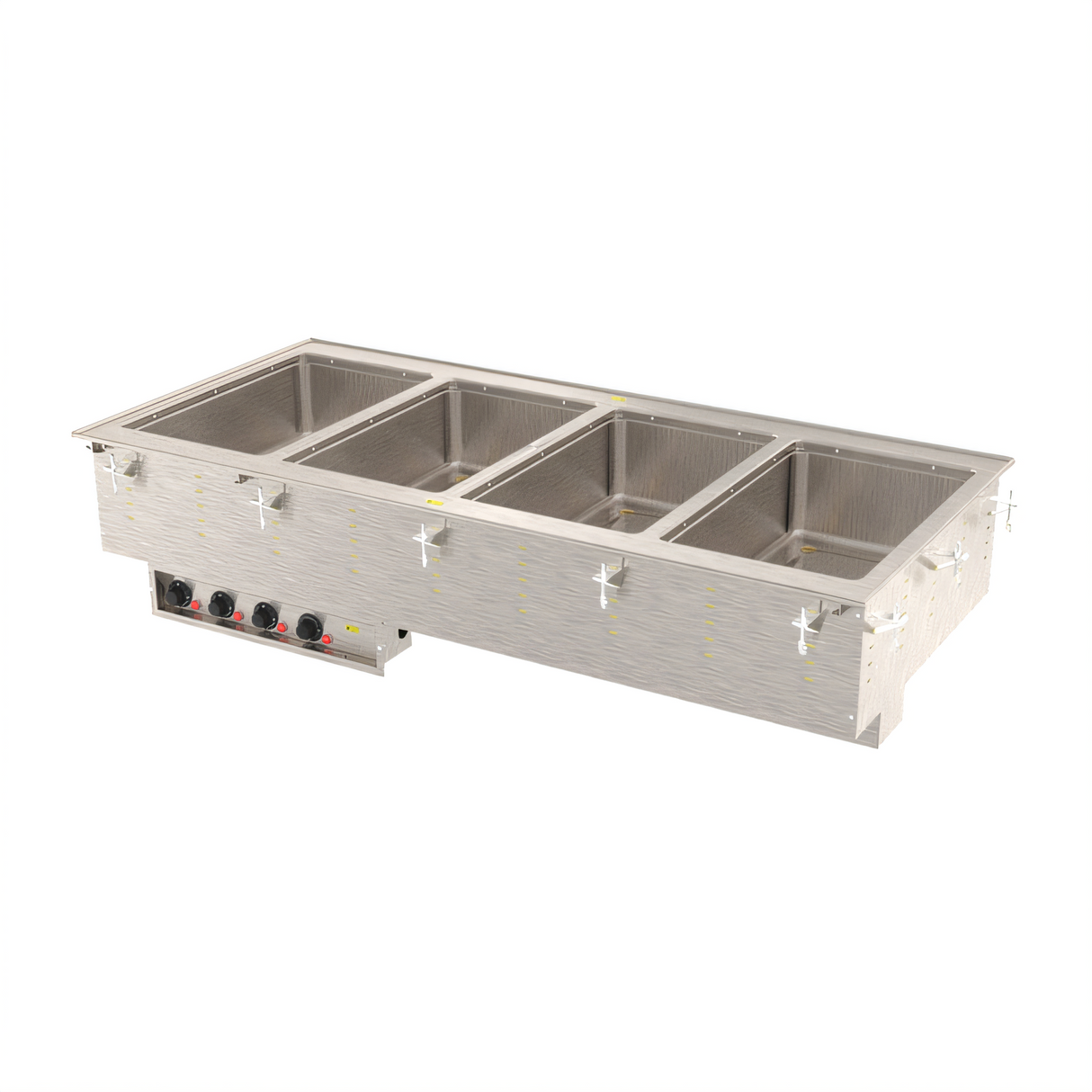

Vollrath 4-Well Modular Hot Drop-In with Marine-Grade Wells
Model 36407HD • 208 V • 2.5 kW • Manifold Drain • Infinite ControlsEngineered for high-volume cafeterias, buffets and serving lines, the Vollrath 36407HD keeps four full-size food pans at safe, appetizing temperatures while standing up to the most punishing commercial environments. Drawn Type-316 stainless wells, heavy-gauge construction and a copper manifold drain system deliver unmatched durability and ease of use—right out of the box, no hard-wiring required.
Key benefits

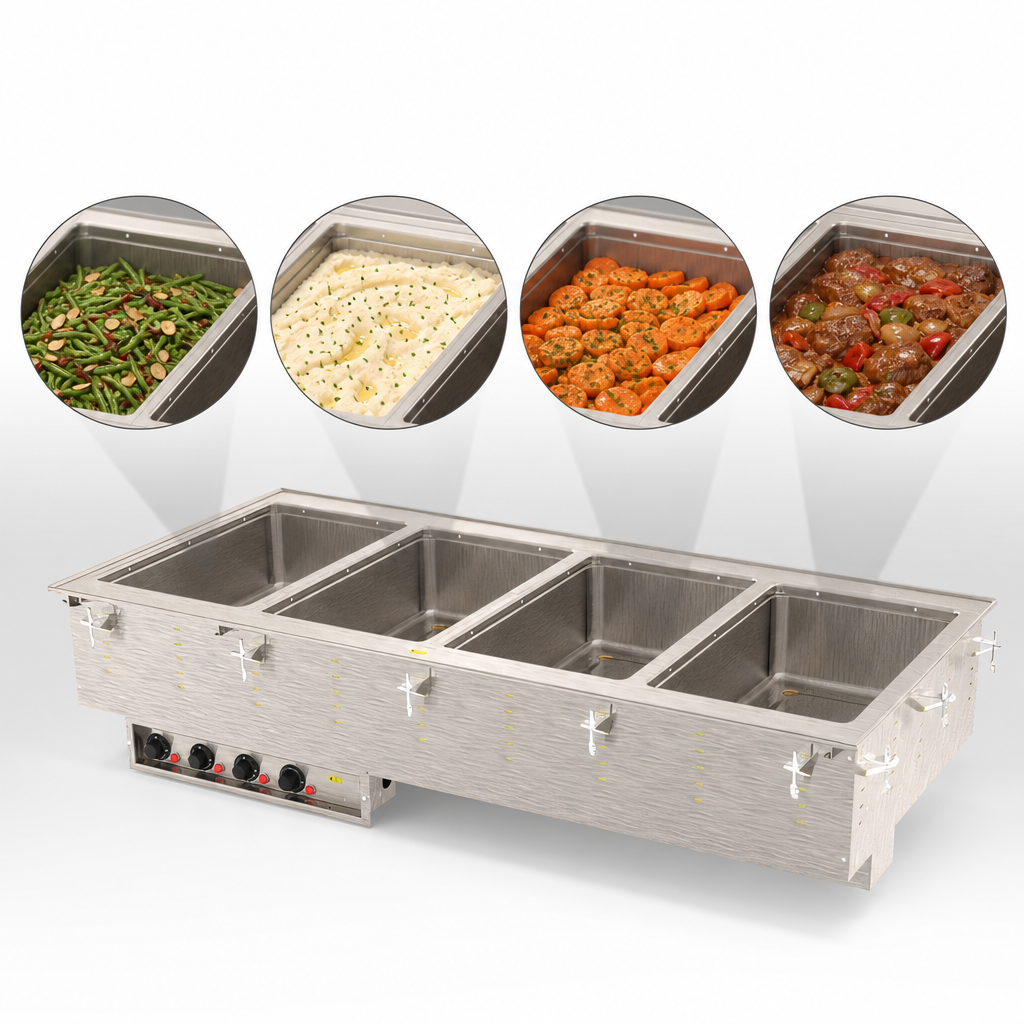

- 4 individually insulated wells accept full-size (12 × 20 in) or fractional pans up to 6 in deep
- Marine-grade 20 ga Type-316 stainless steel resists chemicals & corrosion—ideal for high-salinity and cleaning-chemical exposure
- Wet-heat design for superior, even holding; meets NSF 4 performance standards when operated with water
- Individual infinite controls with power indicator lights let you fine-tune each well independently
- 1 in copper manifold drain with master shutoff plus separate ½ in ball valves under every well for fast, mess-free emptying
- Remote stainless control panel (4 ft tether) mounts where you want it for ergonomic operation
- Includes mounting/positioning clips for counters up to 3 in thick—zero-clearance installation
- 6 ft factory-installed cord & NEMA 6-15P plug—simply drop-in, plug-in and serve
- Made in the USA, cULus listed & NSF certified
At-a-glance specs
| Capacity | (4) full-size wells, 12 × 20 in (accepts pans up to 6 in D) |
|---|---|
| Operation | Wet heat only • individual infinite controls |
| Output | 2.5 kW total • 625 W per well |
| Electrical | 208 V / 60 Hz / 1-phase • 12 A • NEMA 6-15P cord & plug (included) |
| Drainage | 1 in copper manifold with master shutoff + individual ½ in ball-valve drains |
| Construction | 18 ga stainless top • stainless exterior housing • 20 ga marine-grade wells • full fiberglass insulation |
| Overall dimensions | 54 3⁄4 W × 26 D × 21 1⁄2 H in (139.1 × 66 × 54.6 cm) *Manifold adds 6 1⁄2 in (16.5 cm) to overall height |
| Counter cut-out | 54 W × 25 1⁄4 D in • 7⁄8 in corner radius required |
| Certifications | NSF • cULus • Made in USA |
| Warranty | 2-year parts & labor (see VollrathFoodservice.com for full policy) |
Need to hold fractional pans? Use Vollrath adapter bars (sold separately, item #19186) for a perfectly sealed fit.
