Vollrath 3640750 Steam Tables & Food Wells
$3,281.10
Unit price
/
Unavailable
Description

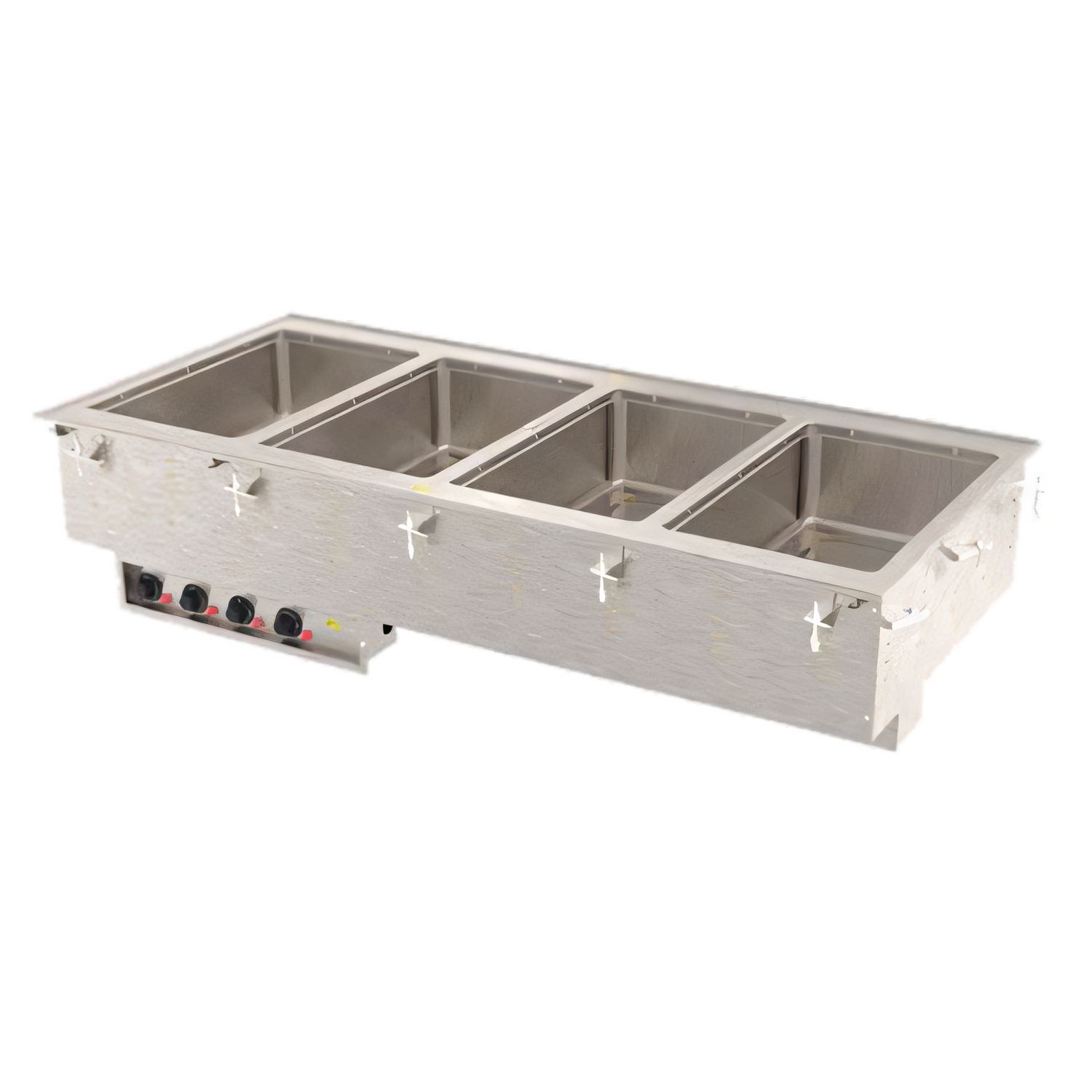

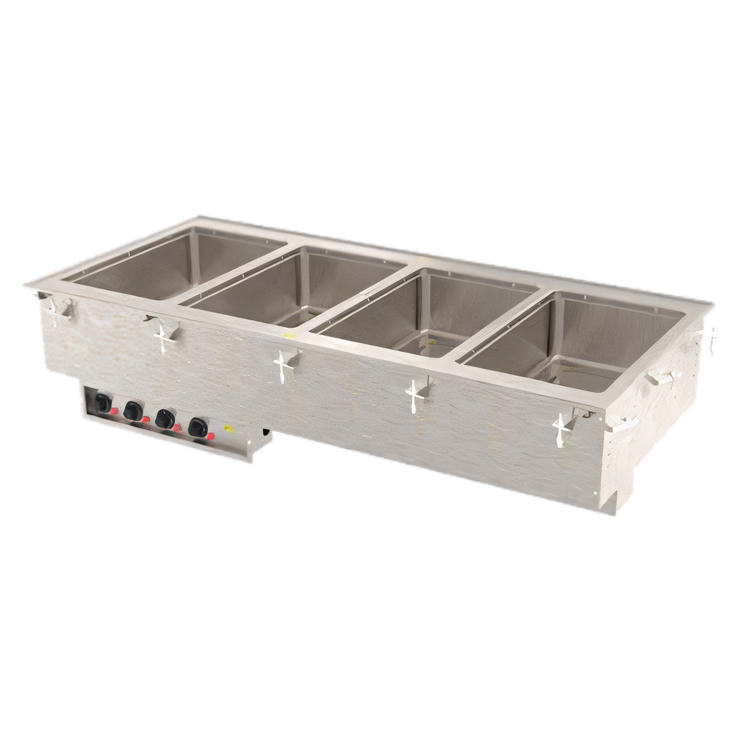

Vollrath 4-Well Drop-In Hot Food Well – 208 V, Infinite Control, Manifold Drain
Model 36407 (standard manifold, 625 W per well)Keep entrées, sides and sauces at perfect serving temperature with this NSF-listed, four-well drop-in from Vollrath. Designed for wet operation only, each 12" × 20" well is individually heated and controlled, delivering the precise holding performance busy kitchens demand—without the expense and hassle of hard-wiring.
Important: This unit is wet-operation only. Always keep water in the wells for even heating and to maintain NSF 4 compliance.
Modular drop-ins cannot be cancelled or returned once ordered.
Key Features

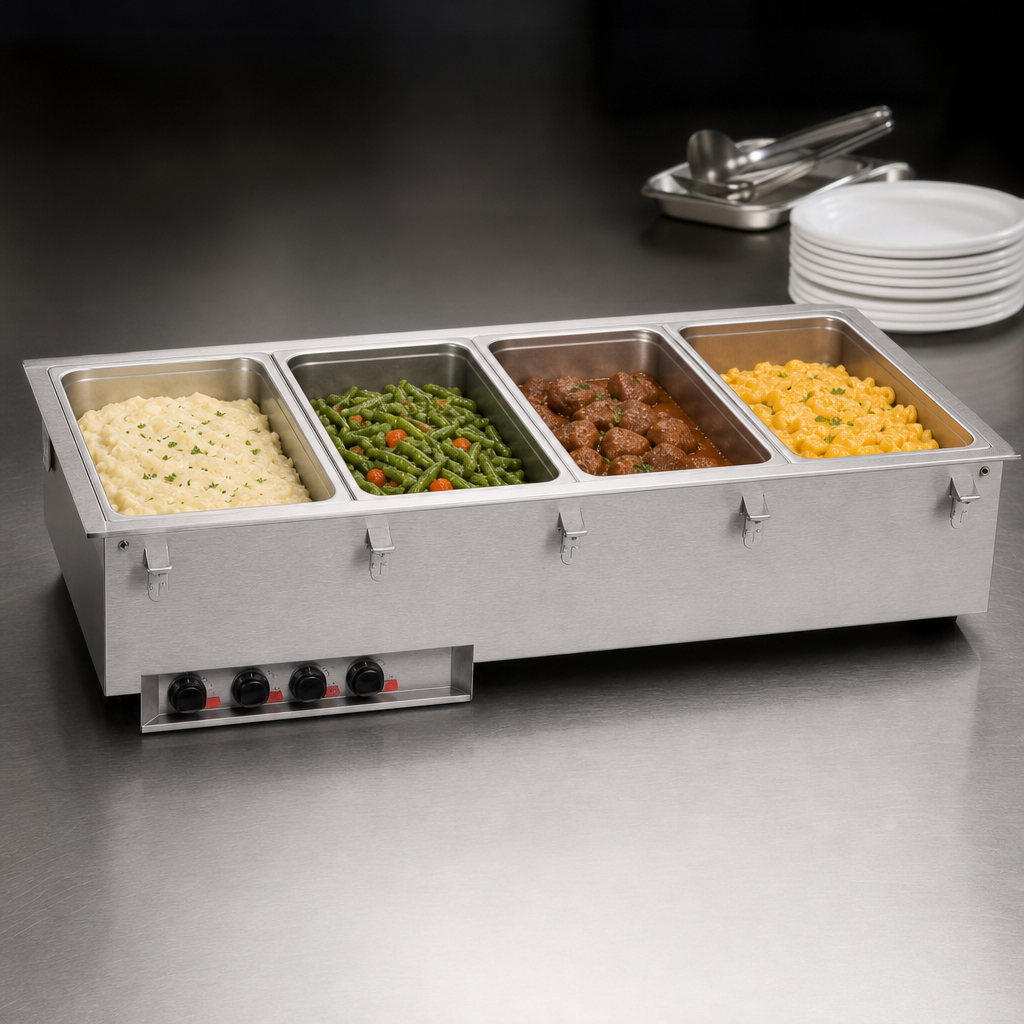

- Four insulated 12" × 20" (full-size) wells fabricated from 20-gauge stainless steel
- Individual infinite controls with power indicator lights on a remote stainless-steel panel (4 ft tether)
- 1" copper manifold drain with individual ball-valve shutoffs plus master shutoff—quick, consolidated draining
- Drip-free 18-gauge stainless-steel top flange for a clean, finished counter surface
- Ships with 6' cord and NEMA 6-15P plug—no electrician required
- Includes mounting/positioning clips for counters up to 3" thick; zero-clearance installation
- Accepts pans up to 6" deep; adapter bars recommended for fractional pans
- NSF & cULus listed; proudly Made in the USA
Technical Specifications
| Operation | Wet (water bath required) |
|---|---|
| Number of wells | 4 individually heated wells |
| Total wattage | 2,500 W (≈625 W per well) |
| Electrical | 208 V / 60 Hz / 1-phase, 12.0 A, cord & NEMA 6-15P plug |
| Overall dimensions | 54 ¾" W × 26" D × 21 ½" H (139.1 × 66 × 54.6 cm) |
| Counter cut-out | 54" W × 25 ¼" D; ⅞" corner radius required |
| Well size (each) | 12" × 20" full-size steam-table pan opening |
| Construction – top | 18-gauge 300-series stainless steel |
| Construction – housing | 18-gauge galvanized steel, fully insulated |
| Drain connection | 1" copper manifold with ½" MPT branch valves |
| Controls | 4 infinite (dial) thermostats, illuminated power indicators |
| Certifications | NSF 4, cULus |
| Country of origin | USA |
Installation & Clearance
- Zero-clearance sides allow packed counter layouts
- Indoor use only; room temperature and HVAC conditions can affect holding temps
- Cut-out must include the specified corner radius for proper support & sealing
What’s Included
- Vollrath 4-well drop-in hot module
- Remote stainless control panel with 4 ft tether
- 6' (1.8 m) power cord w/ NEMA 6-15P plug
- Mounting & positioning clips
Covered by Vollrath’s standard limited warranty. See manufacturer site for complete terms.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
54.75in
Depth
26.0in
Shipping Weight
165.0lbs
Controls
infinite controls
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Pan Capacity
(4) full size (12" x 20")
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 2500 watts, 208v/60/1-ph, 12.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
