Description

Vollrath 4-Well Modular Hot Drop-In with Marine-Grade Wells

Model 3640711HD | 1000 W per well | 208-240 V Thermostatic

Built for the rigors of high-volume service lines, this Vollrath drop-in hot food unit delivers precise, even holding power in a compact, plug-and-play package—no hard-wiring required.

Why you’ll love it
  • Four independent 12" × 20" wells formed from 20-ga 316 marine-grade stainless steel for unmatched corrosion resistance.
  • Wet-operation only design meets NSF 4 standards and keeps food moist and appetizing.
  • Individual thermostatic controls with power-on indicator lights let you dial in the perfect temperature for each menu item.

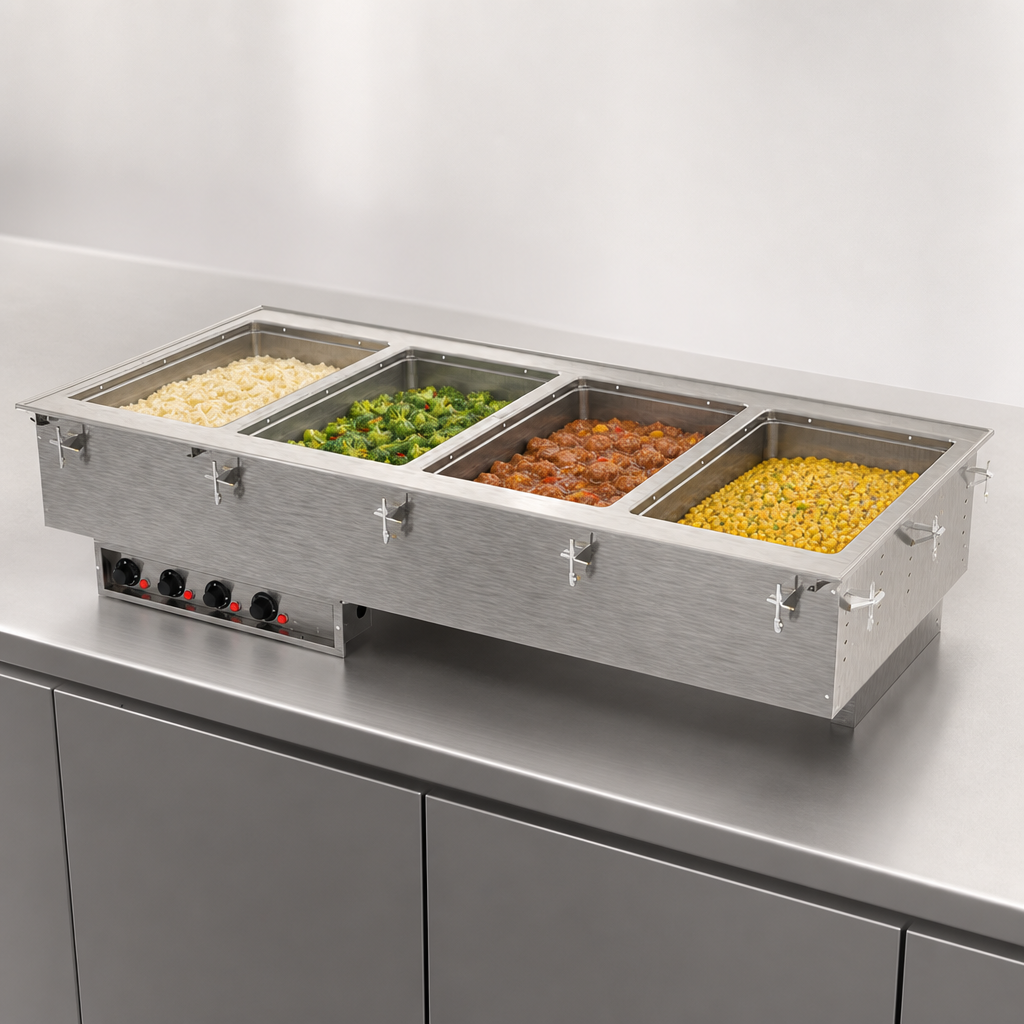

  • Wells are fully insulated—on all sides and between wells—to boost efficiency and protect countertops.
  • ½" drains with dedicated ball-valve shut-offs simplify cleaning and change-outs.
  • 18-ga stainless top with drip-free flange drops flush for a sanitary, professional look.
  • Remote stainless control panel on a 4 ft (121.9 cm) tether for flexible mounting.
  • Includes factory-installed mounting clips for counters up to 3" (7.6 cm) thick.
  • 6 ft (1.8 m) cord with NEMA 6-30P plug—just install and power up.
  • NSF listed, cULus certified and made in the USA.
Specifications
Number of wells 4 (full-size, 12" × 20")
Construction 20-ga 316 stainless wells; 18-ga stainless top & exterior housing
Operation Wet only
Total wattage 4,000 W (1,000 W per well)
Electrical 208-240 V / 60 Hz / 1-ph, 14.4–16.7 A, NEMA 6-30P
Controls 4 independent thermostatic knobs with indicator lights
Overall dimensions 54-3/4" W × 26" D × 15" H (139.1 × 66 × 38.1 cm)
Counter cut-out 54" W × 25-1/4" D, 7/8" (2.2 cm) corner radius
Pan capacity Accepts pans up to 6" (15.2 cm) deep
Drain ½" MPT per well with ball-valve shut-off
Cord length 6 ft (1.8 m)
Agency listings NSF, cULus
Country of origin United States
Recommended accessories (sold separately)
  • Sheet-pan adapter – Vollrath #19186
  • Adapter bars for fractional pans

Backed by a 2-year limited parts & labor warranty. For complete details, please visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

54.75in

Depth

26.0in

Shipping Weight

173.0lbs

Drain

with drain

Style

individual pans

Construction

stainless steel construction

Pan Capacity

(4) full size (12" x 20")

Controls

thermostatic controls

Wet or Dry operation

wet

Insulated or Non-Insulated

insulated

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
