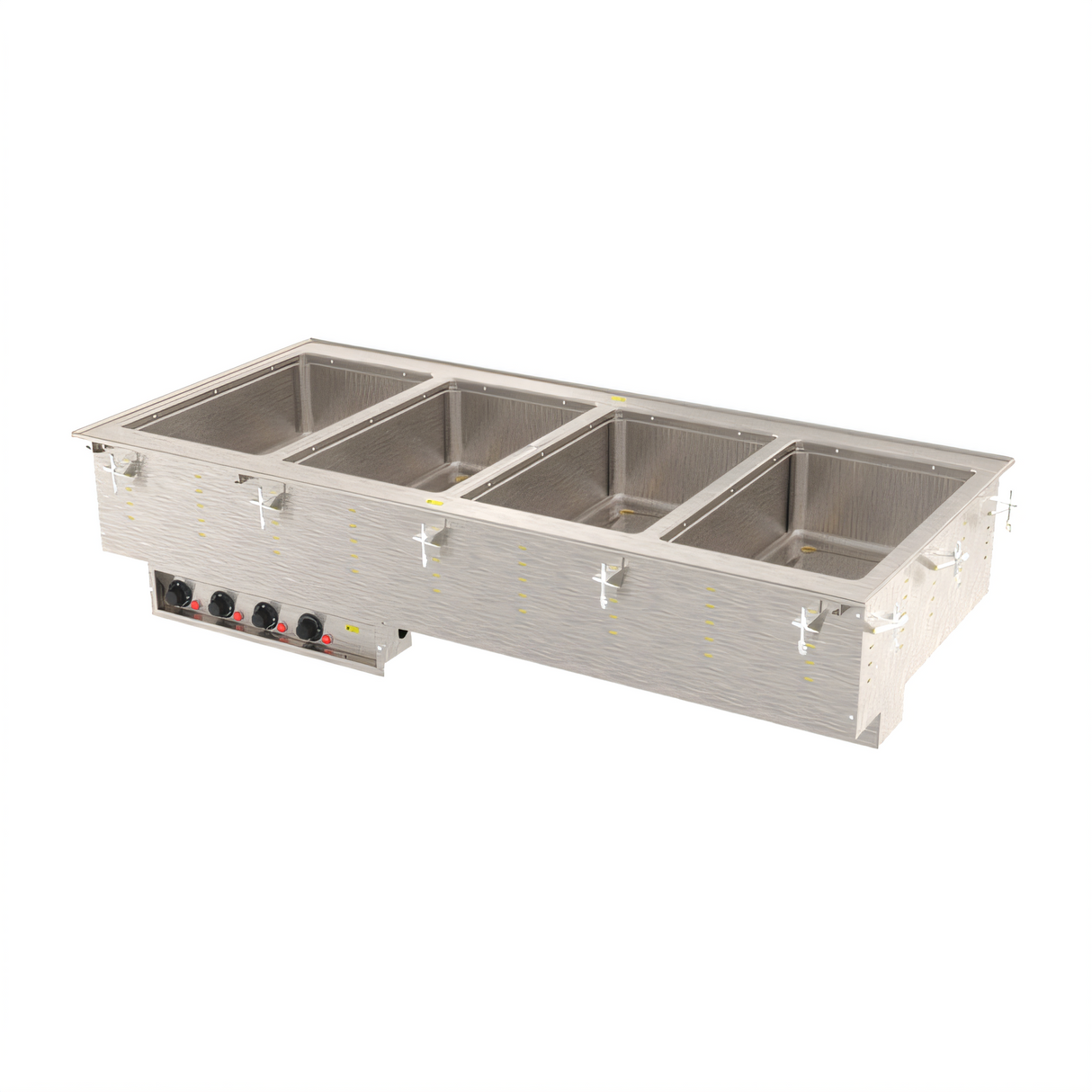

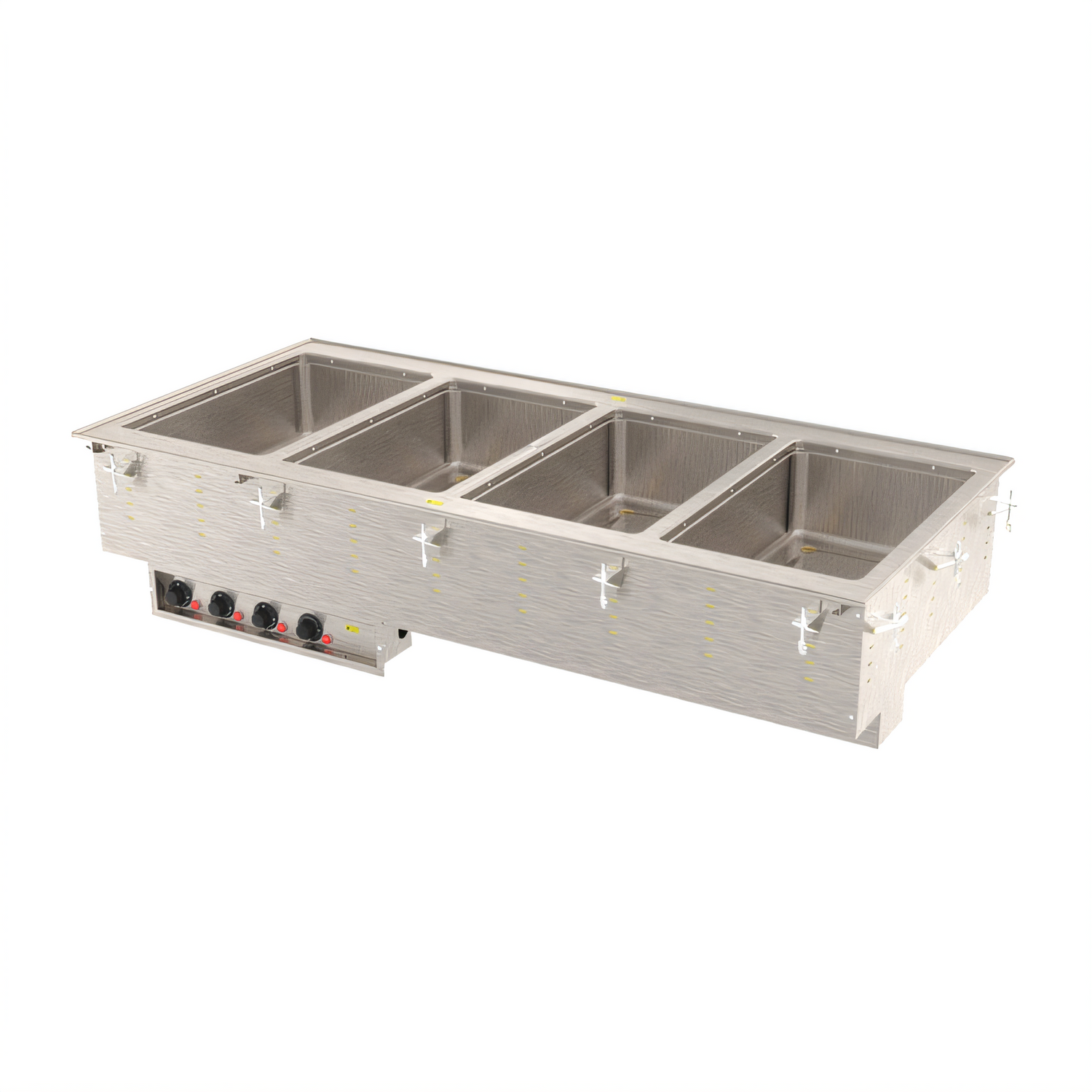

Vollrath 4-Well Drop-In Electric Hot Food Well with Thermostatic Controls, 12 x 20-Inch Insulated Marine-Grade Wells, 208V

Wet Operation, Standard Drain, 2.5 kW, NEMA 6-15P Cord

Keep four full-size pans hot and ready with independent thermostatic control, marine-grade stainless steel wells, and a simple drop-in installation.

  • Four individually controlled 12 x 20-inch wells hold full-size pans and fractional pans up to 6 inches deep.
  • Wet-operation heating uses water for even temperatures and better hot-hold performance.
  • Marine-grade 316 stainless steel wells and stainless steel housing are built for demanding buffet and serving-line use.
  • Insulated construction on all sides helps retain heat and improve efficiency.
  • Includes a 6-foot cord with plug, mounting clips, and gasket for easier drop-in installation.
  • Individual drain shutoffs, a drip-free flange, and service panels simplify cleanup and maintenance.

Overall Dimensions:

54.75"W x 26.0"D x 15.0"H

Product Weight:

168.0 lb

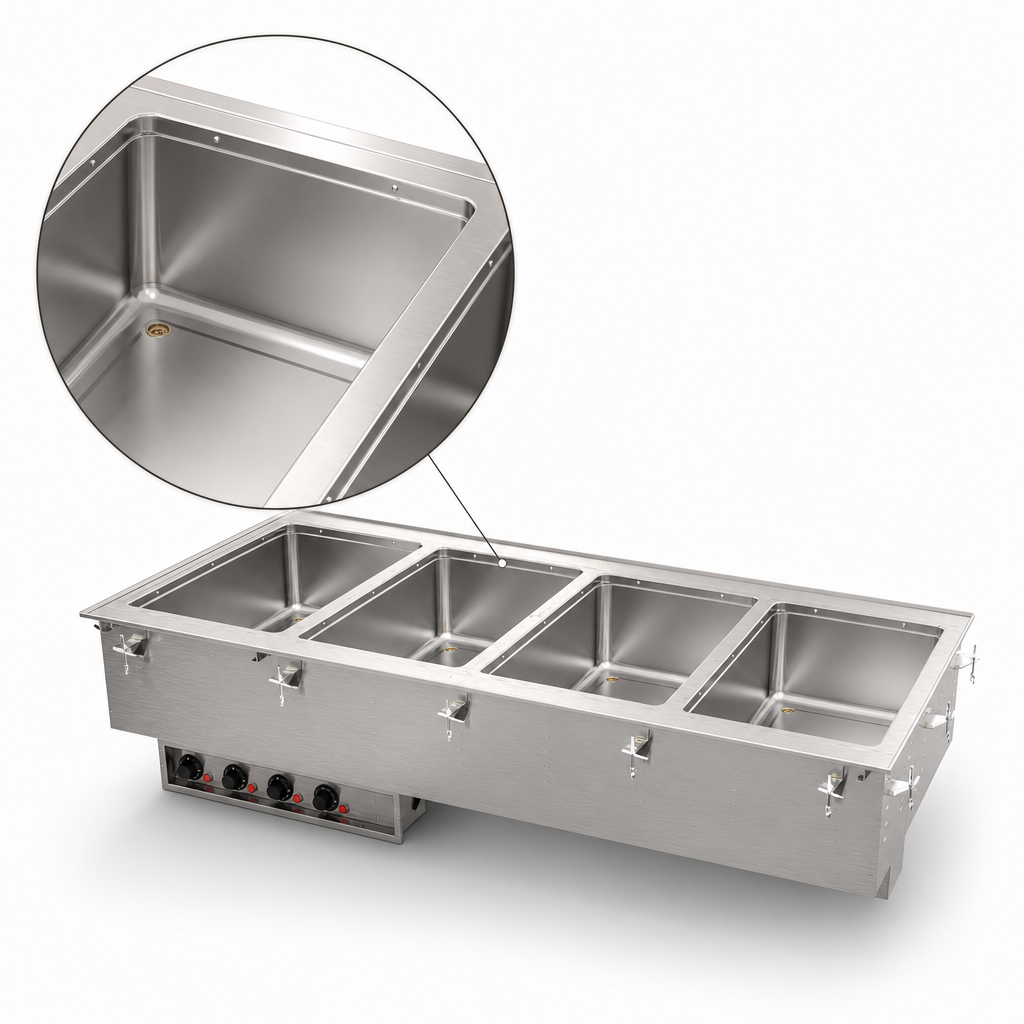

Marine-Grade 316 Stainless Steel Wells

Drawn 20-gauge wells are built from SAE Type-316 stainless steel for corrosion resistance in heavy-use foodservice applications.

Independent Thermostatic Controls

Each well has its own thermostatic control and power indicator light for precise, zone-by-zone temperature management.

Wet-Operation Design

Designed for wet use only; water is required for even heating and proper performance.

All-Sides Insulation

Insulated on all non-exposed sides, including between wells, to help hold heat and reduce energy loss.

Drop-In Installation Kit

Includes mounting clips, gasket, and a 6-foot cord with plug for top-mount installation without hard-wiring.

Individual Drain Shutoffs

Each well includes its own drain shutoff to simplify draining and cleanup.

Drip-Free Flange

A drip-free flange helps contain spills and reduce mess around the counter opening.

Service-Friendly Access

A removable bottom panel provides access for service and maintenance.

Pan Versatility

Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 4 Full-Size Pans
Pan Size 12 x 20 Inches
Controls Thermostatic
Material Stainless Steel
Interior Finish 316 Stainless Steel
Voltage 208 Volts
Amps 12.0 Amps
Watts 2.5 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Cord Length 6 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 55 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 168 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has four individual wells sized for full-size 12 x 20-inch pans.
It is wet operation only, and water is required for even heating.
No. It includes a 6-foot cord with plug and does not require hard-wiring.
The cutout size is 54 x 25-1/4 inches and requires a 7/8-inch corner radius.
This HD model includes a two-year warranty against defects in materials and workmanship.
